2019 Peugeot Expert Owner's Manual

33
QUESTIONANSWERSOLUTION

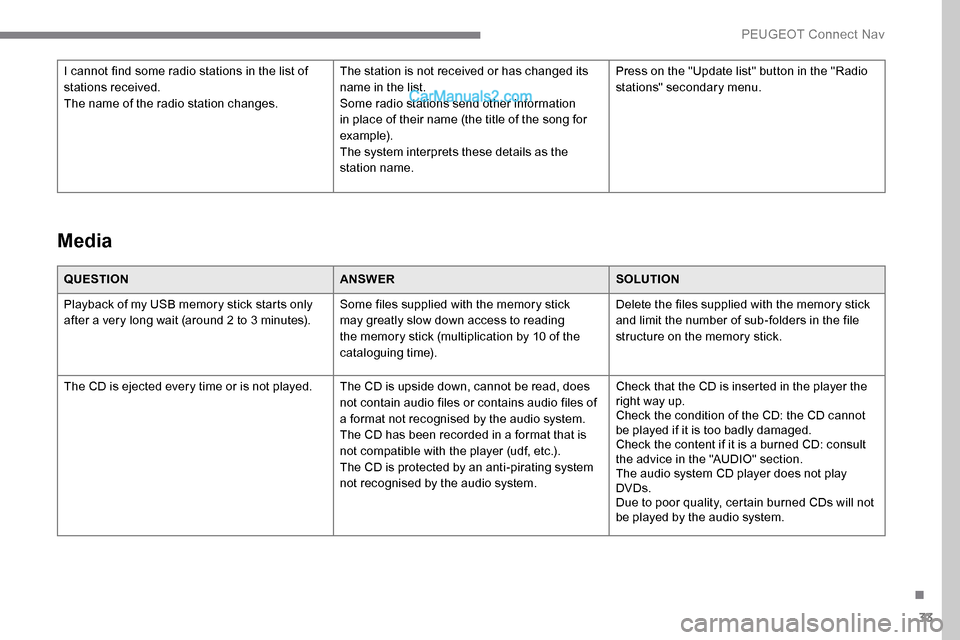

Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes). Some files supplied with the memory stick
may greatly slow down access to reading
the memory stick (multiplication by 10 of the
cataloguing time).Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
The CD is ejected every time or is not played. The CD is upside down, cannot be read, does not contain audio files or contains audio files of
a format not recognised by the audio system.
The CD has been recorded in a format that is
not compatible with the player (udf, etc.).
The CD is protected by an anti-pirating system
not recognised by the audio system.Check that the CD is inserted in the player the
right way up.
Check the condition of the CD: the CD cannot
be played if it is too badly damaged.
Check the content if it is a burned CD: consult
the advice in the "AUDIO" section.
The audio system CD player does not play
DVDs.
Due to poor quality, certain burned CDs will not
be played by the audio system.
Media
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is not received or has changed its
name in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the
station name.Press on the "Update list" button in the "Radio
stations" secondary menu.
.
PEUGEOT Connect Nav

34

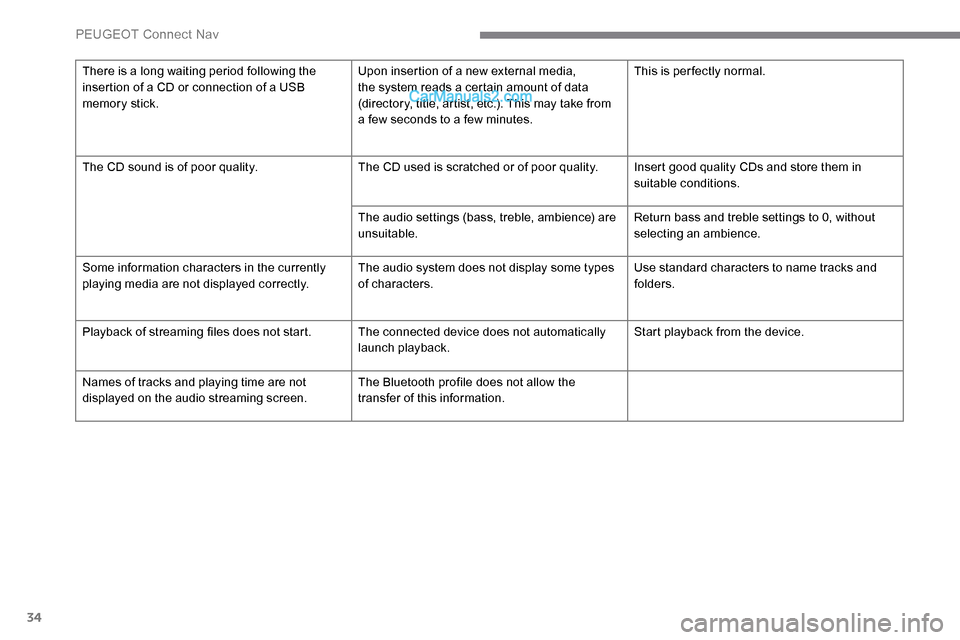

There is a long waiting period following the
insertion of a CD or connection of a USB
memory stick.Upon insertion of a new external media,
the system reads a certain amount of data
(directory, title, artist, etc.). This may take from
a few seconds to a few minutes.This is per fectly normal.
The CD sound is of poor quality. The CD used is scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable. Return bass and treble settings to 0, without
selecting an ambience.
Some information characters in the currently
playing media are not displayed correctly. The audio system does not display some types
of characters.Use standard characters to name tracks and
folders.
Playback of streaming files does not start. The connected device does not automatically launch playback.Start playback from the device.
Names of tracks and playing time are not
displayed on the audio streaming screen. The Bluetooth profile does not allow the
transfer of this information.
PEUGEOT Connect Nav

35

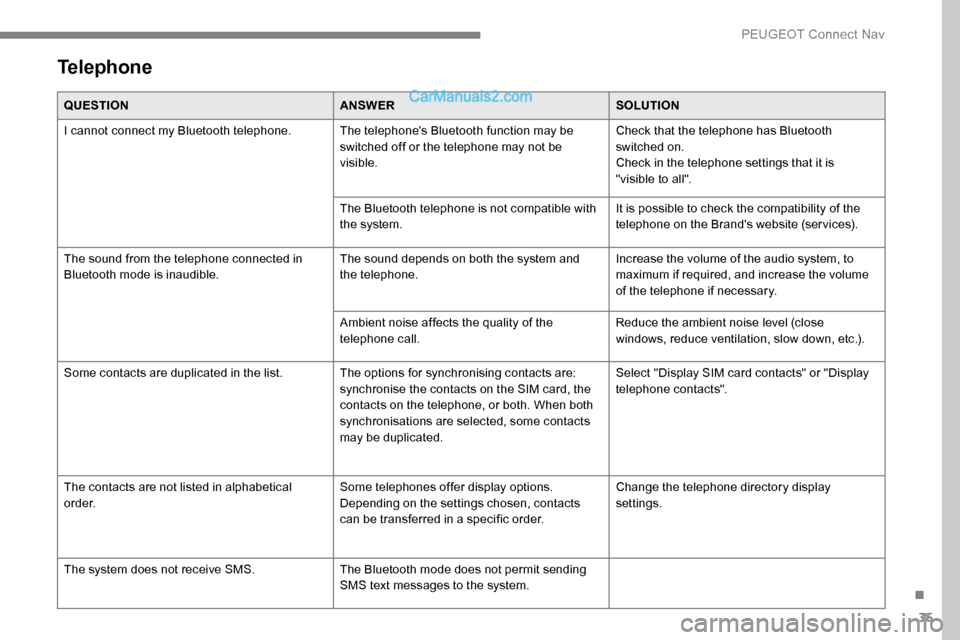

Telephone
QUESTIONANSWERSOLUTION
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone may not be
visible.Check that the telephone has Bluetooth
switched on.
Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system. It is possible to check the compatibility of the
telephone on the Brand's website (services).
The sound from the telephone connected in
Bluetooth mode is inaudible. The sound depends on both the system and
the telephone.Increase the volume of the audio system, to
maximum if required, and increase the volume
of the telephone if necessary.
Ambient noise affects the quality of the
telephone call. Reduce the ambient noise level (close
windows, reduce ventilation, slow down, etc.).
Some contacts are duplicated in the list. The options for synchronising contacts are: synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.Select "Display SIM card contacts" or "Display
telephone contacts".
The contacts are not listed in alphabetical
o r d e r. Some telephones offer display options.
Depending on the settings chosen, contacts
can be transferred in a specific order.Change the telephone directory display
settings.
The system does not receive SMS. The Bluetooth mode does not permit sending
SMS text messages to the system.
.
PEUGEOT Connect Nav

36

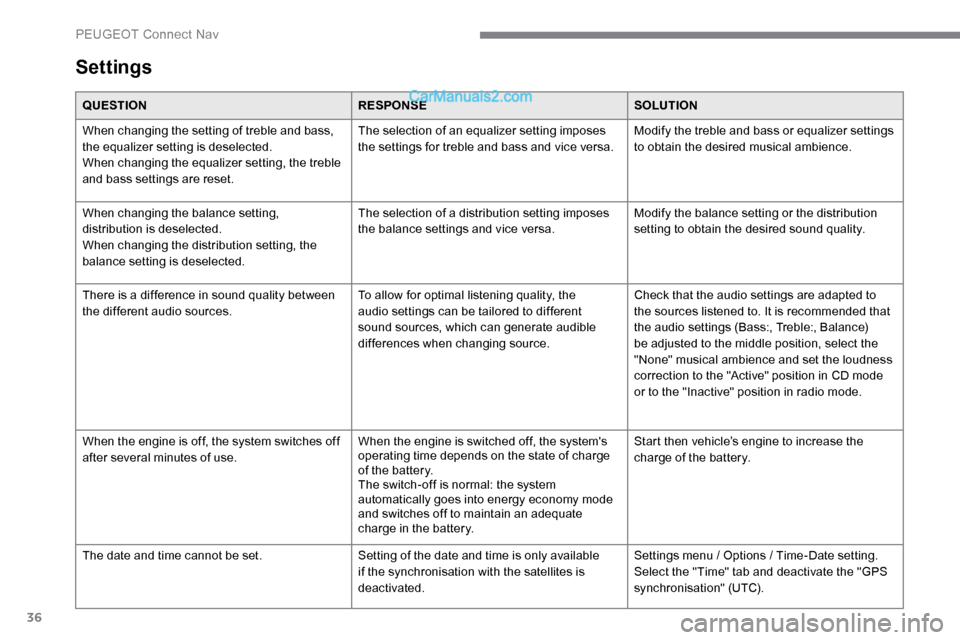

Settings
QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the equalizer setting is deselected.
When changing the equalizer setting, the treble
and bass settings are reset. The selection of an equalizer setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted to
the sources listened to. It is recommended that
the audio settings (Bass:, Treble:, Balance)
be adjusted to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode
or to the "Inactive" position in radio mode.
When the engine is off, the system switches off
after several minutes of use. When the engine is switched off, the system's
operating time depends on the state of charge
of the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate
charge in the battery.Start then vehicle’s engine to increase the
charge of the battery.
The date and time cannot be set. Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.Settings menu / Options / Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).
PEUGEOT Connect Nav

233
ABS ...............................................................11 0
Accessories .................................................. 107
Access to the 3rd row
...............................65-66
Access to the spare wheel
............................207
Active Safety Brake........................... 17, 171-173
AdBlue
® ....................................... 1 5 -16, 25, 196
AdBlue® tank ................................................. 19 8
Additive, Diesel ............................... 14, 193, 195
Adjusting headlamp beam height
................. 10

2
Adjusting headlamps


.................................... 102
Adjusting head restraints


................................ 56
Adjusting seat


........................................... 54-56
Adjusting the air distribution


.....................88-89
Adjusting the air flow
................................. 8

8-89
Adjusting the date


........................................... 30
Adjusting the height and reach of the steering wheel


.................................... 58
Adjusting the lumbar support
.......................... 55
A

djusting the seat angle

........................... 54, 56
Adjusting the seat belt height
....................... 11

4
Adjusting the temperature


........................88-89
Adjusting the time


........................................... 30
Advanced Grip Control


.......................... 112 -113
Advice on driving


............................... 7, 13 8 -13 9
Airbags
.............................. 1

8, 117, 119 -120, 122
Airbags, curtain


...................................... 11 8 -12 0
Airbags, front .................................. 11 8 -11 9 , 12 2
Airbags, lateral


...................................... 118, 120
Air conditioning


....................... 86, 88, 88 - 89, 92
Air conditioning, digital


................................... 91
Air conditioning, dual-zone automatic


......88-89
Air conditioning, manual
........................... 87

, 90
Air intake


................................................... 88-90
Air vents


.......................................................... 86
Alarm


.......................................................... 51- 5 2Anti-lock braking system (ABS)
.............
109 -110
Anti-pinch
........................................................ 8
2
Antitheft / Immobiliser
..................................... 33
A
rea, loading
...........................
3
3 -34, 42- 43, 80
Armrest
................
............................................
75
Armrest, front ..................................................
57
Assistance call
...............................
.......
108 -109
Assistance, emergency braking

....
109 -110, 173
Audible warning
............................................ 10
9Capacity, fuel tank

.................................
185 -187
Cap, fuel filler
...............................
..........
185 -187
Central locking
.......................................... 3
1, 37
Changing a bulb
............................. 21
1, 214 -216
Changing a bulb (side-hinged doors)
........... 2
14
Changing a fuse
..................................... 21
7-219
Changing a wheel
......................................... 20
6
Changing a wiper blade
........................ 10
5 -10 6
Changing the remote control battery

..............
40
Checking the engine oil level

....................
24-25
Checking the levels ................................
191-193
Checking tyre pressures (using the kit) ......................................202-205
Checks


...........................................191, 19 4 -195
Checks, routine


.....................................19 4 -195
Child lock


................................................13 6 -137
Child lock, electric


.........................................13 6
Child lock on rear windows
...........................137
Children


..........................................124, 13 0 -13 6
Children (safety)


............................................13 6
Child seats

.............................11

6 -117, 12 0 -12 8
Child seats, conventional


.......................123 -128
Child seats, ISOFIX
...............................13 0 -13 6
Closing the boot
..............................................50
Closing the doors


...........................31, 37, 49 -50
Collision Risk Alert ................................. 171-172
Compressor, tyre inflation


............................202
Container, AdBlue
® ....................................... 19 7
Control, emergency boot release ...................40
Control, emergency door
.................... 3

2, 38 -39
Control, heated seats


...................................... 57
Control stalk, lighting


...................................... 97
Control stalk, wipers

............................. 10

3 -104
Courtesy lamp

................................................. 95
Courtesy lamp, front
......................... 95 - 9 6, 216
Courtesy lamp, rear
.......................... 95 - 9 6, 216
Courtesy lamps

................................. 95 - 9 6, 216
Cover, load space

........................................... 79
Crew cab, fixed

.......................................... 7 3 -74
Crew cab, folding


............................................ 74
A
B
C
Battery ........................................... 189, 219-222
Battery, 12 V ............................... ...19 4, 219 -220
Battery capacity


............................................ 219
Battery, charging


........................................... 221
Battery, remote control


.............................40, 94
Bench seat, one-piece, fixed
.................... 6

4-65
Blind, panoramic roof


...................................... 82
Blind spot monitoring system
..................21, 178
Blind spot monitoring system, active
..............21
Blind spot sensors


.................................. 21, 176
Blinds, side


...................................................... 82
BlueHDi


............................... 13, 15, 25, 194, 200
Bonnet


.................................................... 19 0 -191
Boot


................................................................. 50
Boot lid


.......................................... 37-38, 40, 50
Brake discs


.................................................... 195
Brake lamps
...............................

............214 -216
Brakes


................................................ 11 -12 , 1 9 5
Braking assistance system
....................109 -110
Braking, automatic emergency


.........17, 171-173
Bulbs


............................................................. 2 11
Bulbs (changing)


................................... 211, 214
180° rear vision

.............................................
183
.
Alphabetical index

234
G
H
Gauge, fuel............................................. 185 -187
Gearbox, automatic .......145 -15 0, 15 3 -15 4, 19 5
Gearbox, electronic


...............145, 15 0 -152, 19 5
Gearbox, manual


...........14 5 -14 6 , 15 3 -15 4, 19 5
Gear lever, automatic gearbox


..............147-15 0
Gear lever, electronic gearbox


.....................195
Gear lever, manual gearbox


..................145 -14 6
Gear shift indicator ~ Gear efficiency indicator


..................................... 14 6
Glove box
........................................................ 76
Hazard warning lamps


..........................108, 200
Hazard warning lamps, automatic operation
.................................... 10

8
Headlamp adjustment


...................................102
Headlamp adjustment


...................................102
Headlamp beam height
................................. 10

2
Headlamps, automatic dipping


.......20, 101, 174
Headlamps, automatic illumination


................99
Headlamps, dipped beam


..........20, 97, 211-213
Headlamps, halogen


..............................211-212
Headlamps, main beam


.......20, 22, 97, 211-213
Headlamps, Xenon


....................................... 213
EBFD
................

.............................................
11 0
Eco-driving (advice)


..........................................
7
Economy mode
............................................. 18

9
Electric windows


.............................................
53
Electronic brake force distribution (EBFD)
.............................. 10

9 -110
Emergency braking assistance (EBA)


...
109 -110
Emergency call


.....................................
108 -109
Emergency warning lamps


...................
108, 200
Emissions control system, SCR

.............
26, 19 6
Energy economy mode
................................. 18

9
Engine compartment
.................................... 19

1
Engine, Diesel


...........
13, 18, 185, 191, 200, 225
Engines
.........................................................
224
Engine self-diagnosis ..................................... 16
E
nvironment
.......................................... 7, 40, 94
ESC (electronic stability control)

.................. 10

9
E
F
Fatigue detection .......................................... 175
Filling the AdBlue® tank ........................ 19 4, 198
Filling the fuel tank ................................. 185 -187
Filter, air


........................................................ 19 4
Filter, Diesel fuel


........................................... 191
Filter, oil
................

......................................... 19 4
Filter, particle


........................................ 193, 195
Filter, passenger compartment


...............8 6, 19 4
Finisher


......................................................... 210
Fitting a wheel

....................................... 208 -210
Fitting roof bars


............................................. 189
Fittings, interior
.................................... 7

5 -76, 81
Fittings, rear


.................................................... 81
Fitting the mat


................................................. 75
Flap, fuel filler


......................................... 185 -187
Flap, removable
..............................

..........60-62
Flashing indicators


.......................................... 98
Floor cab

....................................................... 216
Fluid, brake


................................................... 193
D
Date (setting) ................................................... 30
Daytime running lamps ..............97, 99, 211-213
Deactivating the passenger airbag


.......11 8 , 12 2
Deactivation of DSC (ESC)
...........................111
Deadlocking


............................................... 37- 3 8
Defrosting


............................................ 60, 90 -91
Demisting


.................................................. 90 -91
Demisting, rear


................................................ 91
Demisting, rear screen


...................................91
Dimensions
..............................

.....................228
Dipstick
................

.............................. 24 -25, 192
Direction indicators


..................98, 211-214, 216
Display, head-up
...............................

.....15 8 -159
Door pockets
...............................

..............75 -76
Doors, rear
................................................ 49-50
Doors, side-hinged
......... 3

7-38, 49 - 50, 214 -215
Driver’s attention warning


.............................175
Driving


.................................................... 13 8 -13 9
Driving abroad ................................................. 97
Driving aids camera (warnings)


....................157
Driving aids (recommendations)


...................15 6
Driving economically ......................................... 7
Dynamic stability control (DSC)


.......17, 1 0 9 -11 3
Cruise control


..................
159, 161-162, 16 4 -167
Cruise control, adaptive .........
16 2 , 167, 170 -171
Cruise control by speed limit recognition
...............................
............
161-162
Cruise control, dynamic with Stop function

........................................
161-162
Cup holder .......................................................
75 Fluid, engine coolant

.....................................
193
Fluid, power steering
.................................... 19
3
Foglamp, rear

..................................
19, 214, 216
Foglamps, front

.........................
97-98, 100, 214
Foglamps, rear
........................................... 9
7- 9 8
Fuel ............................................................ 7, 1 8 5
Fuel consumption

........................................
7, 2 9
Fuel tank ........................................................ 185
Fusebox, engine compartment

.....................
219
Fuses
...................................................... 21
7-219
Alphabetical index

235
IIgnition .................................................... 142-143
Ignition on ...................................................... 143
Immobiliser, electronic


..................................140
Indicator, AdBlue
® range ................................. 25
Indicator, coolant temperature ........................ 24
Indicator, engine oil level
.......................... 24-25
Indicator lamps, operation
.............................. 97
I

ndicators, direction

........................................ 98
Inflating tyres


................................................ 19 6
Inflating tyres and accessories (using the kit)


...................................... 202-205
Infrared camera


............................................ 157
Instrument panel


....................................... 9, 15 8
Intelligent Traction Control


............................ 11 0
ISOFIX


........................................... 13 0, 132-13 6
JJack .........................................................78, 206
Jump starting ................................................ 220
LLabels .................................................... 5, 63 - 64
Labels, identification ..................................... 231
Lane Departure Warning System (LDWS)


................................... 174 -175
Level, AdBlue
® .............................................. 19 4
Level, brake fluid ........................................... 193
Level, Diesel additive


............................ 193, 195
Level, engine coolant


.............................. 24, 193
Level, engine oil
................................ 24 -25, 192
Level, headlamp wash


.......................... 105, 193
Level, power steering fluid
............................ 193
Levels and checks

..............................
...191-193
Level, screenwash fluid

........................ 1

05, 193
Lighting


............................................................ 97
Lighting, cornering


........................................ 10 0
Lighting dimmer


.............................................. 27
Lighting, directional


....................................... 10 0
Lighting, guide-me home


................................ 99
Lighting, interior
...............................

.......95, 102
Lighting, mood


.............................................. 102
Lighting, welcome


................................... 9 9 -10 0
Loading


................................................... 8 0, 189
Loading area fittings


....................................... 79
Load reduction mode


.................................... 189
Load restraint
...............................

...................79
Locating your vehicle


...................................... 32
Locking
...............................

...........31, 33, 36 -37
Locking from the inside
............................. 41- 4 3
Locking the doors
...................................... 4

1- 42
Low fuel level

......................................... 18

5 -187
Lumbar


...................................................... 55, 58
Key


........................................... 31, 33 -36, 38 -39
Key, electronic


......................................... 31, 14 3
K
Maintenance, routine ............................15 8, 19 4
Manoeuvring aids (recommendations) .........15 6
Map reading lamps
......................................... 95
M

arkings, identification

.................................231
Massage function
........................................... 58
Mat


.................................................. 75, 141, 158
Memorising a speed

..................................... 15

9
Mirror, rear view
.............................................. 60
Mirrors, door ........................ 59 - 60, 91, 176, 178
Misfuel prevention


......................................... 187
Moduwork .................................................. 60-62
Mountings, ISOFIX


........................12 9, 132-13 6M
NNet, cargo.................................................. 60-62
Net, high load retaining ...................................81
Net, luggage retaining ..................................... 78
Number plate lamps


...................................... 216
Headlamp wash
..............................

..............
104
Head restraints, front

......................................
56
Head-up display
..................................... 15

8 -159
Heated bench seat


..........................................
57
Heating
........................................... 8

6 - 87, 92-94
Heating, additional


...............................
51, 9 2- 9 4
Heating, programmable


.......................
51, 9 2- 9 4
Hill start assist

........................................
14 4 -145
Horn ............................................................... 109Keyless Entry and Starting

........
3

1- 3 8, 141, 143
Key with remote control

.....................
3

6 - 3 7, 1 4 0
Kit, puncture repair
............................... 20

3-205
Kit, temporary puncture repair
.............. 20

2-205
O
Obstacle detection
........................................ 178
Oil change ..................................................... 19
2
Oil consumption


............................................ 192
OIl, engine
...............................

......................192
On-board tools


...................................... 201-202
Opening the bonnet


...............................19 0 -191
Opening the boot


................................ 31- 32, 50
Opening the doors


.........................31- 32, 43 - 4 4
Opening to 180°

........................................ 49

-50
.
Alphabetical index

236
Pads, brake ................................................... 195
Paint .............................................................. 231
Paint colour code
.......................................... 231
Panoramic glass sunroof


................................82
Parcel shelf, rear


............................................. 76
Parking brake


........................................ 14 4, 19 5
Parking sensors, audible and visual


.............178
Parking sensors, front


...................................179
Parking sensors, rear .................................... 178
Plates, identification ...................................... 231
Port, USB
........................................................ 77
Power steering
...............................

.................19
Pre-heater, Diesel


........................................... 18
Pressures, tyres


........................... 196, 203, 205
Pre-tensioning seat belts


.......................11 6 -117
Priming pump
........................................ 20

0-201
Priming the fuel system
................................200
Protecting children


..........118 , 12 0 -124, 13 0 -13 6
Puncture


................................. 202-203, 205-206P
RRadar (warnings) ........................................... 15 6
Range .............................................................. 29
Range, AdBlue


.................................. 15, 25, 194
Rear screen, demisting


...................................91
Recharging the battery


.................................221
Recirculation, air


....................................... 88-90
Reduction of electrical load


..........................189
Regeneration of the particle filter
.................195
Reinitialisation of the under- inflation detection system


...........................15 5
Reinitialising the remote control
..................... 40
R

eminder, key in ignition
...............................14

2
Reminder, lighting on
...................................... 98
R

emote control

............................ 31-36, 38, 140
Removing a wheel
................................ 208 -210
Removing the mat


........................................... 75
Replacing bulbs
............................. 21

1, 213 -216
SSafety, children ...............118 , 12 0 -124, 13 0 -13 6
Saturation of the particle filter (Diesel) .........195
Screen, instrument panel


................................28
Screenwash


.................................................. 104
Screenwash, rear


.......................................... 104
SCR (Selective Catalytic Reduction)


......26, 19 6
Seat and bench seat, rear, fixed


...63-64, 66-67
Seat and bench seat, rear, on rails


......................................... 63-64, 68-70
Seat angle


....................................................... 54
Seat belts


.................................. 12 , 113 -117, 12 3
Seat belts, rear


.............................................. 115
Seat, bench front, 2-seat
........................ 5

6 , 114
Seat, rear bench


....................................... 63-64
Seats, electric


........................................... 55-56
Seats, front
...............................

.................54-56
Seats, heated


.................................................. 57
Seat(s), individual, rear, on rails
........71 - 7 2 , 115
Seats, rear


......................................... 6 4 -70, 12 2
Selector, gear


.................................146, 15 0 -152
Sensors (warnings)


....................................... 157
Serial number, vehicle


..................................231Service indicator


.......................................
23 -24
Servicing
............................... 1
3, 23, 23 -24, 194
Sidelamps
................................ 9
7, 211-214, 216
Side repeater

................................................
214
Sliding side door, electric ...............
37- 3 8 , 4 3 - 47
Sliding side door, hands-free .....................
47- 4 9
Sliding side window
........................................ 8
2
Snow chains

...........................
155, 187-188, 208
Snow chains, link

..................................
188, 208
Socket, 12 V accessory ..................................
77
Socket, 220 V ..................................................
78
Socket, Jack

....................................................
78
Sockets, audio
........................................... 7
7-78
Sockets, auxiliary
...............................
.............
78
Speed limiter
.................................. 1
59, 161-16 4
Speed limit recognition
............ 16
0 -161, 163, 166, 170 -171
Speedometer ................................................
15 8
Stability control (ESC)............. 1 0 9 -11 0 , 112 -113
Starting a Diesel engine ............................... 18
5
Starting the engine
....................................... 14

0
Starting the vehicle
........ 14

1, 143, 145, 147-152
Starting using another battery


......................220
Stay, bonnet


..................................................191
Steering wheel, adjustment
............................ 58
S

topping the vehicle

..............141, 143, 147-152
Stop & Start


.........................21, 29, 87, 152-154,
185, 190, 194, 222
Storage


..........................................56, 63, 73 -76
Storage compartments


...................................76
Storage wells


.......................................73-74, 76
Stowing rings


..................................................79
Sunshine sensor


.............................................86
Switching off the engine


.......................140, 142
Synchronising the remote control
...................40
Replacing fuses


.....................................
217-218
Replacing the air filter
................................... 19
4
Replacing the oil filter
................................... 19
4
Replacing the passenger compartment filter

......................................
19 4
Reservoir, headlamp wash
........................... 19
3
Reservoir, screenwash

.................................
193
Resetting the service indicator

.......................
23
Resetting the trip recorder

..............................
27
Reversing camera
......................... 1
57, 18 0, 183
Reversing camera (on interior mirror) ..........
18 0
Reversing lamp

.....................................
214, 216
Roof bars

.......................................................
189
Running out of fuel (Diesel) ..........................
200
Alphabetical index
