In brief7Backrest inclination
Turn handwheel. Do not lean on
backrest when adjusting.
Seat position 3 47, Manual seat
adjustment 3 48, Power seat
adjustment 3 50.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 47, Manual seat
adjustment 3 48, Power seat
adjustment 3 50.
Seat inclination
Press switch
top:front end higherbottom:front end lower
Seat position 3 47, Manual seat
adjustment 3 48, Power seat
adjustment 3 50.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 45.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 47, Seat belts
3 56, Airbag system 3 58.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 39, Automatic anti-dazzle interior
mirror 3 40.

In brief9Exterior mirrors
Select the relevant exterior mirror by
pushing left or right mirror button.
LED in button indicates the selection.
Then swivel the control to adjust the
mirror.
Convex exterior mirrors 3 37,
Electric adjustment 3 37, Folding
exterior mirrors 3 38, Heated
exterior mirrors 3 39.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Airbag system 3 58.

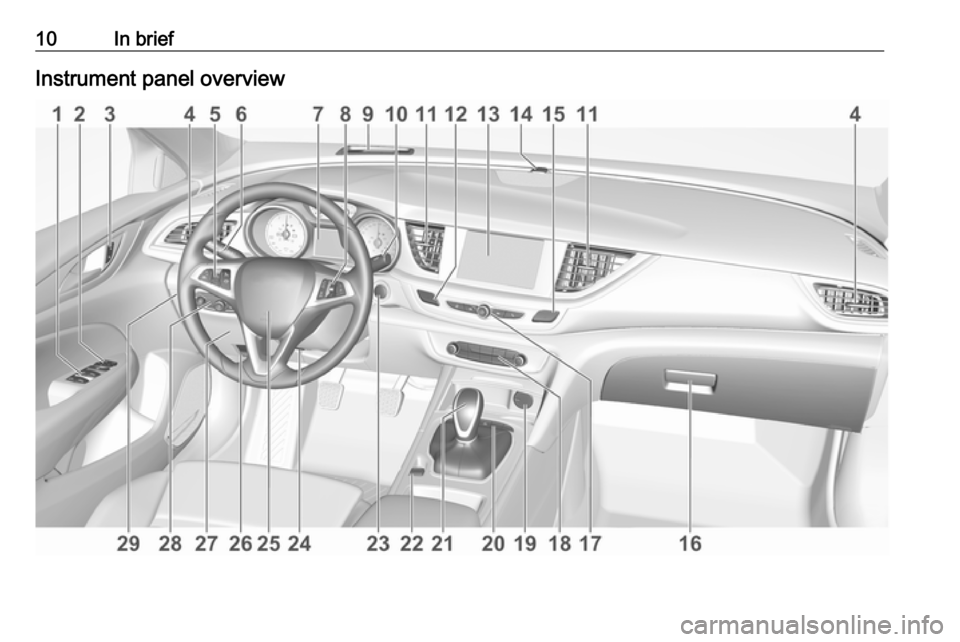

10In briefInstrument panel overview

In brief111Power windows .....................40
2 Exterior mirrors .....................37
3 Central locking system ..........25
4 Side air vents ...................... 172
5 Cruise control .....................201
Speed limiter ....................... 202
Adaptive cruise control .......204
Forward collision alert .........214
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 138
Exit lighting ......................... 141
Parking lights ...................... 139
Buttons for Driver
Information Centre ..............112
7 Instruments ........................ 101
Driver Information Centre .... 112
8 Buttons for Driver
Information Centre ..............112
9 Head-up display ..................11910Windscreen wiper and
washer, headlight washer,
rear wiper and washer .........89
11 Centre air vents .................. 172
12 Hazard warning flashers ....137
13 Info-Display ........................ 118
14 Anti-theft alarm system
status LED ........................... 34
15 Electronic Stability Control . 197
Traction Control system .....196
16 Glovebox .............................. 73
17 Controls for Info-Display
operation ............................. 118
18 Climate control system ........ 163
19 Power outlet .......................... 93
20 Sport/Tour mode ................199
Parking assist/Advanced
parking assist .....................223
Lane keep assist ................242
Eco button for stop-start
system ................................. 180
21 Manual transmission ..........192
Automatic transmission ......18722Electric parking brake .........194
23 Power switch ....................... 177
24 Steering wheel adjustment ..88
25 Horn ..................................... 89
26 Bonnet release lever ..........254
27 Fuse box ............................ 274
28 Light switch ........................ 131
Headlight range
adjustment ......................... 133
Front/rear fog lights ............138
Instrument illumination .......139
29 Head-up display ..................119

12In brief

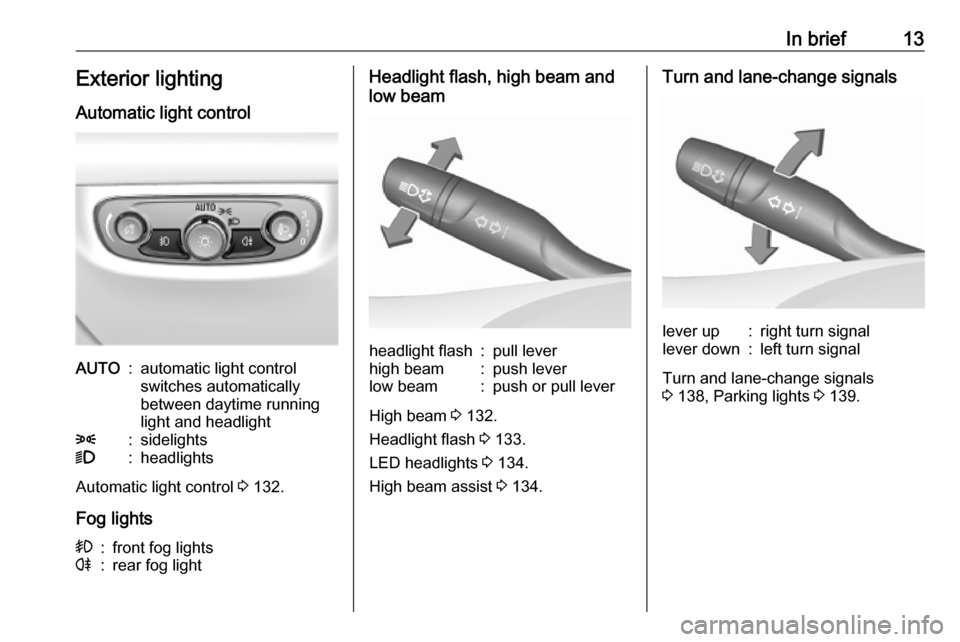

In brief13Exterior lightingAutomatic light controlAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 132.
Fog lights
>:front fog lightsr:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 132.
Headlight flash 3 133.
LED headlights 3 134.
High beam assist 3 134.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 138, Parking lights 3 139.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 137.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 89, Wiper
blade replacement 3 259.
