2019 NISSAN VERSA Owners Manual

Driver’s side power window
switch
The driver’s side control panel is equipped
with switches to open or close the front
and rear passenger windows.
To open a window, push the switch and
hold it down. To close a window, pull the
switch and hold it up. To stop the opening
or closing function at any time, simply re-
lease the switch.
Locking passengers’ windows
When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
Front passenger’s power window
switch
The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and hold it down
1. To close the window,
pull the switch up
2.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down
1. To close the window, pull the
switch up
2.
LIC0718LIC0718
Instruments and controls2-33

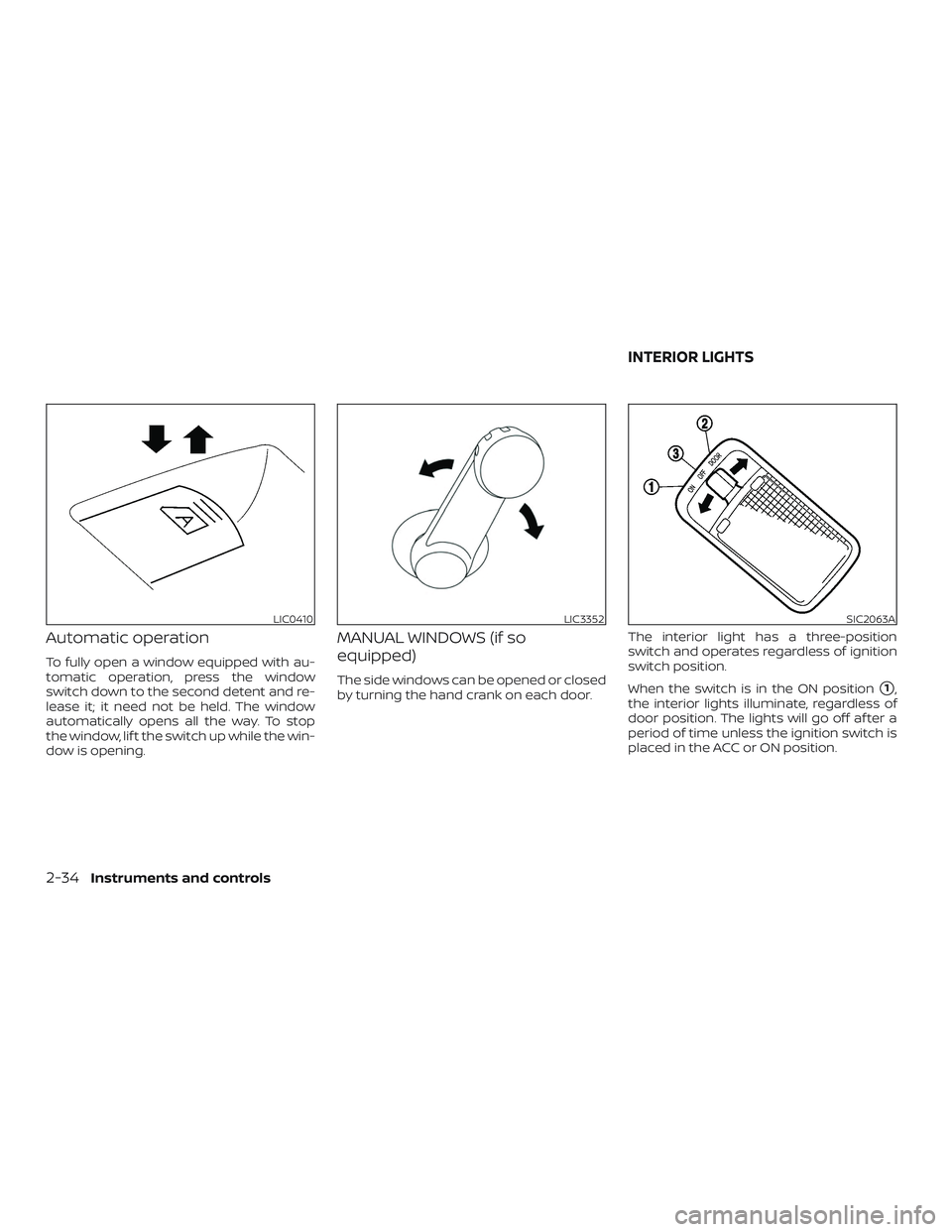

Automatic operation
To fully open a window equipped with au-
tomatic operation, press the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
MANUAL WINDOWS (if so
equipped)
The side windows can be opened or closed
by turning the hand crank on each door.The interior light has a three-position
switch and operates regardless of ignition
switch position.
When the switch is in the ON position1,
the interior lights illuminate, regardless of
door position. The lights will go off af ter a
period of time unless the ignition switch is
placed in the ACC or ON position.
LIC0410LIC3352SIC2063A
INTERIOR LIGHTS
2-34Instruments and controls

When the switch is in the DOOR position2,
the interior lights will stay on for a period of
time when:
∙ The doors are unlocked by the key fob (if so equipped), a key or the power door
lock switch (if so equipped) while all
doors are closed and the ignition switch
is placed in the OFF position.
∙ The driver’s door is opened and then closed while the key is removed from
the ignition switch.
∙ The key is removed from the ignition switch while all doors are closed.
The lights will turn off while the timer is
activated when: ∙ The driver’s door is locked by the key fob (if so equipped), a key, or the power door
lock switch (if so equipped).
∙ The ignition switch is placed in the ON position.
When the switch is in the OFF position
3,
the interior lights do not illuminate, regard-
less of door position.
The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
MAP LIGHT
The map light has a three-position switch
and operates regardless of ignition switch
position.
When the switch is in the ON position
3,
the map light illuminates, regardless of
door position. The light will go off af ter a
period of time unless the ignition switch is
placed in the ACC or ON position.
LIC2126
Instruments and controls2-35

When the switch is in the DOOR position2,
the map light will stay on for a period of
time when:
∙ The doors are unlocked by the key fob (if so equipped), a key or the power door
lock switch while all doors are closed
and the ignition switch is placed in the
OFF position.
∙ The driver’s door is opened and then closed while the key is removed from
the ignition switch.
∙ The key is removed from the ignition switch while all doors are closed.
The light will turn off while the timer is acti-
vated when: ∙ The driver’s door is locked by the key fob (if so equipped), a key, or the power door
lock switch.
∙ The ignition switch is placed in the ON position.
When the switch is in the OFF position
1,
the map light does not illuminate, regard-
less of door position.
The light will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery. The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light goes off. For additional information,
refer to “Exterior and interior lights” in the
“Do-it-yourself ” section of this manual.
TRUNK LIGHT
2-36Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Intelligent Key® (if so equipped) .......3-4
NISSAN Vehicle Immobilizer System
keys (if so equipped) ..........................3-5
Doors ...........................................3-6
Locking with key .............................. 3-7
Locking with inside lock knob ................. 3-7
Locking with power door lock switch
(if so equipped) ...............................3-8
Automatic door locks (if so equipped) ........3-8
Child safety rear door lock ....................3-8
Remote keyless entry system (if so equipped) . . . 3-9 How to use remote keyless entry
system ...................................... 3-10
NISSAN Intelligent Key® (if so equipped) .........3-13
Operating range ............................. 3-14
Door locks/unlocks precaution ..............3-15
NISSAN Intelligent Key® Operation ...........3-16
How to use the remote keyless entry
function ..................................... 3-19Warning lights and audible reminders
.......3-23
Warning signals ............................. 3-23
Troubleshooting guide ......................3-25
Hood ........................................... 3-27
Trunk lid ........................................ 3-28
Key operation ............................... 3-28
Opener operation ........................... 3-28
Interior trunk lid release .....................3-29
Fuel-filler door .................................. 3-30
Opener operation ........................... 3-30
Fuel-filler cap ................................ 3-30
Steering wheel ................................. 3-32
Tilt operation ................................ 3-32
Sun visors ...................................... 3-33
Vanity mirror ................................ 3-33
Mirrors ......................................... 3-34
Rearview mirror ............................. 3-34
Outside mirrors ............................. 3-34

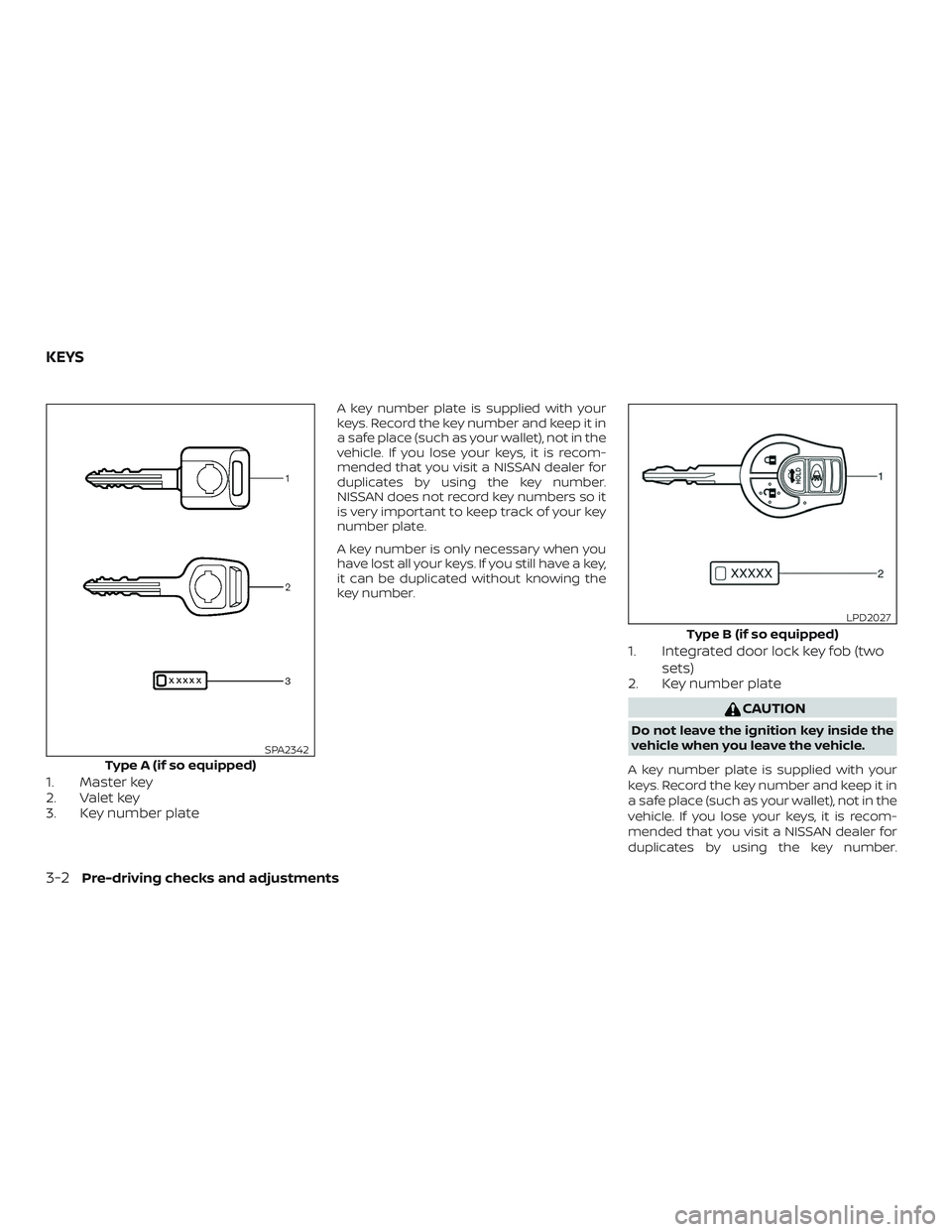

1. Master key
2. Valet key
3. Key number plate
A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.
A key number is only necessary when you
have lost all your keys. If you still have a key,
it can be duplicated without knowing the
key number.
1. Integrated door lock key fob (twosets)
2. Key number plate
CAUTION
Do not leave the ignition key inside the
vehicle when you leave the vehicle.
A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
Type A (if so equipped)
SPA2342
Type B (if so equipped)
LPD2027
KEYS
3-2Pre-driving checks and adjustments

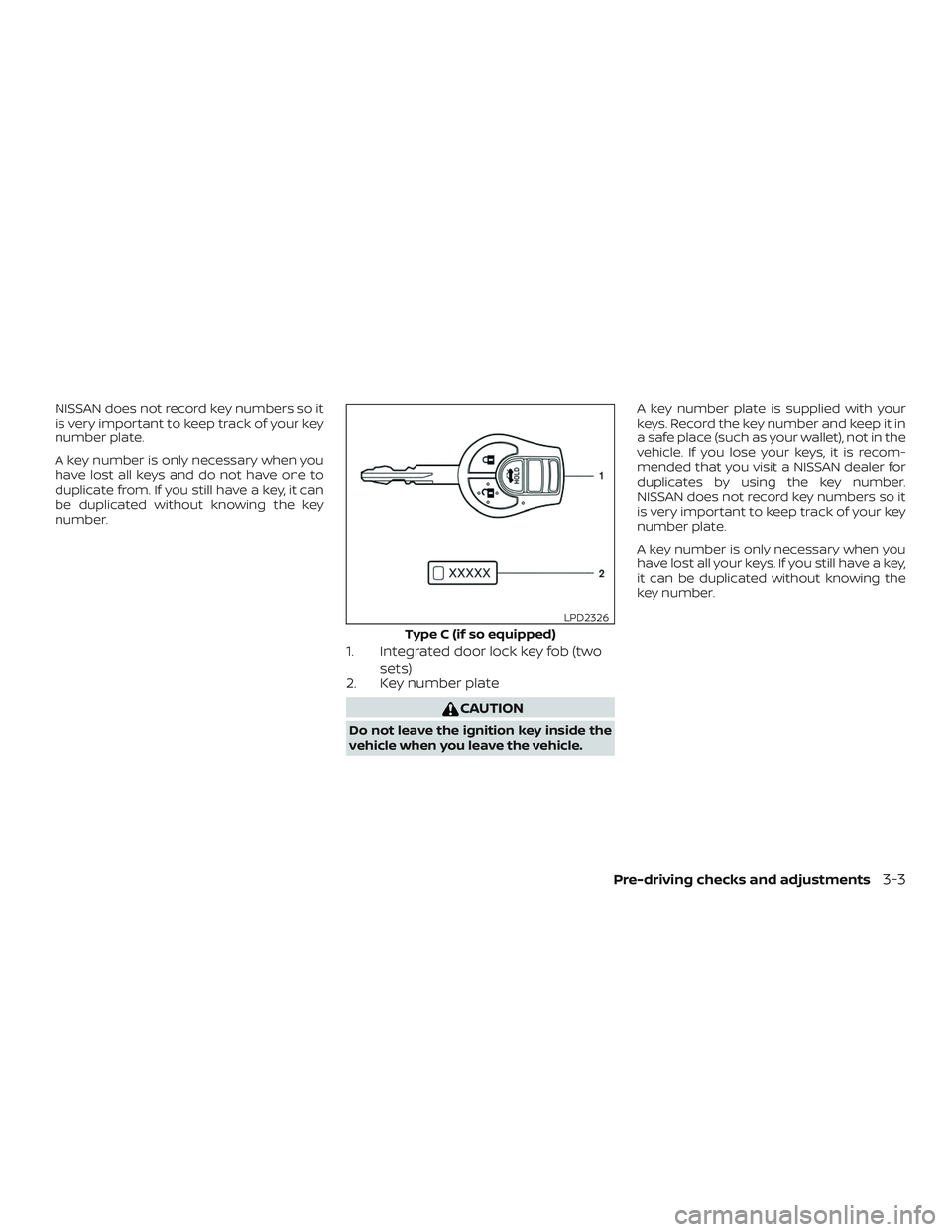

NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.
1. Integrated door lock key fob (twosets)
2. Key number plate
CAUTION
Do not leave the ignition key inside the
vehicle when you leave the vehicle. A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.
A key number is only necessary when you
have lost all your keys. If you still have a key,
it can be duplicated without knowing the
key number.
Type C (if so equipped)
LPD2326
Pre-driving checks and adjustments3-3

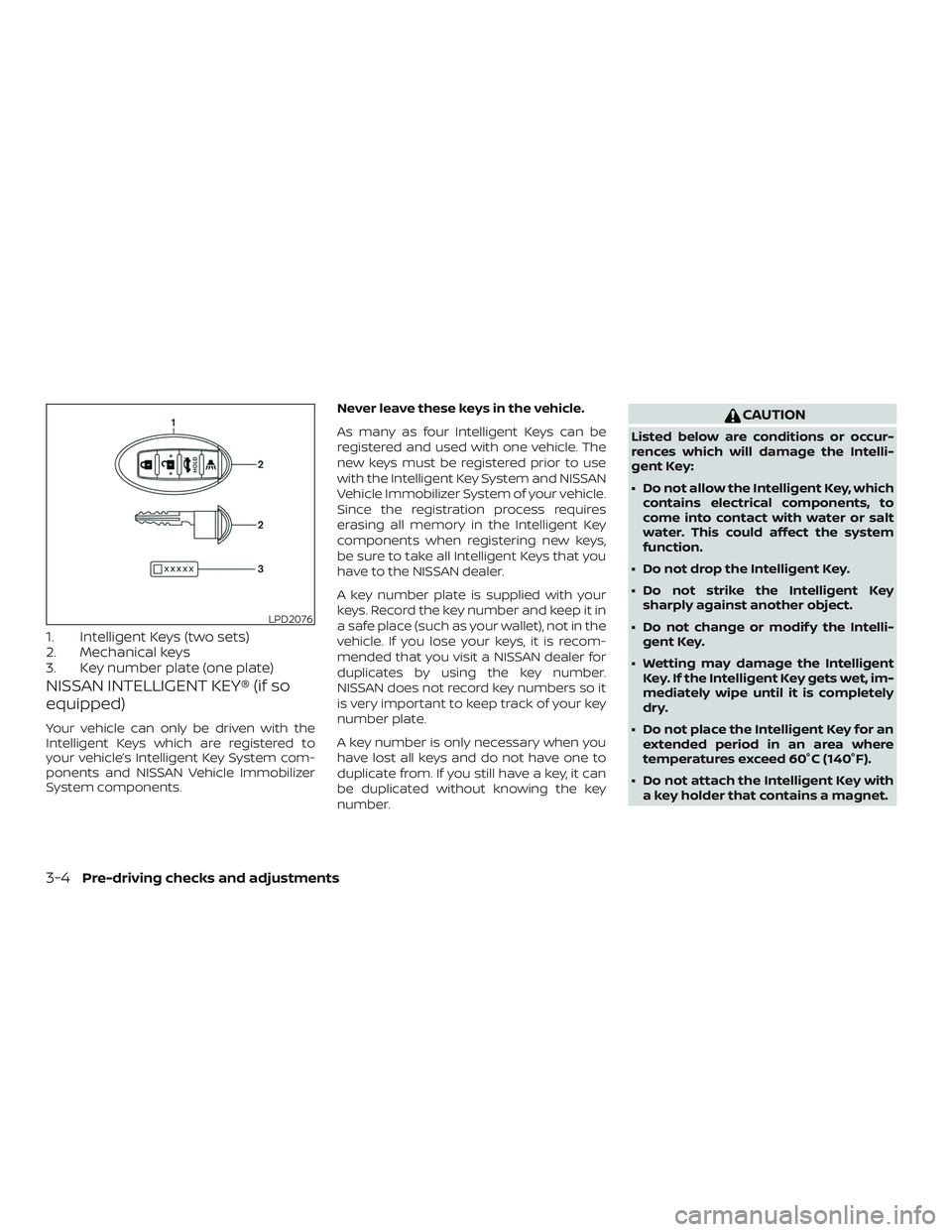

1. Intelligent Keys (two sets)
2. Mechanical keys
3. Key number plate (one plate)
NISSAN INTELLIGENT KEY® (if so
equipped)
Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key System com-
ponents and NISSAN Vehicle Immobilizer
System components.Never leave these keys in the vehicle.
As many as four Intelligent Keys can be
registered and used with one vehicle. The
new keys must be registered prior to use
with the Intelligent Key System and NISSAN
Vehicle Immobilizer System of your vehicle.
Since the registration process requires
erasing all memory in the Intelligent Key
components when registering new keys,
be sure to take all Intelligent Keys that you
have to the NISSAN dealer.
A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.
CAUTION
Listed below are conditions or occur-
rences which will damage the Intelli-
gent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object.
∙ Do not change or modif y the Intelli- gent Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely
dry.
∙ Do not place the Intelligent Key for an extended period in an area where
temperatures exceed 60°C (140°F).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
LPD2076
3-4Pre-driving checks and adjustments
