2019 NISSAN VERSA Owners Manual

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-3
Speedometer and odometer .................2-5
Tachometer ..................................2-8
Engine coolant temperature gauge
(if so equipped) ...............................2-9
Fuel gauge ...................................2-9
Trip computer ............................... 2-10
Warning lights, indicator lights and audible
reminders ...................................... 2-12
Checking lights .............................. 2-13
Warning lights ............................... 2-13
Indicator lights .............................. 2-18
Audible reminders ........................... 2-21
Security system (if so equipped) ................2-21
NISSAN Vehicle Immobilizer System
(if so equipped) .............................. 2-21
Wiper and washer switch .......................2-23
Switch operation ............................ 2-23
Rear window defroster switch ..................2-24Headlight and turn signal switch
...............2-24
Headlight control switch .....................2-24
Instrument brightness control ...............2-26
Turn signal switch ........................... 2-26
Fog light switch (if so equipped) .............2-27
Horn ........................................... 2-27
Vehicle Dynamic Control (VDC) OFF switch ......2-28
Power outlets .................................. 2-28
Storage ........................................ 2-29
Front-door pockets .......................... 2-29
Seatback pocket (if so equipped) ............2-30
Storagetray................................. 2-30
Glovebox.................................... 2-31
Cup holders ................................. 2-31
Windows ....................................... 2-32
Power windows (if so equipped) .............2-32
Manual windows (if so equipped) ............2-34
Interior lights ................................... 2-34
Map light .................................... 2-35
T runk

light ...................................... 2-36

1. Headlight/turn signal switch/foglight switch (if so equipped)
(P. 2-24)
2. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-27)
3. Meters and gauges (P. 2-3) Warning and indicator lights
(P. 2-12)
4. Wiper and washer switch (P. 2-23)
5. Vents (P. 4-14)
6. Rear window defroster switch
(P. 2-24)
7. Front passenger air bag status
light (P. 1-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Climate controls (P. 4-14)
10. Audio system (P. 4-22)
11. Passenger’s supplemental air bag
(P. 1-42)
12. Glove box (P. 2-29)
13. Power outlet (P. 2-28)
14. USB connection port and AUX IN
jack (P. 4-22)
15. Shif t lever (P. 5-16)
16. Cup holders (P. 2-29)
LIC4000
INSTRUMENT PANEL
2-2Instruments and controls

17. Ignition switch (if so equipped)(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)
18. Cruise control switches
(if so equipped) (P. 5-24)
19. Tilt steering (P. 3-32)
20. Audio control switches (P. 4-42) Bluetooth® Hands-Free Phone
System switches (P. 4-46)
21. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)
22. Fuel-filler door release lever
(P. 3-30)
Hood release lever (P. 3-27)
23. Electronic outside rearview mirror
control switch (P. 3-34)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Speedometer
3. Fuel gauge
4. OdometerTwin trip odometer
Trip computer 5. Continuously Variable Transmission
(CVT) position indicator
6. Instrument brightness control
knob
7. Change/reset button
Type A (if so equipped)
LIC3131
METERS AND GAUGES
Instruments and controls2-3

CAUTION
∙ To clean the meter lens, use a sof tcloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the systems to
malfunction.

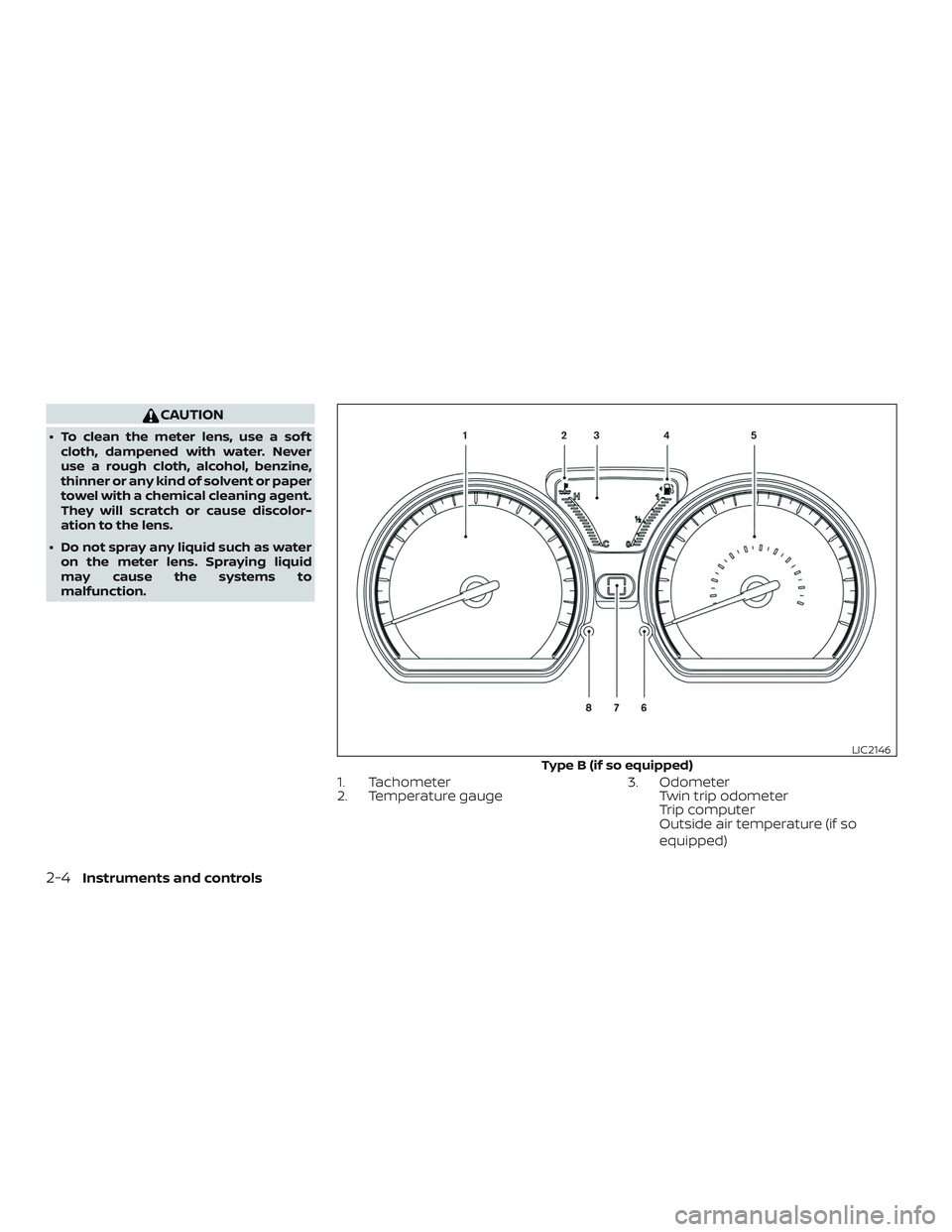

1. Tachometer
2. Temperature gauge 3. Odometer
Twin trip odometer
Trip computer
Outside air temperature (if so
equipped)
Type B (if so equipped)
LIC2146
2-4Instruments and controls

4. Fuel gauge
5. Speedometer
6. Change/reset button
7. Continuously Variable Transmis-sion (CVT) position indicator
8. Instrument brightness control
CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the systems to
malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side or in the center of
the meter cluster. The odometer is located
within the trip computer.
Speedometer
The speedometer indicates vehicle speed.
Type A (if so equipped)
LIC2118
Type B (if so equipped)
LIC2136
Instruments and controls2-5

Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
1records the total dis-
tance the vehicle has been driven.
The twin trip odometer
2records the dis-
tance of individual trips. Changing the display
Press the change/reset button
3to
change the display as follows:
Odometer (ODO) →Trip
→Trip→Instant fuel consumption →Average fuel
consumption →Distance to empty (cruis-
ing range) →Odometer (ODO)
Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently dis-
played trip odometer to zero. Average fuel economy and distance to
empty information is also available. For ad-
ditional information, refer to “Trip com-
puter” in this section.
Type A (if so equipped)
LIC3305
Type B (if so equipped)
LIC2139
2-6Instruments and controls

Loose fuel cap warning message
Push the reset buttonAfor more than
1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warn-
ing light is illuminated and low tire pressure
is detected. Check and adjust the tire pres-
sure to the recommended COLD tire pres-
sure shown on the Tire and Loading Infor-
mation label. The CHECK TIRE PRES
warning message can be turned off using
the reset button
Aon the meter, the low
tire pressure warning light will not be
turned off.
Type A (if so equipped)
LIC3306
Type B (if so equipped)
LPD2025
Type A (if so equipped)
LIC3307
Instruments and controls2-7

The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The
CHECK TIRE PRES warning message is dis-
played each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. For additional information, refer to
“Low tire pressure warning light” in this sec-
tion, “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section,
and “Wheels and tires” in the “Do-it-yourself ”
section of this manual.TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm).
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shif t to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
Type B (if so equipped)
LPD2128
Type A (if so equipped)
LIC3598
Type B (if so equipped)
LIC2151
2-8Instruments and controls
