2019 NISSAN PATHFINDER Owner´s Manual

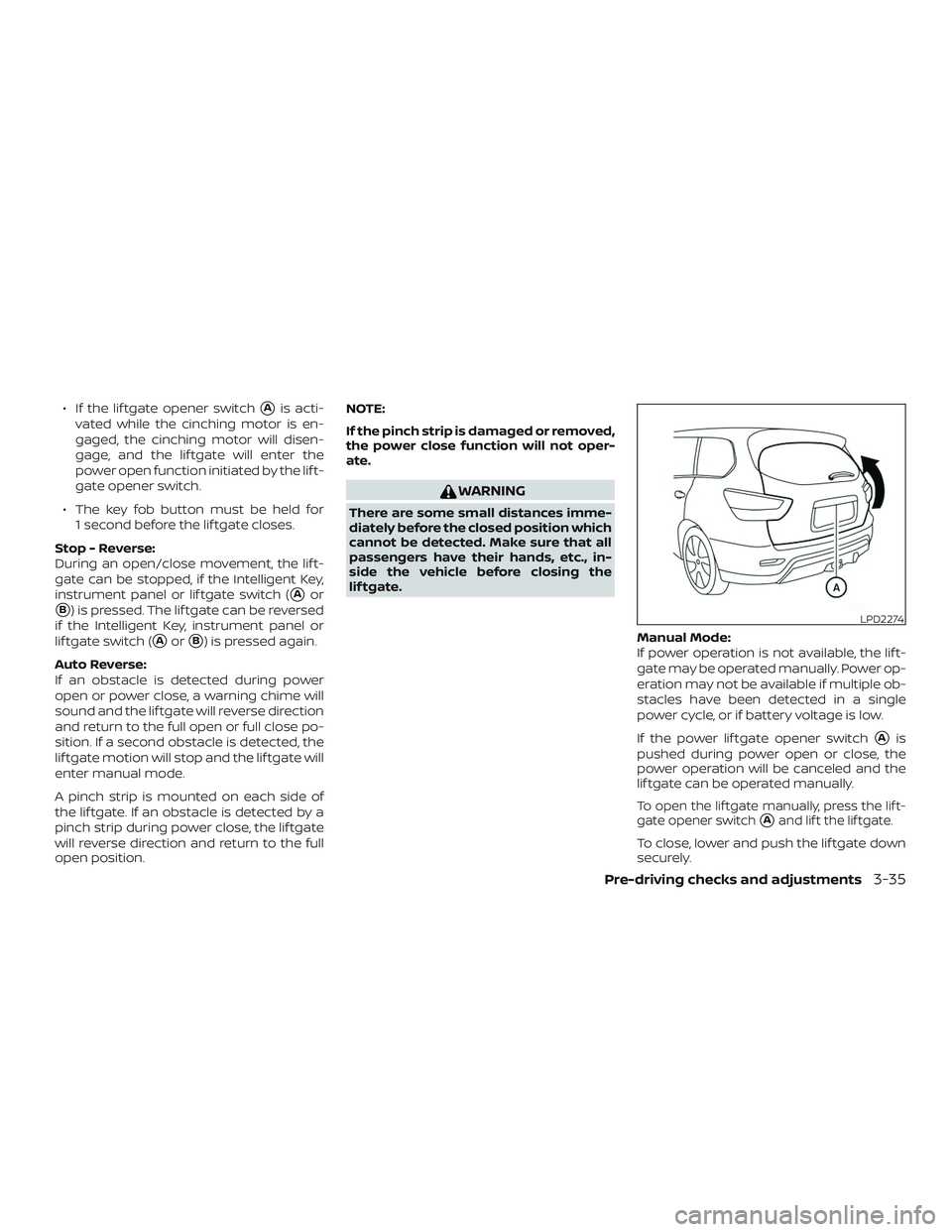

∙ If the lif tgate opener switchAis acti-
vated while the cinching motor is en-
gaged, the cinching motor will disen-
gage, and the lif tgate will enter the
power open function initiated by the lif t-
gate opener switch.
∙ The key fob button must be held for 1 second before the lif tgate closes.
Stop - Reverse:
During an open/close movement, the lif t-
gate can be stopped, if the Intelligent Key,
instrument panel or lif tgate switch (
Aor
B) is pressed. The lif tgate can be reversed
if the Intelligent Key, instrument panel or
lif tgate switch (
AorB) is pressed again.
Auto Reverse:
If an obstacle is detected during power
open or power close, a warning chime will
sound and the lif tgate will reverse direction
and return to the full open or full close po-
sition. If a second obstacle is detected, the
lif tgate motion will stop and the lif tgate will
enter manual mode.
A pinch strip is mounted on each side of
the lif tgate. If an obstacle is detected by a
pinch strip during power close, the lif tgate
will reverse direction and return to the full
open position. NOTE:
If the pinch strip is damaged or removed,
the power close function will not oper-
ate.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
lif tgate.
Manual Mode:
If power operation is not available, the lif t-
gate may be operated manually. Power op-
eration may not be available if multiple ob-
stacles have been detected in a single
power cycle, or if battery voltage is low.
If the power lif tgate opener switch
Ais
pushed during power open or close, the
power operation will be canceled and the
lif tgate can be operated manually.
To open the lif tgate manually, press the lif t-
gate opener switch
Aand lif t the lif tgate.
To close, lower and push the lif tgate down
securely.
LPD2274
Pre-driving checks and adjustments3-35

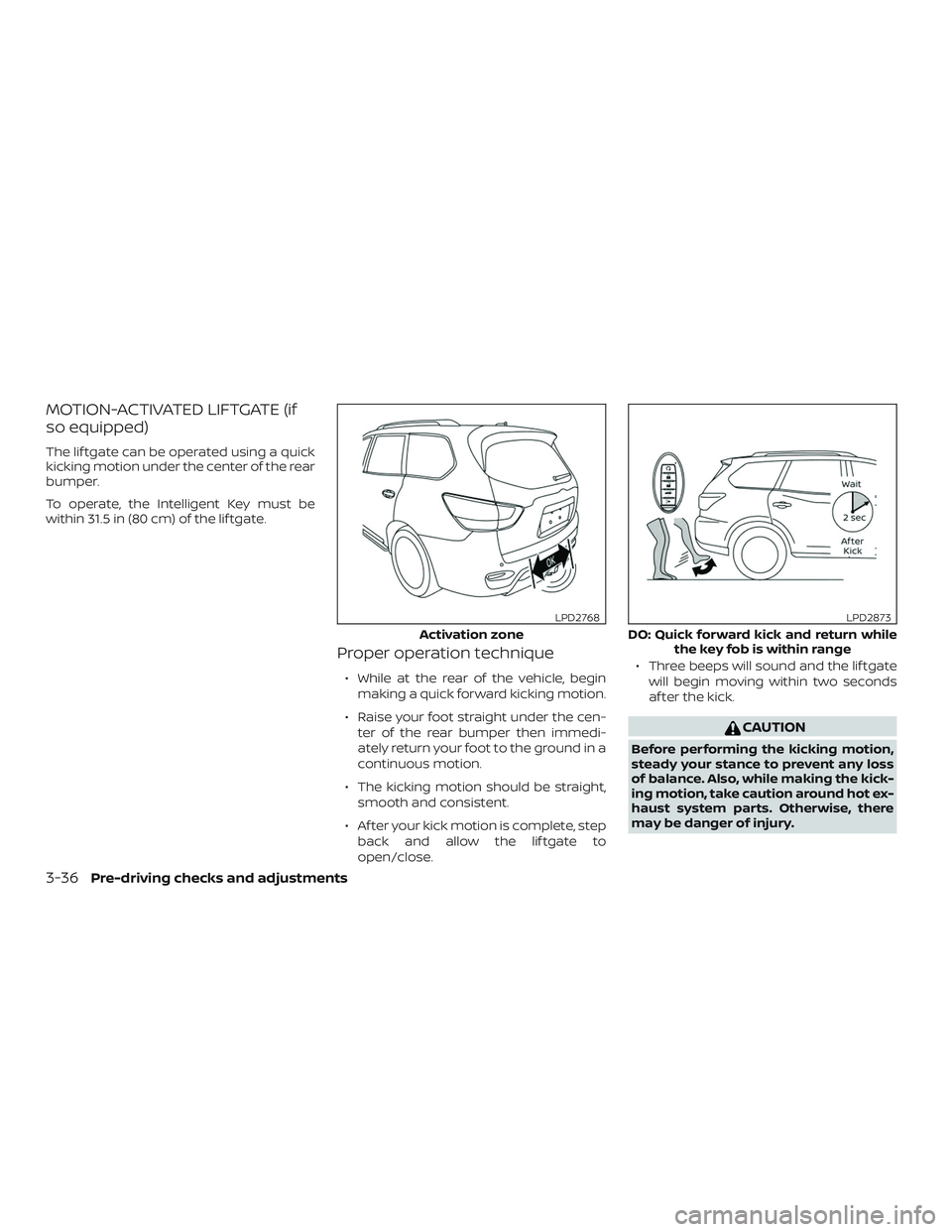

MOTION-ACTIVATED LIFTGATE (if
so equipped)
The lif tgate can be operated using a quick
kicking motion under the center of the rear
bumper.
To operate, the Intelligent Key must be
within 31.5 in (80 cm) of the lif tgate.
Proper operation technique
∙ While at the rear of the vehicle, beginmaking a quick forward kicking motion.
∙ Raise your foot straight under the cen- ter of the rear bumper then immedi-
ately return your foot to the ground in a
continuous motion.
∙ The kicking motion should be straight, smooth and consistent.
∙ Af ter your kick motion is complete, step back and allow the lif tgate to
open/close. ∙ Three beeps will sound and the lif tgate
will begin moving within two seconds
af ter the kick.
CAUTION
Before performing the kicking motion,
steady your stance to prevent any loss
of balance. Also, while making the kick-
ing motion, take caution around hot ex-
haust system parts. Otherwise, there
may be danger of injury.
Activation zone
LPD2768
DO: Quick forward kick and return while the key fob is within range
LPD2873
3-36Pre-driving checks and adjustments

WARNING
Prevent unintentional lif tgate
opening/closing. There may be condi-
tions when opening/closing the lif tgate
is not desired. Keep the Intelligent Key
out of range of the lif tgate, (31.5 in or
80 cm), when washing or working
around the back of the vehicle.
CAUTION
∙ Interference or malfunction can becaused by parking in close proximity
to radio or satellite towers.
∙ Intelligent Key interference could be caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional in-
formation, refer to “NISSAN Intelligent
Key®” in this section.
LIFTGATE RELEASE
WARNING
∙ Always be sure the lif tgate has beenclosed securely to prevent it from
opening while driving.
∙ Do not drive with the lif tgate open. This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of this
manual.
∙ To avoid personal injury, do not at- tempt to activate the power lif tgate if
one or both of the lif tgate struts are
removed.
CAUTION
∙ If the power lif tgate does not stayopen or if the lif tgate unexpectedly
closes at any time while a continuous
warning chime sounds, do not oper-
ate the lif tgate. There may be a pres-
sure loss in one or both of the lif tgate
struts. It is recommended that you
have the lif tgate inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.
∙ Do not activate the power lif tgate if one or both of the lif tgate struts are
removed. Damage to the lif tgate or
power lif tgate mechanisms may
occur.

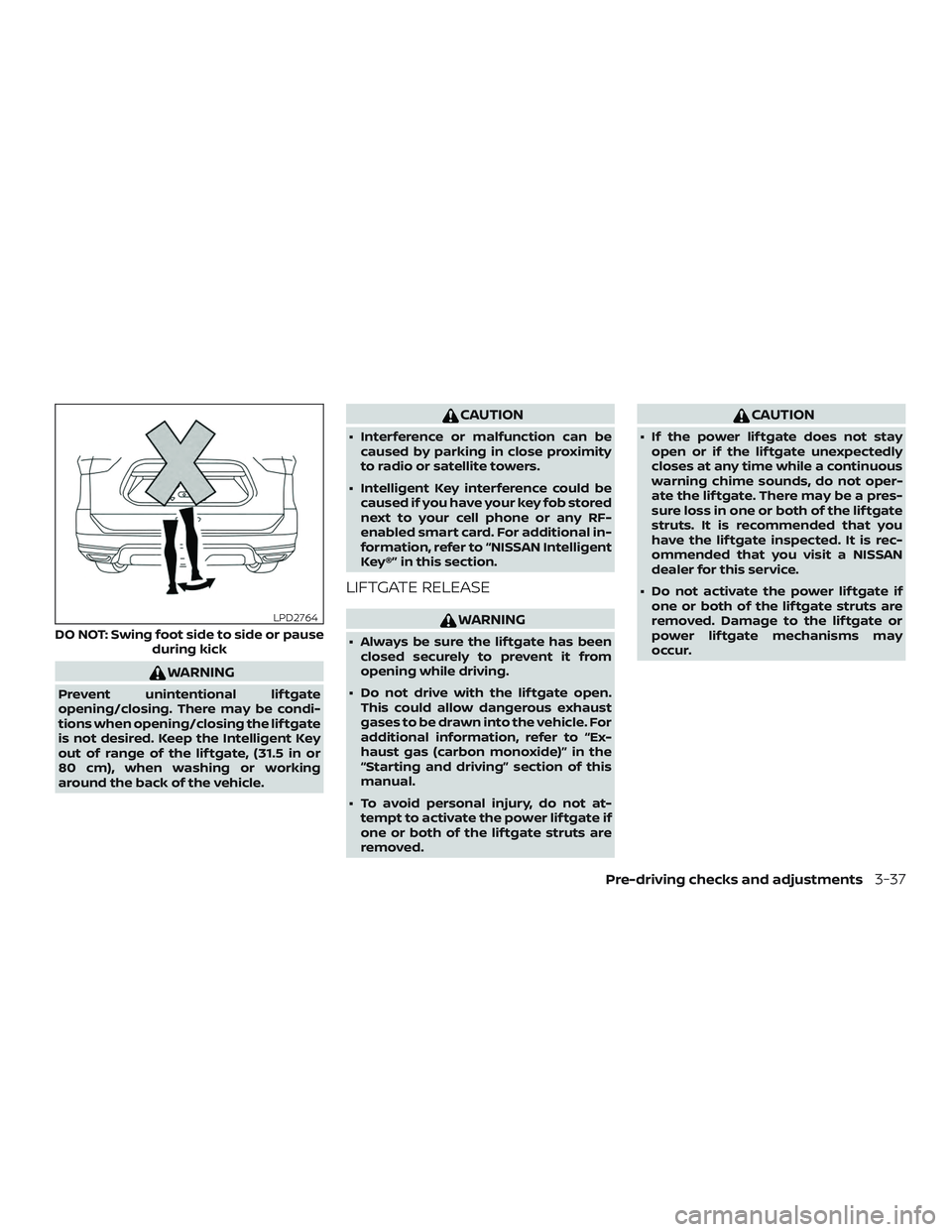

DO NOT: Swing foot side to side or pause during kick
LPD2764
Pre-driving checks and adjustments3-37

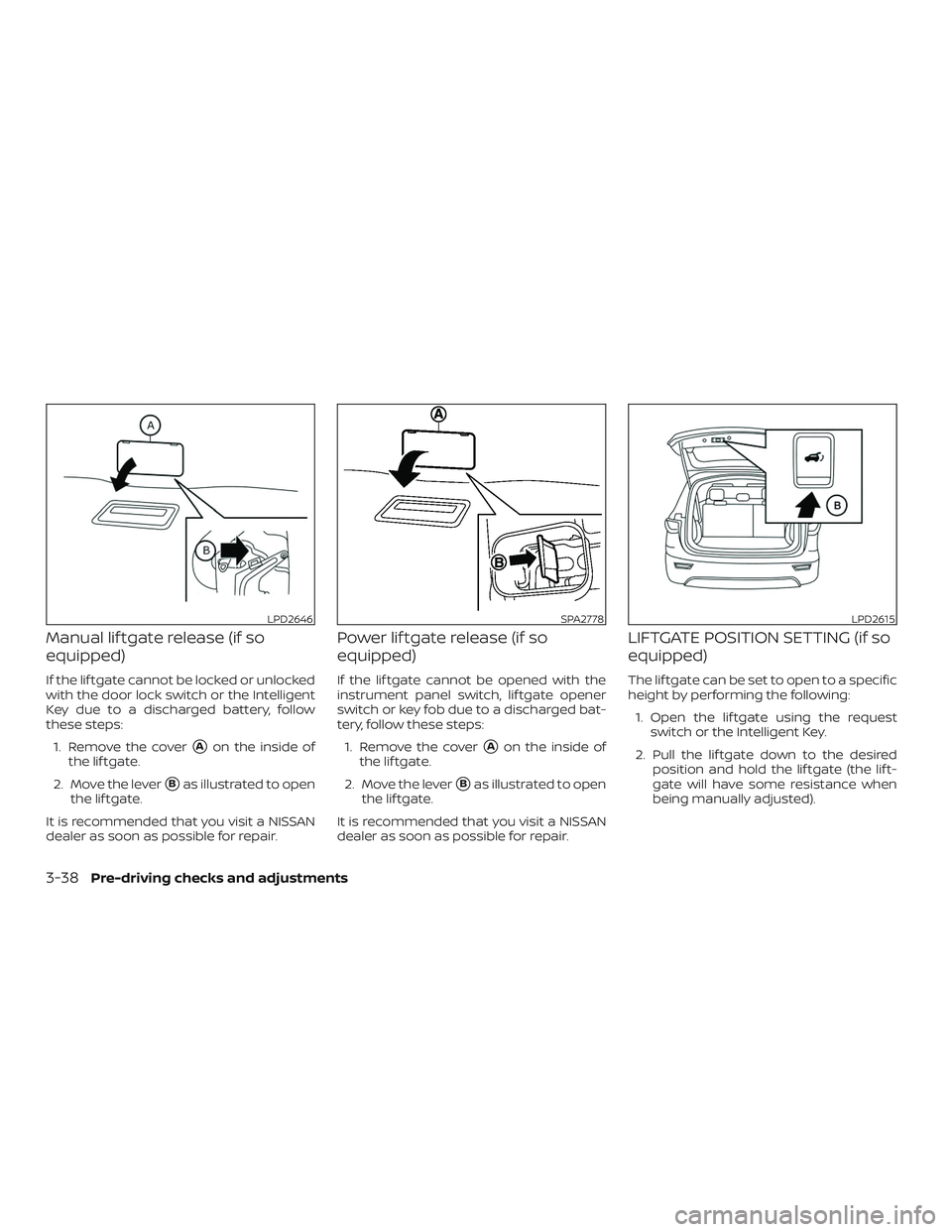

Manual lif tgate release (if so
equipped)
If the lif tgate cannot be locked or unlocked
with the door lock switch or the Intelligent
Key due to a discharged battery, follow
these steps:1. Remove the cover
Aon the inside of
the lif tgate.
2. Move the lever
Bas illustrated to open
the lif tgate.
It is recommended that you visit a NISSAN
dealer as soon as possible for repair.
Power lif tgate release (if so
equipped)
If the lif tgate cannot be opened with the
instrument panel switch, lif tgate opener
switch or key fob due to a discharged bat-
tery, follow these steps: 1. Remove the cover
Aon the inside of
the lif tgate.
2. Move the lever
Bas illustrated to open
the lif tgate.
It is recommended that you visit a NISSAN
dealer as soon as possible for repair.
LIFTGATE POSITION SETTING (if so
equipped)
The lif tgate can be set to open to a specific
height by performing the following: 1. Open the lif tgate using the request switch or the Intelligent Key.
2. Pull the lif tgate down to the desired position and hold the lif tgate (the lif t-
gate will have some resistance when
being manually adjusted).
LPD2646SPA2778LPD2615
3-38Pre-driving checks and adjustments

3. While holding the lif tgate in position,push and hold the lif tgate switch
located on the lif tgate for approxi-
mately 5 seconds or until two beeps
are heard.
The lif tgate will open to the selected posi-
tion setting. To change the position of the
lif tgate, repeat steps 1-3 for setting the po-
sition of the lif tgate.
OPENING THE FUEL-FILLER DOOR
The fuel-filler door automatically unlocks (if
so equipped) when the driver’s door is un-
locked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the In- telligent Key.
∙ Push the power door lock switch to the unlock position.
∙ Push the door handle request switch (with the Intelligent Key in range). 2. To open the fuel-filler door, push the
right side of the fuel-filler door to re-
lease.
To lock (if so equipped), close the fuel-filler
door securely and lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks near the vehicle when
refueling.
∙ Do not attempt to top off the fuel tank af ter the fuel pump nozzle shuts off
automatically. Continued refueling
may cause fuel overflow, resulting in
fuel spray and possibly a fire.
LPD2110
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-39

∙ Use only an original equipment typefuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the
Malfunction Indi-
cator Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are
filling it.
– Use only approved portable fuel containers for flammable liquid.
CAUTION
∙ Do not use a fuel containing morethan 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual.
∙ The Loose Fuel Cap warning message will be displayed/warning will appear
if the fuel-filler cap is not properly
tightened. It may take a few driving
trips for the message to be displayed.
Failure to tighten the fuel-filler cap
properly af ter the Loose Fuel Cap
warning message is
displayed/warning appears may
cause the
Malfunction Indicator
Light (MIL) to illuminate. ∙ Failure to tighten the fuel-filler cap
properly may cause the
Mal-
function Indicator Light (MIL) to illumi-
nate. If the
light illuminates be-
cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle.
The
light should turn off af ter a
few driving trips. If the
light does
not turn off af ter a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
the “Instruments and controls” sec-
tion of this manual.
∙ If fuel is spilled on the vehicle body, flush it away with water to avoid paint
damage.
NOTE:
Changing ignition switch status during
the refueling process may cause a delay
in fuel gauge response.
3-40Pre-driving checks and adjustments

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclock- wise to remove.
2. Put the fuel-filler cap on the cap holder
1while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning
The Loose Fuel Cap warning appears in the
vehicle information display when the fuel-
filler cap is not tightened correctly af ter the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap as soon as possible. For additional infor-
mation, refer to “Fuel-filler cap” in this
section. 2. Tighten the fuel-filler cap until it clicks.
3. Press the
buttonAon the steer-
ing wheel for about 1 second to turn off
the Loose Fuel Cap warning
Baf ter
tightening the fuel-filler cap.
LPD2621LPD2066
Pre-driving checks and adjustments3-41

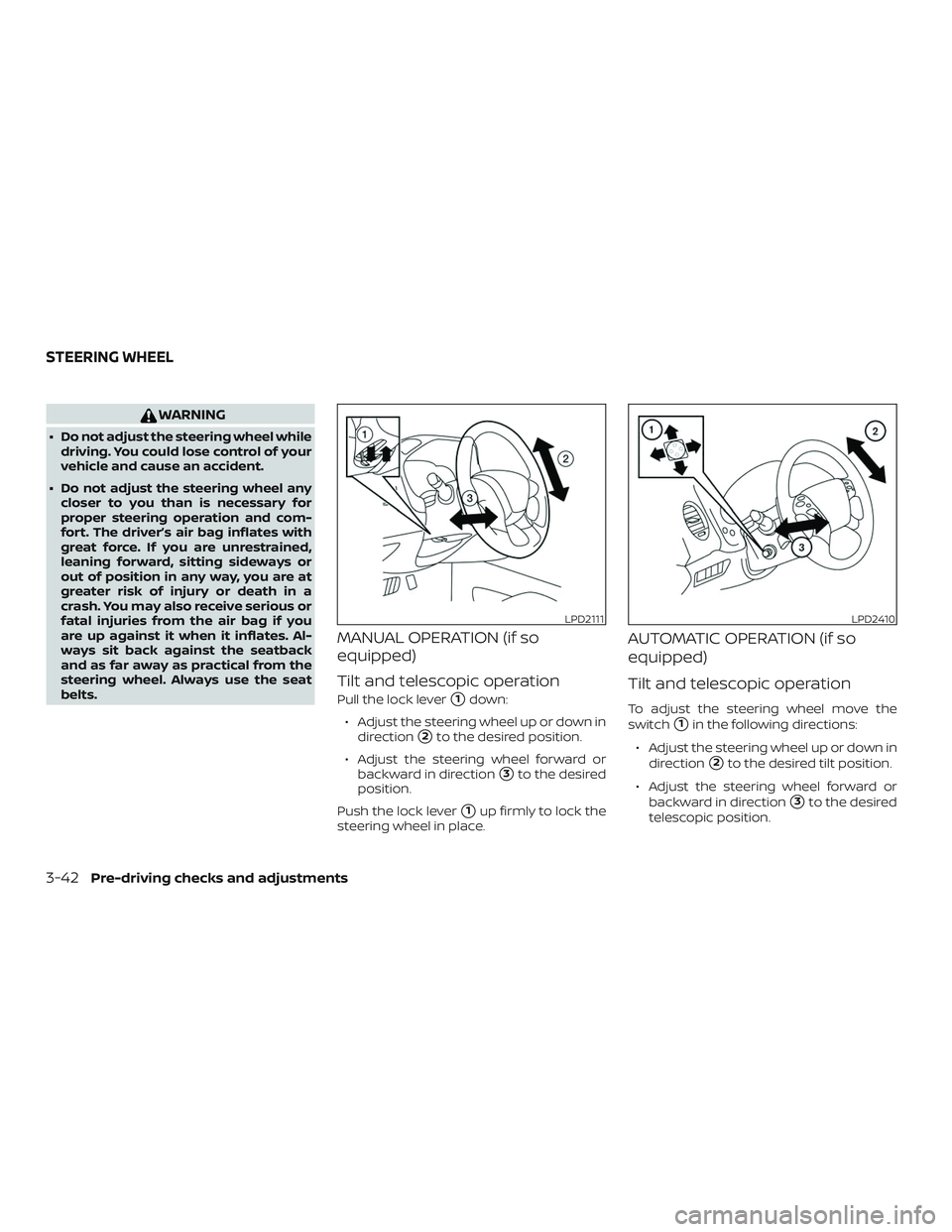

WARNING
∙ Do not adjust the steering wheel whiledriving. You could lose control of your
vehicle and cause an accident.
∙ Do not adjust the steering wheel any closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.
MANUAL OPERATION (if so
equipped)
Tilt and telescopic operation
Pull the lock lever1down:
∙ Adjust the steering wheel up or down in direction
2to the desired position.
∙ Adjust the steering wheel forward or backward in direction
3to the desired
position.
Push the lock lever
1up firmly to lock the
steering wheel in place.
AUTOMATIC OPERATION (if so
equipped)
Tilt and telescopic operation
To adjust the steering wheel move the
switch
1in the following directions:
∙ Adjust the steering wheel up or down in direction
2to the desired tilt position.
∙ Adjust the steering wheel forward or backward in direction
3to the desired
telescopic position.
LPD2111LPD2410
STEERING WHEEL
3-42Pre-driving checks and adjustments
