2019 NISSAN NV200 Owners Manual

LDI2254

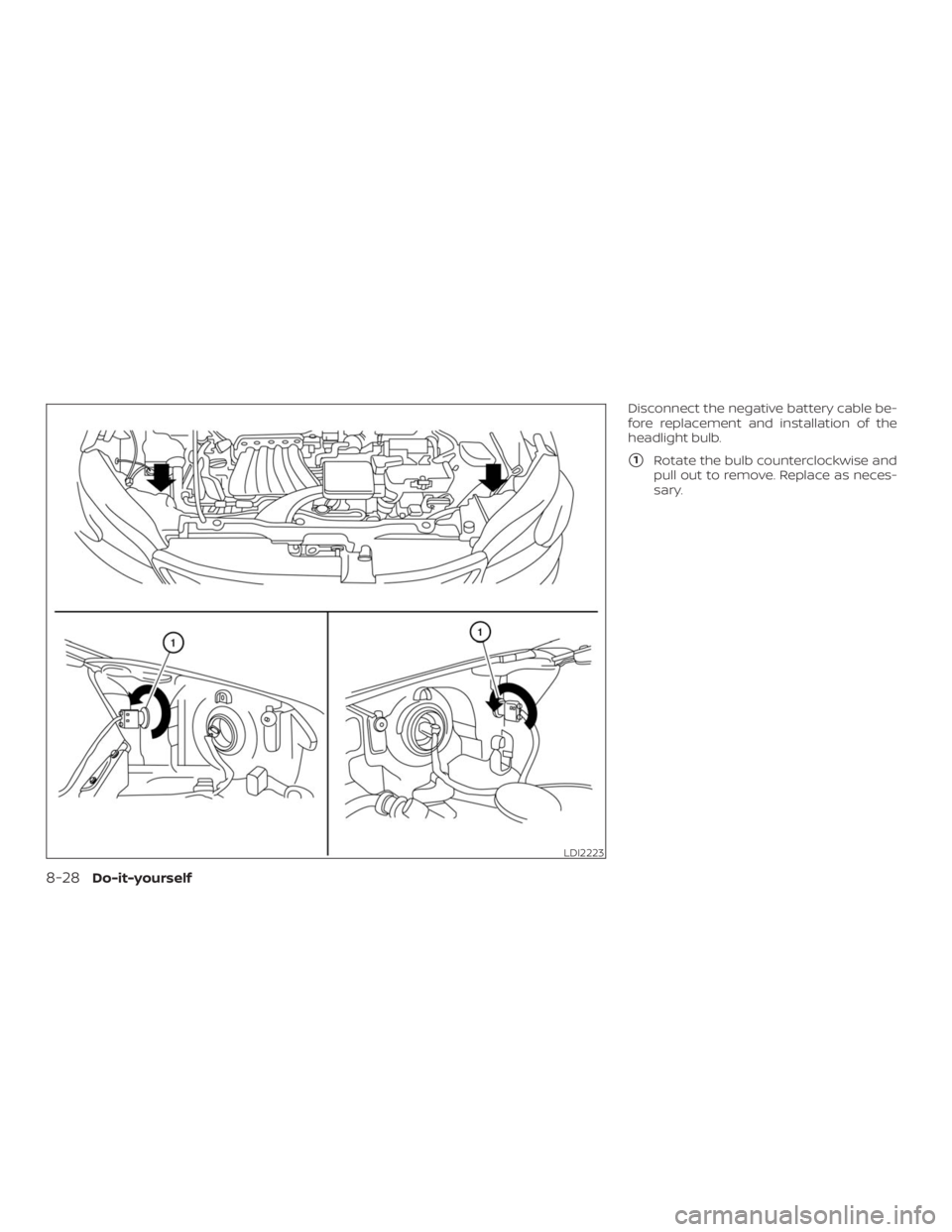

LDI2223
8-28Do-it-yourself

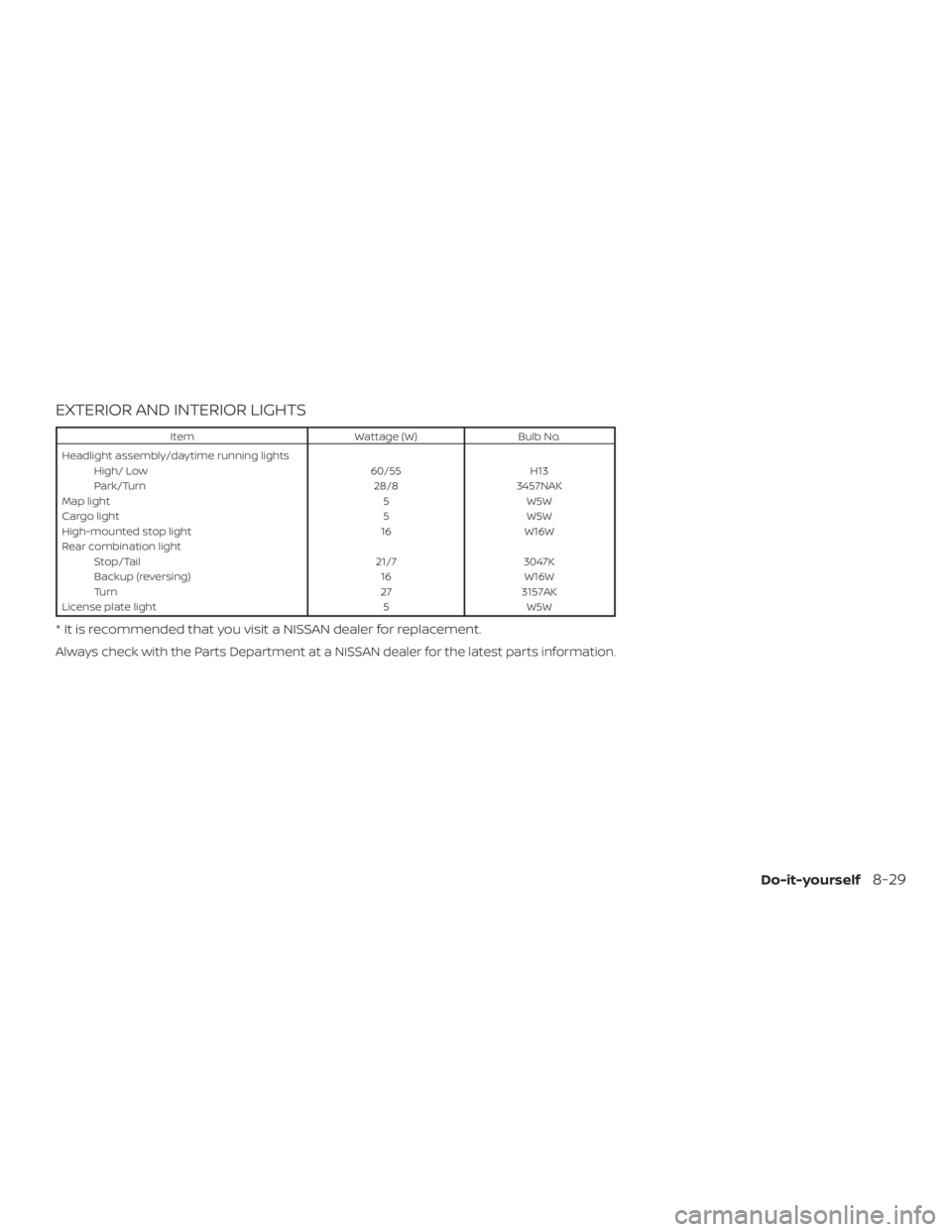

Item Wattage (W) Bulb No.
Headlight assembly/daytime running lights
High/ Low 60/55 H13
Park/Turn 28/8 3457NAK
Map light 5 W5W
Cargo light 5 W5W
High-mounted stop light 16 W16W

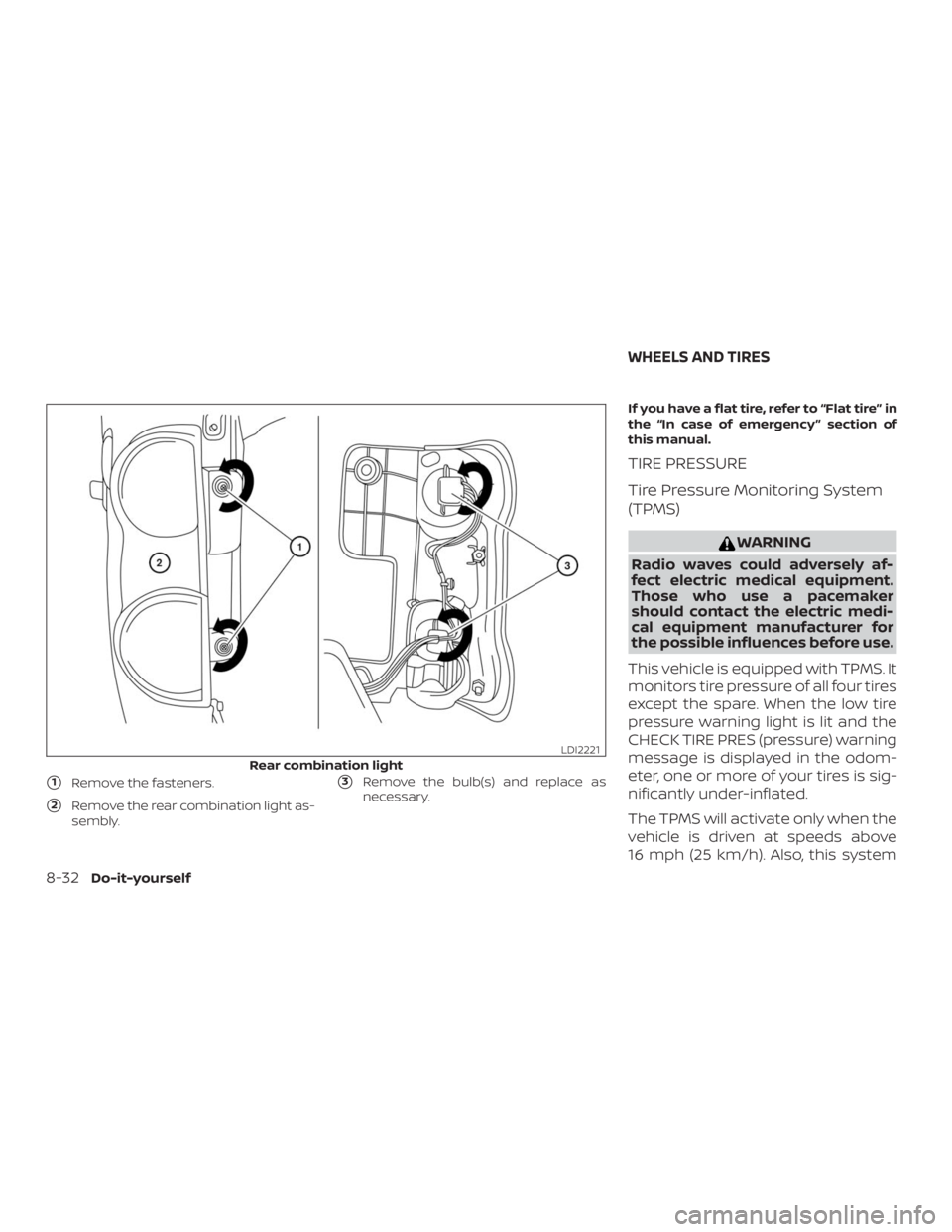

Rear combination light
Stop/Tail 21/7 3047K
Backup (reversing) 16 W16W
Turn 27 3157AK
License plate light 5 W5W
* It is recommended that you visit a NISSAN dealer for replacement.
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
Do-it-yourself8-29

LDI2507WDI0263
8-30Do-it-yourself

Indicates bulb installation
Use a cloth to protect the housing.Use a cloth to protect the housing.

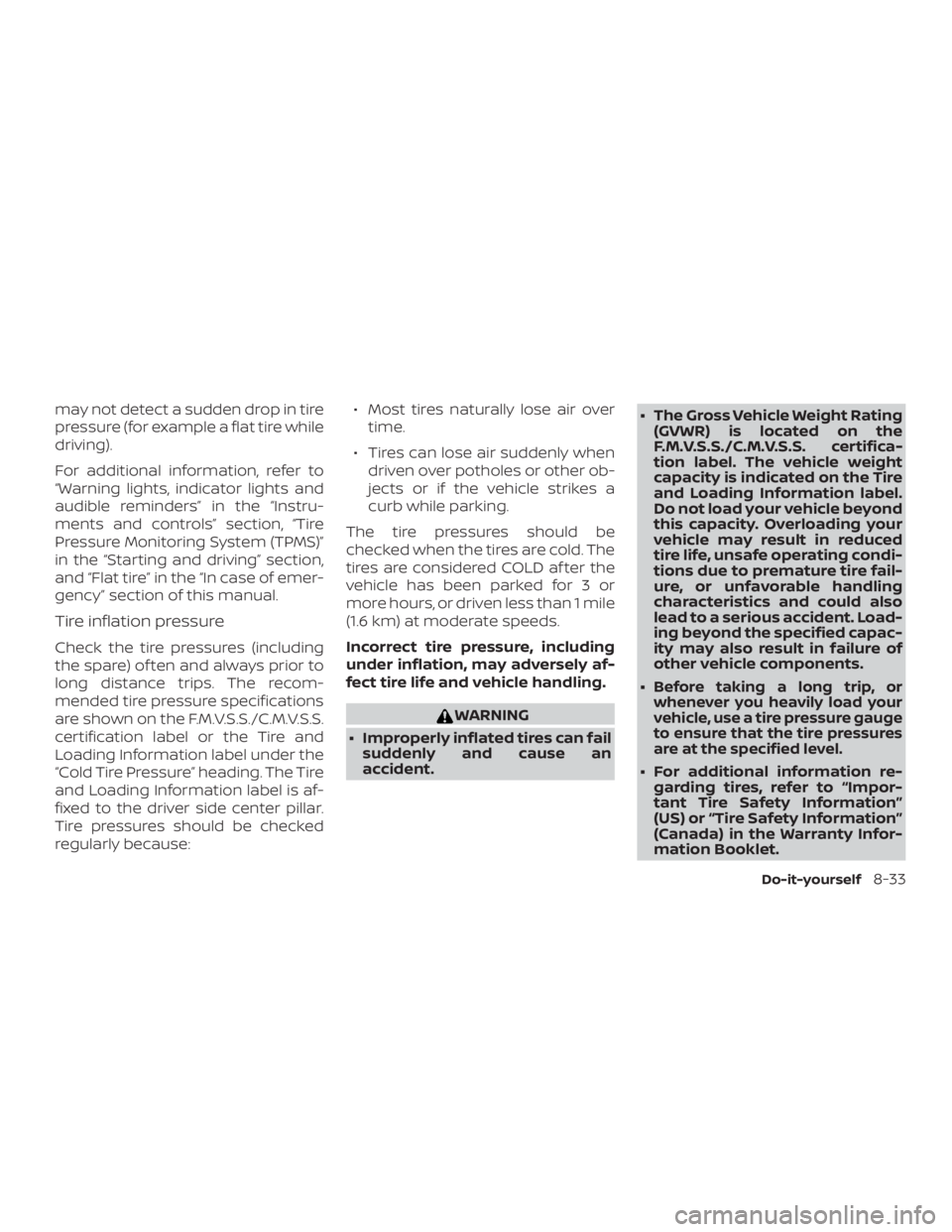

WARNING
 Improperly inflated tires can fail
suddenly and cause an
accident. The Gross Vehicle Weight Rating
(GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
are at the specified level.
 For additional information re-
garding tires, refer to
tant Tire Safety InformationŽ
(US) or Safety InformationŽ
(Canada) in the Warranty Infor-
mation Booklet.
Do-it-yourself8-33

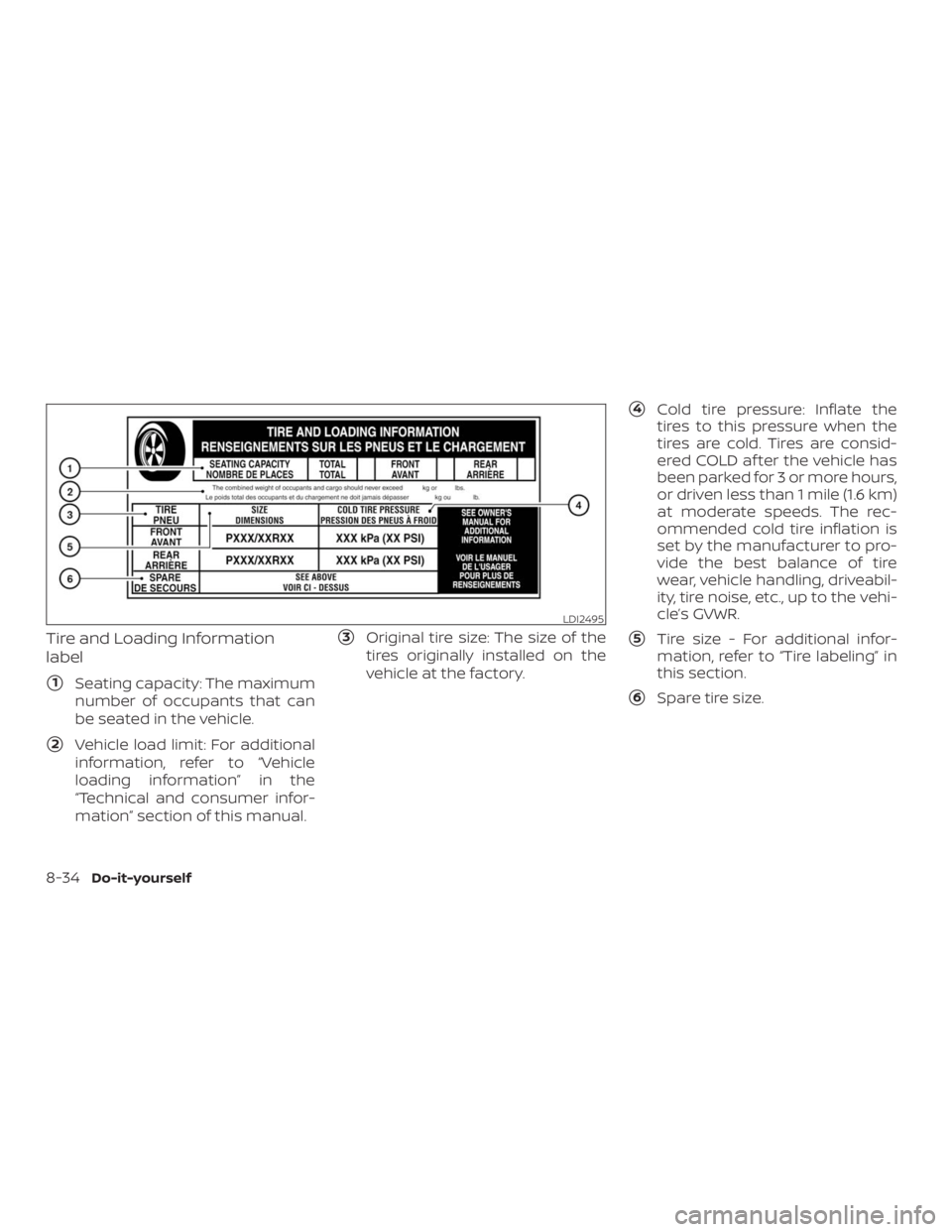

LDI2495
8-34Do-it-yourself
