2019 NISSAN NV200 Owners Manual

LIC2881

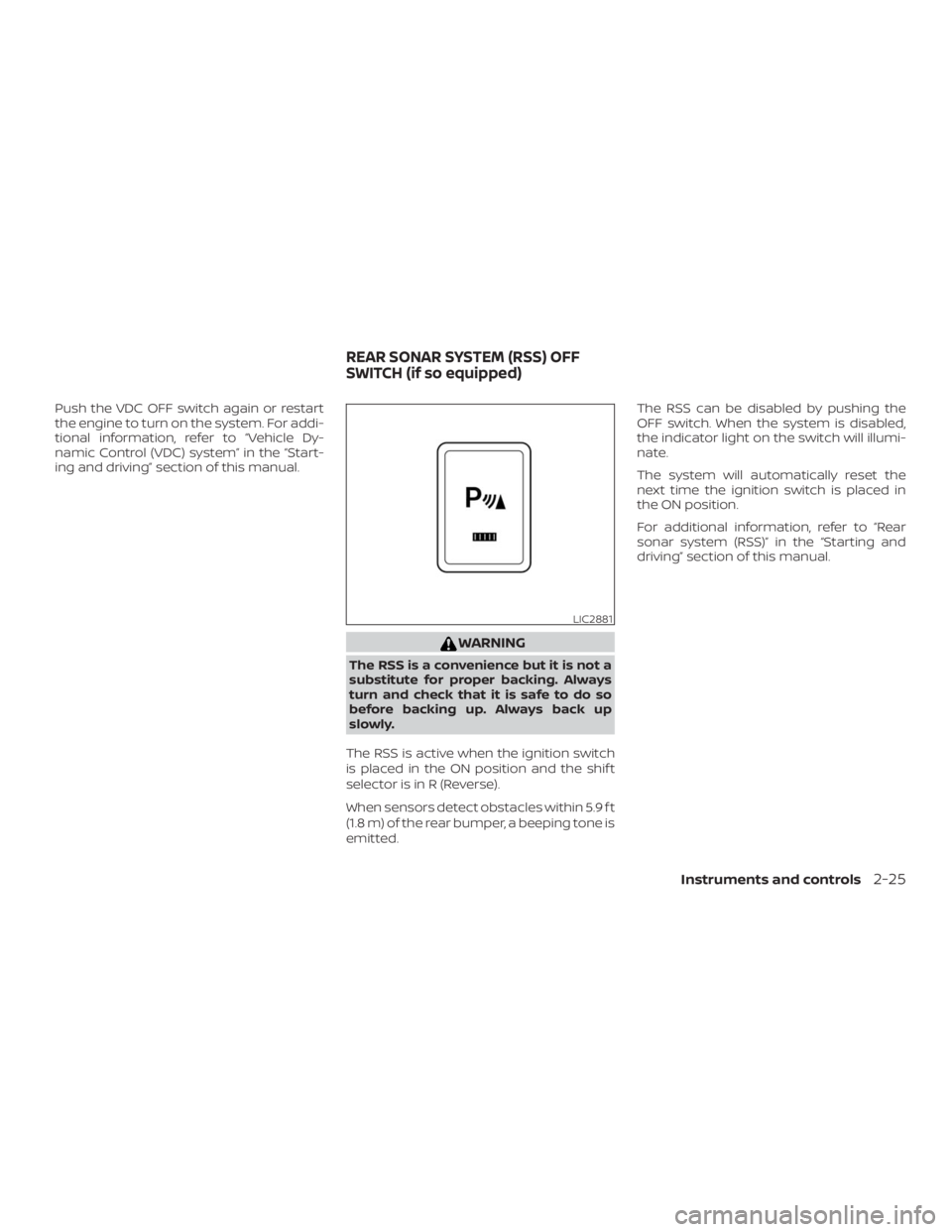

REAR SONAR SYSTEM (RSS) OFF
SWITCH (if so equipped)
Instruments and controls2-25

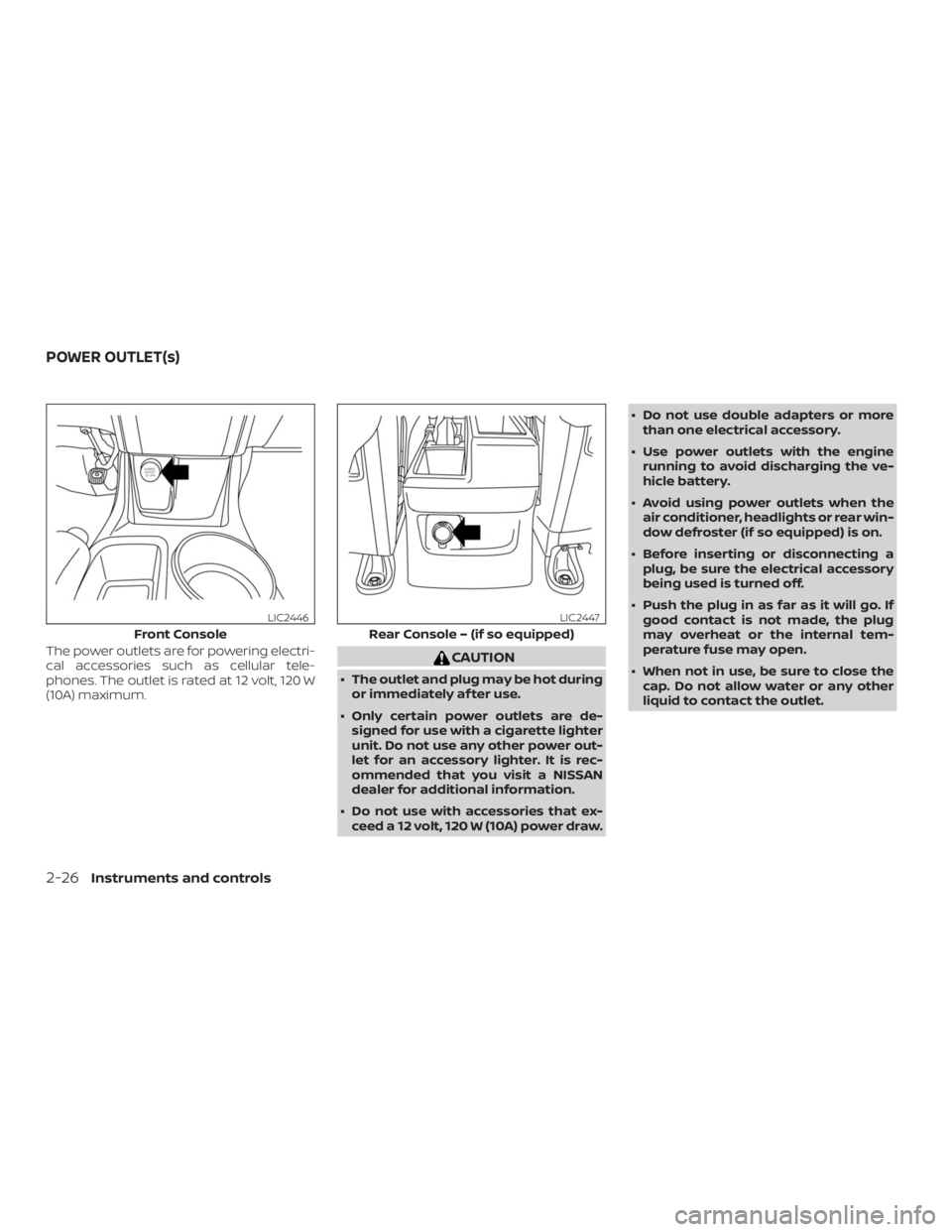

Front Console

LIC2450
Instruments and controls2-27

LIC2160LIC2448
2-28Instruments and controls

LIC2088

LIC2373

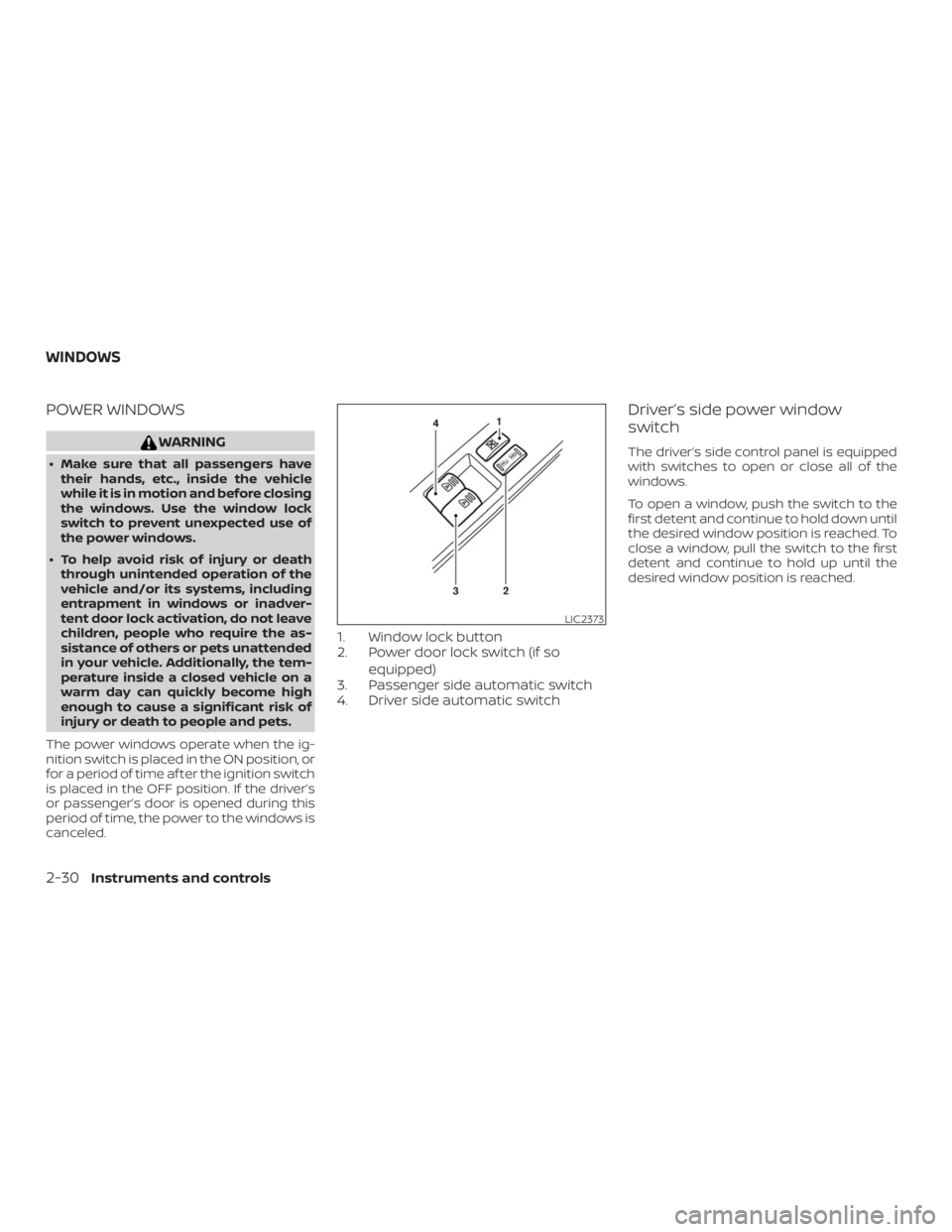

WINDOWS

WIC1125LIC0410

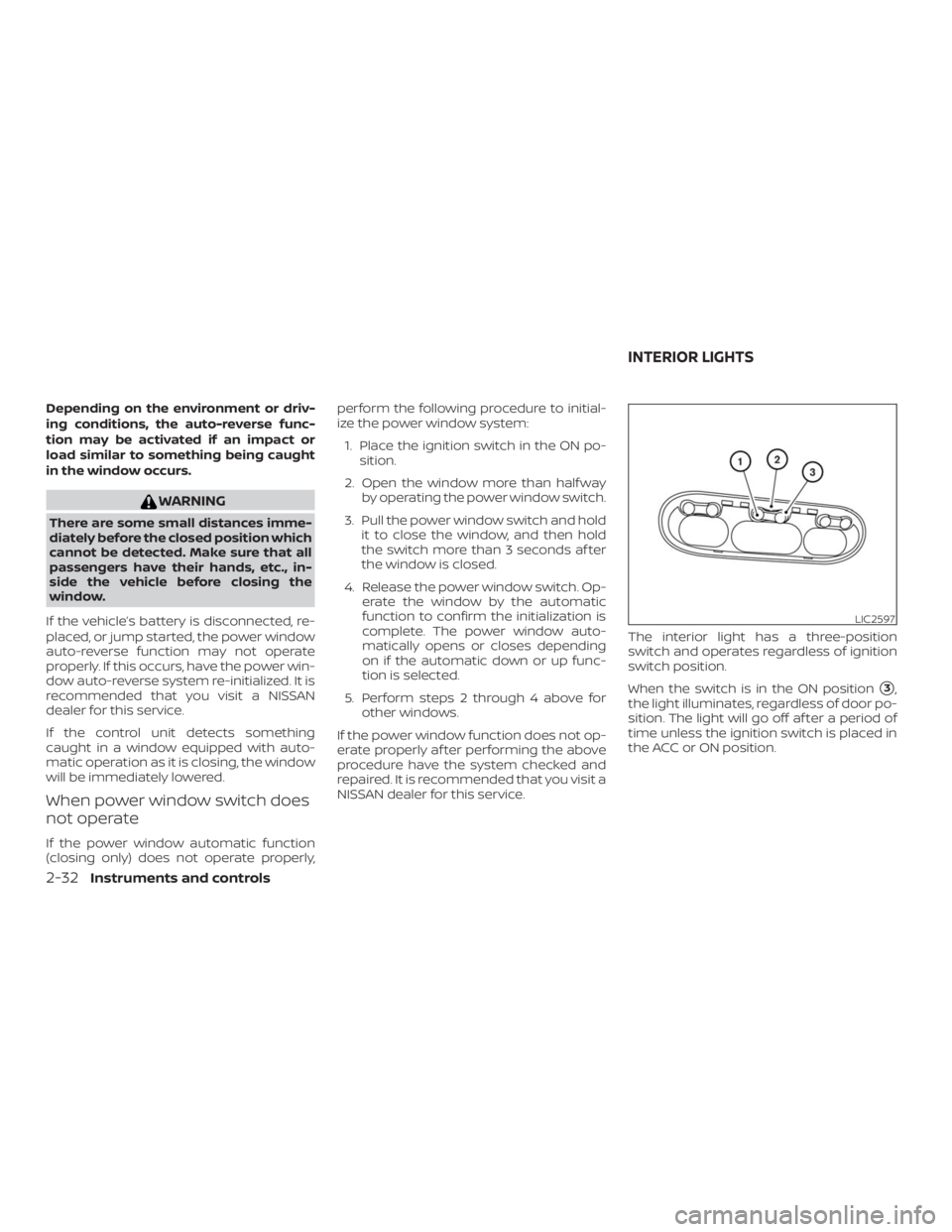

WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate
properly. If this occurs, have the power win-
dow auto-reverse system re-initialized. It is
recommended that you visit a NISSAN
dealer for this service.
If the control unit detects something
caught in a window equipped with auto-
matic operation as it is closing, the window
will be immediately lowered.
When power window switch does
not operate
If the power window automatic function
(closing only) does not operate properly,perform the following procedure to initial-
ize the power window system:
1. Place the ignition switch in the ON po-
sition.
2. Open the window more than half way
by operating the power window switch.
3. Pull the power window switch and hold
it to close the window, and then hold
the switch more than 3 seconds af ter
the window is closed.
4. Release the power window switch. Op-
erate the window by the automatic
function to confirm the initialization is
complete. The power window auto-
matically opens or closes depending
on if the automatic down or up func-
tion is selected.
5. Perform steps 2 through 4 above for
other windows.
If the power window function does not op-
erate properly af ter performing the above
procedure have the system checked and
repaired. It is recommended that you visit a
NISSAN dealer for this service.The interior light has a three-position
switch and operates regardless of ignition
switch position.
When the switch is in the ON position
3,
the light illuminates, regardless of door po-
sition. The light will go off af ter a period of
time unless the ignition switch is placed in
the ACC or ON position.
LIC2597
INTERIOR LIGHTS
