Page 18 of 516
QR25DE engine
1. Windshield-washer fluid reservoir(P. 8-14)
2. Fuse/Fusible link box (P. 8-23)
3. Fuse box (P. 8-23)
4. Air cleaner (P. 8-19)
5. Engine oil filler cap (P. 8-7)
6. Engine oil dipstick (P. 8-7)
7. Brake and clutch (if so equipped)
fluid reservoir (P. 8-13)
8. Drive belt location (P. 8-17)
9. Radiator cap (P. 8-5)
10. Power steering fluid reservoir
(P. 8-12)
11. Battery (P. 8-15)
12. Engine coolant reservoir (P. 8-5)
Refer to the page number indicated in
parentheses for operating details.
WDI0643
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
Page 19 of 516
VQ40DE engine
1. Windshield-washer fluid reservoir(P. 8-14)
2. Fuse/Fusible link box (P. 8-23)
3. Fuse box (P. 8-23)
4. Engine oil filler cap (P. 8-7)
5. Engine oil dipstick (P. 8-7)
6. Brake and clutch (if so equipped)
fluid reservoir (P. 8-13)
7. Air cleaner (P. 8-19)
8. Drive belt location (P. 8-17)
9. Radiator cap (P. 8-5)
10. Power steering fluid reservoir
(P. 8-12)
11. Battery (P. 8-15)
12. Engine coolant reservoir (P. 8-5)
*Engine cover removed for clarity.
Refer to the page number indicated in
parentheses for operating details.
LII0167
Illustrated table of contents0-9
Page 20 of 516

Warninglight Name Page
4WD warning light
(
model)2-15
or
Anti-lock Braking
System (ABS)
warning light 2-15
Automatic trans-
mission oil tem-
perature warning
light (if so
equipped)2-16
Automatic trans-
mission park
warning light
(
model)
2-16
or
Brake warning
light
2-16
Warning
light Name Page
Charge warning
light 2-17
Door open warn-
ing light2-17
Engine oil pres-
sure warning light2-17
Low fuel warning
light2-18
Low tire pressure
warning light2-18
Low windshield-
washer fluid
warning light (if so
equipped) 2-19
Seat belt warning
light and chime
2-19
Supplemental air
bag warning light2-20
Indicator
light Name Page
4WD shif t indica-
tor light (
model) 2-20
Automatic trans-
mission position
indicator light (if
so equipped)2-20
CRUISE indicator
light
2-20
Electronic locking
rear differential
(E-Lock) system
ON indicator light
(if so equipped) 2-21
Front passenger
air bag status
light
2-21
High beam indi-
cator light (blue)
2-21
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents
Page 114 of 516

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-3
Speedometer and odometer .................2-4
Tachometer ..................................2-6
Engine coolant temperature gauge ..........2-6
Fuel gauge ................................... 2-7
Distance To Empty (DTE) ...................... 2-7
Engine oil pressure gauge
(if so equipped) ...............................2-8
Voltmeter (if so equipped) ....................2-9
Trip computer (if so equipped) ................2-9
Compass and outside temperature display
(if so equipped) ................................. 2-10
Outside temperature display .................2-11
Compass ..................................... 2-11
Warning lights, indicator lights and audible
reminders ...................................... 2-14
Checking lights .............................. 2-15
Warning lights ............................... 2-15
Indicator lights .............................. 2-20Audible reminders
........................... 2-24
Security systems (if so equipped) ...............2-24
Vehicle security system (if so equipped) .....2-24
NISSAN Vehicle Immobilizer System
(if so equipped) .............................. 2-26
Wiper and washer switch .......................2-27
Switch operation ............................ 2-27
Rear window or outside mirror defroster
switch (if so equipped) .......................... 2-28
Headlight and turn signal switch ...............2-29
Headlight control switch .....................2-29
Daytime Running Lights (DRL) system
(if so equipped) .............................. 2-31
Instrument brightness control ...............2-32
Turn signal switch ........................... 2-32
Fog light switch (if so equipped) .............2-32
Horn ........................................... 2-33
Cargo lamp switch ............................. 2-33
Heated seat switches (if so equipped) ..........2-34
Vehicle Dynamic Control (VDC) OFF switch ......2-35
Page 117 of 516

15. Electronic locking rear differential(E-Lock) system switch
(if so equipped) (P. 2-37)
Heated seat switches
(if so equipped) (P. 2-34)
Rear sonar switch (if so equipped)
(P. 2-38)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-35)
16. Shif t lever (P. 5-14)
17. 4WD shif t switch (if so equipped)
(P. 5-26)
18. Climate controls (P. 4-23, P. 4-32)
19. Hazard warning flasher switch
(P. 6-2)
20. Ignition switch (P. 5-11)
21. Tilt steering wheel control
(if so equipped) (P. 3-14)
22. Cargo lamp switch (P. 2-33) Clutch interlock (clutch start)
switch (if so equipped) (P. 2-38)
Hill descent control switch
(if so equipped) (P. 2-35)
Outside mirror controls
(if so equipped) (P. 3-16) 1. Warning and indicator lights
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Change/reset button
6. Voltmeter (if so equipped) 7. Odometer
Twin trip odometer
Trip computer (if so equipped)
Instrument brightness control knob8. Engine oil pressure gauge
9. Engine coolant temperature gauge
LIC3327
METERS AND GAUGES
Instruments and controls2-3

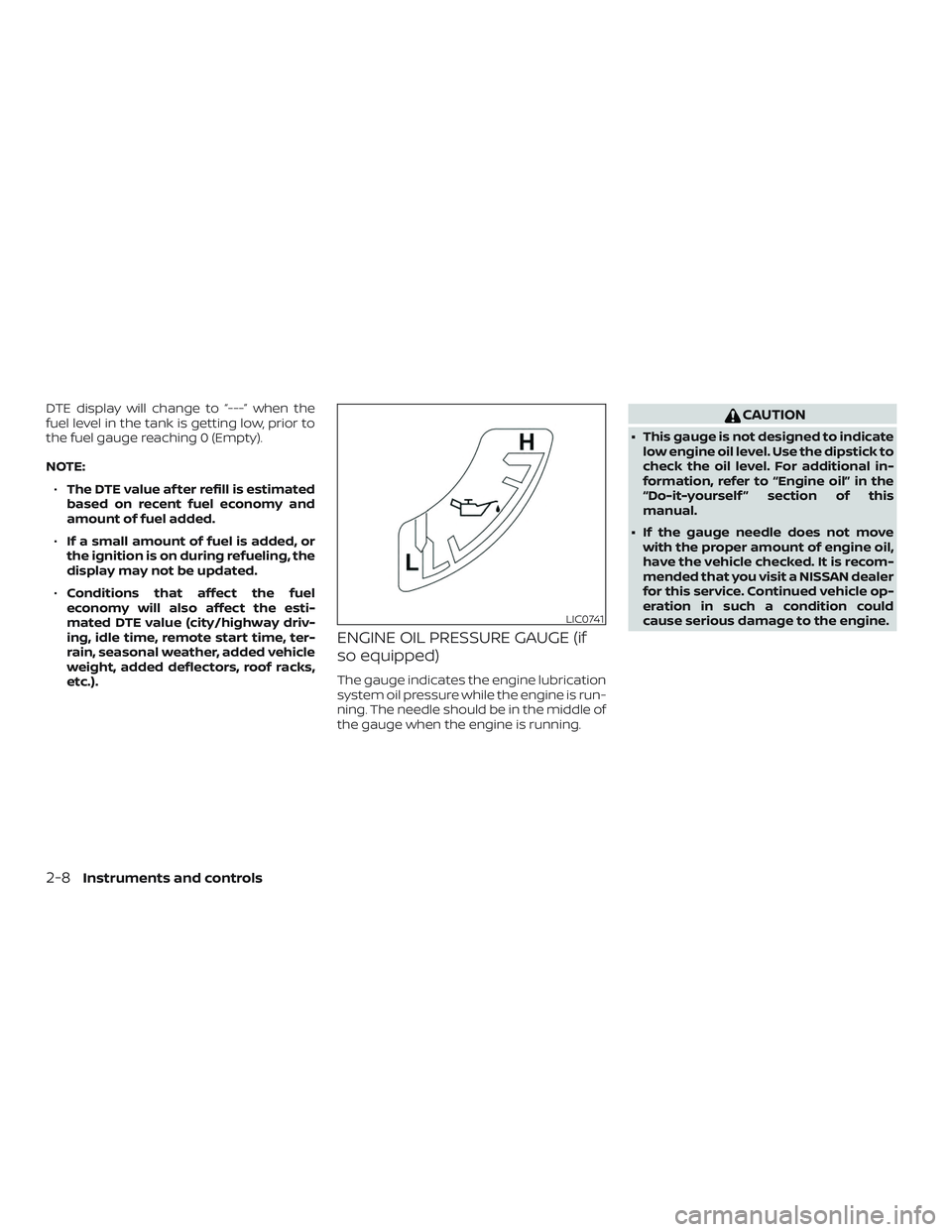

Page 122 of 516

DTE display will change to “---” when the
fuel level in the tank is getting low, prior to
the fuel gauge reaching 0 (Empty).
NOTE:∙ The DTE value af ter refill is estimated
based on recent fuel economy and
amount of fuel added.
∙ If a small amount of fuel is added, or
the ignition is on during refueling, the
display may not be updated.
∙ Conditions that affect the fuel
economy will also affect the esti-
mated DTE value (city/highway driv-
ing, idle time, remote start time, ter-
rain, seasonal weather, added vehicle
weight, added deflectors, roof racks,
etc.).
ENGINE OIL PRESSURE GAUGE (if
so equipped)
The gauge indicates the engine lubrication
system oil pressure while the engine is run-
ning. The needle should be in the middle of
the gauge when the engine is running.
CAUTION
∙ This gauge is not designed to indicate
low engine oil level. Use the dipstick to
check the oil level. For additional in-
formation, refer to “Engine oil” in the
“Do-it-yourself ” section of this
manual.
∙ If the gauge needle does not move with the proper amount of engine oil,
have the vehicle checked. It is recom-
mended that you visit a NISSAN dealer
for this service. Continued vehicle op-
eration in such a condition could
cause serious damage to the engine.
LIC0741
2-8Instruments and controls
Page 128 of 516

4WD warning light (model)Low windshield-washer fluid warning light
(if so equipped)Malfunction Indicator Light (MIL)
orAnti-lock Braking System
(ABS) warning lightSeat belt warning light and chimeOverdrive OFF indicator light
(if so equipped)
Automatic transmission oil temperature
warning light (if so equipped)Supplemental air bag warning lightSecurity indicator light (if so equipped)
Automatic transmission park warning
light (model)4WD shif t indicator light (model)SET indicator light
orBrake warning lightAutomatic transmission position
indicator light (if so equipped)Slip indicator light
Charge warning lightCRUISE indicator lightTransfer 4LO position indicator light
(model)
Door open warning lightElectronic locking rear differential (E-Lock)
system ON indicator light (if so equipped)Turn signal/hazard indicator lights
Engine oil pressure warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC) OFF
indicator light
Low fuel warning lightHigh beam indicator light (blue)
Low tire pressure warning lightHill descent control system ON indicator
light (if so equipped)
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
2-14Instruments and controls
Page 130 of 516

If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.
Automatic transmission oiltemperature warning light
(if so equipped)
This light comes on when the automatic
transmission oil temperature is too high. If
the light comes on while driving, reduce the
vehicle speed as soon as safely possible
until the light turns off.
CAUTION
Continued vehicle operation when the
A/T oil temperature warning light is on
may damage the automatic
transmission.
Automatic transmissionpark warning light (
model)
WARNING
∙ If the ATP light is ON, this indicates that the automatic transmission P
(Park) position will not function and
the transfer case is in neutral.
∙ When parking, always make sure that the 4WD shif t indicator light illumi-
nates and the parking brake is set.
Failure to engage the transfer posi-
tion in 2WD, 4H or 4LO could result in
the vehicle moving unexpectedly, re-
sulting in serious personal injury or
property damage.
∙ Shif t the 4WD switch into the 2WD, 4H or 4LO position again to turn off the
ATP warning light when the shif t lever
is in the P position and the ATP warn-
ing light is ON. (Before shif ting the
4WD switch into the 4LO position,
move the shif t lever into the N posi-
tion once, shif t the shif t lever into P
again and make sure the ATP warning
light is OFF.) This light indicates that the automatic
transmission parking function is not en-
gaged. If the transfer control is not secured
in any drive position while the shif t lever is
in the P (Park) position, the transmission will
disengage and the drive wheels will not
lock.orBrake warning
light
This light functions for both the parking
brake and the foot brake systems.
Parking brake indicator
When the ignition switch is placed in the ON
position, the light comes on when the park-
ing brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:
1. Check the brake fluid level. Add brake fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.
2-16Instruments and controls
