8 Do-it-yourself
Maintenance precautions.......................8-2
Engine compartment check locations ...........8-3
Engine cooling system ..........................8-5
Checking engine coolant level ................8-6
Changing engine coolant .....................8-6
Engine oil ........................................8-7
Checking engine oil level .....................8-7
Changing engine oil and oil filter ..............8-8
5-speed Automatic Transmission
(if so equipped) Fluid (ATF) ......................8-12
Power Steering Fluid (PSF) ......................8-12
Brake and clutch (if so equipped) fluid ..........8-13
Brake fluid ................................... 8-13
Clutch (if so equipped) fluid ..................8-14
Windshield-washer fluid ........................8-14
Windshield-washer fluid reservoir ............8-14
Battery......................................... 8-15
Jump starting ............................... 8-16
Variable voltage control system ................8-17
Drive belt ....................................... 8-17
Spark plugs .................................... 8-18
Replacing spark plugs .......................8-18Air cleaner
...................................... 8-19
In-cabin microfilter .......................... 8-20
Windshield wiper blades ........................8-21
Cleaning .................................... 8-21
Replacing ................................... 8-21
Brakes.......................................... 8-22
Fuses ........................................... 8-23
Engine compartment .......................8-24
Passenger compartment ....................8-25
Battery replacement ........................... 8-26
Key fob (if so equipped) ......................8-27
Lights .......................................... 8-28
Headlights ................................... 8-28
Fog lights (if so equipped) ...................8-29
Exterior and interior lights ...................8-30
Wheels and tires ................................ 8-33
Tir e

pressure ................................ 8-33
Tire labeling ................................. 8-36
Types of tires ................................ 8-39
Tire chains .................................. 8-40
Changing wheels and tires ..................8-41

the belt is in poor condition or is loose,
have it replaced or adjusted. It is recom-
mended that you visit a NISSAN dealer
for this service.
2. Have the belt checked regularly for condition and tension in accordance
with the maintenance schedule found
in the "Maintenance and schedules"
section of this manual.
1. Power steering fluid pump pulley
2. Water pump pulley
3. Air conditioner compressor pulley
4. Crankshaf t pulley
5. Generator pulleyREPLACING SPARK PLUGS
Platinum-tipped spark plugs
(QR25DE models)
It is not necessary to replace platinum-
tipped
Aspark plugs as frequently as con-
ventional type spark plugs because they
last much longer. Follow the maintenance
log shown in the "Maintenance and sched-
ules" section of this manual. Do not service
platinum-tipped spark plugs by cleaning or
regapping.
∙ Always replace spark plugs with rec-
ommended or equivalent ones.
QR25DE
LDI0461SDI1895
SPARK PLUGS
8-18Do-it-yourself

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.
Iridium-tipped spark plugs
(VQ40DE models)
It is not necessary to replace iridium-
tipped
Aspark plugs as frequently as con-
ventional type spark plugs because they
last much longer. Follow the maintenance
log shown in the "Maintenance and sched-
ules" section of this manual. Do not service
iridium-tipped spark plugs by cleaning or
regapping.
∙ Always replace spark plugs with rec-
ommended or equivalent ones.
If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service. The air cleaner filter should not be cleaned
and reused. Replace it according to the
maintenance log shown in the "Mainte-
nance and schedules" section of this
manual. When replacing the filter, wipe the
inside of the air cleaner filter housing and
the cover with a damp cloth.
To remove the VQ40DE air cleaner filter:
1Unlatch the clips and remove the air
cleaner cover. Remove the air cleaner
filter. To remove the QR25DE air cleaner filter:
1. Unlatch the clips
A,B,C.
2. Push down half of air cleaner to clear the bottom retainers.
3. Lif t up on half of air cleaner to remove the air cleaner filter
VQ40DE
WDI0686
QR25DE
LDI0465
AIR CLEANER
Do-it-yourself8-19

or equivalent with the proper mixture. (For
additional information on the proper mix-
ture for your area, refer to “Engine cooling
system” in the “Do-it-yourself ” section of
this manual.)
NOTE: Mixing any other type of coolant
or the use of non-distilled water may re-
duce the recommended service interval
of the coolant.
Engine oil and oil filter:Replace engine oil
and oil filter at the specified intervals. For
recommended oil grade and viscosity refer
to “Recommended fluids/lubricants and
capacities” in the “Technical and consumer
information” section of this manual.
Evaporative emissions control vapor
lines*: Check vapor lines for leaks or loose-
ness. Tighten connections or replace parts
as necessary.
Fuel lines*: Check the fuel hoses, piping
and connections for leaks, looseness, or
deterioration. Tighten connections or re-
place parts as necessary.
Spark plugs: Replace at specified intervals.
Install new plugs of the same type as origi-
nally equipped.CHASSIS AND BODY
MAINTENANCE:
Brake lines and cables: Visually inspect for
proper installation. Check for chafing,
cracks, deterioration, and signs of leaking.
Replace any deteriorated or damaged
parts immediately.
Brake pads and rotors: Check for wear,
deterioration and fluid leaks. Replace any
deteriorated or damaged parts immedi-
ately.
Exhaust system: Visually inspect the ex-
haust pipes, muffler and hangers for leaks,
cracks, deterioration, and damage. Tighten
connections or replace parts as necessary.
In-cabin microfilter: Replace at specified
intervals. When driving for prolonged peri-
ods in dusty conditions, replace the filter
more frequently.
Steering gear and linkage, axle and sus-
pension parts, drive shaf t boots: Check
for damage, looseness, and leakage of oil
or grease. Under severe driving conditions,
inspect more frequently. Tire rotation:
Tires should be rotated every
5,000 miles (8,000 km) according to the in-
structions under “Explanation of general
maintenance items” in this section. When
rotating tires, check for damage and un-
even wear. Replace if necessary.
Transmission fluid/oil, differential oil: Vi-
sually inspect for signs of leakage at speci-
fied intervals.
9-6Maintenance and schedules

EMISSION CONTROL SYSTEM
MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at number of miles, kilometers or months, whichever comes first. miles x 1,000
(km x 1,000) Months MAINTENANCE INTERVAL
5
(8) 6 10
(16) 12 15
(24) 18 20
(32) 24 25
(40) 30 30
(48) 36 35
(56) 42 40
(64) 48 45
(72) 54 50
(80) 60 55
(88) 66 60
(96) 72
Drive belts See NOTE (1) I*I*I*
Air cleaner filter See NOTE (2) RR
EVAP vapor lines I*I*I*
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4)(5)
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Spark plugs See NOTE (6)Replace every 105,000 miles (168,000 km)
Intake and exhaust valve clearances* See NOTE (7)
9-8Maintenance and schedules

MAINTENANCE OPERATION
Perform at number of miles, kilometers or months, whichever comes first. miles x 1,000
(km x 1,000) Months MAINTENANCE INTERVAL
65
(104) 78 70
(112) 84 75
(120) 90 80
(128) 96 85
(136) 102 90
(144) 108 95
(152) 114 100
(160) 120 105
(168) 126 110
(176) 132 115
(184) 138 120
(192) 144
Drive belts See NOTE (1)I*I*I*I*I*I*
Air cleaner filter See NOTE (2) RR
EVAP vapor lines I*I*I*
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4)(5)
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Spark plugs See NOTE (6)Replace every 105,000 miles (168,000 km)
Intake and exhaust valve clearances* See NOTE (7)
NOTE:
(1) Af ter 40,000 miles (64,000 km) or 48 months, inspect every 10,000 miles (16,000 km) or 12 months. Replace the drive belts if
found damaged.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Periodic maintenance is not required.
(4) First replacement interval is 105,000 miles (168,000 km) or 84 months. Af ter first replacement, replace every 75,000 miles
(120,000 km) or 60 months.
(5) Use only Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent with proper mixture ratio of 50% antifreeze and 50%
demineralized or distilled water. Mixing any other type of coolant or the use of non-distilled water may reduce the life expectancy
of the factory fill coolant.
(6) Replace spark plug when the plug gap exceeds 0.053 in (1.35 mm) even if within specified periodic replacement mileage.
(7) Periodic maintenance is not required. However, if valve noise increased, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and
intervals are required.
Maintenance and schedules9-9

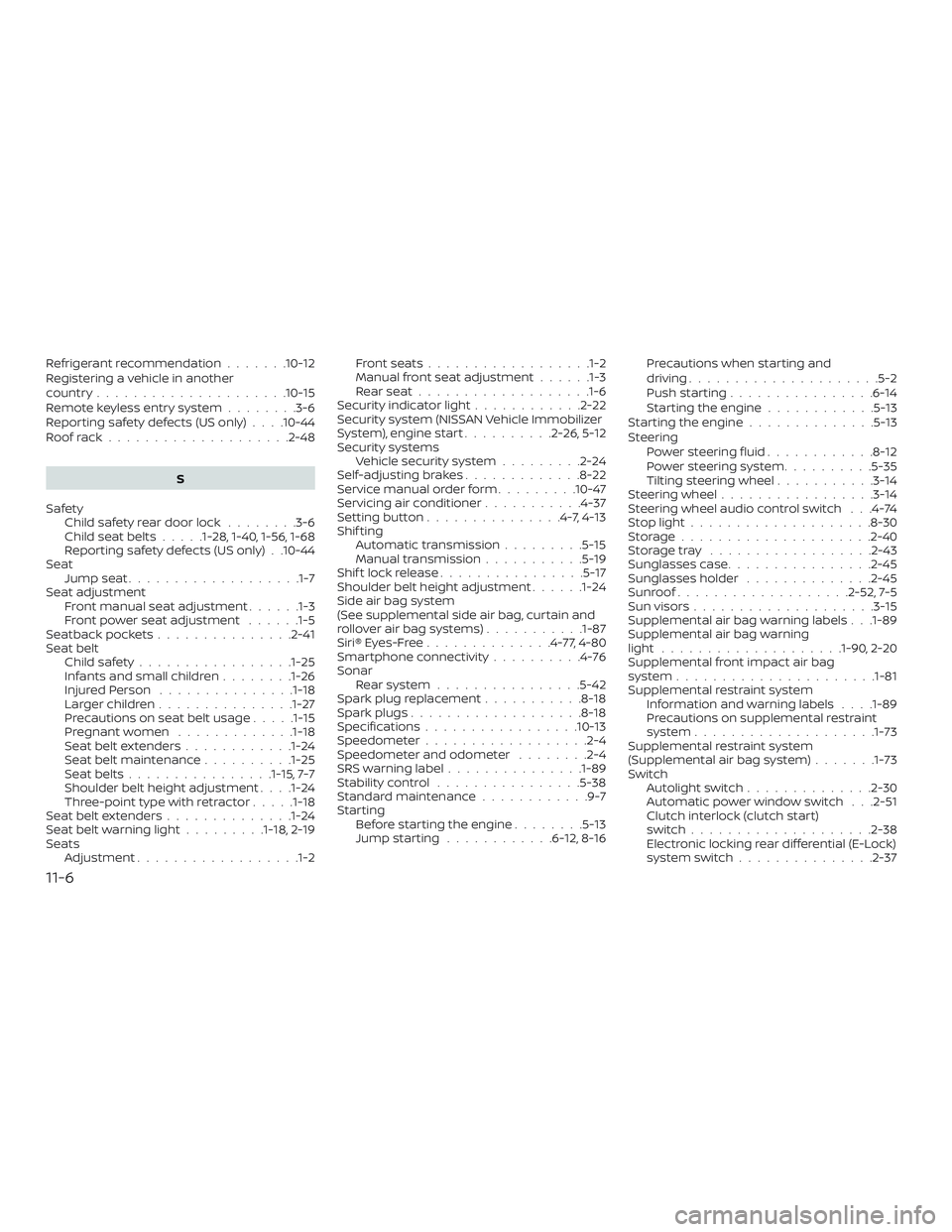

Refrigerant recommendation.......10-12
Registering a vehicle in another
country .....................10-15
Remote keyless entry system ........3-6
Reporting safety defects (US only) . . . .10-44
Roofrack....................2-48
S
Safety Child safety rear door lock ........3-6
Childseatbelts.....1-28, 1-40, 1-56, 1-68
Reporting safety defects (US only) . .10-44
Seat Jumpseat...................1-7
Seat adjustment Front manual seat adjustment ......1-3
Front power seat adjustment ......1-5
Seatback pockets ...............2-41
Seat belt Childsafety.................1-25
Infants and small children ........1-26
InjuredPerson .............. .1-18
Largerchildren.............. .1-27
Precautions on seat belt usage .....1-15
Pregnant women .............1-18
Seat belt extenders ............1-24
Seat belt maintenance ..........1-25
Seatbelts................1-15, 7-7
Shoulder belt height adjustment . . . .1-24
Three-pointtypewithretractor.....1-18
Seat belt extenders ..............1-24
Seatbeltwarninglight.........1-18, 2-19
Seats Adjustment ..................1-2 Frontseats..................1-2
Manual front seat adjustment
......1-3
Rearseat...................1-6
Security indicator light ............2-22
Security system (NISSAN Vehicle Immobilizer
System), engine start ..........2-26,5-12
Security systems Vehicle security system .........2-24
Self-adjustingbrakes.............8-22
Service manual order form .........10-47
Servicing air conditioner ...........4-37
Settingbutton...............4-7,4-13
Shif ting Automatic transmission .........5-15
Manual transmission ...........5-19
Shiftlockrelease................5-17
Shoulder belt height adjustment ......1-24
Side air bag system
(See supplemental side air bag, curtain and
rollover air bag systems) ...........1-87
Siri® Eyes-Free ..............4-77,4-80
Smartphone connectivity ..........4-76
Sonar Rear system ................5-42
Spark plug replacement ...........
8
-18
Spark plugs ...................8-18
Specifications .................10-13
Speedometer ..................2-4
Speedometer and odometer ........2-4
SRS warning label ...............1-89
Stability control ................5-38
Standard maintenance ............9-7
Starting Before starting the engine ........5-13
Jumpstarting............6-12,8-16 Precautions when starting and
driving
.....................5-2
Push starting ................6-14
Starting the engine ............5-13
Starting the engine ..............5-13
Steering Powersteeringfluid............8-12
Power steering system ..........5-35
Tilting steering wheel ...........3-14
Steering wheel .................3-14
Steering wheel audio control switch . . .4-74
Stoplight....................8-30
Storage.....................2-40
Storagetray ..................2-43
Sunglasses case ................2-45
Sunglasses holder ..............2-45
Sunroof ...................2-52,7-5
Sunvisors....................3-15
Supplemental air bag warning labels . . .1-89
Supplemental air bag warning
light ....................1-90, 2-20
Supplemental front impact air bag
system......................1-81
Supplemental restraint system Information and warning labels . . . .1-89
Precautions on supplemental restraint
system ....................1-73
Supplemental restraint system
(Supplemental air bag system) .......1-73
Switch Autolightswitch..............2-30
Automatic power window switch . . .2-51
Clutch interlock (clutch start)
switch....................2-38
Electronic locking rear differential (E-Lock)
system switch ...............2-37
11-6
