2019 NISSAN FRONTIER steering

1. Vents (P. 4-23)
2. Headlight/fog light(if so equipped)/turn signal switch
(P. 2-29)
3. Steering wheel switch for audio
control (P. 4-74)
Bluetooth® Hands-Free Phone
System (P. 4-84, 4-102)
4. Driver supplemental air bag
(P. 1-73)
Horn (P. 2-33)
5. Meters and gauges (P. 2-3) Warning and indicator lights
(P. 2-14)
6. Cruise control switches (P. 5-22)
7. Wiper and washer switch (P. 2-27)
8. Storage (P. 2-40)
9. Audio system (P. 4-37)
10. Front passenger supplemental air
bag (P. 1-73)
11. Upper and lower glove box (P. 2-40)
12. Passenger air bag status light
(P. 1-73)
13. USB connection port (P. 4-58) AUX input (P. 4-58)
14. Power outlets (P. 2-39)
LII2484
INSTRUMENT PANEL
2-2Instruments and controls

15. Electronic locking rear differential(E-Lock) system switch
(if so equipped) (P. 2-37)
Heated seat switches
(if so equipped) (P. 2-34)
Rear sonar switch (if so equipped)
(P. 2-38)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-35)
16. Shif t lever (P. 5-14)
17. 4WD shif t switch (if so equipped)
(P. 5-26)
18. Climate controls (P. 4-23, P. 4-32)
19. Hazard warning flasher switch
(P. 6-2)
20. Ignition switch (P. 5-11)
21. Tilt steering wheel control
(if so equipped) (P. 3-14)
22. Cargo lamp switch (P. 2-33) Clutch interlock (clutch start)
switch (if so equipped) (P. 2-38)
Hill descent control switch
(if so equipped) (P. 2-35)
Outside mirror controls
(if so equipped) (P. 3-16) 1. Warning and indicator lights
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Change/reset button
6. Voltmeter (if so equipped) 7. Odometer
Twin trip odometer
Trip computer (if so equipped)
Instrument brightness control knob8. Engine oil pressure gauge
9. Engine coolant temperature gauge
LIC3327
METERS AND GAUGES
Instruments and controls2-3

∙If the light does not illuminate with the
ignition switch placed in the ON posi-
tion, have the vehicle checked as soon
as possible. It is recommended that you
visit a NISSAN dealer for this service.
∙If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or death.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure show on
the Tire and Loading Information label
located in the driver’s door opening to
turn the low tire pressure warning light
off. If the light still illuminates while
driving af ter adjusting the tire pres-
sure, a tire may be flat or the TPMS may
be malfunctioning. If you have a flat
tire, replace it with a spare tire as soon
as possible. If no tire is flat and all tires
are properly inflated, have the vehicle
checked. It is recommended that you
visit a NISSAN dealer for this service.
∙ When replacing a wheel without theTPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on af ter 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.
∙ Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS.
CAUTION
∙ The TPMS is not a substitute for theregular tire pressure check. Be sure to
check the tire pressure regularly.
∙ If the vehicle is being driven at speeds of less than 16 mph (25 km/h), the
TPMS may not operate correctly.
∙ Be sure to install the specified size of tires to the four wheels correctly.
Low windshield-washer
fluid warning light (if so
equipped)
This light comes on when the windshield-
washer fluid is at a low level. Add
windshield-washer fluid as necessary. For
additional information, refer to “Windshield-
washer fluid” in the “Do-it-yourself ” section
of this manual.
Seat belt warning light andchime
The light and chime remind you to fasten
your seat belts. The light illuminates when-
ever the ignition switch is placed in the ON
or START position and remains illuminated
until the driver’s seat belt is fastened. At the
same time, the chime sounds for about
6 seconds unless the driver’s seat belt is
securely fastened.
The seat belt warning light may also illumi-
nate if the front passenger’s seat belt is not
fastened when the front passenger’s seat
is occupied. For 7 seconds af ter the ignition
switch is placed in the ON position, the sys-
tem does not activate the warning light for
the front passenger.
Instruments and controls2-19

The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are se-
lected.To sound the horn, push the area between
the horn icons on the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.To turn on the cargo lamp, push the switch
down to the ON position.
CAUTION
Be sure to turn the light switch to the
OFF position when you leave the vehicle
for extended periods of time, otherwise
the battery will go dead.
WIC1449LIC0616
HORN
CARGO LAMP SWITCH
Instruments and controls2-33

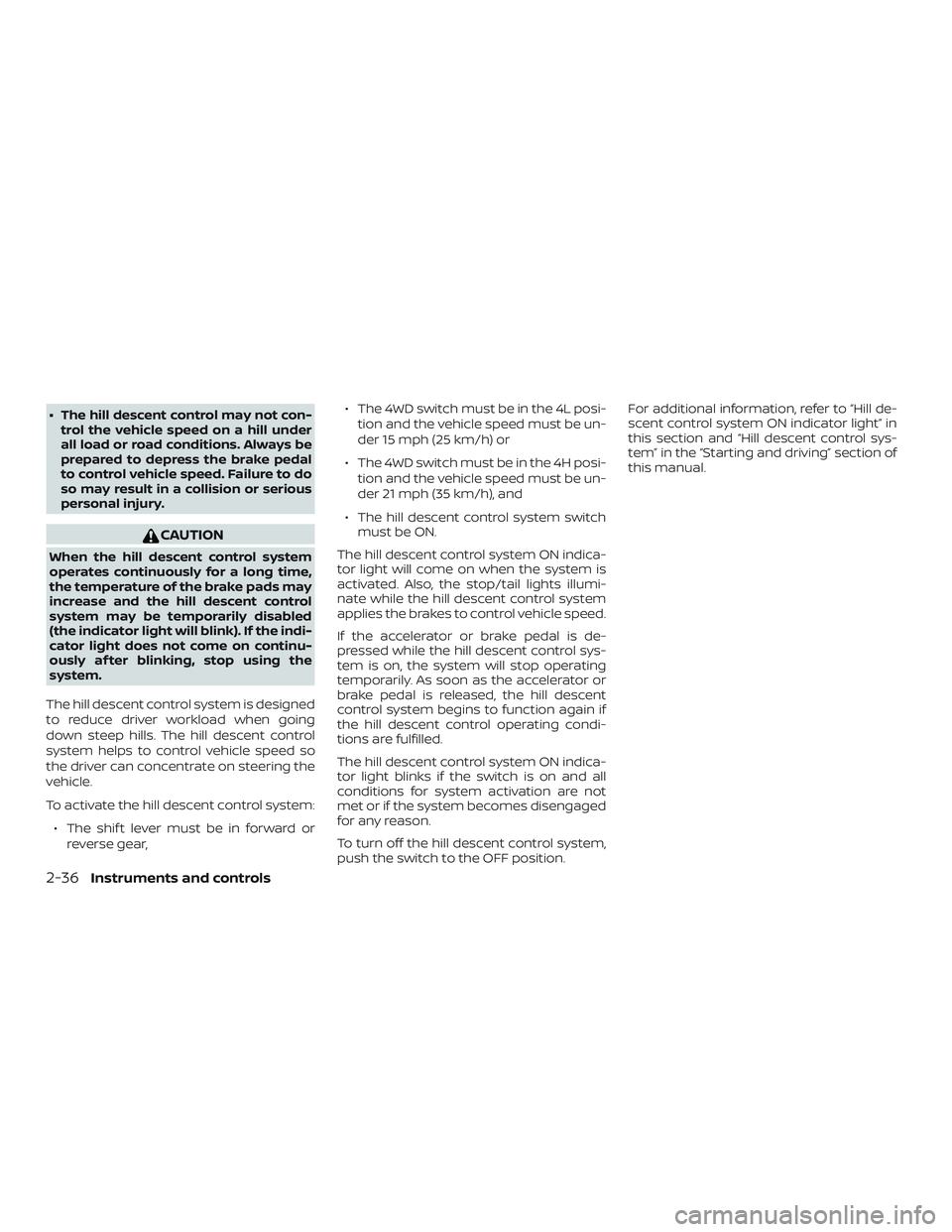

∙ The hill descent control may not con-trol the vehicle speed on a hill under
all load or road conditions. Always be
prepared to depress the brake pedal
to control vehicle speed. Failure to do
so may result in a collision or serious
personal injury.
CAUTION
When the hill descent control system
operates continuously for a long time,
the temperature of the brake pads may
increase and the hill descent control
system may be temporarily disabled
(the indicator light will blink). If the indi-
cator light does not come on continu-
ously af ter blinking, stop using the
system.
The hill descent control system is designed
to reduce driver workload when going
down steep hills. The hill descent control
system helps to control vehicle speed so
the driver can concentrate on steering the
vehicle.
To activate the hill descent control system: ∙ The shif t lever must be in forward or reverse gear, ∙ The 4WD switch must be in the 4L posi-
tion and the vehicle speed must be un-
der 15 mph (25 km/h) or
∙ The 4WD switch must be in the 4H posi- tion and the vehicle speed must be un-
der 21 mph (35 km/h), and
∙ The hill descent control system switch must be ON.
The hill descent control system ON indica-
tor light will come on when the system is
activated. Also, the stop/tail lights illumi-
nate while the hill descent control system
applies the brakes to control vehicle speed.
If the accelerator or brake pedal is de-
pressed while the hill descent control sys-
tem is on, the system will stop operating
temporarily. As soon as the accelerator or
brake pedal is released, the hill descent
control system begins to function again if
the hill descent control operating condi-
tions are fulfilled.
The hill descent control system ON indica-
tor light blinks if the switch is on and all
conditions for system activation are not
met or if the system becomes disengaged
for any reason.
To turn off the hill descent control system,
push the switch to the OFF position. For additional information, refer to “Hill de-
scent control system ON indicator light” in
this section and “Hill descent control sys-
tem” in the “Starting and driving” section of
this manual.
2-36Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Vehicle Immobilizer System
keys (if so equipped) ..........................3-2
Doors ...........................................3-3
Locking with key ..............................3-3
Locking with inside lock knob .................3-4
Locking with power door lock switch
(if so equipped) ...............................3-4
Rear doors (King Cab® models) ...............3-5
Automatic door locks (if so equipped) ........3-6
Child safety rear door lock
(if so equipped) ...............................3-6
Remote keyless entry system (if so equipped) . . . 3-6 How to use remote keyless entry
system ....................................... 3-7
Hood ........................................... 3-10Fuel-filler door
................................... 3-11
Fuel-filler cap ................................. 3-11
Steering wheel ................................. 3-14
Tilt operation (if so equipped) ................3-14
Sun visors ...................................... 3-15
Vanity mirrors (if so equipped) ...............3-15
Mirrors ......................................... 3-16
Manual anti-glare rearview mirror
(if so equipped) .............................. 3-16
Automatic anti-glare rearview mirror
(if so equipped) .............................. 3-16
Outside mirrors ............................. 3-17
Truck box ....................................... 3-18
Tailgate...................................... 3-18
Bed extender (if so equipped) ................3-22
Tie down hooks (if so equipped) .............3-24

3. Press the loose fuel cap change/resetbutton
Ain the meter for about one
second to turn off the LOOSE FUEL CAP
warning message af ter tightening the
fuel-filler cap.
For additional information, refer to “Meters
and gauges” in the “Instruments and con-
trols” section of this manual.
TILT OPERATION (if so equipped)
WARNING
∙ Do not adjust the steering wheel while driving. You could lose control of your
vehicle and cause an accident. ∙ Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.
Pull the lock lever toward the driver and
hold it to adjust the steering wheel up or
down to the desired position.
Release the lock lever to lock the steering
wheel in place.
LPD0304
STEERING WHEEL
3-14Pre-driving checks and adjustments

FM/AM/SAT radio with Compact Disc
(CD) player (if so equipped)..................4-51
USB (Universal Serial Bus) connection
port (models without Navigation
System) (if so equipped) .....................4-58
USB (Universal Serial Bus) connection
port (models with Navigation System)
(if so equipped) .............................. 4-61
iPod®* player operation without
Navigation System (if so equipped) ..........4-63
iPod®* player operation with Navigation
System (if so equipped) ......................4-66
Bluetooth® streaming audio without
Navigation System (if so equipped) ..........4-70
Bluetooth® streaming audio with
Navigation System (if so equipped) ..........4-72
CD care and cleaning ........................4-74
Steering wheel switch for audio control ......4-74
Antenna ..................................... 4-75
NissanConnect® Mobile Apps (if so equipped). . . 4-76 Registering with NissanConnect®
Mobile Apps ................................. 4-76
Connect Phone .............................. 4-76
Application download .......................4-76Siri® Eyes Free (models without Navigation
System) (if so equipped)
........................4-77
Requirements ............................... 4-77
Operating Siri® Eyes Free ....................4-77
Troubleshooting guide ......................4-79
Siri® Eyes Free (models with Navigation
System) (if so equipped) ........................4-80
Requirements ............................... 4-80
Siri® Activation ............................... 4-80
Operating Siri® Eyes Free ....................4-81
Changing Siri® Eyes Free settings ............4-81
Troubleshooting guide ......................4-82
Car phone or CB radio .......................... 4-83
Bluetooth® Hands-Free Phone System
without Navigation System (if so equipped) .....4-84
Regulatory information ......................4-85
Using the system ............................ 4-86
Indicators ................................... 4-87
Control buttons ............................. 4-88
Connecting procedure ......................4-89
Voice commands ........................... 4-90
Phone display

screen ........................ 4-92
Making a call ................................ 4-93
Receiving a call .............................. 4-94
