Automatic air conditioning (if so equipped) 7-14 Comfort controls
7
The above indicates the
factory settings. You
can personalize the air
selection switch and
air conditioning switch to match your per-sonal preferences. Contact your Mitsubishi
Motors dealer or a
repair facility of your choice for assistance.Refer to “Personalizi
ng the air conditioning
switch (Changing the function setting)” on
page7-16. Refer to “Personalizing the air selection(Changing the function setting)” on page7-15.
N00737101247
To change air flow direction, press theMODE switch. Each time the MODE switch is pressed, the mode ch
anges to the next one
in the following sequence: “ ”
 “”

“”
 “”
 “ ”. The selected mode
is shown in the displa
y (A). Refer to “Chang-
ing the mode selection” on page 7-2.
N00703400015
When this switch is pressed, the mode changes to the “ ” mode. The indicator
light (A) will come on. The selected mode is shown in the display (B). Refer to “Changingthe mode selection” on page 7-2.
N00737200368
Normally, use the outside air position to keepthe windshield and side windows clear and to quickly remove fog or frost from the wind- shield.
 While the engine coolant temperature is low, the temperature of the air from the heaterwill be cool/cold until
the engine warms up,
even if you have selected warm air with the switch. To prevent the windshield and windows fromfogging up, the vent mode
will be changed to
“ ” and the blower sp
eed will be reduced.
 When the temperature is set to the highest or the lowest setting under the AUTO opera- tion, the air selection
and the air conditioning
will be automatically changed as follows. • Quick Heating (When th
e temperature is set
to the highest setting) Outside air will be introduced and the air conditioning will stop.If the air selection
and the air conditioning
are operated ma
nually after an automatic
changeover, manual
operation will be
selected. • Quick Cooling (When th
e temperature is set
to the lowest setting) Inside air will be recirculated and the air conditioning wi
ll operate.
NOTE
MODE switch

Defogger switch

NOTE
When the defogger switch is pressed, the air conditioning system au
tomatically operates
and outside air (as oppos
ed to recirculated
air) is selected.Refer to “Defrosting or defogging (wind- shield, door windows)” on page 7-17.
Air selection switch

BK0267800US.book 14 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Air purifier (if so equipped) Comfort controls 7-19
7
The air conditioning should be operated for at least five minutes each week, even in cold weather. This includes the quick defrostingmode. Operating the
air condition system
weekly maintains lubrication of the compres- sor internal parts to keep the air conditioningin the best operating condition.
N00733800180
The air conditioning system is equipped withan air filter to re
move pollen
and dust.
The air filter’s ability to collect pollen and dirt is reduced as it be
comes dirty, so replace
it periodically. For the maintenance interval,refer to the “WARRANTY AND MAINTE- NANCE MANUAL”.
N00734201553
Turn the pole (A) counterclockwise. Screw the pole (A) clockwise into the base (B) until it is securely retained.
CAUTION The air conditioning system in your vehicle must be charged with the refrigerant HFC-134a and the lubricant ZXL 200PG.Use of any other refrigerant or lubricant will cause severe damage a
nd may require replac-
ing your vehicle’s en
tire air conditioning
system. The release of refrigerant into the atmo- sphere is not recommended.The new refrigerant HFC-134a in your vehi- cle is designed not to harm the earth’s ozone layer. However, it may contribute slightly toglobal warming. It is recommended that the old refrigerant be saved and recycled for future use.
During a long period of disuse
Air purifier
(if so equipped)
NOTE
 Operation in certain conditions such as driv- ing on a dusty road and frequent use of the air conditioning ca
n lead to reduction of ser-
vice life of the filter. When you feel that the air flow is lower than normal or when the windshield or windows st
art to fog up easily,
replace the air filter. Contact your Mitsubishi
Motors dealer or a
repair facility of your
choice for assistance.
Antenna To remove To install
NOTE
 Be sure to remove the roof antenna in the following cases: • When using an automatic car wash• When covering your ve
hicle with a car
cover
BK0267800US.book 19 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Fuses 9-24 Vehicle care and maintenance
9
 Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
 The table above show
s the main equip-
ment corresponding to each fuse.
11 Rear fog light 10 A 12 Door lock 15 A 13
Interior light (Dome light)
15 A
14 Rear window wiper 15 A 15 Gauges 7.5 A16 Relay 7.5 A 17 Heated seats 20 A 18 Option 10 A 19
Heated outside rear- view mirrors
7.5 A
20 Windshield wiper 20 A 21 Back-up light 7.5 A22 Defogger 30 A 23 Heater 30 A 24 — — — 25 Radio 10 A 26
Electronic con- trolled unit
15 A
No.
Sym- bol
Electrical system
Capac-ity
Engine compartment fuse location table No.
Sym- bol
Electrical system
Capac-ity
SBF1 Radiator fan motor 40 A
*
SBF2
Anti-lock braking
system
30 A
*
SBF3 Ignition switch 40 A
*
SBF4
Power window
control
40 A
*
Type A
BF1 DC-DC (P/T) 30 A BF2 DC-DC (AUDIO) 30 A F1
Headlight (low beam) (left)
10 A
F2
Headlight (low beam) (right)
10 A
F3
Headlight (high beam) (left)
10 A
F4
Headlight (high beam) (right)
10 A
F5 Horn 10 A F6 Front fog lights 15 A F7
Daytime running
lights
10 A
F8 — — — F9 — — — F10
Battery current
sensor
7.5 A
F11 — — —F12
Stop lights (Brake
lights)
15 A
F13 Ignition coil 7.5 A F14 Engine control 7.5 ANo.
Sym- bol
Electrical system
Capac-ity
BK0267800US.book 24 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs
Vehicle care and maintenance 9-27
9
N00943001230
N00950302043
CAUTION Do not install commercially available LED- type bulbs. Commercially availa
ble LED-type bulbs
could adversely affect
the operation of the
vehicle, such as by preventing the lights and other vehicle equipm
ent from operating
properly.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be carried out by an autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimesbecomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi
Motors dealer or a
repair facility
of your choice.
Bulb location and capacity
CAUTIONWhen replacing a bulb, be sure to use a new bulb of the same type, wattage, and color. If you install a different bulb, the bulb could malfunction or fail to
come on and could
lead to a vehicle fire.NOTE
Outside
Description
Watt- age
ANSI Tr a d e N o . or Bulb type
1
Front turn signal light/Parking light
32/3 cp #1157NA
2
Headlight/Day- time running light (if so equipped)
—
9007 HB5
3
Front fog light (if so equipped)
55 W H11
4
Front side-marker light
5 W W5W
5
Side turn signal light (on fender, if so equipped)
5 W —
Front
BK0267800US.book 27 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs 9-30 Vehicle care and maintenance
9

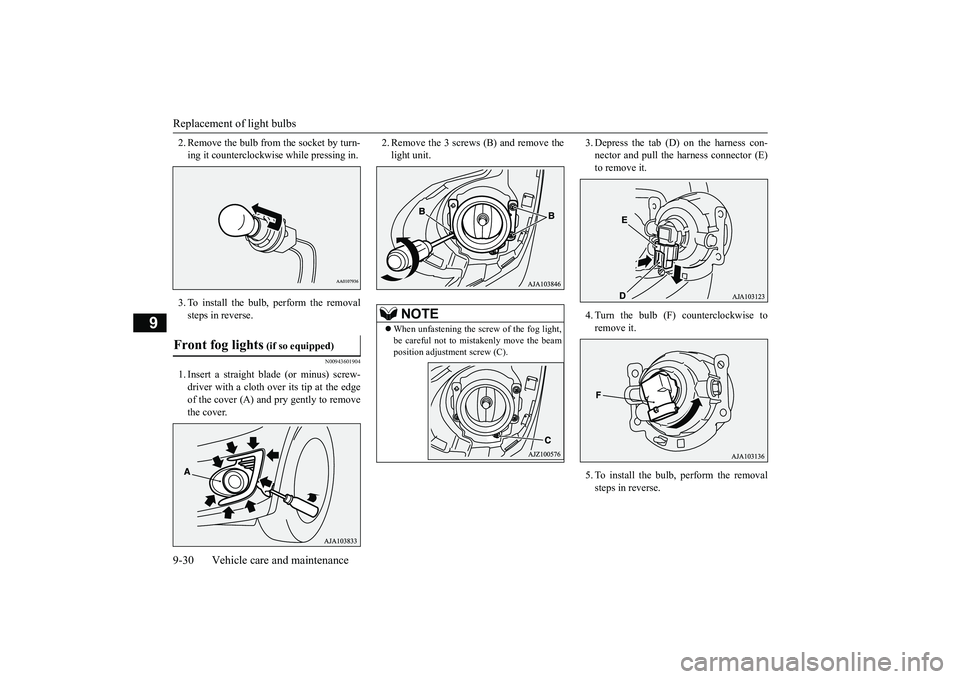

2. Remove the bulb from the socket by turn- ing it counterclockwise while pressing in. 3. To install the bulb, perform the removal steps in reverse.
N00943601904
1. Insert a straight
blade (or minus) screw-
driver with a cloth over its tip at the edge of the cover (A) and pry gently to remove the cover.
2. Remove the 3 screws (B) and remove the light unit.
3. Depress the tab (D) on the harness con- nector and pull the harness connector (E)to remove it. 4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
Front fog lights
(if so equipped)
NOTE
 When unfastening the screw of the fog light, be careful not to mistakenly move the beam position adjustment screw (C).
