Multi Around Monitor (if so equipped)
Features and controls 5-127
5
N00587200068
The Multi Around Monitor system uses four cameras, “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera”, and displays composite views fromthose cameras on the Smartphone Link Dis- play Audio. The Multi Around Monitor system will assistthe driver to park the vehicle in a narrow orparallel parking space.
NOTE
 Mirror image is displayed on the screen.  On vehicles equipped with Smartphone Link Display Audio, it is possible to change the display language of the screen. For details, please refer to the separatedowner’s manual.  Under certain circumstances, it may become difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or condensation are on the lens. • When sun light or headlights shine directly into the lens.
Multi Around Monitor
(if so
equipped)
WA R N I N G Before using the Multi Around Monitor system, read this entire section to fully understand the limitations of this system. Failure to follow instructions could resultin an accident. The Multi Around Monitor system is an aid system to help observe around the vehicle. It is not a substitute for your visual confirmation. Never rely solely on the Multi Around Monitor system. The view on the screen is limited, and objects outside the view can- not be seen on the screen.
CAUTION Before using the Multi Around Monitor, make sure that all doors and the liftgate are closed and the outside mirrors are unfolded. If an outside mirror is folded and/or if a front door and/or the liftgate is open, the areas dis-played on the Multi Around Monitor will not be appropriate.
Location of each camera

A- Rear-view camera B- Front-view camera C- Side-view cameraCAUTION If the camera lens gets dirty, a clear image cannot be obtained. As necessary, rinse the lens with clean water and gently wipe with aclean, soft cloth.
BK0266800US.book
127 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-138 Features and controls
5
N00519201303
The tachometer shows engine revolutions per minute. This allows the driver to determinethe most efficient selector position and engine speed combinations. This gauge also assist
s in evaluating engine
performance.
N00554901293
Each time you press this button, there is asound and the brightness of the instrumentschanges.
N00555001419
The multi-information display displays warn- ings, the odometer, trip odometer, service reminder, engine coolant temperature, fuelremaining, outside temperature, selector lever position, average and instant fuel consump- tion, driving range, average speed, etc. It is also possible to change elements such as the language and units used on the multi- information display.
Tachometer
CAUTION The red zone indicates an engine speed beyond the range of safe operation. Select the correct selector position to control the engine speed so that the tachometer indi- cator does not enter the red zone.
Meter illumination control 1- Brightness level 2- Rheostat illumination button
NOTE
 You can adjust to 8 different levels for when the front side-marker lights are illuminatedand when they are not.  If the vehicle is equipped with the automatic light control, the light switch is in a position other than the “OFF” position and it is suffi- ciently dark outside the vehicle, the meterillumination switches automatically to the adjusted brightness.
 The brightness level of the instruments is stored when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  If you press and hold the button for longer than approximately 2 second when the front side-marker lights are illuminated, thebrightness level changes to the maximum level. Pressing and holding the button for longer than approximately 2 second againreturns the brightness level to the previous level. On vehicles equipped with Smartphone LinkDisplay Audio, the map screen color may not be switched to nighttime setting when the meter illumination brightness level is at themaximum.
Multi-information display
NOTE
BK0266800US.book
138 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-140 Features and controls
5
[With ignition switch or operation mode in ON]
N00555101234
Each time the multi-information display switches are operated, the buzzer sounds andthe multi-information display changes
1- S-AWC drive mode display screen (if
so equipped)
 P.5-67
2-
Warning display screen
 P.5-144
3- Lane Departure Warning (LDW) dis-
play screen (if so equipped)
P.5-117
4- ECO mode indicator display screen
 P.5-196
5- Information screen
 P.5-141
6- Selector lever position display
 P.5-61
7- Engine coolant temperature display
 P.5-145
8- Odometer
 P.5-146
9- Cruise control display screen
 P.5-82
10- Adaptive Cruise Control System (ACC)
display screen (if so equipped)  P.5-87
11- ECO indicator
 P.5-149
12-
“ ” mark indicator
 P.5-144
13- Fuel remaining display screen
 P.5-145
14- Outside temperature display screen
 P.5-146
NOTE
The fuel units, outside temperature units, display language, and other settings can be changed. Refer to “Changing the function settings” on page 5-150.
Multi-information display switches
BK0266800US.book
140 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-141
5
between information such as warnings, trip odometer, average and instant fuel consump- tion, distance range. It is also possible to
change elements such as
the language and units used on the multi- information display by operating the multi- information display switches.
N00555301207
Press the switch to display the information screen. Then, press the switch or switch to switch the display screen in the fol
lowing order.
Information screen (With the ignition switch in “OFF” position or the operation mode in OFF) *: When there is a warning display 1-
Trip odometer
 P.5-146
BK0266800US.book
141 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display

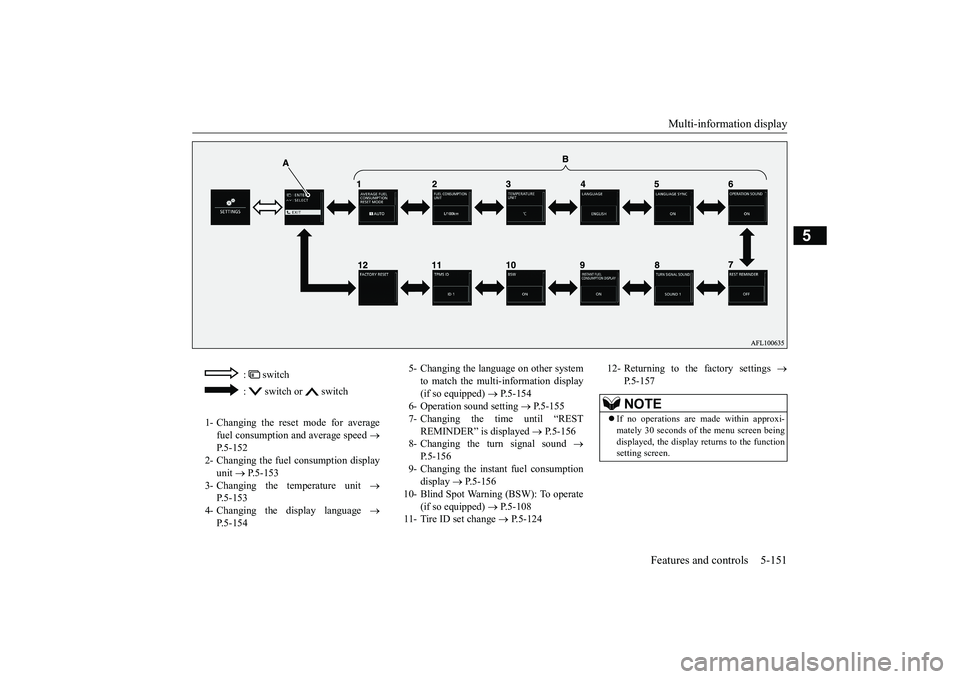

Features and controls 5-151
5
: switch : switch or switch
1- Changing the reset mode for average
fuel consumption and average speed

P.5-152
2- Changing the fuel consumption display
unit
 P.5-153
3- Changing the temperature unit

P.5-153
4- Changing the display language

P.5-154
5- Changing the language on other system
to match the multi-information display (if so equipped)
 P.5-154
6- Operation sound setting
 P.5-155
7- Changing the time until “REST
REMINDER” is displayed
 P.5-156
8- Changing the turn signal sound

P.5-156
9- Changing the instant fuel consumption
display
 P.5-156
10- Blind Spot Warning (BSW): To operate
(if so equipped)
 P.5-108
11- Tire ID set change
 P.5-124
12- Returning to the factory settings

P.5-157NOTE
 If no operations are made within approxi- mately 30 seconds of the menu screen beingdisplayed, the display returns to the function setting screen.
BK0266800US.book
151 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-154 Features and controls
5
3. Press the switch or switch to select the units, and then press the switch to confirm the setting. The setting is changed to the selected tem-perature unit.
N00557301201
The language of the multi-information dis-play can be changed. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150. 2. Press the switch or switch several times to switch to the “LANGUAGE” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the desired language, and then press the switch to confirm the setting. The setting is changed to the selected lan- guage.
N00529801360
The language used in Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) can be changed automatically to the same language as that shown in themulti-information display. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150.
NOTE
 The temperature value on air conditioning panel is switched in conjunction with outside temperature display unit of the multi-infor-mation display. However, “°F” or “°C” are not shown to tem- perature display of an air conditioning.  If the battery is disconnected, the memory of the unit setting is erased and is automaticallyset to °F (°C).
Changing the display language
NOTE
 If the battery is disconnected, the memory of the language setting is erased and is automat- ically set to ENGLISH.  If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.
Changing the language on other system to match the multi-infor- mation display
(if so equipped)
BK0266800US.book
154 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-155
5
2. Press the switch or switch several times to switch to the “LANGUAGE SYNC” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting.
N00557401172
You can change the operation sounds of the multi-information display switches and rheo- stat illumination button. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150.
2. Press the switch or switch several times to switch to the “OPERATION SOUND” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the sound, and then press the switch to confirm the setting. The setting is changed to the selected con- dition.
NOTE
 If the battery is disconnected, the language cooperative control is automatically set to “ON” (language cooperation: enabled).  The language cooperation setting can be switched in the following manner.
• When “ON” (language cooperation:enabled) has been selected, the language for Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) is automatically changed to the languageselected for the multi-information display. However, this changing function may not work depending on the language selectedfor the multi-information display. • When “OFF” (language cooperation: dis- abled) has been selected, the language for Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) isnot automatically changed to match the lan- guage selected for the multi-information display.
 The language on the audio system’s display does not automatically change when youselect “ON” (language cooperation: enabled) in the language cooperation control.
Operation sound setting
NOTE
NOTE
 If the battery is disconnected, the memory of the operation sound setting is erased and is automatically set to ON (operation sound on).
BK0266800US.book
155 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-157
5
2. Press the switch or switch several times to switch to the “INSTANT FUEL CONSUMPTION DISPLAY” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting. The setting changes to the selected bar graph setting.
N00557601233
Many of the function settings can be returnedto their factory settings. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150.
2. Press the switch or switch several times to switch to the “FACTORY RESET” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select “RESET”, and then press and hold the switch for approximately 5 sec- onds or more to confirm the setting. The buzzer sounds and all of the function settings are returned to the factory set-tings.
Returning to the factory settings
NOTE
 The factory settings are as follows. • “AVERAGE FUEL CONSUMPTION RESET MODE”: AUTO • “FUEL CONSUMPTION UNIT”: mpg (US) or (L/100 km)
• “TEMPERATURE UNIT”: °F (Fahrenheit) or °C (Celsius) • “LANGUAGE”: ENGLISH • “LANGUAGE SYNC”: ON • “OPERATION SOUND”: ON• “REST REMINDER”: OFF • “TURN SIGNAL SOUND”: SOUND 1 • “INSTANT FUEL CONSUMPTION DIS- PLAY”: ON
 “BSW” and “TPMS ID” cannot be returned to their factory settings.NOTE
