Electrical fuses
Notes on electrical fuses
&WARNINGRisk of accident and injurydueto overloaded lines
Ifyou manipulate or bridge afaulty fuse or ifyoureplace it with a fuse with a higheramperage,the electric line could beoverloa‐ded.
This couldresult in afire.
#Alwaysreplacefaulty fuses with speci‐fied new fuses containingthe correctamperage.
*NOTEDamagecausedbyincorrect fuses
Incorrect fuses may cause damagetoelectri‐cal components or systems.
#Only use Mercedes-Benz approvedfuses withthe correct fuserating.
Blown fuses mustbereplaced with fuses ofthesamerating, whichyou canrecognizebythecolor and fuserating. The fuseratings and fur‐
ther informationtobe observed are listed inthefuse assignment diagram.
*NOTEDamageor malfunctions causedbymoisture
Moisture may cause damagetothe electricalsystem or cause ittomalfunction.
#Whenthe fuse box is open, make surethat no moisture can enterthe fusebox.
#When closingthe fuse box, make surethatthe seal ofthe lid is positioned cor‐rectly onthe fuse box.
Ifthe newly inserted fuse also blows, havethecause traced andrectified at aqualified special‐istworkshop, e.g. an authorized Mercedes-BenzCenter.
Ensurethefollowing beforereplacing a fuse:
RThevehicle is secured againstrollingaway
RAll electrical consumers are switched off
RThe ignition is switched off
430Breakdown assistance

The electrical fuses are located inthefollowingfuse boxes:
RFuse box inthe engine compartment onthedriver's side (→page 431)
RFuse box onthe driver's side ofthe cockpit(→page 432)
RFuse box inthe front passengerfootwell(→page 432)
RFuse box inthe trunk ontheright-hand sideofthevehicle when viewed inthe direction oftravel (→page 433)
Opening and closingthe fuse box intheengine compartment
Requirements:RObservethe notes on electrical fuses(→page 430).
RHavethefollowingtoolsreadilyavailable:
-a dry cloth
-a screwdriver
Opening
&WARNINGRisk of injuryfrom usingthewindshield wipers whilethe engine hoodis open
Whenthe engine hood is open andthe wind‐shield wipers are set in motion,you can betrappedbythe wiper linkage.
#Always switch offthe windshield wipersand ignition before openingthe enginehood.
#Releaseretaining clips1.Pull cover2up.
Breakdown assistance431

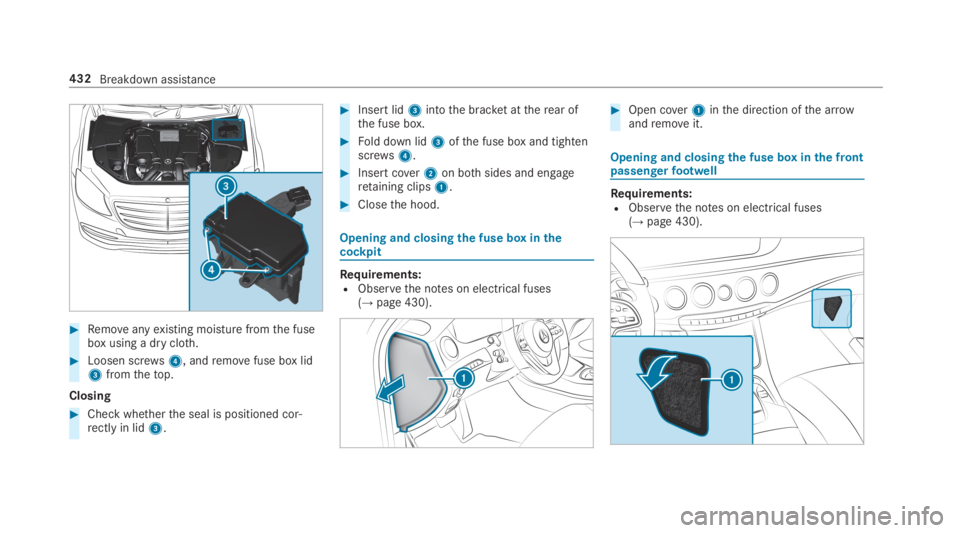

#Removeanyexisting moisture fromthe fusebox using a dry cloth.
#Loosen screws4, andremovefuse box lid3fromthetop.
Closing
#Check whetherthe seal is positioned cor‐rectly in lid3.
#Insert lid3intothe bracket attherear ofthe fuse box.
#Fold down lid3ofthe fuse box and tightenscrews4.
#Insert cover2on bothsides and engageretaining clips1.
#Closethe hood.
Opening and closingthe fuse box inthecockpit
Requirements:RObservethe notes on electrical fuses(→page 430).
#Open cover1inthe direction ofthe arrowandremoveit.
Opening and closingthe fuse box inthe frontpassengerfootwell
Requirements:RObservethe notes on electrical fuses(→page 430).
432Breakdown assistance

#Open cover1inthe direction ofthe arrowandremoveit.
Opening and closingthe fuse box inthetrunk
Requirements:RObservethe notes on electrical fuses(→page 430).
#Fold cover1down inthe direction ofthearrow.
Breakdown assistance433
