Loading guidelines
GWARNING
If objects, luggage or loads are not secured or
not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is a risk of injury, particu-
larly in the event of sudden braking or a sud-
den change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the
trunk lid is open when the engine is running,
especially if the vehicle is in motion. There is a
risk of poisoning.
Always switch off the engine before opening
the trunk lid. Never drive with the trunk lid
open.
GWARNING
The exhaust tail pipe and tail pipe trim can
become very hot. If you come into contact
with these parts of the vehicle, you could burn
yourself. There is a risk of injury.
Always be particularly careful around the
exhaust tail pipe and the tail pipe trim. Allow
these components to cool down before touch-
ing them.
The handling characteristics of a laden vehicleare dependent on the distribution of the loadwithin the vehicle.
Observe the following notes when loading andtransporting a load:
RNever exceed the maximum permissiblegross vehicle mass or the gross axle weightrating for the vehicle (including occupants).The values are specified on the vehicle iden-
tification plate on the B-pillar of the driver'sdoor.
RThe trunk is the preferred place to carryobjects.
RPosition heavy loads as far forwards as pos-sible and as low down in the trunk as possible.
RThe load must not protrude above the upperedge of the seat backrests.
RAlways place the load against the rear or frontseat backrests. Make sure that the seatbackrests are securely locked into place.
RAlways place the load behind unoccupiedseats if possible.
RUse the cargo tie-down rings and the parcelnets to transport loads and luggage.
RUse cargo tie-down rings and fastening mate-rials appropriate for the weight and size of theload.
RSecure the load with sufficiently strong andwear-resistant tie-downs. Pad sharp edges forprotection.
Stowage areas
Stowage spaces
Important safety notes
GWARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants. In
addition, cup holders, open stowage spaces
and mobile phone brackets cannot always
retain all objects they contain. There is a risk
of injury, particularly in the event of sudden
braking or a sudden change in direction.
RAlways stow objects so that they cannot be
thrown around in such situations.
RAlways make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets.
RClose the lockable stowage spaces before
starting a journey.
RAlways stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or bulky objects in
the trunk.
Observe the loading guidelines (Ypage 239).
Stowage areas239
Stowage and features
Z

Stowage compartments in the front
Glove box
XTo open:pull handleCand open glove boxflapD.
XTo close:fold glove box flapDupwards untilit engages.
There is a pen holder at the top of the glove boxflap.
Eyeglasses compartment
XTo open:press markingC.
Make sure that the eyeglasses compartment isalways closed while the vehicle is in motion.
Stowage compartment in the front center
console
XTo open:press the marking on coverC.
iDepending on the vehicle equipment, theremay be an ashtray in the center consoleinstead of a storage compartment.
Stowage compartment in front of the arm-
rest (vehicles with automatic transmis-
sion)
XTo open:press the marking on coverC.
iYou can remove the non-slip mat and theinsert for cleaning. When removing the insertyou will have to overcome some slight resist-ance.
240Stowage areas
Stowage and features

Stowage compartment under the armrest
XTo open:on vehicles with movable armrests,make sure that the armrest is in the rearmostposition.
XPress buttonCand fold the armrest up.
Depending on the vehicle equipment, the arm-rest can be moved backwards or forwards in alongitudinal direction.
Depending on the vehicle's equipment, the fol-lowing may be in the stowage compartment: amultimedia connector unit with an SD card slot
and 2 USB ports, e.g. for use with an iPod®,
iPhone®or MP3 player (see the Digital Opera-tor's Manual).
Stowage compartments in the rear
passenger compartment
Stowage compartment in the rear
passenger compartment center console
XTo open:pull down the top of stowage com-partmentCby the edge of the handle.
iDepending on the vehicle's equipment,there may be an open stowage space abovethe stowage compartment.
Parcel nets
Stowage nets are located:
Rin the front-passenger footwell
Ron the back of the driver's and the front-passenger seat
Ron the left and right-hand side in the trunk
Observe the loading guidelines (Ypage 239)and the safety notes regarding stowage spaces(Ypage 239).
Through-loading facility in the rear
passenger compartment
XTo open:fold down seat armrestC.
XPull the center head restraint on the rearbench seat into the uppermost position(Ypage 94).
XSlide locking mechanism

Observe the loading guidelines (Ypage 239).
Cargo compartment enlargement
Important safety notes
GWARNING
If the rear bench seat/rear seat and seat
backrest are not engaged they could fold for-
wards, e.g. when braking suddenly or in the
event of an accident.
RThe vehicle occupant would thereby be
pushed into the seat belt by the rear bench
seat/rear seat or by the seat backrest. The
seat belt can no longer offer the intended
level of protection and could even cause
injuries.
RObjects or loads in the trunk cannot be
restrained by the seat backrest.
There is an increased risk of injury.
Before every trip, make sure that the seat
backrests and the rear bench seat/rear seat
are engaged.
!Before folding the backrest in the rear com-partment forwards, make sure that the rearcompartment armrest and the cup holder arefolded in. They may otherwise be damaged.
Observe the loading guidelines (Ypage 239).
The left-hand and right-hand rear seat backrestscan be folded forwards separately to increasethe trunk capacity.
Folding the rear seat backrest forward
and back
Folding the rear seat backrests forward
XFully insert the backrest head restraints ifnecessary (Ypage 95).
XMove the driver's or front-passenger seatforward if necessary.
XPull left-hand or right-hand release handleDof the seat backrest forward.Corresponding seat backrestCis released.
XFold backrestCforward.
XMove the driver's or front-passenger seatback if necessary.
XInsert the seat belt into seat-belt holderC.
Folding the rear seat backrest back
!Make sure that the seat belt does notbecome trapped when folding the rear seatbackrest back. Otherwise, it could be dam-aged.
242Stowage areas
Stowage and features

XMove the driver's or front-passenger seatforward if necessary.
XFold seat backrestCback until it engages.Red lock status indicatorDis no longer visi-ble.
XAdjust the head restraints if necessary(Ypage 95).
XMove the driver's or front-passenger seatback if necessary.
Securing loads
Observe the following notes on securing loads:
RObserve the loading guidelines (Ypage 239).
RSecure the load using the cargo tie-downrings.
RDistribute the load on the cargo tie-downrings evenly.
RDo not use elastic straps or nets to secure aload, as these are only intended as an anti-slipprotection for light loads.
RDo not route tie-downs across sharp edges orcorners.
RPad sharp edges for protection.
CCargo tie-down rings
Stowage well under the trunk floor
Under the trunk floor you can find a bracket forTIREFIT and the vehicle tool kit, etc.
XTo open:pull handleCup.
XHook handleCinto rain troughD.
To enlarge the trunk you can remove the trunkfloor.
XTo remove:lift the trunk floor almost to raintroughDand pull it out.
Stowage areas243
Stowage and features
Z

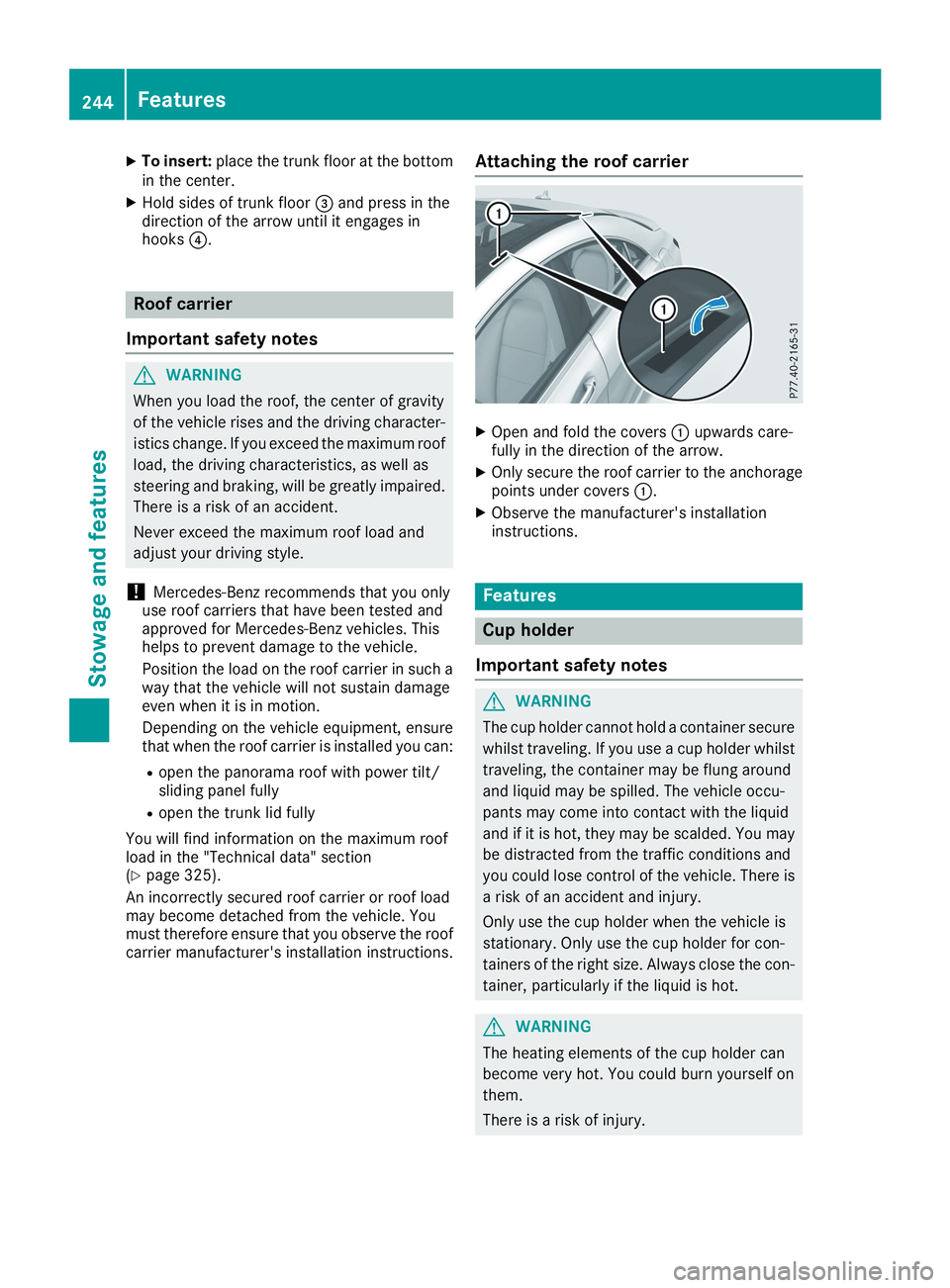

XTo insert:place the trunk floor at the bottomin the center.
XHold sides of trunk floor

Do not touch the hot heating elements of the
cup holder. Always make sure that children
cannot access the hot heating elements of the
cup holder. Never leave children unsuper-
vised in the vehicle.
GWARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants. In
addition, cup holders, open stowage spaces
and mobile phone brackets cannot always
retain all objects they contain. There is a risk
of injury, particularly in the event of sudden
braking or a sudden change in direction.
RAlways stow objects so that they cannot be
thrown around in such situations.
RAlways make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets.
RClose the lockable stowage spaces before
starting a journey.
RAlways stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or bulky objects in
the trunk.
!Only use the cup holders for containers ofthe right size and which have lids. The drinkscould otherwise spill.
Observe the loading guidelines (Ypage 239).
The stowage compartments in the doors providespace for bottles:
Rfront: capacity up to 34 fl. oz. (1.0l)
Rrear: capacity up to 17 fl. oz. (0.5 l)
Cup holder in the front center console
CCup holder
The cup holder and the rubber mat underneathcan be removed for cleaning. Clean them withclean, lukewarm water only.
XTo remove:carefully pull in upper sections ofcup holderCon the driver's and front-passenger sides until they release.
XLift the cup holder upwardsDuntil it can beremoved.
XTo install:insert cup holder into lateralcurved sectionsDin the stowage compart-ment. Insert the cup holder so that the wedge
Features245
Stowage and features
Z

of the upper section of cup holderCfacesforwards.
XPress the cup holder downwards until itengages on the right and left-hand sides.
Cup holder in the rear seat armrest
!Do not sit on or support your body weight onthe rear seat armrest when it is folded down,as you could otherwise damage it.
!Close the cup holder before folding the rearseat armrest up. Otherwise, the cup holdercould be damaged.
XFold down the rear seat armrest.
XTo open:press the front of cup holderCorD.Cup holderCorDextends automatically.
XTo close:slide cup holderCorDback untilit engages.
Sun visors
Overview
GWARNING
If the mirror cover of the vanity mirror is folded
up when the vehicle is in motion, you could be
blinded by incident light. There is a risk of an
accident.
Always keep the mirror cover folded down
while driving.
CMirror light
DBracket
