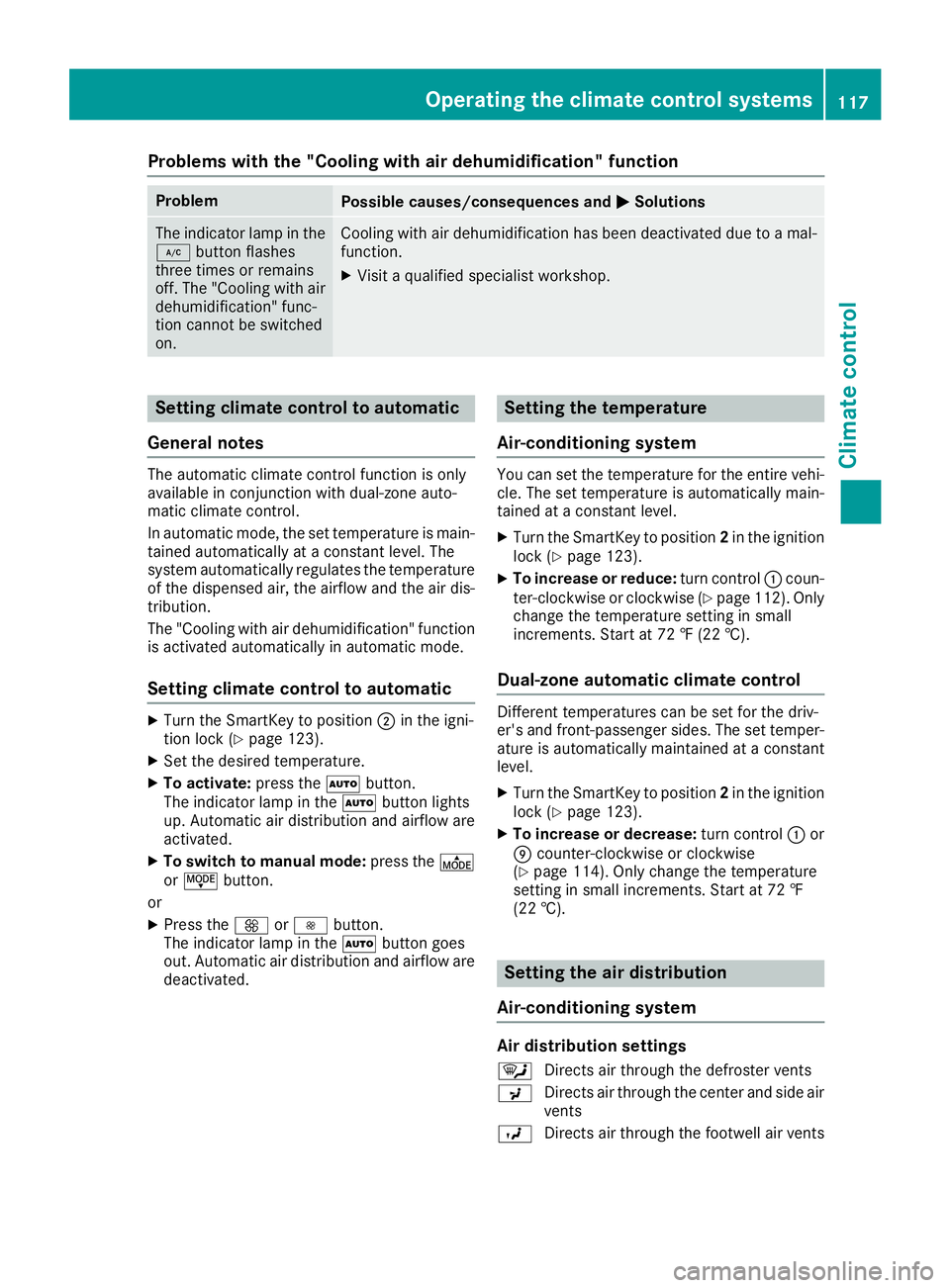

Problems
withthe"Cool ingwith airdehum idification" function Problem
Possible
causes/co nsequences and0050 0050
Solutions The
indicator lampinthe
005A button flashes
three times orremains
off. The "Cooli ngwith air
<00470048004B00580050004C0047004C0049004C004600440057004C00520051
0005[ func-
tion cannot beswitched
on. Cooling
withairdehumidification hasbeen deactivated duetoamal-
funct ion.
X Visit aquali fiedspecialist workshop. Setting
climate controltoautom atic
General notes The
automatic climatecontrolfunct ionisonly
availa bleinconj unction withdual-zone auto-
matic climate control.
In automatic mode,thesettemperature ismain-
tained automatically ataconst antlevel. The
system automatically regulatesthetemperature
of the dispensed air,the airflow andtheairdis-
tribution.
The "Cooli ngwith air<00470048004B00580050004C0047004C0049004C004600440057004C00520051
0005[ function
is activated automatically inautomatic mode.
Setting climate controltoautom atic X
Turn theSmartK eytoposition 0044inthe igni-
tion lock (Ypage 123).
X Set thedesired temperature.
X To activate: pressthe0058 button.
The indicator lampinthe 0058 button lights
up. Automatic airdistribution andairflow are
activated.
X To switch tomanua lmode: pressthe004F
or 004A button.
or X Press the0097 or0095 button.
The indicator lampinthe 0058 button goes
out. Automatic airdistribution andairflow are
deactivated. Setting
thetemp eratu re
Air-conditioning system You
cansetthe temperature forthe entire vehi-
cle. The settemperature isautomatically main-
tained ataconst antlevel.
X Turn theSmartK eytoposition 2in the ignition
lock (Ypage 123).
X To increase orreduce: turncontrol0043 coun-
ter- clockwise orclockwise (Ypage 112). Only
change thetemperature settingin small
incremen ts.Start at72 ‡(22 †).
Dual-zone automaticclimate control Differen
ttemperatures canbeset forthe driv-
er's andfront -passenger sides.Thesettemper-
ature isautomatically maintainedataconst ant
level.
X Turn theSmartK eytoposition 2in the ignition
lock (Ypage 123).
X To increase ordecrease: turncontrol0043 or
006D counter -clockwiseorclockwise
(Y page 114). Onlychange thetemperature
settin gin small incremen ts.Start at72 ‡
(22 †). Setting
theairdistr ibution
Air-conditioning system Air
distr ibution settings
0061 Directsair through thedefroster vents
009C Directsair through thecent erand side air
vent s
009B Directsair through thefootwell airvent s Operat
ingthe climate controlsystems
117Climat econ trol

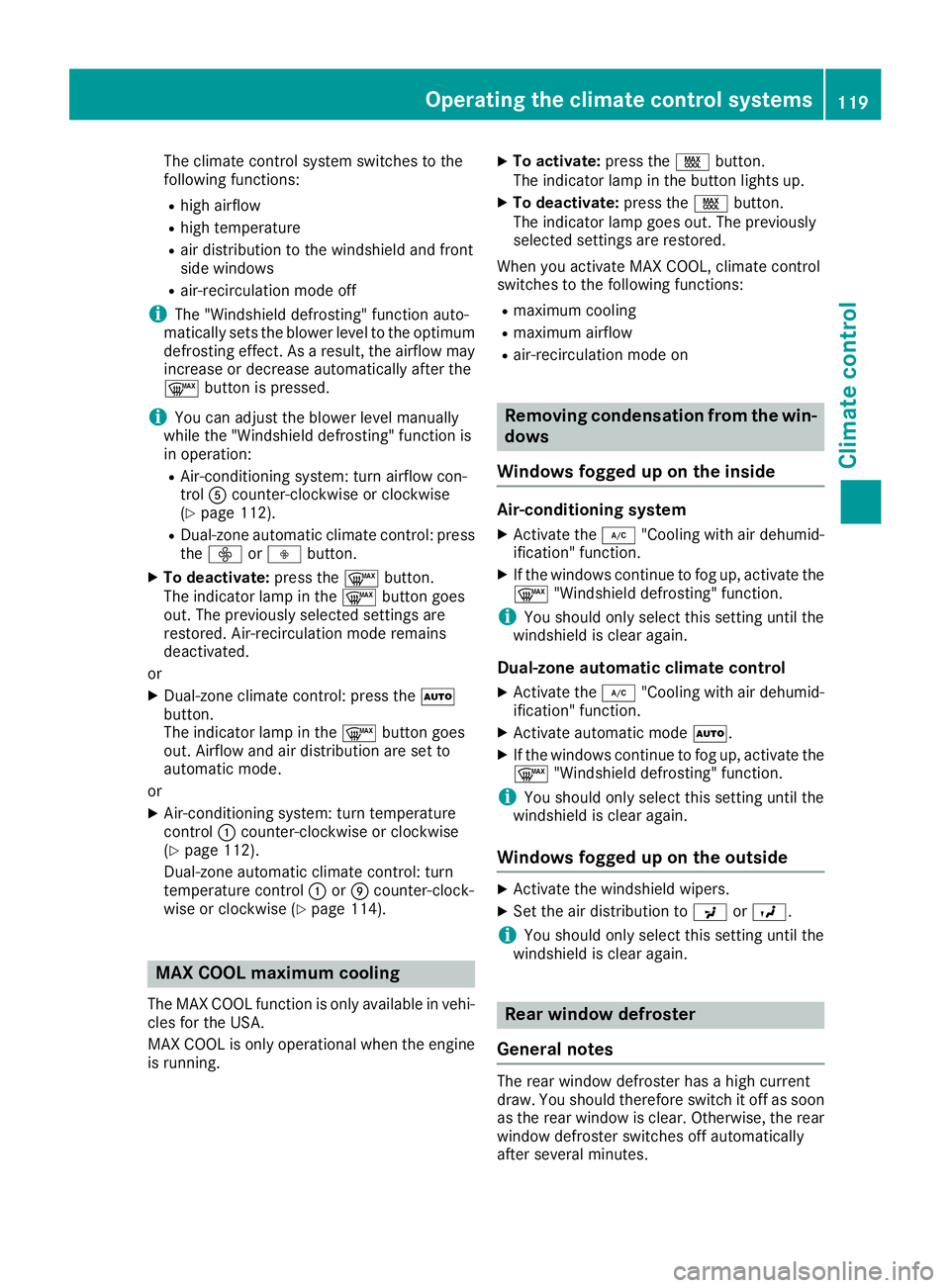

The
climate controlsystem switches tothe
following functions:
R high airflow
R high temperat ure
R air distribution tothe windshield andfront
side windows
R air-recirc ulationmodeoff
i The
"Windshield defrosting"funct ionauto-
matically setstheblower leveltothe optimum
defrost ingeffect .As aresult, theairflow may
increase ordecrease automatically afterthe
0064 button ispressed.
i You
canadjust theblower levelmanually
while the"Windshield defrosting"funct ionis
in operation:
R Air- condit ioning system: turnairflow con-
trol 0083count er-clockwise orclock wise
(Y page 112).
R Dual-zon eautomatic climatecontrol:press
the 00F2 or00F3 button .
X To deactivat e:press the0064 button .
The indicator lampinthe 0064 button goes
out. Thepreviously selectedsettings are
restor ed.Air-recirc ulation moderemains
deactivated.
or
X Dual-zon eclimate control:press the0058
button .
The indicator lampinthe 0064 button goes
out. Airflow andairdistribution aresetto
automatic mode.
or X Air- condit ioning system: turntemperat ure
cont rol0043 count er-clockwise orclock wise
(Y page 112).
Dual-zon eautomatic climatecontrol:turn
temperat urecont rol0043 or006D count er-clock-
wise orclock wise(Ypage 114). MAX
COOL maxim umcooli ng
The MAX COOL functionisonly availabl ein vehi-
cles forthe USA .
MAX COOL isonly operational whentheengine
is runnin g. X
To activat e:press the00C9 button .
The indicator lampinthe button lightsup.
X To deactivat e:press the00C9 button .
The indicator lampgoesout.Thepreviously
selected settings arerestor ed.
When youactivate MAXCOOL, climate control
switches tothe following functions:
R maximum cooling
R maximum airflow
R air-recirc ulationmodeon Removing
condensation fromthewin-
dows
Windows foggeduponthe inside Air-conditioning
system
X Act ivate the005A "Cooling withairdehumid-
ification" function.
X Ifthe windows continue tofog up,activate the
0064 "Windshield defrosting"funct ion.
i You
should onlyselect thissettinguntil the
windshield isclear again.
Dual-zone automat icclimate control
X Act ivate the005A "Cooling withairdehumid-
ification" function.
X Act ivate automatic mode0058.
X Ifthe windows continue tofog up,activate the
0064 "Windshield defrosting"funct ion.
i You
should onlyselect thissettinguntil the
windshield isclear again.
Windows foggeduponthe outside X
Act ivate thewindshield wipers.
X Set theairdistribution to009C or009B.
i You
should onlyselect thissettinguntil the
windshield isclear again. Rear
window defroster
General notes The
rear window defroster hasahigh current
draw. Youshould therefor eswitch itoff assoon
as the rear window isclear. Otherwise, therear
window defroster switchesoffautomatically
after several minutes. Opera
tingtheclimate controlsystems
119Climatecontrol
