2019 MERCEDES-BENZ CLA COUPE automatic transmission

To
ensure thatthevehicle issecured against
rolling awayunintention ally:
R the electric parking brakemustbeapplied.
R the trans mission mustbeinposition 005Dand
the trans mission position displaymustshow
005D inthe multifunct iondisplay .
R the Smart Keymust beremoved fromtheigni-
tion lock.
R on uphill ordownhill gradients, thefront
wheels mustbeturned towards thecurb. Switching
offthe engine
Import antsafety notes G
WARNIN
G
The automatic transmission switches toneu-
tral position Nwhen youswitch offthe engine.
The vehicle mayrollaway .There isarisk ofan
accident .
Aft erswitching offthe engine, alwaysswitch
to parking position P.Prevent theparked vehi-
cle from rolling awaybyapplyi ngthe parking
brake.
Automa tictransmission X
Apply theelectric parking brake.
X All
vehicles (exceptMercedes-AMG vehi-
cles): shiftthetrans mission toposition 005D. X
Mercedes-AMG vehicles:pressbutton 0043. X
With theSmar tKey:turn theSmart Keyto
position 005Ainthe ignition lockandremove it.
The immobilizer isactivated.
X With theStar t/Stop button:press the
Start /Stopbutton (Ypage 123).
The engine stopsandallthe indicator lampsin
the instr ument cluster goout.
If the driver's doorisclosed, thisisthe same
as key position 0047.Ifthe driver's doorisopen,
this isthe same askey position 005A,i.e.the
Smart Keyhaving beenremoved.
If you switch theengine offwith thetrans mis-
sion inposition 005Eor005B, theautomatic trans-
mission shiftsto005C automatically.
With theSmar tKey: ifyou then open thedriv-
er's door orthe front -passenger doororremove
the Smart Keyfrom theignition, theautomatic
trans mission shiftsto005D automatically.
With theStar t/Stop button:ifyou then open
the driver's doororthe front -passenger door,
the automatic transmission shiftsto005D auto-
matically.
If you want theautomatic transmission to
remain inneutral 005C,e.g. when having thevehi-
cle cleaned inan automatic carwash witha
towing system:
X Vehicles
withtheStar t-Stopbutt on:
remove theStart -Stop button fromtheigni-
tion lock.
X Insert theSmart Keyinto theignition lock.
X All vehicles: switchtheignition on.
X Depress thebrake pedalandkeep it
depressed.
X Eng age neutral 005C.
X Release thebrake pedal.
X Release theelectric parking brake.
X Switch offthe ignition andleave theSmart Key
in the ignition lock. Elec
tric par king brake
General notes G
WARNIN
G
If children areleft unsupervised inthe vehicle,
they could:
R operate thevehicle's equipment Par
king
143Driving andparking
Z

helps
youtoavoid overheating thebrakes and
wearing themoutexcessively.
When youtake advantage ofengine braking, it
is possible thatadrive wheel willnotrotate for
some time,e.g.onaslippery roadsurface.
This could cause damage tothe drive train.
This type ofdamage isnot covered bythe
Mercedes-Ben zwarranty.
Briefly depressing theaccelerator pedalon
downhill gradients whilethemanual drivepro-
gram Mistemporarily activated:theautomatic
transmission mayswitch tothe last active auto-
matic driveprogram Eor S.The automatic trans-
mission mayshift toahigher gear.Thiscan
reduce theengine's brakingeffect.
Heavy andlight loads G
WARNING
If you rest your footonthe brake pedalwhile
driving, thebraking systemcanoverheat. This
increases thestopping distanceandcaneven
cause thebraking systemtofail. There isa
risk ofan accident.
Never usethebrake pedalasafootrest .Never
depress thebrake pedalandtheaccelerator
pedal atthe same time.
! Depressing
thebrake pedalconstantly
results inexcessive andpremature wearto
the brake pads.
If the brakes havebeen subjected toaheavy
load, donot stop thevehicle immediately. Drive
on for ashort while. Thisallow sthe airflow to
cool thebrakes morequickly.
Wet roads If
you have driven foralong time inheavy rain
without braking, theremaybeadelay edreac-
tion from thebrakes whenbraking forthe first
time. Thismay alsooccur afterthevehicle has
been washed ordriven through deepwater.
You have todepress thebrake pedalmore
firmly. Maintain agreater distance fromthe
vehicle infront .
Aft erdriving onawet road orhaving thevehicle
washed, brakefirmlywhilepayingattent ionto
the traffic conditions .This willwarm upthe
brake discs, thereby dryingthemmore quickly
and protect ingthem against corrosion. Limited
braking performanceonsalt-
treat edroads If
you drive onsalted roads, alaye rof salt resi-
due may form onthe brake discsandbrake
pads. Thiscanresult inasignificantly longer
braking distance.
R Inorder toprevent anysalt build -up,apply the
brakes occasionally whilepayingattent ionto
the traffic conditions .
R Carefull ydepress thebrake pedalandthe
beginning andend ofajourney.
R Maintain agreater distance tothe vehicle
ahead.
Servicing thebrakes !
The
brake fluidlevel maybetoo low, if:
R ifthe red brake warning lamplights upin
the instrumen tcluster and
R you hear awarning tonewhile theengine is
running
Observe additional warningmessages inthe
multifunction display.
The brake fluidlevel maybetoo low due to
brake padwear orleaking brakelines.
Have thebrake system checkedimmediately.
Consult aqual ified specialist workshop to
arrange this.
! A
funct ionorperformance testshould only
be carried outona2-axle dynamometer. If
you wish tooperate thevehicle onsuch a
dynamometer, pleaseconsult aqual ified spe-
cialist workshop inadvance. Youcould oth-
erwise damage thedrive trainorthe brake
system.
! As
the ESP ®
system operates automatically ,
the engine andtheignition mustbeswitched
off (the SmartKey mustbeinposition 0092or
0047 inthe ignition lock),ifthe electric parking
brake istested onabraking dynamometer
(maximum 10seconds).
Braking triggered automatically byESP ®
may
cause severe damage tothe brake system.
All check sand maintenanc ework onthe brake
system mustbecarried outataqual ified spe-
cialist workshop.
Have brake padsinstalled andbrake fluid
replaced ataqual ified specialist workshop. 148
Driving
tipsDriving andparking

!
When
Active Distance AssistDISTRONIC or
the HOLD function isactivated, thevehicle
brakes automaticall yin certain situations.
To avoid damage tothe vehicle, deactivate
Act ive Distance AssistDISTRONIC andthe
HOLD function inthe followi ngorsimila rsit-
uations:
R when towing thevehicle
R in the carwash
Deactivating theHOLD function (Ypage 159).
Activation conditions You
canactivate theHOLD function if:
R the vehicle isstationary
R the engine isrunning orifit has been auto-
matically switchedoffbythe ECO start/st op
function
R the driver's doorisclosed oryour seatbeltis
fastened
R the electric parking brakeisreleased
R Act ive Distance AssistDISTRONIC isdeacti-
vated
R the transmission isin position 005B,005Eor005C
on vehicles withautomatic transmission
Activating theHOLD function X
Make surethattheactivation conditions are
met.
X Depress thebrake pedal.
X Quickly depress thebrake pedalfurther
until 0043appea rsinthe multifunction display.
The HOLD function isactivated. Youcan
release thebrake pedal.
i If
depressing thebrake pedalthefirst time
does notactivate theHOLD function, wait
briefly andthen tryagai n. Deac
tivating theHOLD function The
HOLD function isdeactivated automaticall y
if:
R you accelerate. Onvehicles withautomatic
transmission: onlywhen thetransmission isin
position 005Bor005E.
R the transmission isin position 005Donvehicles
with automatic transmission.
R you depress thebrake pedalagainwith acer-
tain amount ofpressure until0043disapp ears
from themultifunction display.
R you activate Active Distance Assist
DISTRONIC.
R you secure thevehicle usingtheelectric park-
ing brake.
i After
atime, theelectric parking brake
secures thevehicle andrelieves theservice
brake.
When theHOLD function isactivated, thetrans-
mission isautomaticall yshifted toposition 005D
if:
R the driver's seatbeltisnot fastened andthe
driver's doorisopen
R the engine isswitched off,unless itis auto-
matically switchedoffbythe ECO start/st op
function
The electric parking brakesecures thevehicle
automaticall yif the HOLD function isactivated
when thevehicle isstationary and:
R asystem malfunction occurs
R the power supplyis insufficient Star
t-off Assis t(exc eptMercedes-
AMG vehicl es)
Importa ntsafety notes G
WARNING
If you usestart-of fassist, individu alwheels
may start tospin andthevehicle mayskid. If
ESP ®
is deactivated, thereisagreater danger
of skidding andhaving anaccident. Makesure
that nopersons orobstacles areinthe vicinity
of the vehicle.
Start- offassist enables optimum acceleration
from astandstill. Forthis, asuitabl yhigh-grip Driving
systems
159Drivingandparking Z

To
avoid damage tothe vehicle, deactivate
Act ive Distan ceAssist DISTRONIC andthe
HOLD functioninthe following orsimilar sit-
uations:
R when towing thevehicle
R in the carwash
! Never
cleanyourvehicle inaTouchless
Automat icCar Wash asthese usespecial
cleaning agents.Thesecleaning agentscan
damage thepaintwork orplastic parts.
! Make
surethattheautomatic transmission
is in trans mission position 005Cwhen washing
your vehicle inatow-t hrough carwash. The
vehicle maybedamaged inanother transmis-
sion position.
! Make
surethat:
R the side windows andthesliding sunroof
are fully closed
R the blower isswitched off
R the windshield wiperswitch isat position
0092
The vehicle mayotherwise bedamaged.
You canclean thevehicle atan automatic car
wash fromthevery start.
Preferably cleanthevehicle atautomatic car
washes thatusetextilewashing elements with-
out brushes. Thiswillprevent finescratc hesto
the paintwork ordecorative films.
If the vehicle isvery dirty, pre-wash itbefore
cleaning itin an automatic carwash.
Aft erusing anautomatic carwash, wipeoffwax
from thewindshield andthewiper blades. This
will prevent smearsandreduce wipingnoises
caused byresidue onthe windshield.
i Vehicles
withdecorative film:select awash
program withouthotwax atthe automatic car
wash.
Washing byhand In
some countries,washing byhand isonly
allowed atspecially equipped washingbays.
Observe thelegal requirement sin each count ry.
X Do not use hotwater anddonot wash the
vehicle indirect sunlight.
X Use asoft sponge toclean.
X Use amild cleaning agent,suchasacar
shampoo approved byMercedes- Benz. X
Thoroughly hosedown thevehicle withagen-
tle jet ofwater.
X Do not point thewater jetdirectly towards the
air inlet orthe edges ofdecorative foils.
X Use plenty ofwater andrinse outthesponge
frequent ly.
X Rinse thevehicle withclean water anddry
thoroughly withachamois.
X Do not letthe cleaning agentdryonthe paint-
work orthe decorative foils.
Carefully removealldeposits ofroad saltas
soon aspossible whendriving inwinter.
Power washers G
WARNIN
G
The water jetfrom acircular jetnozz le(dirt
blasters) cancause invisible exteriordamage
to the tires orchassis compon ents.Compo-
nent sdamaged inthis way may failunexpect -
edly. There isarisk ofan accident .
Do not use power washers withcircular jet
nozz lestoclean thevehicle. Havedamaged
tires orchassis compon entsreplaced imme-
diately.
! Vehicles
withdecorative film:parts ofyour
vehicle arecovered withdecorative film.
Maintain adistance ofat least 27.5in(70cm)
between thefilm-c overed partsofthe vehicle
and thenozz leof the power washer.
Infor mation aboutthecorrec tdistance is
availab lefrom theequipment manufacturer.
Move thepower washer nozzlearound when
cleaning yourvehicle.
The water temperat ureofthe power washer
must notexceed 140‡(60 †).
! Always
maintain adistance ofat least 12in
(30 cm) between thevehicle andthepower
washer nozzle.Infor mation aboutthecorrec t
distance isavailabl efrom theequipment
manufact urer.
Move thepower washer nozzlearound when
cleaning yourvehicle.
Do not aim directly atany ofthe following:
R Tires
R Door gaps, roofgaps, joints,etc.
R Elect ricalcompon ents
R Batt ery 266
CareMaintenance
andcare

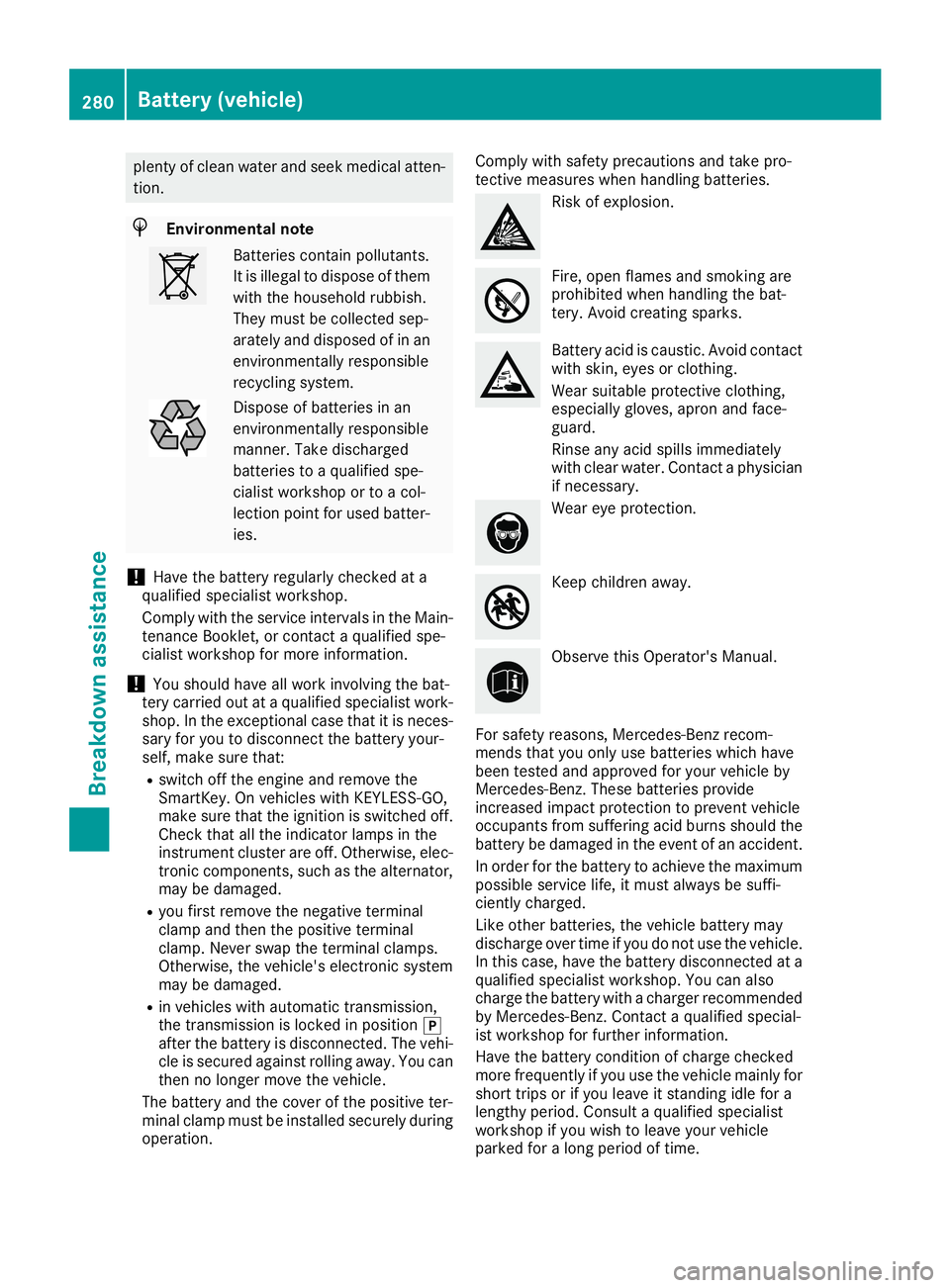

plent
yof clean water andseek medical atten-
tion . H
Environm
entalnote Batt
eries contain pollutant s.
It is illegal todispose ofthem
with thehousehold rubbish.
They must becollect edsep-
arately anddisposed ofinan
envir onmen tallyrespon sible
recyclin gsystem. Dispose
ofbatte riesinan
envir onmen tallyrespon sible
mann er.Take discharged
batte riestoaqualified spe-
cialist worksh oportoacol-
lection pointforused batter-
ies.
! Have
thebatte ryregularly checkedata
qualified specialist workshop.
Comply withtheservic eint ervals inthe Main-
ten ance Booklet,orcon tact aqualified spe-
cialist worksh opfor more information .
! You
should haveallwork involv ingthe bat-
tery carried outataqualified specialist work-
shop. Inthe exception alcase thatitis nec es-
sary foryou todiscon nectthe batte ryyour-
self, make surethat:
R switch offthe engin eand remov ethe
Smart Key.Onvehicles withKEYL ESS-GO,
make surethattheignit ionisswitch edoff.
Check thatallthe indicat orlamps inthe
inst rument clusterareoff. Other wise,elec-
tron iccompon ents,such asthe altern ator,
may bedamaged.
R you first remov ethe negat iveterm inal
clamp andthen thepositive terminal
clamp. Neverswaptheterm inalclamps.
Other wise, thevehicle's electronic system
may bedamaged.
R in vehicles withautomatic transmission ,
the tran smission islock edinposition 005D
after thebatte ryisdiscon nected. Thevehi-
cle issecured againstrollingaway.Youcan
then nolonger movethevehicle.
The batte ryand thecover ofthe positive ter-
minal clamp mustbeinst alled securely during
operation . Comply
withsafety precaution sand take pro-
tec tive measures whenhandling batteries. Risk
ofexplosion . Fire,
open flames andsmok ingare
prohibited whenhandling thebat-
tery. Avoid creatingsparks. Batt
eryacid iscaustic .Avoid contact
with skin,eyes orclot hing.
Wear suitable protective clot hing,
especially gloves,apronandface-
guard.
Rinse anyacid spills immediately
with clear water. Contac ta physician
if nec essary. Wear
eyeprote ction. Keep
children away. Observe
thisOperator 'sManual.
For safety reasons ,Mercedes -Benzrecom -
mends thatyouonly usebatte rieswhich have
been testedand approved foryour vehicle by
Mercedes -Benz.These batteriesprovide
incr eased impact protection topreven tvehicle
occ upants fromsufferin gacid burns should the
batte rybe damaged inthe event ofan acciden t.
In order forthe batte ryto achieve themaximum
possible servicelife, itmust always besuffi-
cient lycharged.
Like other batteries,thevehicle batterymay
discharge overtime ifyou donot use thevehicle.
In this case, havethebatte rydiscon nected ata
qualified specialist workshop.You canalso
charge thebatte rywith acharger recommended
by Mercedes -Benz.Contac ta qualified special-
ist worksh opfor furth erinfor mation .
Have thebatte rycon dition ofcharge checked
more frequent lyifyou usethevehicle mainlyfor
short tripsorifyou leave itstan ding idlefora
lengt hyperiod. Consult aqualified specialist
worksh opifyou wish toleave yourvehicle
parked foralong period oftime. 280
Ba
ttery (vehicle)Breakd ownassista nce

!
When
Active Brake Assist, Active Distance
Assist DISTRONIC orthe HOLD function is
activated, thevehicle brakesautomaticall yin
certain situations.
To avoid damage tothe vehicle, deactivate
these systems inthe followi ngorsimila rsit-
uations:
R when towing thevehicle
R in the carwash
! Make
surethattheelectric parking brakeis
released .If the electric parking brakeisfaulty,
visit aqual ified speciali stworkshop.
! Only
secure thetow rope ortow baratthe
towing eyes.Otherwise, thevehicle couldbe
damage d.
! Do
not use thetowing eyesforrecovery pur-
poses asthis could damage thevehicle. Ifin
doubt, recover thevehicle withacrane.
! When
towing, pullawayslowly and
smoothly. Ifthe tractive poweristoo high, the
vehicles couldbedamage d.
! The
vehicle canbetowed amaximum of
30 miles (50km). Thetowing speedof30 mph
(50km/h) mustnotbeexceeded.
If the vehicle hastobe towed morethan
30 miles (50km), thefront axlemust beraised
or the entire vehicle raisedandtransported.
! Do
not tow with sling-type equipment. This
could damage thevehicle.
! When
towing awayvehicles withKEYLES S-
GO, usethekey instead ofthe Start/ Stop
button. Theautomatic transmission mayoth-
erwise shifttoposition 005Dwhen youopen the
driver's orfront -passenger door,which could
damage thetransmission.
! Vehicles
withautomatic transmission must
not bestarted bytow-start ing.This could oth-
erwise damage thetransmission.
It is better tohave thevehicle transported than
to have ittowed away.
If the vehicle cannolonger bedriven because of
an accident orbreakdown, youhave thefollow-
ing options:
R Transporting thevehicle.
As arule, youshould havethevehicle trans-
ported.
R Towing thevehicle withatow rope ortow bar. Only
towthevehicle inexceptional cases.
The battery mustbeconnec tedand charged.
Otherwise, you:
R cannot turntheSmartKey toposition 0048in
the ignition lock.
R cannot release theelectric parking brake.
R cannot shiftthetransmission toposition 005C.
The function ofthe electric parking brakeand
the parking lockisdependent onthe on-board
voltage.
If the on-board voltageislow orifthere isasys-
tem malfunction:
R the electric parking brakemaynotbeappli ed
in certain circumstances, or
R itmay nolonger bepossible toshift thetrans-
mission toposition 005D
Switch offnon- essential consumers, e.g.the
radio.
Deactivate theautomatic lockingfeaturebefore
the vehicle istowed (Ypage 189). Youcould
otherwise belocked outwhen pushing ortowing
the vehicle. Installin
g/removing thetowing eye
Installin gthe towing eye The
brackets forthe screw-in towingeyeare
located inthe bumpers. Theyareatthe rear and
at the front ,under covers 0043.
X Remove thetowing eyefrom thestowage
space. Towing
andtow-start ing
285Breakdown assistance Z

The
towing eyeislocated withthevehicle tool
kit under thecargo compart mentfloor
(Y page 274).
Vehicles withtheTIREFIT kit:the towing eyeis
beneath thetire inflation compressor
(Y page 274).
X Press themark oncover 0043inwards inthe
direction ofthe arrow.
X Take cover 0043offthe opening.
X Scr ewinthe towing eyeclock wisetothe stop.
Removing thetowing eye X
Unsc rewand remove thetowing eye.
X Attach cover 0043tothe bumper andpress until
it engages.
X Place thetowing eyeinthe stowage well
beneath thecargo compart mentfloorinthe
cargo compart ment(Ypage 274).
X Vehicles withtheTIREFIT kit:put back thetire
inflation compressor (Ypage 274). Towing
thevehicle withthefront axle
raised
Observe theimportant safetynoteswhen tow-
ing your vehicle withthefront axleraised
(Y page 284).
Only vehicles without4MATICcanbetowed
with thefront axleraised.
! Vehicles
with4MATI Cmust notbetowed
with either thefront orthe rear axle raised, as
doing sowill damage thetrans mission.
Vehicles with4MATI Cmay either betowed away
with both axles onthe ground orbe loaded up
and trans ported.
! The
ignition mustbeswitched offifthe vehi-
cle isbeing towed withthefront axleraised.
Otherwise, ESP®
may intervene anddamage
the brake system.
X On
vehicles withKEYL ESS-GO orthe KEY-
LESS-GO startfunction: youmust usethe
Smart Keyinstead ofthe Start /Stopbutton
(Y page 124).
X Make surethatthevehicle isstation ary.
X Turn theSmart Keytoposition 0048inthe igni-
tion lock.
X When thevehicle isstation ary,depress the
brake pedalandkeep itdepressed. X
Shift theautomatic transmission toposition
005D.
X Release thebrake pedal.
X Release theelectric parking brake.
X Switch offthe automatic locking
(Y page 189).
X Switch onthe hazard warning lamps
(Y page 103).
X Turn theSmart Keyinthe ignition locktoposi-
tion 005Aand leave theSmart Keyinthe ignition
lock. Towing
avehicle withboth axles on
the ground
It is important thatyouobserve thesafety
instr uctions whentowing awayyourvehicle
(Y page 284).
X On
vehicles withKEYL ESS-GO orthe KEY-
LESS-GO startfunction: youmust usethe
Smart Keyinstead ofthe Start /Stopbutton
(Y page 124).
The automatic transmission automatically shifts
to position 005Dwhen youopen thedriver's or
front -passenger doororwhen youremove the
Smart Keyfrom theignition lock.Inorder to
ensure thattheautomatic transmission staysin
position 005Cwhen towing awaythevehicle, you
must observe thefollowing points:
X Make surethatthevehicle isstation ary.
X Turn theSmart Keytoposition 0048inthe igni-
tion lock.
X Depress andhold thebrake pedal.
X Shift theautomatic transmission toposition
005C.
X Leave theSmart Keyinposition 0048inthe igni-
tion lock.
X Release thebrake pedal.
X Release theelectric parking brake.
X Switch onthe hazard warning lamps
(Y page 103).
i In
order tosignal achange ofdirection when
towing thevehicle withthehazard warning
lamps switched on,use thecombinat ion
switch asusual. Inthis case, onlytheindicator
lamps forthe direction oftravel flash.After
resett ingthe combinat ionswitch, thehazard
warning lampstartsflashing again. 286
Towing
andtow-sta rtingBr eakdown assistance

Permit
tedtowing method s
Mercedes-B enzrecommen dstransport ingyour
vehicle inthe case ofabreakdown, ratherthan
towing itaway .
When towing away,use atowing ropeoratow-
ing bar with both axles onthe ground. Donot use
any tow barsystems. Tr
ansport ingthe vehicle
Vehicles withautom atictransmission !
When
thevehicle isloaded fortransport ,the
front andrear axles mustbestationary andon
the same transport ationvehicle. Positioning
over theconn ection pointofthe transport
vehicle isnot permitted. Thedrive trainmay
otherwise bedamaged. All
vehicle s !
You
may onlysecure thevehicle bythe
wheels, notbyparts ofthe vehicle suchas
axle orsteering componen ts.Otherwise, the
vehicle couldbedamaged.
X Turn theSmartK eytoposition 0048inthe igni-
tion lock (Ypage 123).
X Shift thetransm issiontoposition 005C.
As soon asthe vehicle hasbeen loaded:
X Prevent thevehicle fromrolling awayby
apply ingthe electric parking brake.
X Shift thetransm issiontoposition 005D.
X Turn theSmartK eytoposition 005Ainthe igni-
tion lock andremove it.
X Secure thevehicle.
The towing eyecan beused topull thevehicle
onto atrailer ortransport erfor transport ingpur-
poses. Notes
on4MATIC vehicles
! Vehicles
with4MATIC mustnotbetowed
with either thefront orthe rear axle raised, as
doing sowill damage thetransm ission.
Vehicles with4MATIC mayonlyeither betowed
away withboth axles onthe ground orbe loaded
up and transport ed.
If the vehicle's transmission,front,or rear axle is
damaged, havethevehicle transport edon a
truck ortrailer.
In the event ofdam agetothe elec trical sys-
tem:
If the battery isdefective, theautomatic trans-
mission willbelocked inposition 005D.Toshift the
automatic transmissiontoposition 005C,you
must provide powertothe vehicle's on-board
electrical systeminthe same wayaswhen jump-
startin g(Y page 282).
Have thevehicle transport edon atransport eror
trailer. Tow-star
ting(emergency engine
star ting)
! Vehicles
withautomatic transmissionmust
not betow-st arted. Youcould otherwise dam-
age theautomatic transmission.
i You
canfind information on"Jump-starting"
under (Ypage 282). Fuses
Import
antsafety notes G
WARNING
If you manipulate orbridge afaulty fuseorif
you replace itwith afuse withahigher amper-
age, theelectric cablescouldbeoverloaded.
This could result inafire. There isarisk ofan
accident andinjury.
Always replace faultyfuseswiththespecified
new fuses having thecorrect amperage.
! Only
usefuses thathave been approved for
Mercedes-B enzvehicles andwhich havethe
correct fuserating forthe system concerned.
Only usefuses marked withan"S". Other- Fuses
287Breakdown assistance Z
