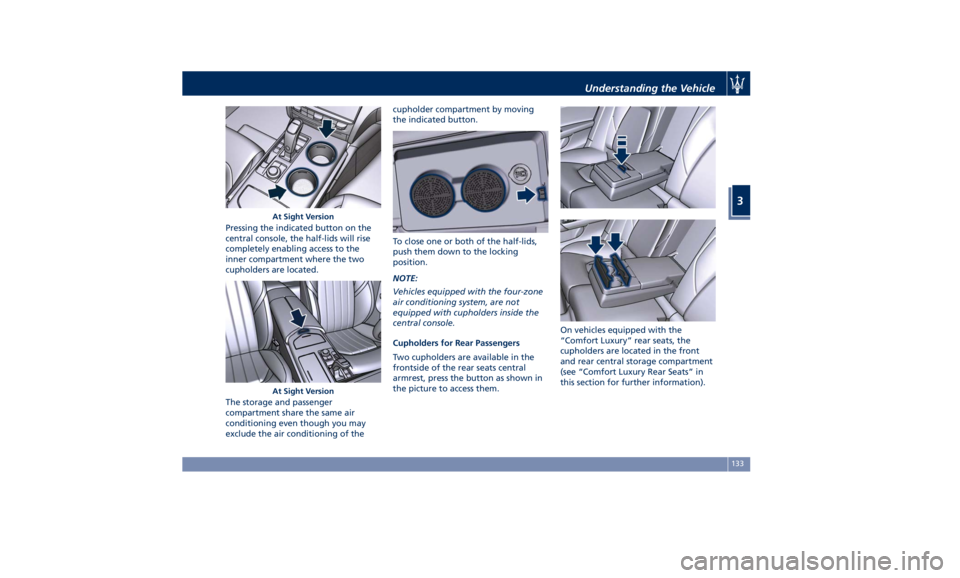

Pressing the indicated button on the
central console, the half-lids will rise
completely enabling access to the
inner compartment where the two
cupholders are located.
The storage and passenger
compartment share the same air
conditioning even though you may
exclude the air conditioning of the cupholder compartment by moving
the indicated button.
To close one or both of the half-lids,
push them down to the locking
position.
NOTE:
Vehicles equipped with the four-zone
air conditioning system, are not
equipped with cupholders inside the
central console.
Cupholders for Rear Passengers
Two cupholders are available in the
frontside of the rear seats central
armrest, press the button as shown in
the picture to access them. On vehicles equipped with the
“Comfort Luxury” rear seats, the
cupholders are located in the front
and rear central storage compartment
(see “Comfort Luxury Rear Seats” in
this section for further information).At Sight Version
At Sight Version Understanding the Vehicle
3
133
Selecting , “AUTO”, or “OFF”, will
also exit “MAX A/C”.
Automatic Temperature
Control (ATC) Automatic operation
• Press the “AUTO” soft-key of driver
and/or passenger zone on the
climate control panel or the relevant
soft-key button on the MTC+ screen.
The text “AUTO” will appear inside
the space usually occupied by the
bars between the blower icons.
• Set the desired temperature
adjusting the driver and/or
passenger temperature control
buttons or soft-keys. The system
automatically work to maintain the
best comfort level inside the
passengers compartment.
• When the system is set up for your
comfort level, it is not necessary to change the settings anymore, simply
allow the system to function
automatically.
• To provide you with maximum
comfort in the automatic mode,
during cold start-ups the blower
speed will remain low until the
engine warms up. Manual operation
The system allows manual selection of
blower speed, air distribution mode,
A/C status and recirculation control.
The blower fan speed can be set to
any fixed speed by using the blower
control. In this case the blower will
operate at a fixed speed until a
different speed is selected. This allows
the front occupants to control the
volume of air circulated in the vehicle
exiting the “AUTO” mode.
The user can also choose the direction
of the airflow by selecting one of the
available mode settings. A/C
operation, recirculation control and
“SYNC” mode can also be manually
selected.
Four-Zone Climate Controls
(optional) Air conditioning controls that allow
rear passengers to adjust the
temperature in the left and right rear
part of the passenger compartment
are located at the rear end of the
central console underneath the
adjustable air outlets or on the rear
console storage compartment
between the rear seats, if the vehicle
is equipped with “Comfort Luxury”
seats.Dashboard Instruments and Controls
