2019 MASERATI GRANTURISMO CONVERTIBLE fuse

• Undo the four retaining screws andremove the cover.
The fuses are housed in three control
boxes. The following table points out the
position as featured in the picture, the
type and function of the fuses
included in these control boxes.
CAUTION!
If you need to wash the engine
compartment, do not direct the jet of
water for too long directly on the
engine compartment ECU. Engine Compartment Fuses
Pos.Amp. –
Color System /
Component
F01 Maxi 60 A –
Blue Fan 1 relay
F02 Maxi 30 A –
Green ABS valves
F03 Maxi 20 A –
Yellow T03 spot lights
relay
Maintenance and Care
7
252

Pos.Amp. –
Color System /
Component
F107 - Not used
Fuses in Passenger
Compartment
• To access the fuses lift the guard on
the left side of the steering wheel.
The fuses are housed in two control
boxes. The following table points out the
position as featured in the picture, the
type and function of the fuses
included in these control boxes.
Passenger Compartment Fuses
Pos. Amp. –
Color System / Component
F12 15 A – Blue Right-hand low
beam
F13 15 A – Blue Left-hand low beam
F31 7.5 A – Brown A/C unit, NBC (Body
Computer Node),
high beam relay
F32 10 A – Red Domelights, step
lights, CAV, driver-
and passenger-side
footwell lights,
outside mirror lights
F33 30 A – Green Driver’s seat
(movement)
F34 30 A – Green Passenger’s seat
(movement)
F35 7.5 A – Brown ACC, FN and LF relay
coil
F36 10 A – Red NQS
F37 10 A – Red NQS (Instrument
Cluster Node), CPP,
CPD
F38 15 A – Blue Rear lid lock
Maintenance and Care
7
254

Pos. Amp. –Color System / Component
F39 15 A – Blue NIM (Inside Roof
Node), NCL (Air
conditioning and
heating system
node), OBD socket,
CSA (Alarm system
siren ECU), CAV
(Motion sensing
alarm ECU), radio,
NAVTRAK
F40 30 A – Green Heated rear window
F41 - Not used
F42 7.5 A – Brown NCL and windshield
wiper control
F43 30 A – Green Windshield
wiper/washer
(Connected Devices
Relay INT/A)
F44 20 A – Yellow Front and rear power
outlets (INT/A device
relay) front seat
heating (passenger
side)
F45 - Not used
F46 20 A – Yellow NPG/NPP locksPos. Amp. –
Color System / Component
F47 30 A – Green NPG (Driver’s door
node)
F48 30 A – Green NPP (Passenger’s
door node)
F49 7.5 A – Brown NVO (Steering wheel
node), CSG (Power
steering ECU), CSP
(Twilight/rain sensor
ECU), NIM (Inside
Roof Node), NCL,
Radio, CEM, CRP,
domelight molding,
NAVTRAK
F50 7.5 A – Brown Air bag system
F51 7.5 A – Brown NCA (Automatic
Gearbox Node)
F52 15 A – Blue Front seat heating
(driver side) (INT/A
device relay)
F53 10 A – Red Rear fog lights
Fuses in Trunk Compartment
• To access the fuses, remove the floor
panel. • Remove the inside covering panel of
the battery compartment.
There are two control boxes.
• To access the fuses inside the control boxes, remove the covers by levering
up the fastening tabs.
Maintenance and Care
7
255

The following table points out the
position as featured in the picture, the
type and function of the fuses
included in these control boxes.Trunk Compartment Fuses
Pos. Amp. –
Color System /
Component
F54 30 A – Green HI-Fi amplifier
F55 7.5 A – Brown Lights
F56 10 A – Red +30 NAG, NAVTRAK,
Harman tuner, MTC+
(Japan)
F57 - Not used
F58 7.5 A – Brown Reverse
F59 15 A – Blue Fuel tank door
power supply from
T22
F60 7.5 A – Brown NSP
F61 20 A – Yellow Rear RH ACE
F62 20 A – Yellow NCA
F63 15 A – Blue +30 battery charge
F64 - Not used
F65 20 A – Yellow Rear LH ACE
Pos. Amp. –
Color System /
Component
F66 20 A – Yellow Fuel pumps
F67 - Not used
F68 - Not used
F69 - Not used
F77 - Not used
F78 20 A – Yellow Power outlet
F79 - Not used
F80 30 A – Green Bass box
F108 40 A – Orange +30 NCP hydraulic
pump
F109 40 A – Orange +30 NCP ECU/front
latch
F110 - Not used
F111 - Not used
F112 - Not used
F113 - Not used
Maintenance and Care
7
256

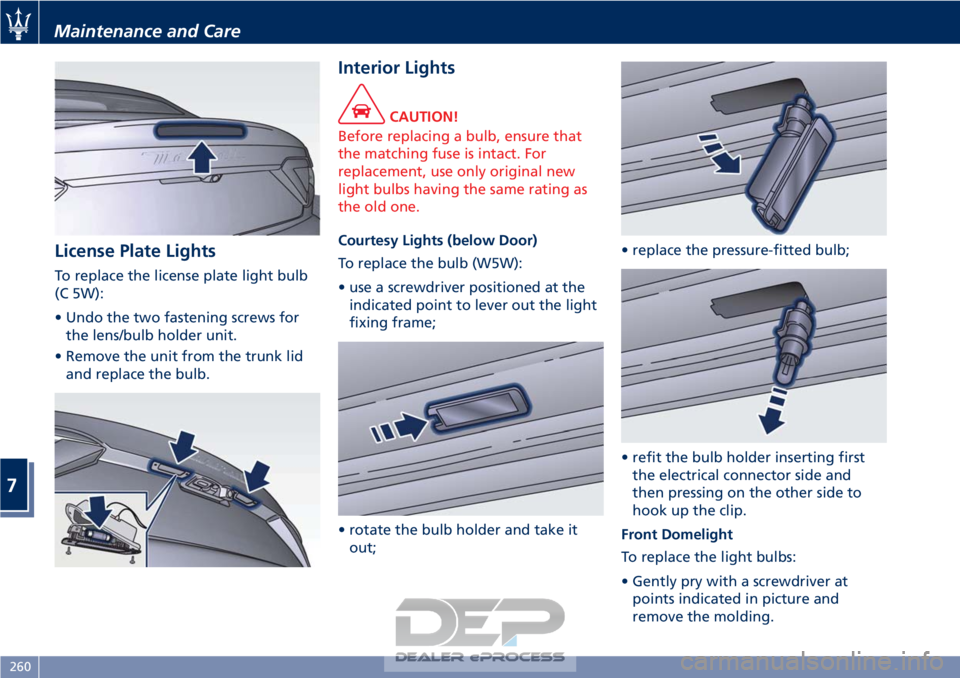

License Plate Lights
To replace the license plate light bulb
(C 5W):
• Undo the two fastening screws forthe lens/bulb holder unit.
• Remove the unit from the trunk lid and replace the bulb.
Interior Lights
CAUTION!
Before replacing a bulb, ensure that
the matching fuse is intact. For
replacement, use only original new
light bulbs having the same rating as
the old one.
Courtesy Lights (below Door)
T
o replace the bulb (W5W):
• use a screwdriver positioned at the indicated point to lever out the light
fixing frame;
• rotate the bulb holder and take it out; • replace the pressure-fitted bulb;
• refit the bulb holder inserting first
the electrical connector side and
then pressing on the other side to
hook up the clip.
Front Domelight
To replace the light bulbs:
• Gently pry with a screwdriver at points indicated in picture and
remove the molding.
Maintenance and Care
7
260
