2019 LINCOLN CONTINENTAL Owners Manual

558

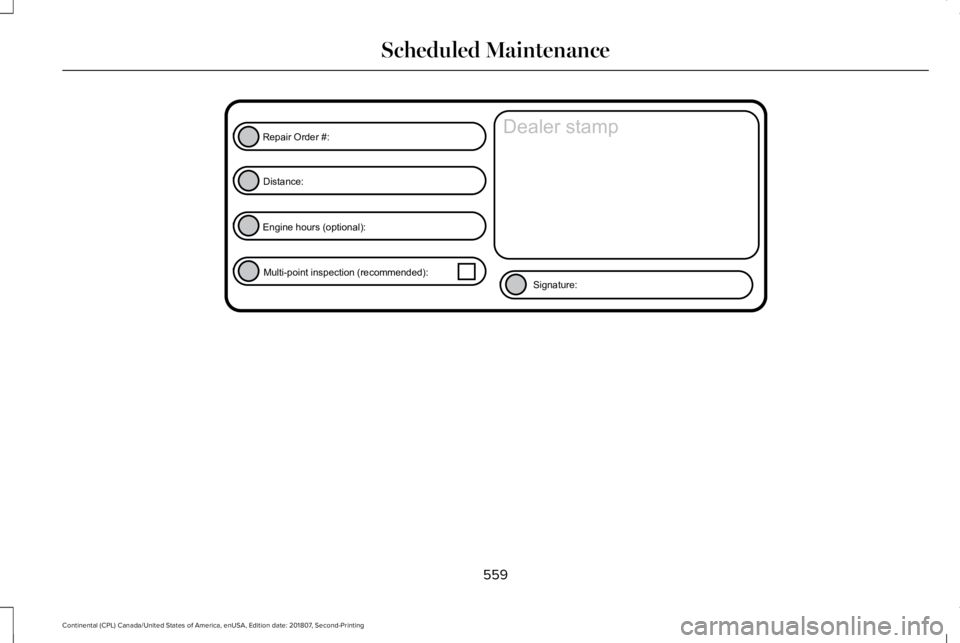

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

559
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

560

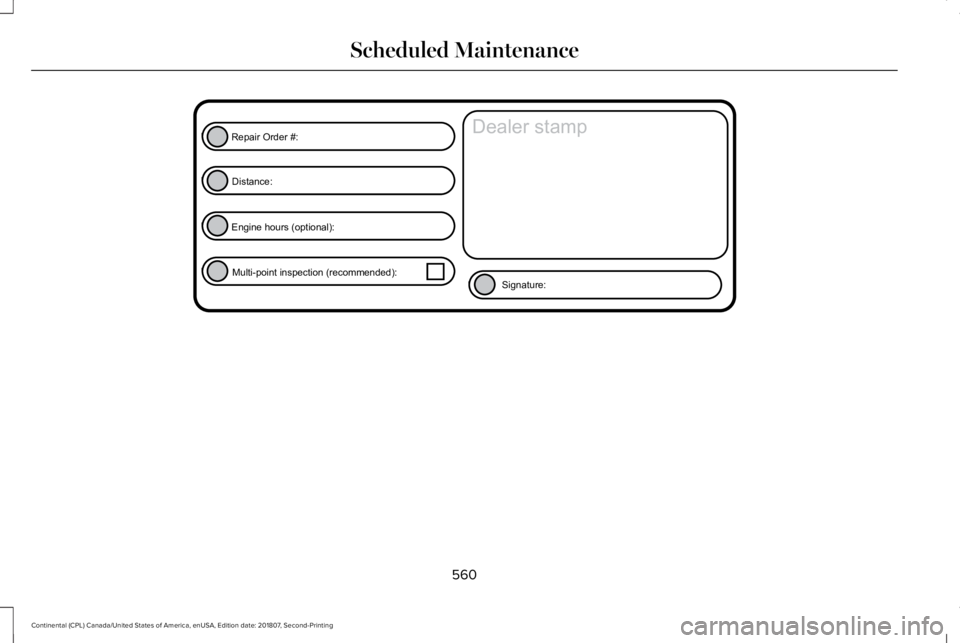

Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

ELECTROMAGNETIC
COMPATIBILITY
WARNING: Do not place objects or
mount equipment on or near the airbag
cover, on the side of the seatbacks (of the
front seats), or in front seat areas that may
come into contact with a deploying airbag.
Failure to follow these instructions may
increase the risk of personal injury in the
event of a crash. WARNING:
Do not fasten antenna
cables to original vehicle wiring, fuel pipes
and brake pipes. WARNING: Keep antenna and power
cables at least
4 in (10 cm) from any
electronic modules and airbags. Note:
We test and certify your vehicle to
meet electromagnetic compatibility
legislation (UNECE Regulation 10 or other
applicable local requirements). It is your
responsibility to make sure that any
equipment an authorized dealer installs on
your vehicle complies with applicable local
legislation and other requirements.
Note: Any radio frequency transmitter
equipment in your vehicle (such as cellular
telephones and amateur radio transmitters)
must keep to the parameters in the following
table. We do not provide special provisions
or conditions for installations or use.
561
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Appendices

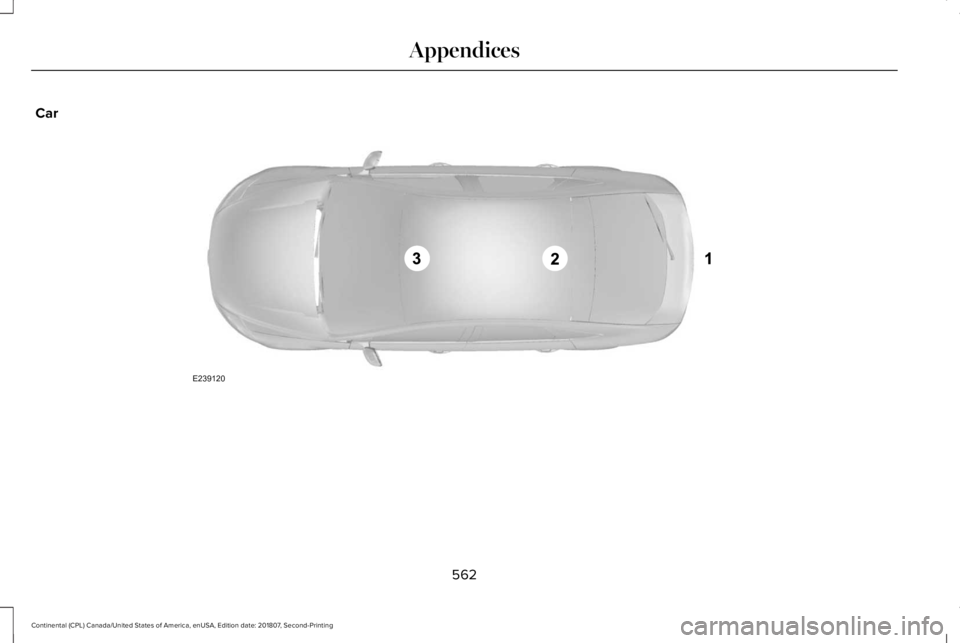

Car
562
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing AppendicesE239120

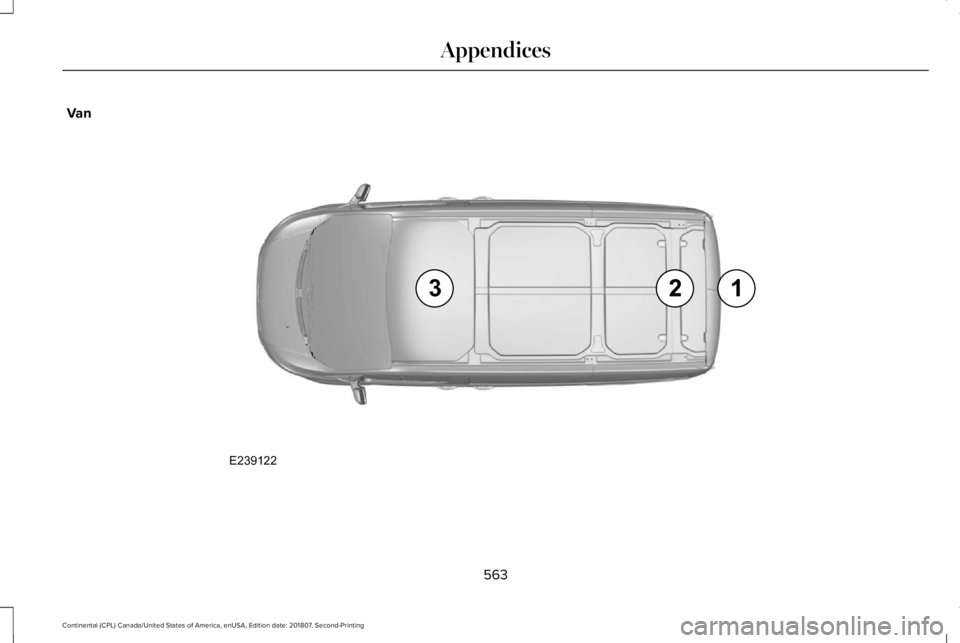

Van
563
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing AppendicesE239122

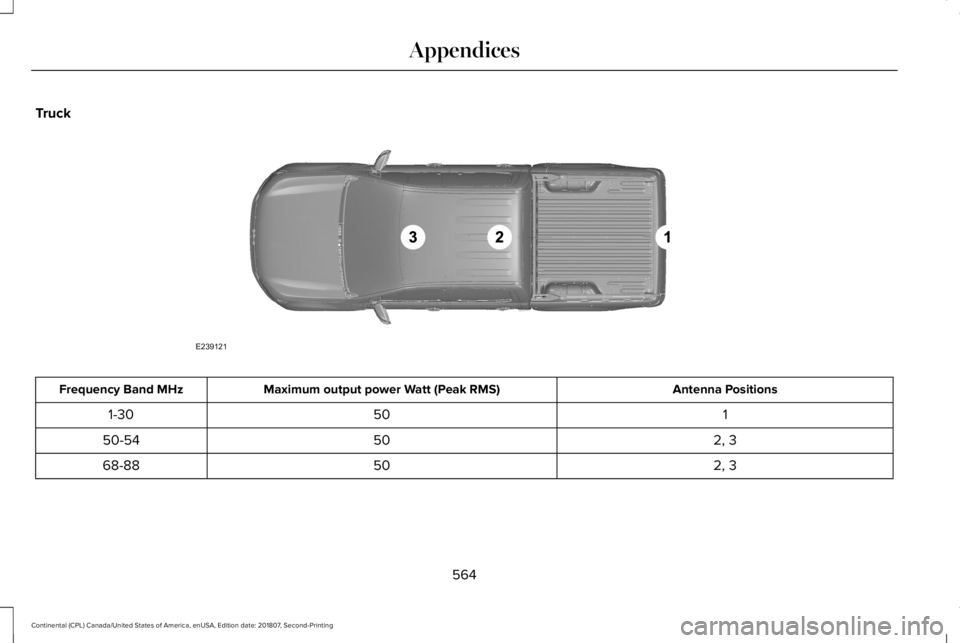

Truck
Antenna Positions
Maximum output power Watt (Peak RMS)
Frequency Band MHz
1
50
1-30
2, 3
50
50-54
2, 3
50
68-88
564
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing AppendicesE239121

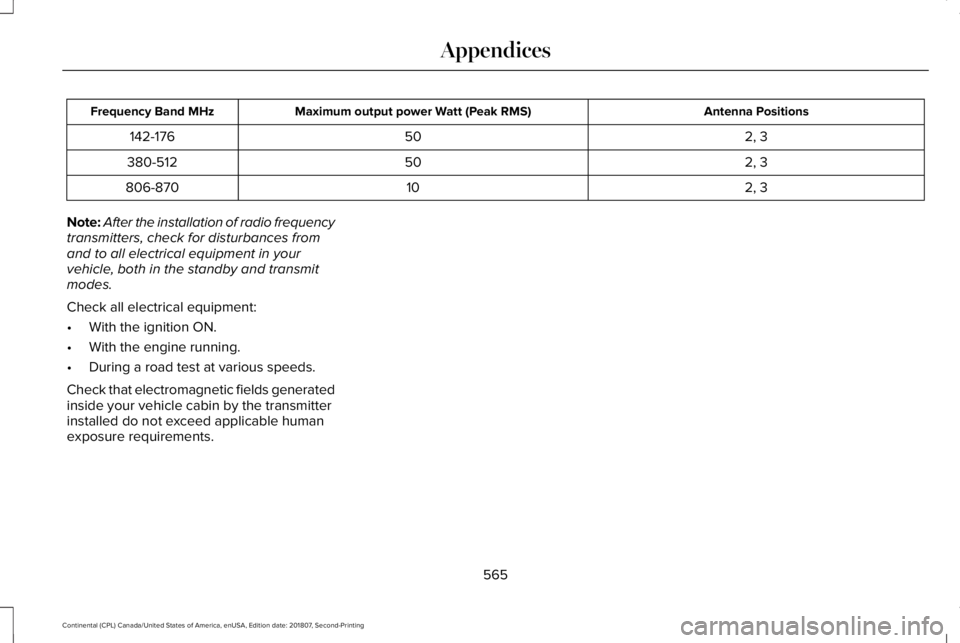

Antenna Positions
Maximum output power Watt (Peak RMS)
Frequency Band MHz
2, 3
50
142-176
2, 3
50
380-512
2, 3
10
806-870
Note: After the installation of radio frequency
transmitters, check for disturbances from
and to all electrical equipment in your
vehicle, both in the standby and transmit
modes.
Check all electrical equipment:
• With the ignition ON.
• With the engine running.
• During a road test at various speeds.
Check that electromagnetic fields generated
inside your vehicle cabin by the transmitter
installed do not exceed applicable human
exposure requirements.
565
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Appendices
