491-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as theseats, the glove box, parts of the front and re ar pillars, and roof side rails may be hot for several minutes. The airbag itself may also be hot.
●The windshield may crack.
●Vehicles with ERA-GLONASS: If the SRS ai rbags deploy, the system is designed to send an emergency call* to the Public Safety Answer ing Point (PSAP), notifying them
of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistancerequired. If the occupants are unable to communicate, the agent automatically treats
the call as an emergency and helps to di spatch the necessary emergency services. ( P. 384)
*: In some cases, the call cannot be made. (P. 386)
■SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the set thresh- old level (the level of force corresponding to an approximately 20 - 30 km/h [12 - 18mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be cons iderably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possib le that only the seat belt pretensioners will activate.
■SRS airbag deployment conditions (SRS side and curtain shield airbags)
●The SRS side and curtain shield airbags w ill deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to the impact forceproduced by an approximately 1500 kg [3300 lb.] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).
●The SRS side and curtain shield airbags may also deploy in the event of a severe frontal
collision.

257
4
4-4. Refueling
Driving
GS450h_300h_OM_OM30F92E_(EE)
Opening the fuel tank cap
●Turn the power switch off and ensure that all the doors and windows are
closed.
●Confirm the type of fuel.
■Fuel types
 P. 559
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom- modates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted metalsurface to discharge any static electricity. It is important to discharge static electricity before refueling because sparks resulting fr om static electricity can cause fuel vapors
to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it. A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the
sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to come
close to an open fuel tank.
●Do not inhale vaporized fuel. Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.

3966-1. Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances su ch as benzene or gasoline, alkaline or acidic solutions, dye, and bleach• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as theymay stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water. Vehicle systems such as the audio system may be damaged if water comes into contactwith electrical components such as the audio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with Lexus Safety System+)
Do not allow glass cleaner to contact the lens. Also, do not touch the lens. ( P. 263)
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe the window in strokes running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

5488-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)

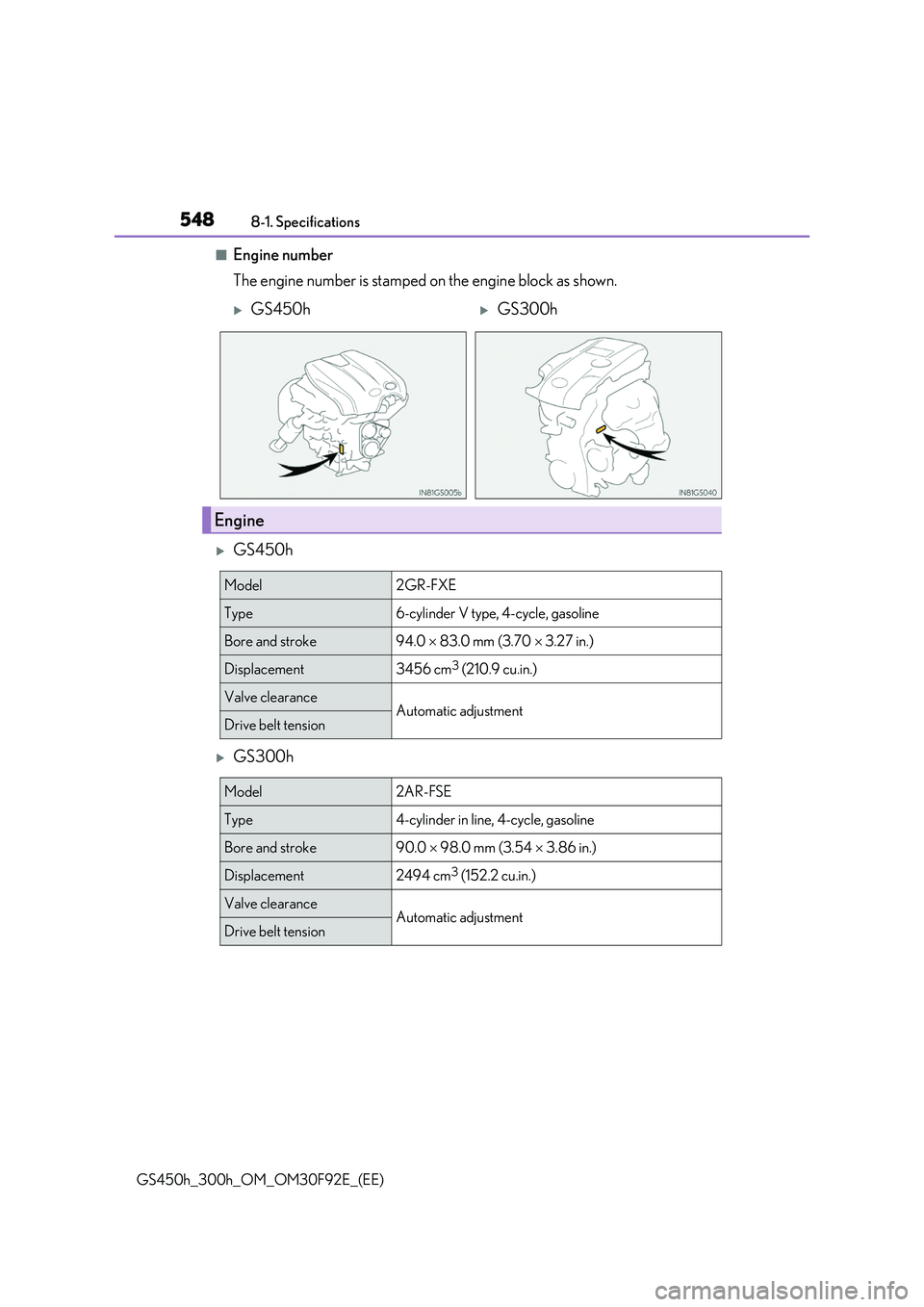

■Engine number
The engine number is stamped on the engine block as shown.
GS450h
GS300h
GS450hGS300h
Engine
Model2GR-FXE
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  83.0 mm (3.70  3.27 in.)
Displacement3456 cm3 (210.9 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension

549
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European standard EN228 only
Except EU area: Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp.gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum outputGS450h147 kW
GS300h105 kW
Maximum torqueGS450h275 N•m (28.0 kgf•m, 202.8 ft•lbf)
GS300h300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
QuantityGS450h40 modules
GS300h32 modules
Overall voltageGS450h288 V
GS300h230.4 V

5528-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)
Cooling system
Gasoline engine
Power control unit
Left-hand drive
vehicles
Right-hand drive
vehicles
Capacity
GS450h9.2 L (9.7qt., 8.1 Imp.qt.)2.1 L (2.2qt., 1.8 Imp.qt.)1.9 L (2.0qt., 1.7 Imp.qt.)
GS300h8.1 L (8.6 qt., 7.1 Imp.qt.)1.6 L (1.7 qt., 1.4 Imp.qt.)1.8 L (1.9 qt., 1.6 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology Do not use plain water alone.
Ignition system
Spark plug
MakeGapDENSO FK20HBR80.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

600
GS450h_300h_OM_OM30F92E_(EE)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 401 P. 146 P. 259
Hood lock release leverTire inflation pressure
P. 401P. 555
Fuel tank capacity
(Reference) 66 L (17.4 gal., 14.5 Imp.gal.)
Fuel type
EU area: Unleaded gasoline conforming to European standard EN228 onlyExcept EU area: Unleaded gasoline only
P. 549
Cold tire inflation pressure P. 555
Engine oil capacity (Drain and refill —
reference)
P. 550
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade:
0W-20, 5W-30 and 10W-30: API grade SL “Energy-Conserving”, SM “Energy-Con-serving” or SN “Resource-Conserving”; or ILSAC multi-
grade engine oil 15W-40:API grade SL, SM or SN multigrade engine oil
P. 550
