761-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)

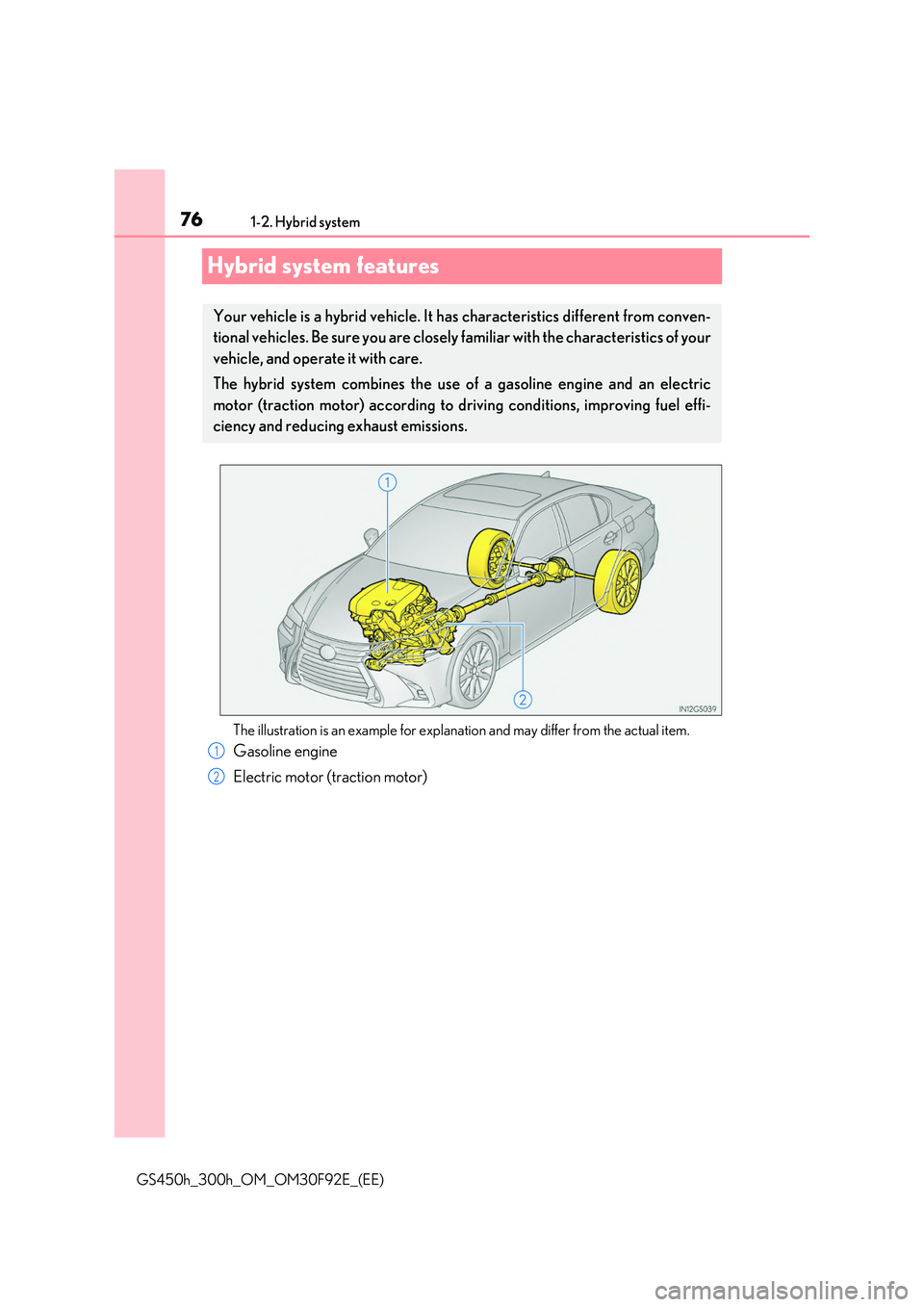

Hybrid system features
The illustration is an exam ple for explanation and may differ from the actual item.
Gasoline engine
Electric motor (traction motor)
Your vehicle is a hybrid vehicle. It ha s characteristics different from conven-
tional vehicles. Be sure you are closely familiar with the characteristics of your
vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and an electric
motor (traction motor) according to dr iving conditions, improving fuel effi-
ciency and reducing exhaust emissions.
1
2

771-2. Hybrid system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
◆When stopped/during start off
The gasoline engine stops* when the vehicle is stopped. During start off, the
electric motor (traction motor) drives the vehicle. At slow speeds or when
traveling down a gentle slope, the engine is stopped* and the electric motor
(traction motor) is used.
When shift lever is in N, the hybrid battery (traction battery) is not being
charged.
*: When the hybrid battery (traction battery) requires charging or the engine is
warming up, etc., the gasoline engine will not automatically stop. ( P. 78)
◆During normal driving
The gasoline engine is predominantly used. The electric motor (traction
motor) charges the hybrid battery (traction battery) as necessary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the hybrid bat-
tery (traction battery) is added to that of the gasoline engine via the electric
motor (traction motor).
◆When braking (regenerative braking)
The wheel operate the electric motor (t raction motor) as a power generator,
and the hybrid battery (traction battery) is charged.

781-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and decelera- tion force can be obtained in conjunction with the recharging of the hybrid battery (trac-tion battery).
●The accelerator pedal is released while driving with the shift lever in D or S.
●The brake pedal is depressed while driving with the shift lever in D or S.
■EV indicator
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop automati- cally in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the heater is switched on
■Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the battery does not need to be charged from an outside source. However, if the vehicle is left parked for a
long time the hybrid battery (traction battery ) will slowly discharge. For this reason, be sure to drive the vehicle at least once every few months for at least 30 minutes or 16 km(10 miles). If the hybrid battery (traction battery) becomes fully discharged and you are
unable to start the hybrid system, contact any authorized Lexus retailer or Lexus autho- rized repairer, or any reliable repairer.
■Charging the 12-volt battery
 P. 533
■After the 12-volt battery has discharged or when the terminal has been removed and installed during exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the hybrid battery (traction battery). If this continues for a few days, contact any authorized Lexus retailer orLexus authorized repairer, or any reliable repairer.
The EV indicator comes on when the vehicle is driven using only the electric motor (traction
motor) or the gasoline engine is stopped.

791-2. Hybrid system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration ev en though the vehicle is able to move with the “READY” indicator is illuminated. For sa fety, apply the parking brake and make sure
to shift the shift lever to P when parked.
The following sounds or vibrations may occu r when the hybrid system is operating and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear seats when the hybrid system starts or stops.
●Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat- tery (traction battery), behind the rear se ats, when the hybrid system is started or stopped.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the transmission when the gasoline engine starts or stops, when driving at low speeds, or during idling.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the brake pedal is depressedor as the accelerator pedal is released.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vents on the both sides of the rear seatback.
■Maintenance, repair, recycling, and disposal
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer regarding maintenance, repair, recy cling and disposal. Do not dispose of the
vehicle yourself.
■Customization
Settings (e.g. on/off operation of the EV indicator) can be changed. (Customizable features: P. 561)

1052. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer/Hybrid System Indicator
Tachometer: Displays the engine speed in revolutions per minute.
Hybrid System Indicator: Displays hybrid system outp ut or regeneration level (P. 108)
Outside temperature
Displays the outside temperature within the range of -40C (-40F) to 50C (122 F). Low outside temperature indicator comes on when the ambient temperature
is 3 C (37F) or lower.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P. 378)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data (P. 111)
Displays warning messages in case of a malfunction (P. 466)
Odometer, trip meter, maintenance required information and speed warning
display
Odometer: Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be used to record and display different distances inde-pendently.
Maintenance required information: • Displays the maintenance required information when the power switch is inON mode.
• It can be reset from of the multi-information display. ( P. 111)
Speed warning:
Displays a warning when the speed set in of the multi-information display is exceeded. ( P. 562)
Shift position and shift range
Displays the selected shift position or selected shift range (P. 224)
1
2
3
4
5
6
7
8
9

1062. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

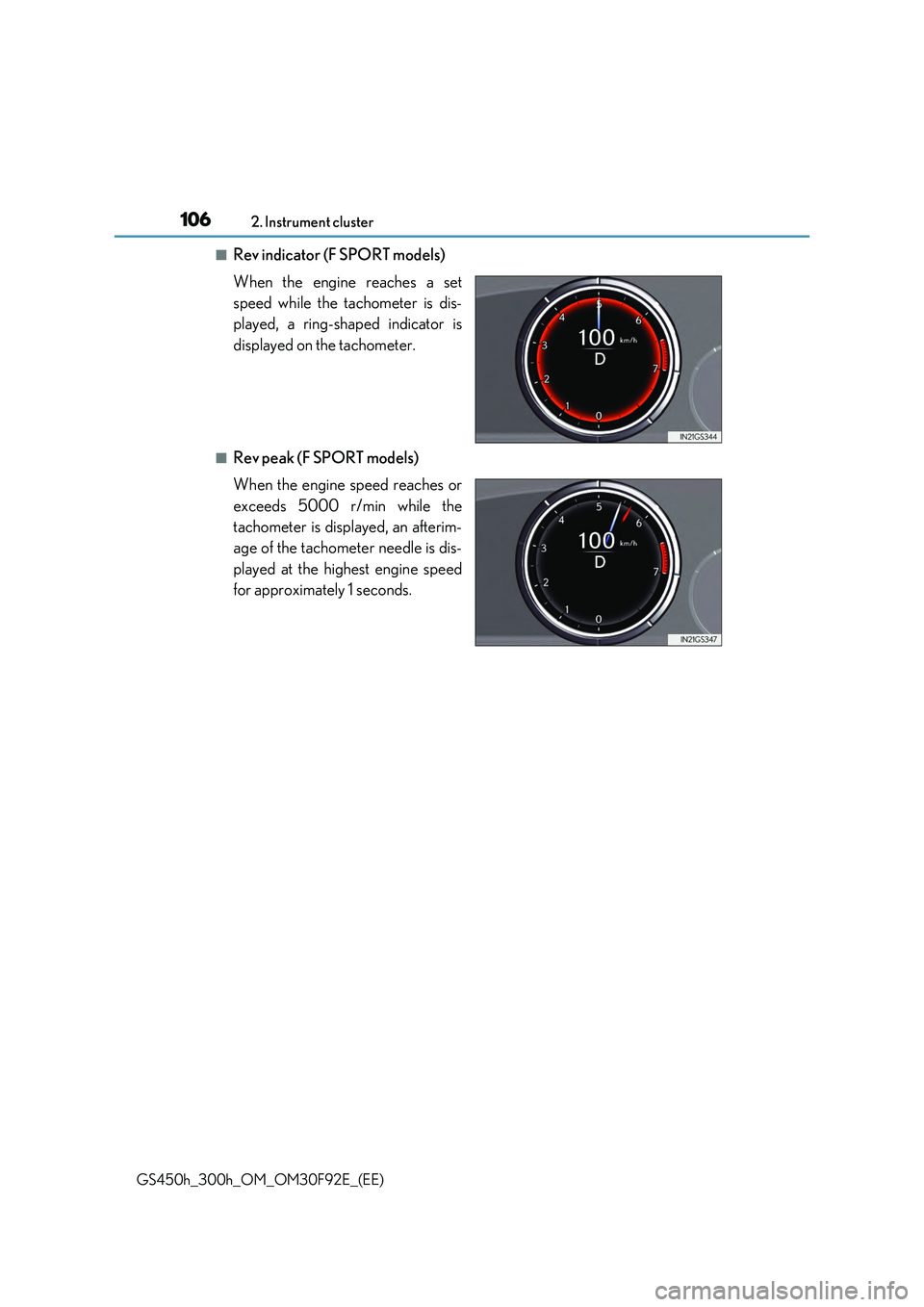

■Rev indicator (F SPORT models)
When the engine reaches a set
speed while the tachometer is dis-
played, a ring-shaped indicator is
displayed on the tachometer.
■Rev peak (F SPORT models)
When the engine speed reaches or
exceeds 5000 r/min while the
tachometer is displayed, an afterim-
age of the tachometer needle is dis-
played at the highest engine speed
for approximately 1 seconds.
