2019 KIA SOUL EV Owners Manual

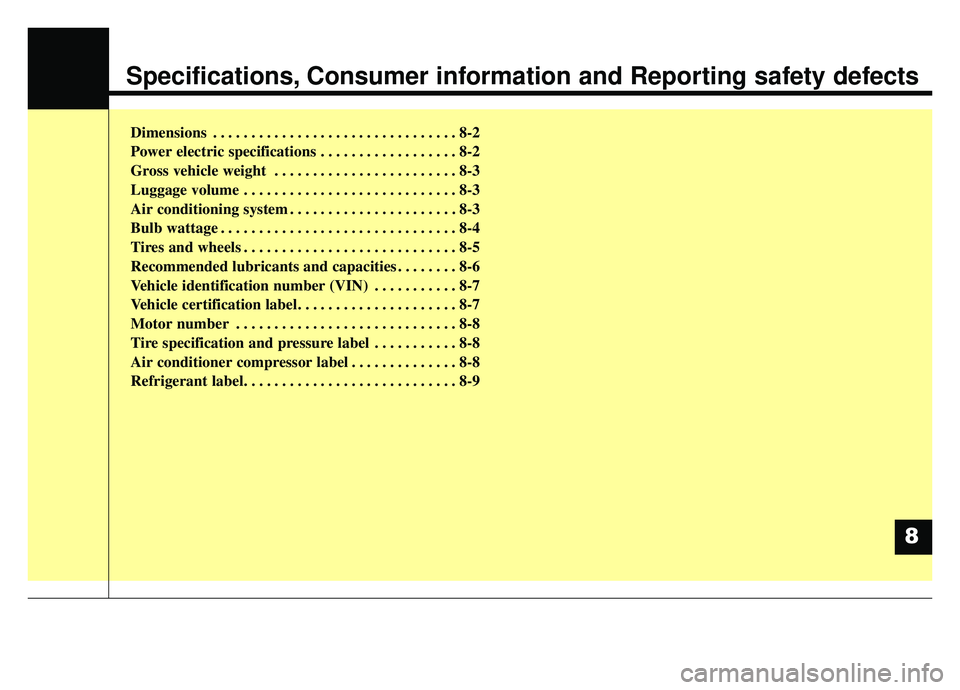

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Power electric specifications . . . . . . . . . . . . . . . . . . 8-2
Gross vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-3
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
Vehicle identification number (VIN) . . . . . . . . . . . 8-7
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-7
Motor number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Tire specification and pressure label . . . . . . . . . . . 8-8
Air conditioner compressor label . . . . . . . . . . . . . . 8-8
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
8

POWER ELECTRIC SPECIFICATIONS
Itemin (mm)
Overall length
162.9 (4,140)
Overall width
70.9 (1,800)
Overall height
62.9 (1,600)
Front tread
205/60R1662.1 ( 1,576)
Rear tread
205/60R1662.4 ( 1,585)
Wheelbase
101.2 ( 2,570)
MOTOR Max. Output (KW) 81.4
Max. Torque (Nm) 285
EPCU INVERTER
Input Voltage 250~430
LDC Max. Output (KW) 1.7
CHARGER (OBC)Max. Output (KW)6.6
Specifications, Consumer information and Reporting safety defects
28
DIMENSIONS

83
Specifications, Consumer information and Reporting safety defects

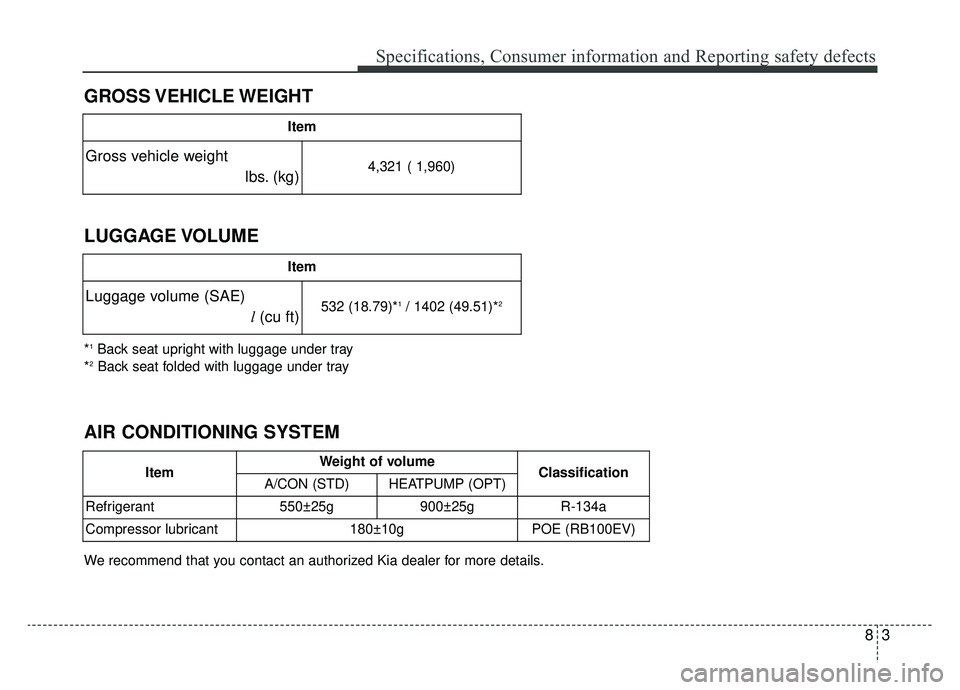

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item
Gross vehicle weight lbs. (kg)4,321 ( 1,960)
Item
Luggage volume (SAE) l(cu ft)532 (18.79)*1/ 1402 (49.51)*2
AIR CONDITIONING SYSTEM
ItemWeight of volumeClassification A/CON (STD)HEATPUMP (OPT)
Refrigerant
550±25g 900±25gR-134a
Compressor lubricant
180±10gPOE (RB100EV)
We recommend that you contact an authorized Kia dealer for more details. *
1Back seat upright with luggage under tray
*2Back seat folded with luggage under tray

Specifications, Consumer information and Reporting safety defects
48

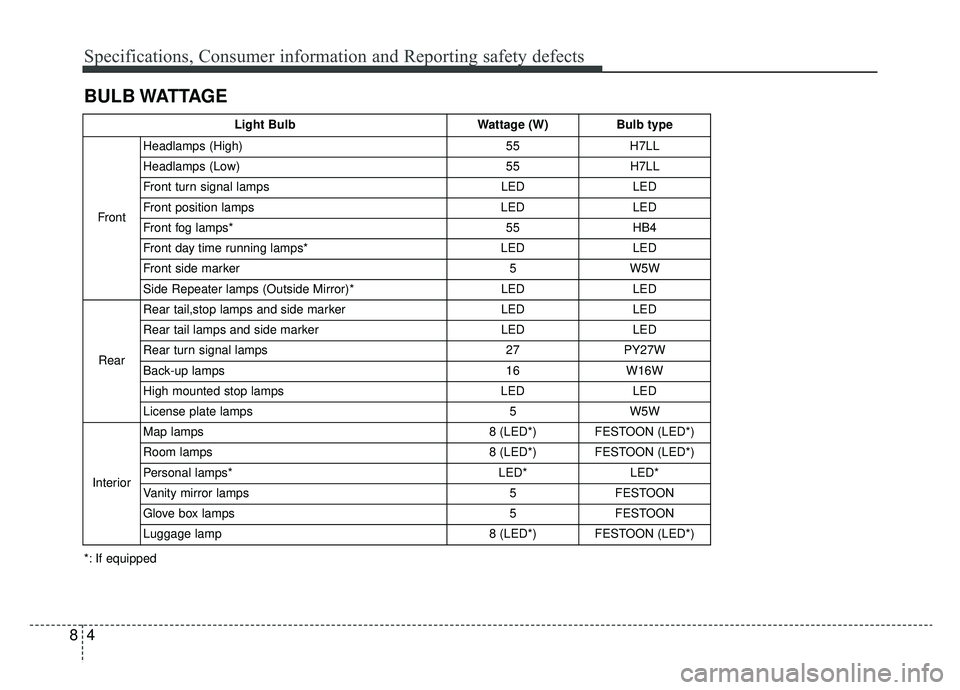

BULB WATTAGE
Light BulbWattage (W)Bulb type
Front Headlamps (High)
55H7LL
Headlamps (Low) 55H7LL
Front turn signal lamps LEDLED
Front position lamps LEDLED
Front fog lamps* 55HB4
Front day time running lamps*LEDLED
Front side marker 5W5W
Side Repeater lamps (Outside Mirror)* LED LED
Rear Rear tail,stop lamps and side marker LED LED
Rear tail lamps and side marker LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 16 W16W
High mounted stop lamps LED LED
License plate lamps 5 W5W
Interior Map lamps 8 (LED*) FESTOON (LED*)
Room lamps 8 (LED*) FESTOON (LED*)
Personal lamps* LED* LED*
Vanity mirror lamps 5 FESTOON
Glove box lamps 5 FESTOON
Luggage lamp 8 (LED*) FESTOON (LED*)
*: If equipped

85
Specifications, Consumer information and Reporting safety defects

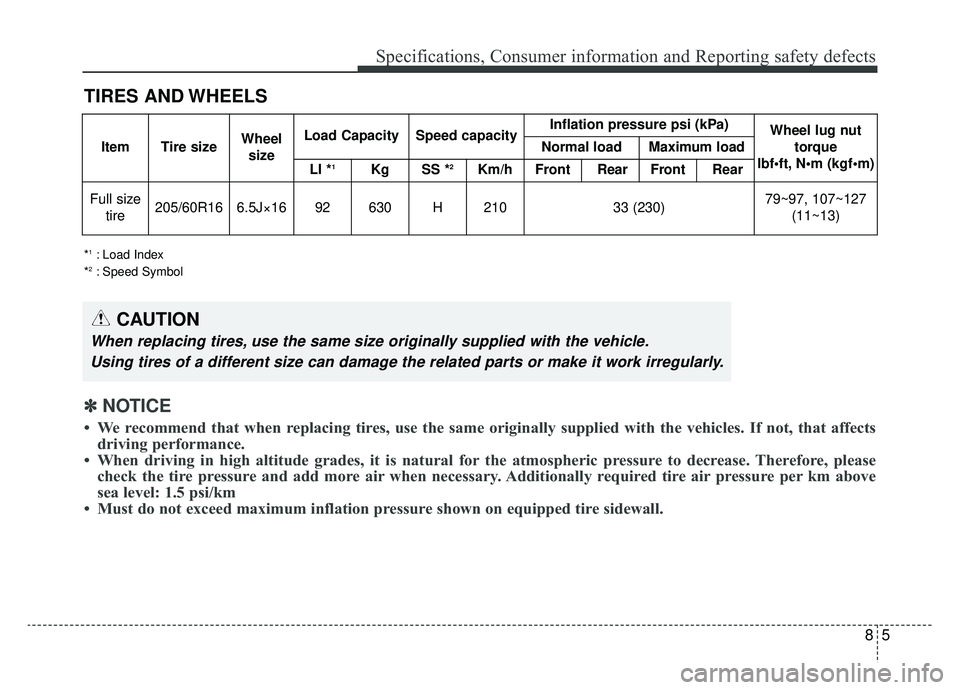

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
ItemTire sizeWheel sizeLoad CapacitySpeed capacityInflation pressure psi (kPa)Wheel lug nut torque
lbf•ft,
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRear FrontRear
Full size tire205/60R166.5J×1692630H21033 (230)79~97, 107~127 (11~13)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
✽ ✽ NOTICE
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects
driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary. Additionally required tire air pressure per km above
sea level: 1.5 psi/km
• Must do not exceed maximum inflation pressure shown on equipped tire sidewall.

Specifications, Consumer information and Reporting safety defects
68

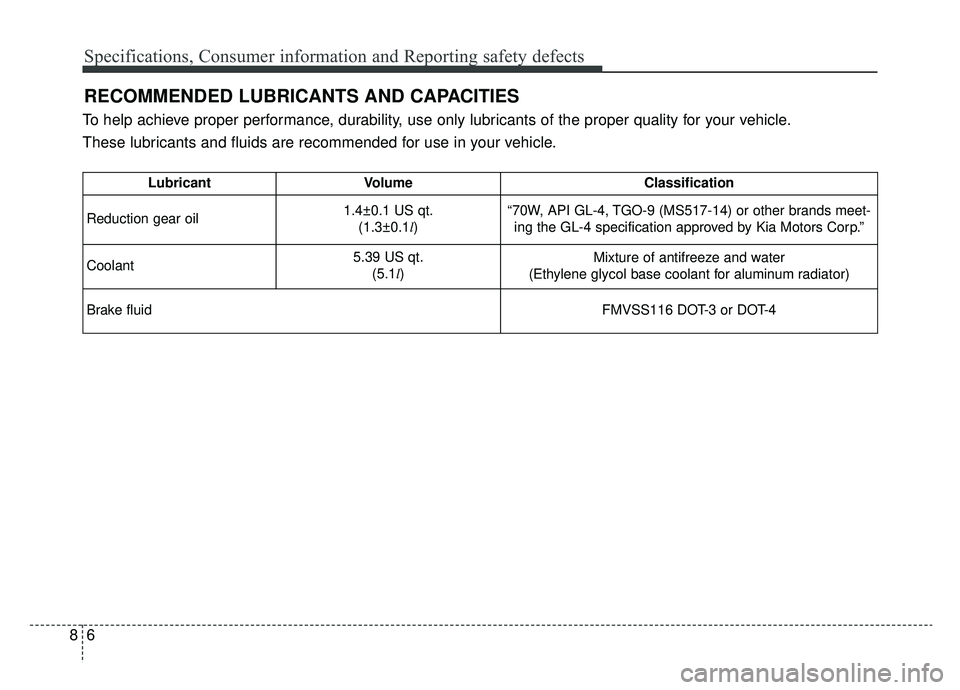

LubricantVolume Classification
Reduction gear oil 1.4±0.1 US qt.
(1.3±0.1l) “70W, API GL-4, TGO-9 (MS517-14) or other brands meet-
ing the GL-4 specification approved by Kia Motors Corp.”
Coolant 5.39 US qt.
(5.1l) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid FMVSS116 DOT-3 or DOT-4
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper performance, durability, use only lubricants of the proper quality for your vehicle.
These lubricants and fluids are recommended for use in your vehicle.

87
Specifications, Consumer information and Reporting safety defects

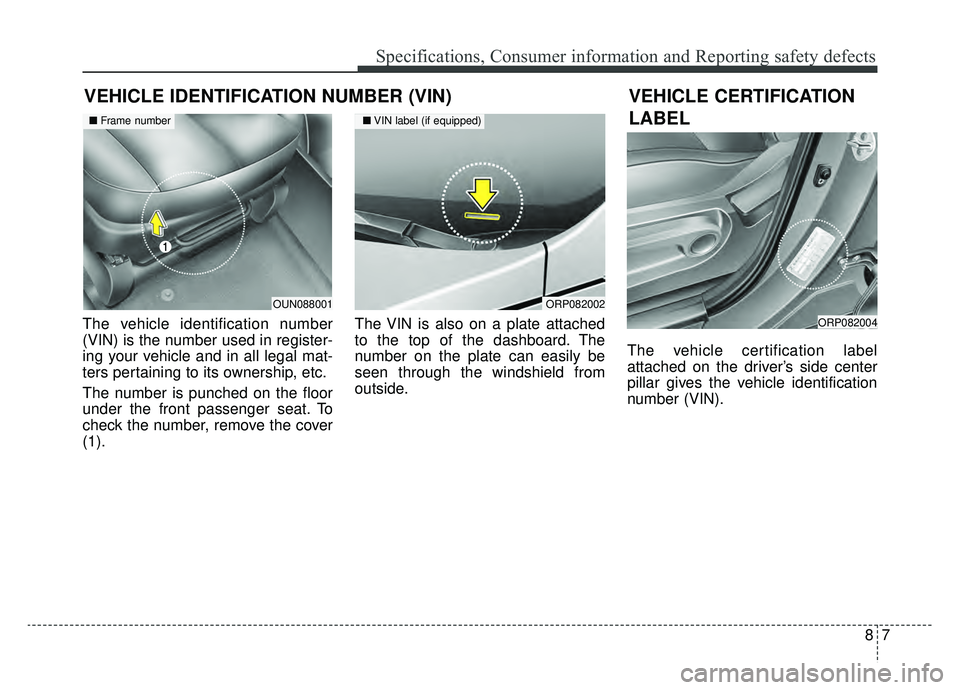

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger seat. To
check the number, remove the cover
(1).The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OUN088001
■
Frame number
VEHICLE CERTIFICATION
LABEL
ORP082002
■VIN label (if equipped)
ORP082004

Specifications, Consumer information and Reporting safety defects
88

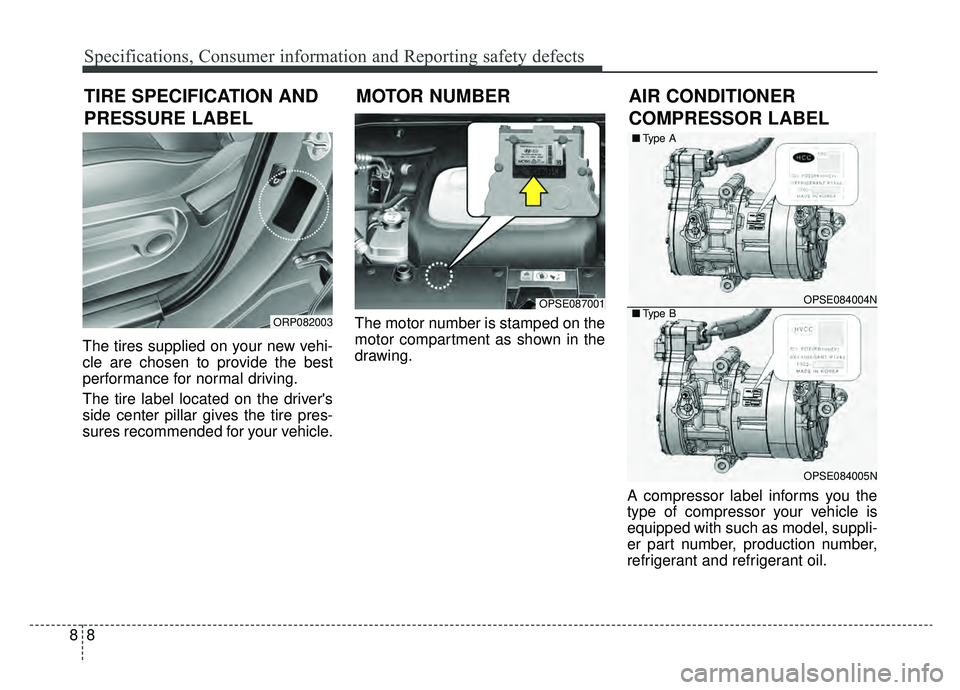

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The motor number is stamped on the
motor compartment as shown in the
drawing.
A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant and refrigerant oil.
TIRE SPECIFICATION AND
PRESSURE LABELMOTOR NUMBER
ORP082003
OPSE087001
AIR CONDITIONER
COMPRESSOR LABEL
OPSE084004N
OPSE084005N
■
Type A
■Type B
