2019 KIA SOUL EV Owners Manual

10

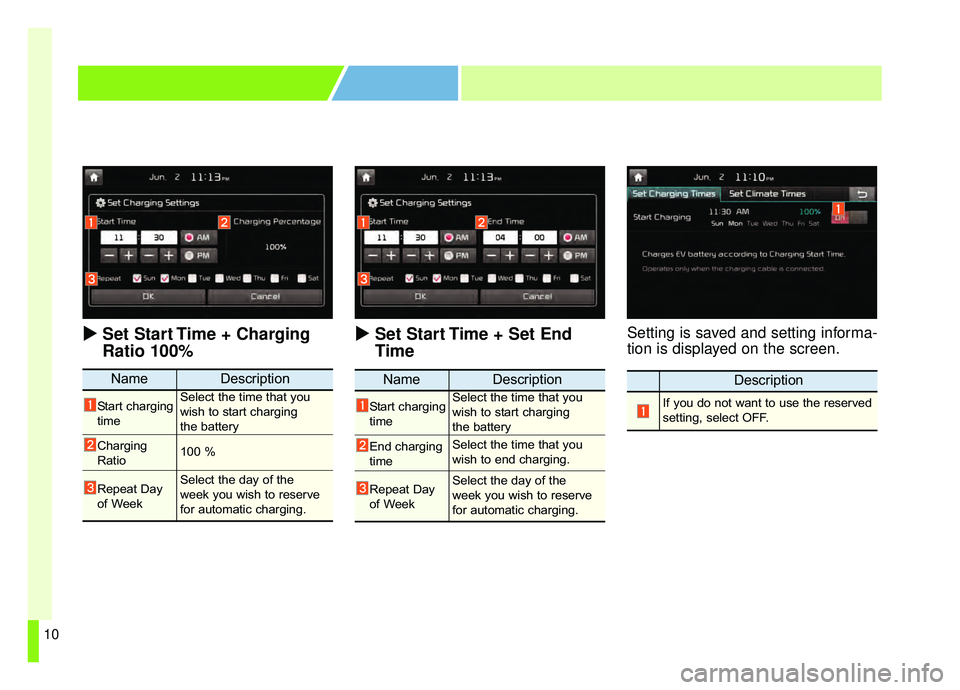

 Set Start Time + Charging
Ratio 100%
Set Start Time + Set End
TimeSetting is saved and setting informa-
tion is displayed on the screen.
NameDescription
Start charging
timeSelect the time that you
wish to start charging
the battery
Charging
Ratio100 %
Repeat Day
of WeekSelect the day of the
week you wish to reserve
for automatic charging.
NameDescription
Start charging
timeSelect the time that you
wish to start charging
the battery
End charging
timeSelect the time that you
wish to end charging.
Repeat Day
of WeekSelect the day of the
week you wish to reserve
for automatic charging.
Description
If you do not want to use the reserved
setting, select OFF.

11

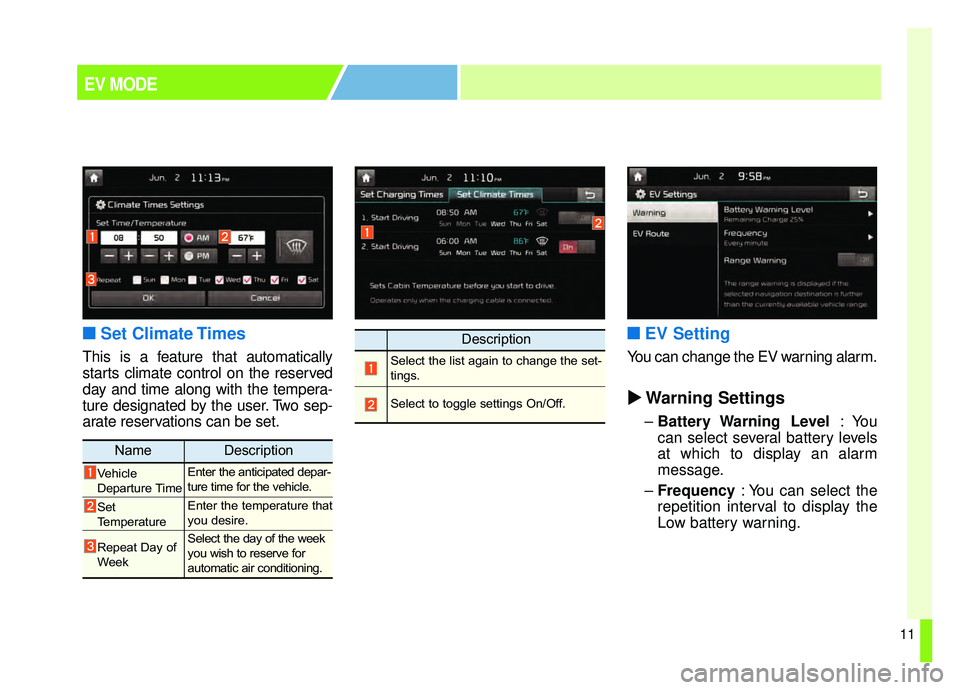

■ ■Set Climate Times
This is a feature that automatically
starts climate control on the reserved
day and time along with the tempera-
ture designated by the user. Two sep-
arate reservations can be set.
■ ■EV Setting
You can change the EV warning alarm.
  Warning Settings
–Battery Warning Level :You
can select several battery levels
at which to display an alarm
message.
– Frequency : You can select the
repetition interval to display the
Low battery warning.
Description
Select the list again to change the set-
tings.
Select to toggle settings On/Off.
NameDescription
Vehicle
Departure TimeEnter the anticipated depar-
ture time for the vehicle.
Set
TemperatureEnter the temperature that
you desire.
Repeat Day of
WeekSelect the day of the week
you wish to reserve for
automatic air conditioning.
EV MODE

12

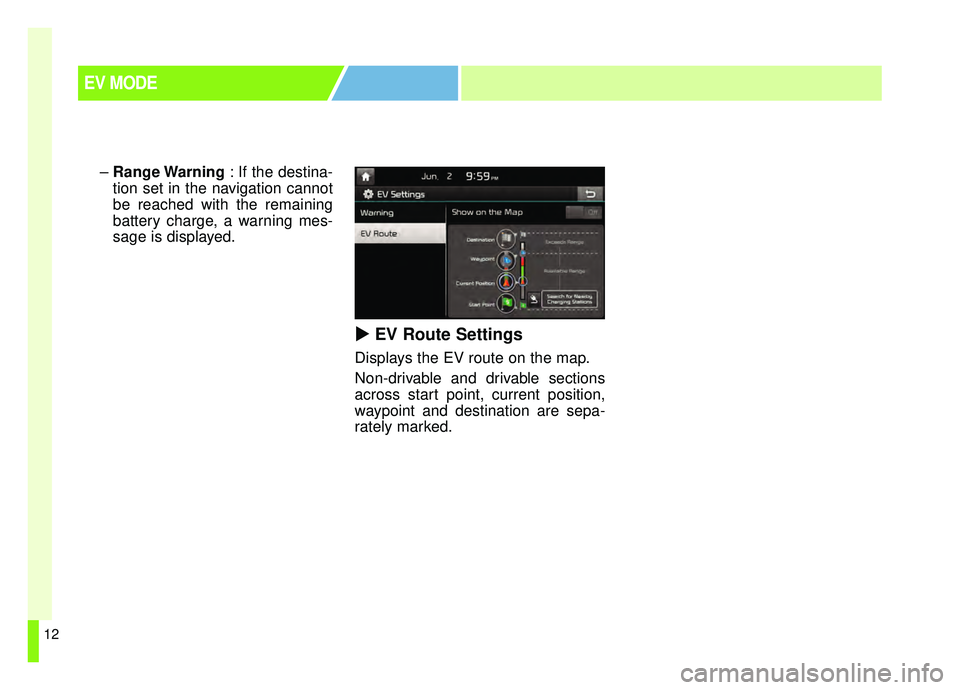

–Range Warning : If the destina-
tion set in the navigation cannot
be reached with the remaining
battery charge, a warning mes-
sage is displayed.
  EV Route Settings
Displays the EV route on the map.
Non-drivable and drivable sections
across start point, current position,
waypoint and destination are sepa-
rately marked.
EV MODE

13
Normal Charge :We recommend using normal
charging for usual charging of the
vehicle.
(Refer to “Normal Charge.“ in this
chapter)
Quick Charge (if equipped) : You can charge at high speeds at
public charging stations. Refer to
the respective company's manual
that is provided for each quick
charger type.
Battery performance and durability
can deteriorate if the quick charger
is used constantly.
Use of quick charge should be
minimized in order to help prolong
high voltage battery life.
Trickle Charge : Trickle Charge can be used when
Normal Charge or Quick Charge
is not available by using house-
hold electricity. Normal Charge :
Takes about 5-6 hours at room
temperature (depending on charg-
er ) for a full charge (208V : about
6 hours, 240V : about 5h 10min.)
(Can be charged to 100%.)
Quick Charge (if equipped) : Takes about 33 minutes at room
temperature to 80% of SOC.
(50kw charger) (Can be charged
directly to 94%)
DC cable shorter than 10m.
Trickle Charge : Takes about 33 hours at room
temperature. (120V-12A : about 33
hours) (Can be charged to 100%.)
Depending on the condition and dura-
bility of the high voltage battery, charg-
er specifications, and ambient temper-
ature, the time required for charging
the high voltage battery may vary.

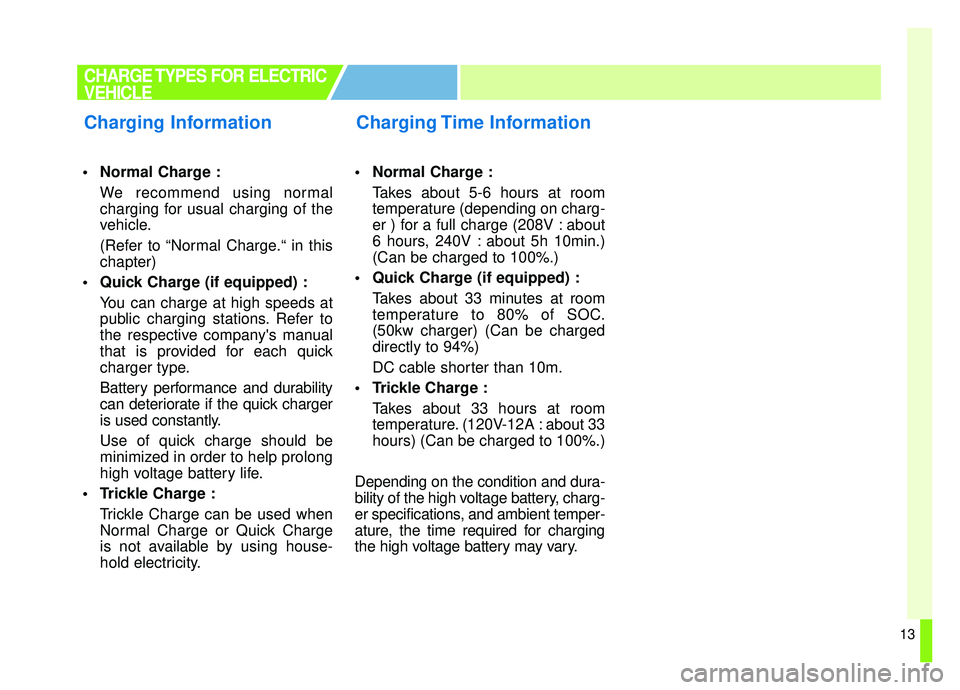

CHARGE TYPES FOR ELECTRIC
VEHICLE
Charging Information Charging Time Information

14
CHARGE TYPES FOR ELECTRIC
VEHICLE

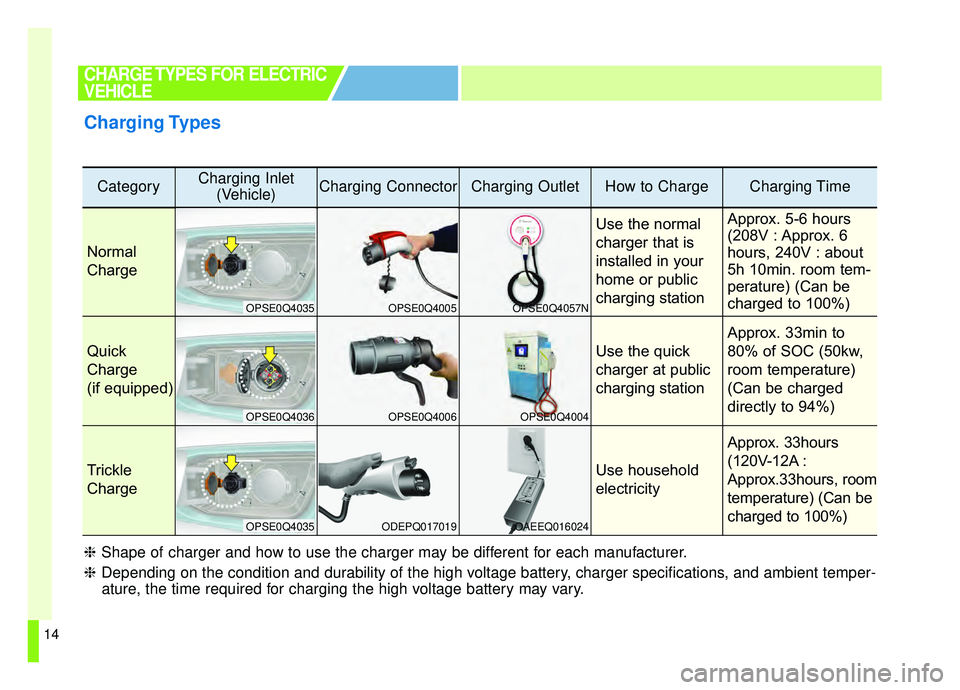

Charging Types
CategoryCharging Inlet(Vehicle)Charging ConnectorCharging OutletHow to ChargeCharging Time
Normal
Charge
Use the normal
charger that is
installed in your
home or public
charging stationApprox. 5-6 hours
(208V : Approx. 6
hours, 240V : about
5h 10min. room tem-
perature) (Can be
charged to 100%)
Quick
Charge
(if equipped)Use the quick
charger at public
charging station
Approx. 33min to
80% of SOC (50kw,
room temperature)
(Can be charged
directly to 94%)
Trickle
ChargeUse household
electricity
Approx. 33hours
(120V-12A :
Approx.33hours, room
temperature) (Can be
charged to 100%)
OPSE0Q4035
OPSE0Q4036
OPSE0Q4035
OPSE0Q4005
OPSE0Q4006
ODEPQ017019
OPSE0Q4057N
OPSE0Q4004
OAEEQ016024
❈Shape of charger and how to use the charger may be different for each manufacturer.
❈ Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temper-
ature, the time required for charging the high voltage battery may vary.

15
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
■ ■Normal charging and trickle
charging ■ ■
Quick charge
Charging Status
Information
OPSE0Q4008

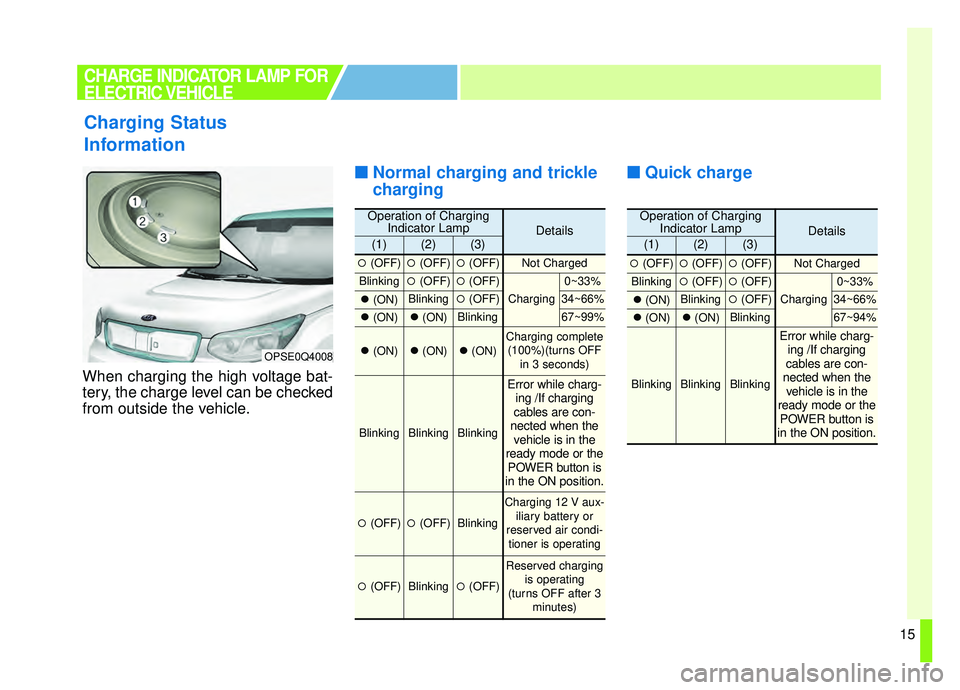

CHARGE INDICATOR LAMP FOR
ELECTRIC VEHICLE
Operation of Charging
Indicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~99%
(ON)(ON)(ON)Charging complete
(100%)(turns OFF in 3 seconds)
BlinkingBlinkingBlinking
Error while charg-ing /If charging
cables are con-
nected when the vehicle is in the
ready mode or the POWER button is
in the ON position.
(OFF)(OFF)Blinking
Charging 12 V aux-
iliary battery or
reserved air condi- tioner is operating
(OFF)Blinking(OFF)
Reserved charging is operating
(turns OFF after 3 minutes)
Operation of ChargingIndicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~94%
BlinkingBlinkingBlinking
Error while charg-
ing /If charging
cables are con-
nected when the vehicle is in the
ready mode or the POWER button is
in the ON position.

16
You can set-up a charging sched-ule for your vehicle through the
UVO audio control unit, the UVO
eco App, or by logging into
MyUVO.com.
Refer to the AVN manual or the
UVO manual for detailed informa-
tion about setting reserved charg-
ing.
Reserved charging can only be done when using a normal charg-
er or the portable charging cable
(ICCB: In-Cable Control Box). When reserved charging is set and
the normal charger or the portable
charging cable (ICCB: In-Cable
Control Box) is connected for
charging, the indicator lamp in the
middle blinks (for 3 minutes) to indi-
cate that reserved charging is set. When reserved charging is set,
charging is not initiated immedi-
ately when the normal charger or
portable charging cable (ICCB: In-
Cable Control Box) is connected.
When immediate charging is
required, use the AVN to deacti-
vate the reserved charge setting
or press the Deactivate Reserved
Charge button [ ].
RESERVED CHARGING

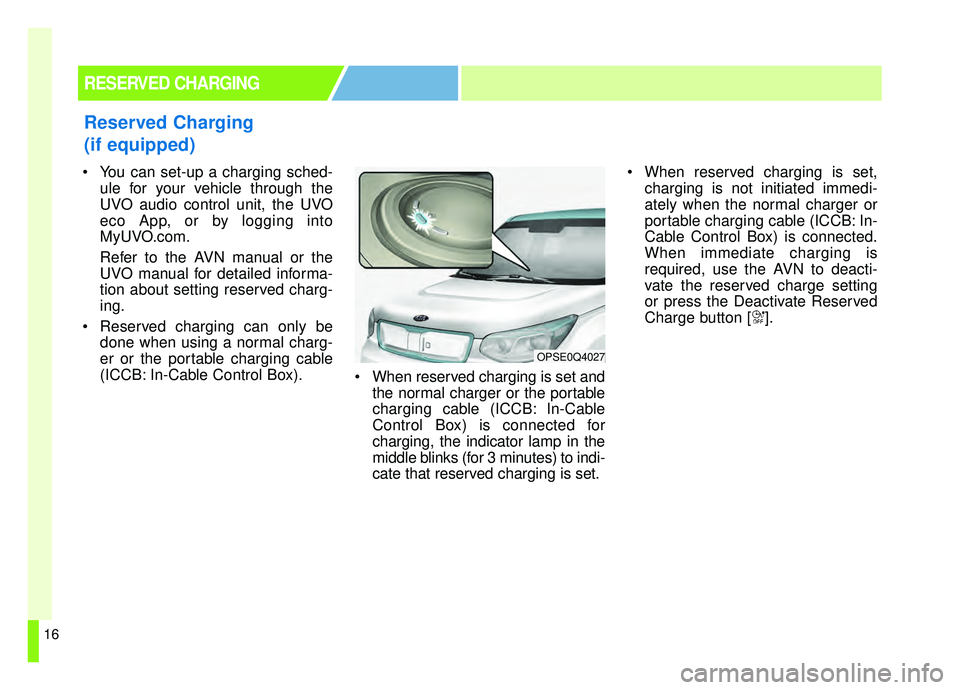

Reserved Charging
(if equipped)
OPSE0Q4027

17
RESERVED CHARGING

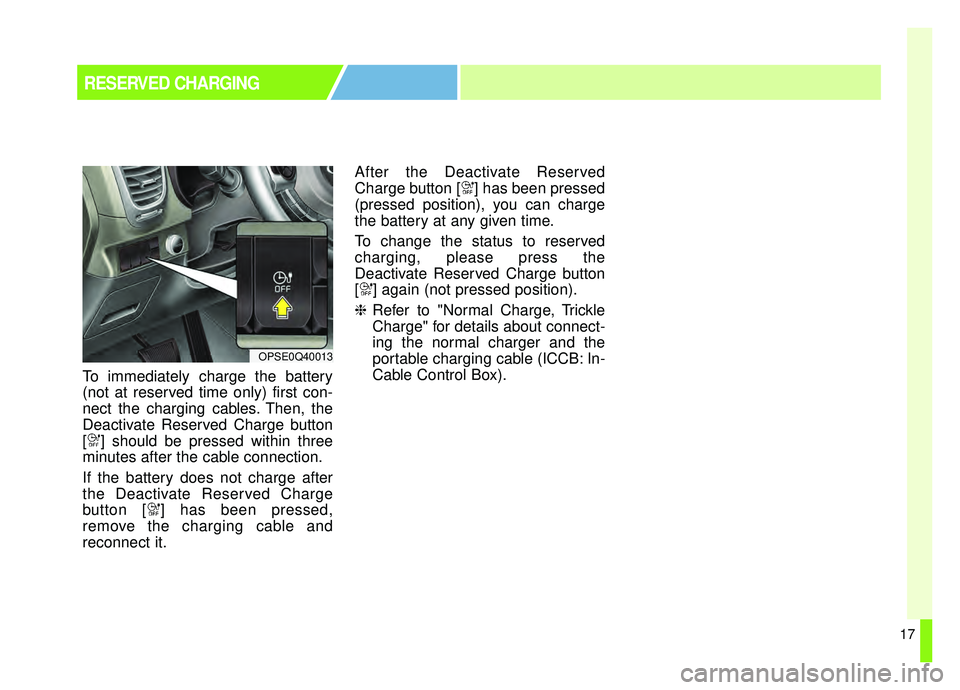

To immediately charge the battery
(not at reserved time only) first con-
nect the charging cables. Then, the
Deactivate Reserved Charge button
[ ] should be pressed within three
minutes after the cable connection.
If the battery does not charge after
the Deactivate Reserved Charge
button [ ] has been pressed,
remove the charging cable and
reconnect it.After the Deactivate Reserved
Charge button [ ] has been pressed
(pressed position), you can charge
the battery at any given time.
To change the status to reserved
charging, please press the
Deactivate Reserved Charge button
[ ] again (not pressed position).
❈
Refer to "Normal Charge, Trickle
Charge" for details about connect-
ing the normal charger and the
portable charging cable (ICCB: In-
Cable Control Box).
OPSE0Q40013
