Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-60
• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-60
• Emergency fuel filler lid release . . . . . . . . . . . . . . . . 4-63
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64\
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
• Tilting the sunroof (for front sunroof) . . . . . . . . . . . 4-67
• Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 4-67
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
• Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
• Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
• Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . 4-70
• Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . 4-71
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-73
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-74
• Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-84
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
• Instrument cluster control . . . . . . . . . . . . . . . . . . . . . 4-90
• LCD display control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-91
• Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-94
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
• LCD modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95\
Trip modes (Trip computer) . . . . . . . . . . . . . . . . . 4-96
• Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96\
• Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• Accumulated driving information mode . . . . . . . . . . 4-98
• One time driving information mode . . . . . . . . . . . . . 4-98
• Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
• Smart shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99\
• Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
• Assist mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
• Distance to empty . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
• User settings mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Warning and indicator lights . . . . . . . . . . . . . . . 4-113
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
• Indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Parking distance warning-reverse . . . . . . . . . . . 4-125
• Operation of the parking distance warning-reverse . 4-125
• Non-operational conditions of the parking distance
warning-reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
• Parking distance warning-reverse precautions . . . 4-127
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
4

455
Features of your vehicle

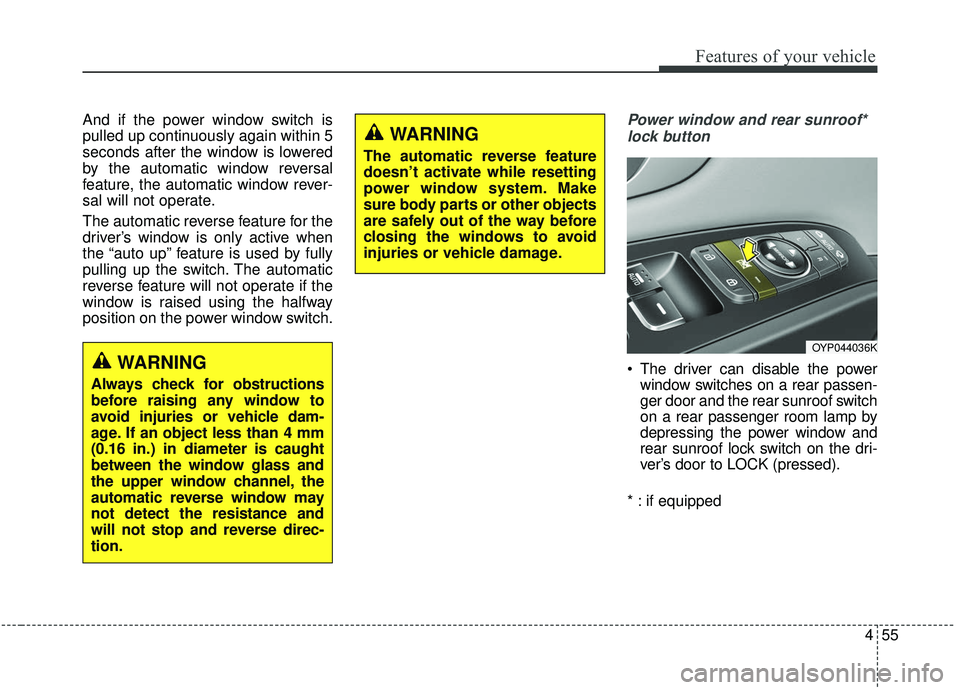

And if the power window switch is
pulled up continuously again within 5
seconds after the window is lowered
by the automatic window reversal
feature, the automatic window rever-
sal will not operate.
The automatic reverse feature for the
driver’s window is only active when
the “auto up” feature is used by fully
pulling up the switch. The automatic
reverse feature will not operate if the
window is raised using the halfway
position on the power window switch.Power window and rear sunroof*lock button
The driver can disable the power window switches on a rear passen-
ger door and the rear sunroof switch
on a rear passenger room lamp by
depressing the power window and
rear sunroof lock switch on the dri-
ver’s door to LOCK (pressed).
* : if equipped
WARNING
The automatic reverse feature
doesn’t activate while resetting
power window system. Make
sure body parts or other objects
are safely out of the way before
closing the windows to avoid
injuries or vehicle damage.
WARNING
Always check for obstructions
before raising any window to
avoid injuries or vehicle dam-
age. If an object less than 4 mm
(0.16 in.) in diameter is caught
between the window glass and
the upper window channel, the
automatic reverse window may
not detect the resistance and
will not stop and reverse direc-
tion.
OYP044036K

Features of your vehicle
68
4
Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, you must
reset your sunroof system as follows:
1.Turn the ignition switch to the ON
position.
2.Close the sunshade and sunroof completely if opened.
3.Release the sunroof control lever.
4.Push the sunroof control lever for- ward in the direction of close (about
10~15 seconds) until the sunroof
moves a little. Then, release the
lever. 5.Push the sunroof control lever for-
ward in the direction of close, until
the sunroof operates as follows
again:
The sunroof glass slide open →
The sunroof glass slide close
Then, release the lever.
When this is complete, the sunroof
system has been reset.
Rear sunroof lock
When the power window lock switch
is pressed, the rear sunroof control
cannot operate the rear sunroof. But
The front master sunroof control can
operate both front and rear sunroofs
(if equipped).
CAUTION
If the sunroof is not reset when the vehicle battery is discon-nected or discharged, or relatedfuse is blown, the sunroof mayoperate improperly.

Maintenance
38
7
Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
The negative battery cable must be removed first and installed last
when the battery is disconnected.Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
Auto up/down window (See chapter 4)
Sunroof (See chapter 4)
Trip computer (See chapter 4)
Climate control system (See chapter 4)
Clock (See chapter 4)
Audio (See chapter 4)

Index
12I
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-198
Power sliding door and power liftgate . . . . . . . . . . . . . 4-34How to reset the power sliding door and power liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37\
Power door ON/OFF button . . . . . . . . . . . . . . . . . . . 4-38
Power liftgate opening heigh user setting . . . . . . . . 4-45
Power liftgate operation . . . . . . . . . . . . . . . . . . . . . . 4-42
Power sliding door operation . . . . . . . . . . . . . . . . . . 4-39
Power steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26 Checking the power steering fluid level . . . . . . . . . 7-26
Checking the power steering hose . . . . . . . . . . . . . . 7-26
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17 Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Forward and backward (2nd row seat). . . . . . . . . . . 3-17
Headrest (for rear seat). . . . . . . . . . . . . . . . . . . . . . . 3-31
Installing the tumble seat (for 8 passenger vehicle) 3-24
Left and right (2nd row seat, SXL package) . . . . . . 3-17
Leg support (2nd row seat for SXL package) . . . . . 3-20
Removing the tumble seat (for 8 passenger vehicle) . 3-22
Seatback angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Stowing the rear seat- 3rd row seat . . . . . . . . . . . . . 3-26 Walk-in seat (2nd row seat for SXL package) . . . . . 3-19
Walk-in seat (2nd row seat) . . . . . . . . . . . . . . . . . . . 3-19
Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Rear turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-77
Rear turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type B) . . . . . . . . . . . . . . . 7-82
Rear view monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
Rear window wiper and washer switch . . . . . . . . . . . 4-147
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-7
Record your key number (Folding key) . . . . . . . . . . . . . 4-5
Record your key number (Smart key) . . . . . . . . . . . . . 4-14
Reducing the risk of a rollover . . . . . . . . . . . . . . . . . . 5-105
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Remote control (Outside rear view mirror) . . . . . . . . . 4-85
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Reverse parking aid function . . . . . . . . . . . . . . . . . . . . 4-86
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20\
8
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-148
Room lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 7-85
Rotation (Tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-115
R
S

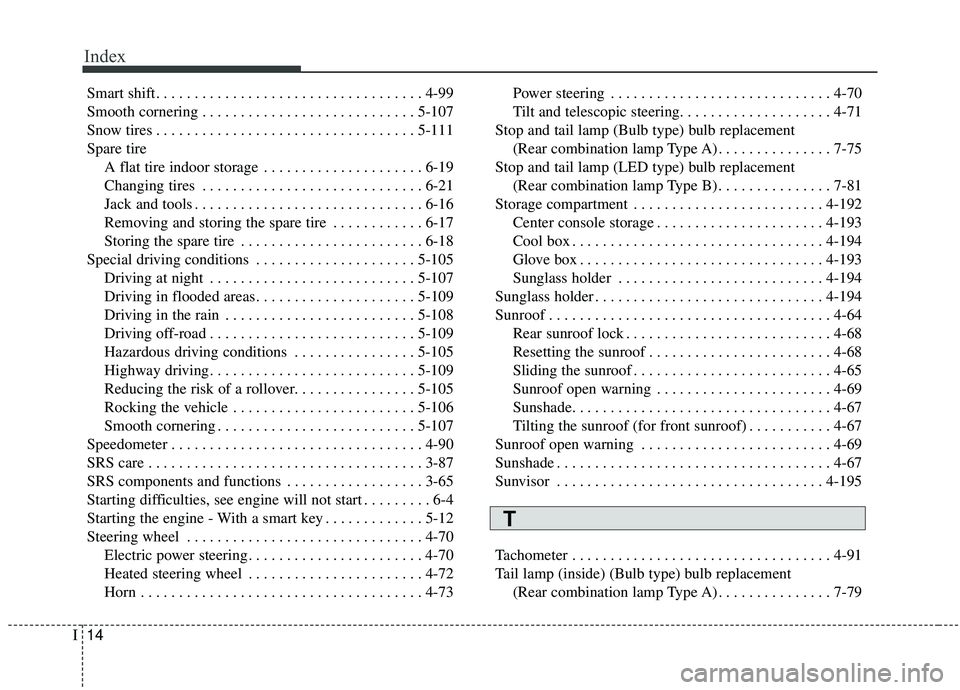

Index
14I
Smart shift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
99
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11\
1
Spare tireA flat tire indoor storage . . . . . . . . . . . . . . . . . . . . . 6-19
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Removing and storing the spare tire . . . . . . . . . . . . 6-17
Storing the spare tire . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Special driving conditions . . . . . . . . . . . . . . . . . . . . . 5-105 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . 5-109
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . 5-108
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Hazardous driving conditions . . . . . . . . . . . . . . . . 5-105
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Reducing the risk of a rollover. . . . . . . . . . . . . . . . 5-105
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 5-106
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-87
SRS components and functions . . . . . . . . . . . . . . . . . . 3-65
Starting difficulties, see engine will not start . . . . . . . . . 6-4
Starting the engine - With a smart key . . . . . . . . . . . . . 5-12
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70 Electric power steering. . . . . . . . . . . . . . . . . . . . . . . 4-70
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-72
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-73 Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-71
Stop and tail lamp (Bulb type) bulb replacement (Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-75
Stop and tail lamp (LED type) bulb replacement (Rear combination lamp Type B) . . . . . . . . . . . . . . . 7-81
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-192 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-193
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-193
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-64 Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-69
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67\
Tilting the sunroof (for front sunroof) . . . . . . . . . . . 4-67
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-67
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
195
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91\
Tail lamp (inside) (Bulb type) bulb replacement (Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-79
T
