Page 18 of 580
Safety features of your vehicle
Important safety precautions . . . . . . . . . . . . . . . . . 3-2
• Always wear your seat belt. . . . . . . . . . . . . . . . . . . . . . 3-2
• Restrain all children . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Air bag hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Driver distraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Control your speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
• Keep your vehicle in safe condition . . . . . . . . . . . . . . . 3-3
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 3-4
• Driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
• Front passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
• Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 3-5
• Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-9
• Front seat position memory system . . . . . . . . . . . . . . 3-13
• Headrest (For front seat) . . . . . . . . . . . . . . . . . . . . . . 3-16
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-27
• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-33
• Pre-active Seat belt (PSB) . . . . . . . . . . . . . . . . . . . . . . 3-35
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Child Restraint System (CRS) . . . . . . . . . . . . . . . 3-39
• Children always in the rear . . . . . . . . . . . . . . . . . . . . 3-39
• Selecting a Child Restraint System (CRS) . . . . . . . . 3-40
• Installing a Child Restraint System (CRS) . . . . . . . . 3-43
Air bag - advanced supplemental
restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
• How does the air bag system operate . . . . . . . . . . . . 3-51
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-53
• SRS components and functions . . . . . . . . . . . . . . . . . 3-54
• Occupant Detection System (ODS) . . . . . . . . . . . . . . 3-57
• Driver's and passenger's front air bag . . . . . . . . . . . 3-65
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
75
• Adding equipment to or modifying your
air bag-equipped vehicle. . . . . . . . . . . . . . . . . . . . . . 3-76
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-763
Page 21 of 580
Safety features of your vehicle
43

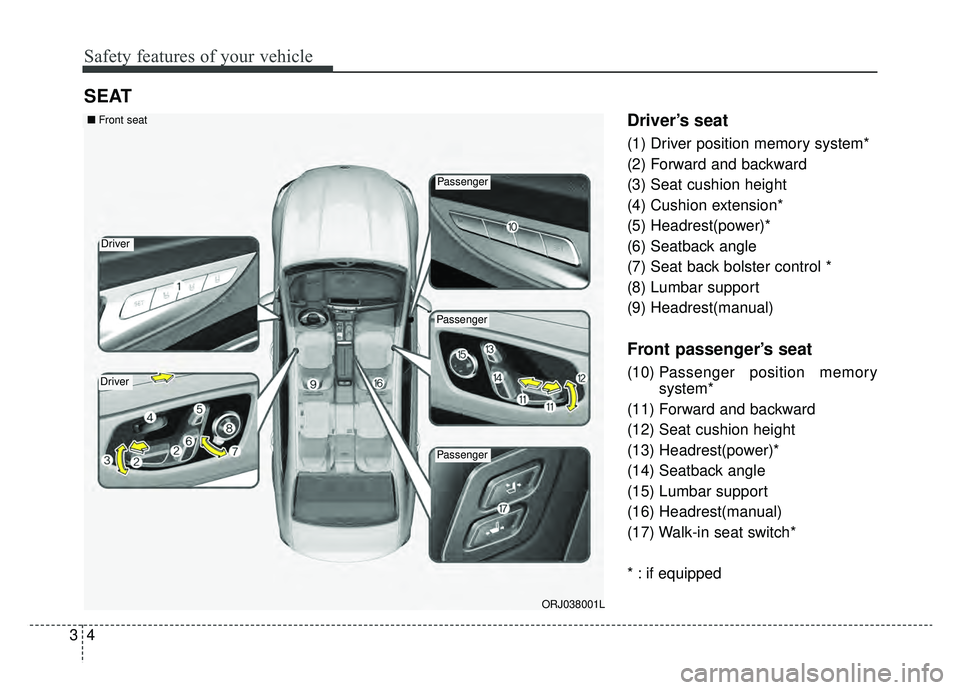

Driver’s seat
(1) Driver position memory system*
(2) Forward and backward
(3) Seat cushion height
(4) Cushion extension*
(5) Headrest(power)*
(6) Seatback angle
(7) Seat back bolster control *
(8) Lumbar support
(9) Headrest(manual)
Front passenger’s seat
(10) Passenger position memory
system*
(11) Forward and backward
(12) Seat cushion height
(13) Headrest(power)*
(14) Seatback angle
(15) Lumbar support
(16) Headrest(manual)
(17) Walk-in seat switch*
* : if equipped
SEAT
ORJ038001L
Driver
■ Front seat
Driver
Passenger
Passenger
Passenger
Page 22 of 580
35
Safety features of your vehicle
Rear seat
(1) Relax mode control button*
(2) Relax mode return button*
(3) Forward and backward*
(4) Headrest(power,Left and Right side)*
(5) Seatback angle*
(6) Lumbar support*
(7) Front passenger position control*
(8) Armrest
(9) Ski through
(10) Headrest(manual)
* : if equipped
ORJ038002
■ Rear seat
Page 33 of 580
Safety features of your vehicle
16
3
But the initialization and the alarming
sound will come to a stop in following
cases.
When the driving position memory
system button is pressed.
- When the driver seat position
switch is pressed.
- When the shift lever is displaced
from P (Park) to another position.
- When a driving speed is 3km/h or
faster
- When the driver door is closed.Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passenger,
but also helps protect the head and
neck in the event of a rear collision.
OMG038400
CAUTION
If the operation of the driver
seat and the alarm soundstops during the initialization,restart the initialization.
Before proceeding with the ini- tialization, make sure that thatthere are no obstacles aroundthe driver seat.
Once initialization is complet- ed, adjust the position of thedriver seat to one that is com-fortable and the save the cus-tomized seat position.
Page 34 of 580
317
Safety features of your vehicle
For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.Adjusting the height up and down
- Manual
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
WARNING- Headrest
removal/adjustment
Do not operate the vehicle with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
CAUTION
Excessive pulling or pushingmay damage the headrest.
ORJ038012
■
manual
Page 35 of 580
Safety features of your vehicle
18
3

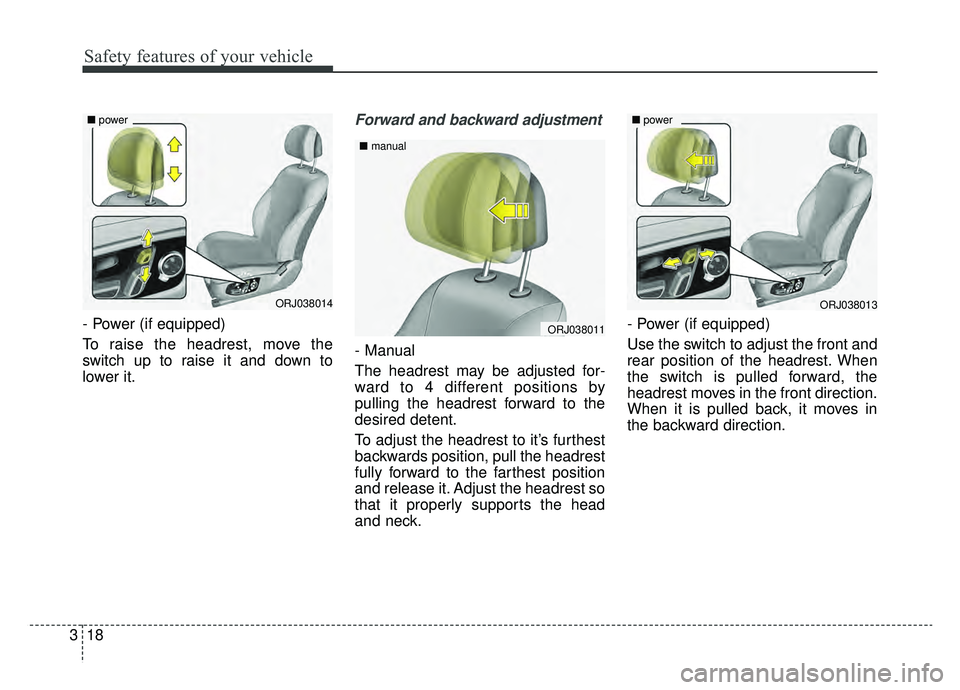

- Power (if equipped)
To raise the headrest, move the
switch up to raise it and down to
lower it.
Forward and backward adjustment
- Manual
The headrest may be adjusted for-
ward to 4 different positions by
pulling the headrest forward to the
desired detent.
To adjust the headrest to it’s furthest
backwards position, pull the headrest
fully forward to the farthest position
and release it. Adjust the headrest so
that it properly supports the head
and neck. - Power (if equipped)
Use the switch to adjust the front and
rear position of the headrest. When
the switch is pulled forward, the
headrest moves in the front direction.
When it is pulled back, it moves in
the backward direction.
ORJ038014
■
power
ORJ038011
■manual
ORJ038013
■power
Page 36 of 580
319
Safety features of your vehicle
✽ ✽

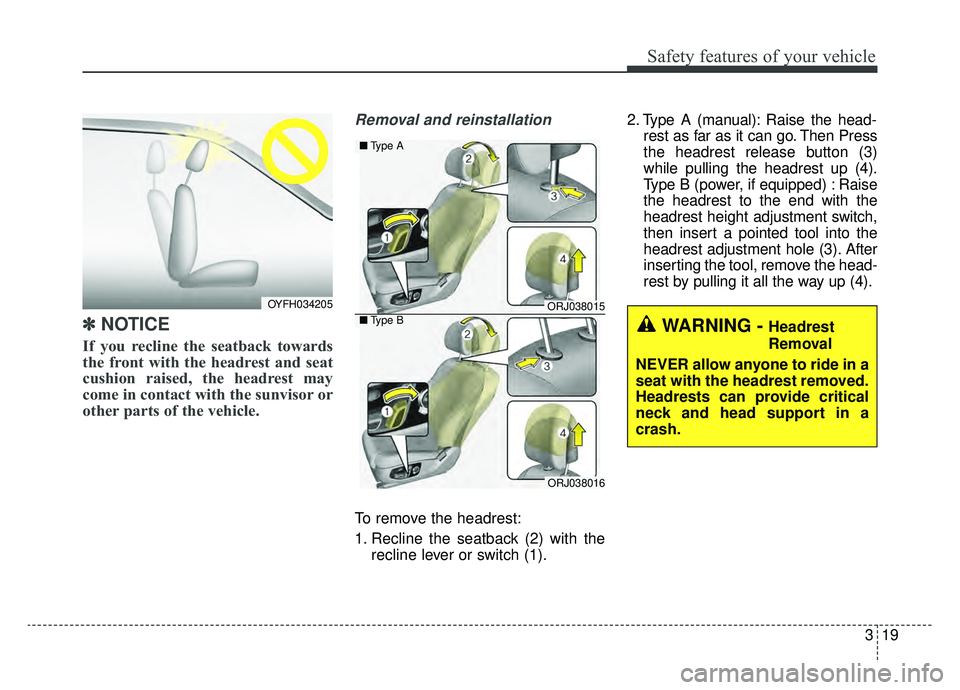

NOTICE
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sunvisor or
other parts of the vehicle.
Removal and reinstallation
To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1). 2. Type A (manual): Raise the head-
rest as far as it can go. Then Press
the headrest release button (3)
while pulling the headrest up (4).
Type B (power, if equipped) : Raise
the headrest to the end with the
headrest height adjustment switch,
then insert a pointed tool into the
headrest adjustment hole (3). After
inserting the tool, remove the head-
rest by pulling it all the way up (4).
WARNING - Headrest
Removal
NEVER allow anyone to ride in a
seat with the headrest removed.
Headrests can provide critical
neck and head support in a
crash.
OYFH034205ORJ038015
ORJ038016
■ Type B
■Type A
Page 37 of 580
Safety features of your vehicle
20
3
To reinstall the headrest:
- Type A (manual)
1. Put the headrest poles (2) into the
holes while pressing the release
button or switch (1).
2. Recline the seatback(4) with the recline lever or switch (3).
3. Adjust the headrest to the appro- priate height. - Type B (power, if equipped)
1. After raising the headrest height
adjustment switch until the end (1)
then, attach the headrest pole to
the seat back hole (2). Lower the
headrest to the lowest position with
the height adjustment switch (3).
2. Operate the headrest adjustment switch up and down three times to
make sure that the headrest is
securely fastened.
3. Set the seat back straight up with the seat back angle adjustment
switch (4).
4. Adjust the headrest to an appro- priate height (5).
Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
ORJ038019
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.WARNING- Headrest Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.
ORJ038017
ORJ038018
■ Type B
■Type A
