2019 KIA K900 headrest

321
Safety features of your vehicle
Rear seat adjustment
Headrest
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's heads is similar with
the height as the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjustment for rear head rest
- For manual type :
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
ORJ038077N
ORJ038025
ORJ038024
■power
■manual

Safety features of your vehicle
22
3

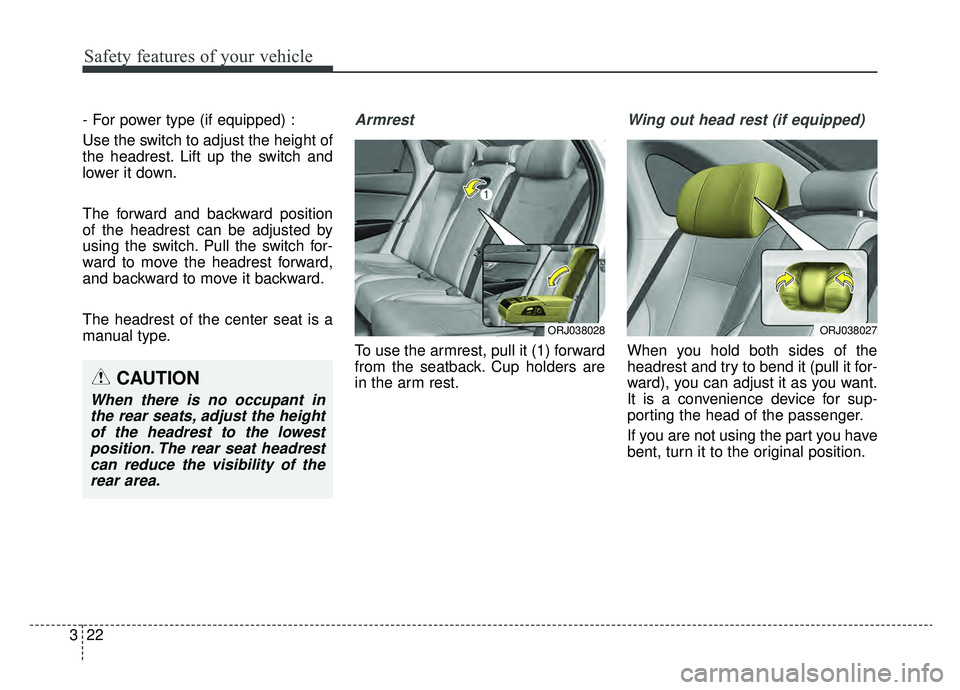

- For power type (if equipped) :
Use the switch to adjust the height of
the headrest. Lift up the switch and
lower it down.
The forward and backward position
of the headrest can be adjusted by
using the switch. Pull the switch for-
ward to move the headrest forward,
and backward to move it backward.
The headrest of the center seat is a
manual type.Armrest
To use the armrest, pull it (1) forward
from the seatback. Cup holders are
in the arm rest.
Wing out head rest (if equipped)
When you hold both sides of the
headrest and try to bend it (pull it for-
ward), you can adjust it as you want.
It is a convenience device for sup-
porting the head of the passenger.
If you are not using the part you have
bent, turn it to the original position.
ORJ038028
CAUTION
When there is no occupant in
the rear seats, adjust the heightof the headrest to the lowestposition. The rear seat headrestcan reduce the visibility of therear area.
ORJ038027

Safety features of your vehicle
24
3

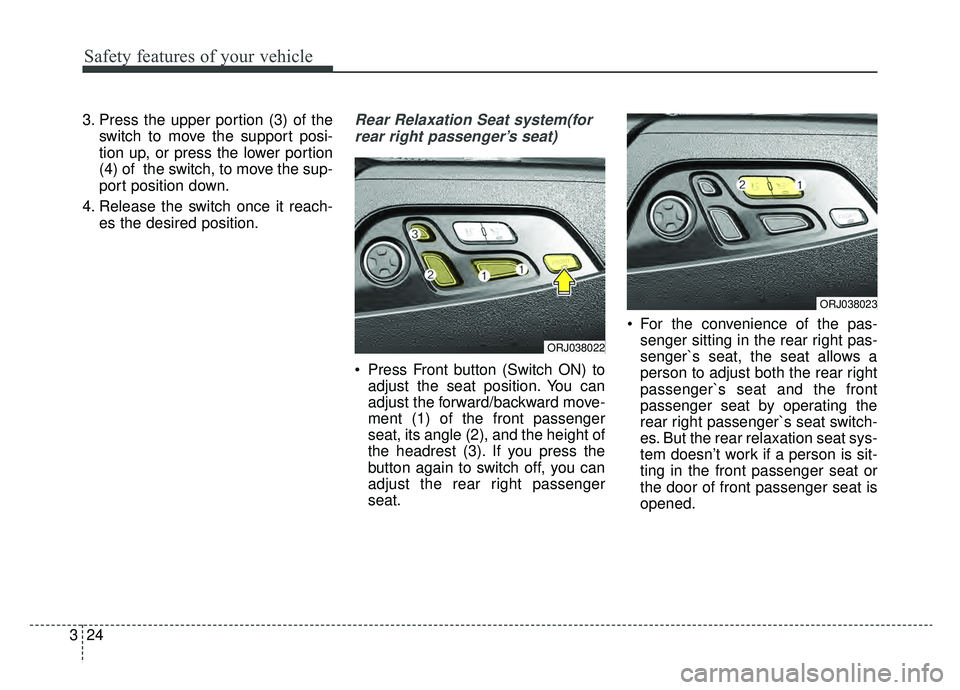

3. Press the upper portion (3) of the
switch to move the support posi-
tion up, or press the lower portion
(4) of the switch, to move the sup-
port position down.
4. Release the switch once it reach- es the desired position.Rear Relaxation Seat system(for
rear right passenger’s seat)
Press Front button (Switch ON) to adjust the seat position. You can
adjust the forward/backward move-
ment (1) of the front passenger
seat, its angle (2), and the height of
the headrest (3). If you press the
button again to switch off, you can
adjust the rear right passenger
seat. For the convenience of the pas-
senger sitting in the rear right pas-
senger`s seat, the seat allows a
person to adjust both the rear right
passenger`s seat and the front
passenger seat by operating the
rear right passenger`s seat switch-
es. But the rear relaxation seat sys-
tem doesn’t work if a person is sit-
ting in the front passenger seat or
the door of front passenger seat is
opened.
ORJ038022
ORJ038023

325
Safety features of your vehicle
Relax mode
While pressing the switch (1), then
the front passenger seat will move as
follows, and the rear seat will move,
too.
The front passenger seat :
1. The seat and the seatback willmove forward. The headrest will
move downward.
2. Seat cushion will move downward.
3. The height of the seat will move downward. Once the adjustment is
completed, the signaling sound
will beep once.
The rear right passenger seat :
1. The head rest will move down- ward.
2. The seat will move forward, the seat cushion will move upward,
the bottom part of lumbar support
will come out.
Once the operation is completed, the
signaling sound will beep once.CAUTION
The rear relaxation seat system switches won’t work in the fol-lowing cases.
- When there is a person sitting in the passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the passen- ger seat is opened
- When the seat belt of the pas- senger seat is fastened
CAUTION
Relax mode buttons won’t workin the following cases:
- When there is a person sitting in the front passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the front passenger seat is opened
- When the seat belt of the pas- senger seat is fastened
- If the Relax mode button is pressed again during theRelax mode in operation, theseat will stop moving.
- If you operate the seat control button manually while Relaxmode is in operation, the auto-matic movement of the seatwill stop and be adjusted man-ually.
(Continued)

Safety features of your vehicle
26
3
Relax mode return
Press switch (2), then the rear seats
will move as follows and the passen-
ger seat will move.
Rear right passenger seat :
1. The seat will move back to the far
end.
2. The seat cushion will move down to the far end, and the lumbar sup-
port will move backward.
3. The headrest will move downward.
The front passenger seat :
1. The seat will move backward, and the seat back will move backward,
and the seat cushion will move
downward.
2. The headrest will move down to the far end, and the seat height
will move upward.(Continued)
- When using the relax mode, do not place any object on thefront passenger's seat cush-ion, as the seat seat back willbe folded and objects placedon the front passenger seatmay be damaged.CAUTION
Return Mode Button will notwork in the following cases.
- When there is a person sitting in the passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the passen- ger seat is opened
- When the seat belt of the pas- senger seat is fastened
CAUTION
If you press the return modebutton again while the returnmode is in process, the seatmovement will stop.
If you manually operate the seat adjustment button whilethe return mode is in process,the automatic seat move willstop and be adjusted manually.

I7
Index
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-71
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15\
1
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Glove box lamp (LED type) bulb replacement . . . . . . 7-83
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . 5-148
Headlamp (LED type) bulb replacement . . . . . . . . . . . 7-80
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-130
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-121
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Headrest (front). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-116
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-151
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 5-51
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-42
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-57 Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Important safety precautions . . . . . . . . . . . . . . . . . . . . . 3-2
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Inflation condition (Air bags) . . . . . . . . . . . . . . . . . . . . 3-71
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . . 7-55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Installing a Child Restraint System (CRS) . . . . . . . . . . 3-43
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-70
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
71
LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
Set Up mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Warning and indicator lights . . . . . . . . . . . . . . . . . . 4-91
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89\
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
H
GI

Index
10I

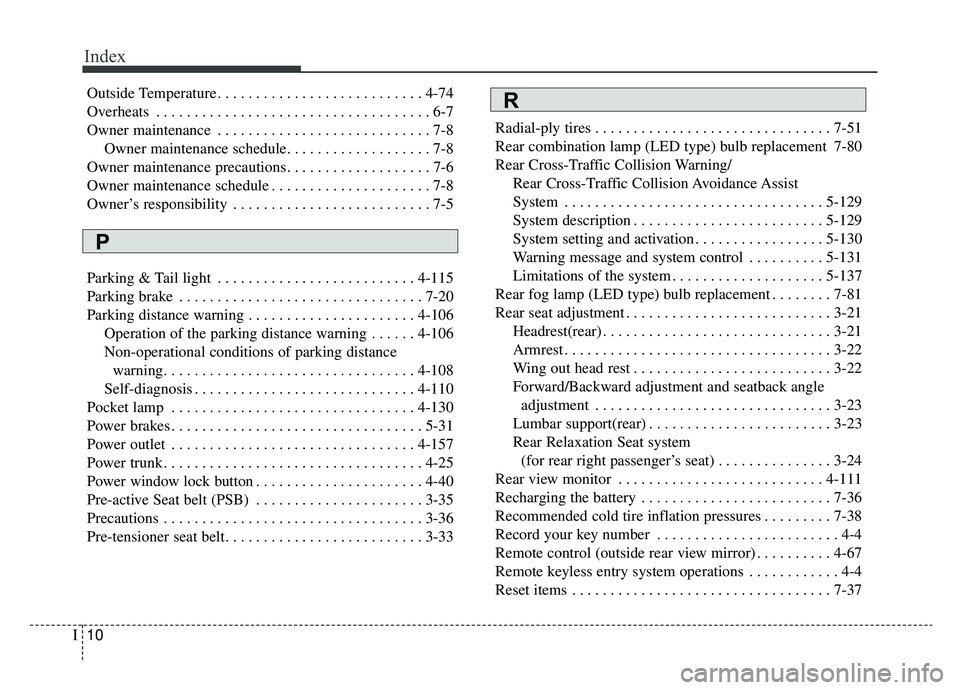

Outside Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-8
Owner maintenance precautions. . . . . . . . . . . . . . . . . . . 7-6
Owner maintenance schedule . . . . . . . . . . . . . . . . . . . . . 7-8
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Parking distance warning . . . . . . . . . . . . . . . . . . . . . . 4-106 Operation of the parking distance warning . . . . . . 4-106
Non-operational conditions of parking distance warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Power trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25\
Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-40
Pre-active Seat belt (PSB) . . . . . . . . . . . . . . . . . . . . . . 3-35
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-33 Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Rear combination lamp (LED type) bulb replacement 7-80
Rear Cross-Traffic Collision Warning/
Rear Cross-Traffic Collision Avoidance Assist
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12\
9
System description . . . . . . . . . . . . . . . . . . . . . . . . . 5-129
System setting and activation . . . . . . . . . . . . . . . . . 5-130
Warning message and system control . . . . . . . . . . 5-131
Limitations of the system . . . . . . . . . . . . . . . . . . . . 5-137
Rear fog lamp (LED type) bulb replacement . . . . . . . . 7-81
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
22
Wing out head rest . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Forward/Backward adjustment and seatback angle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Lumbar support(rear) . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Rear Relaxation Seat system (for rear right passenger’s seat) . . . . . . . . . . . . . . . 3-24
Rear view monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Recommended cold tire inflation pressures . . . . . . . . . 7-38
Record your key number . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote control (outside rear view mirror) . . . . . . . . . . 4-67
Remote keyless entry system operations . . . . . . . . . . . . 4-4
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37\
P
R

I11
Index
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-148
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Room lamp (LED type) bulb replacement . . . . . . . . . . 7-83
Safe exit assist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
21
Scheduled maintenance service . . . . . . . . . . . . . . . . . . 7-10
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-27
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-27Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-27
Driver's seat belt warning . . . . . . . . . . . . . . . . . . . . . 3-28
Front passenger's seat belt warning . . . . . . . . . . . . . 3-29
Lap/Shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-33
Pre-active Seat Belt (PSB) . . . . . . . . . . . . . . . . . . . . 3-35
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Seats Front seat adjustment (Power) . . . . . . . . . . . . . . . . . . 3-9
Front seat position memory system . . . . . . . . . . . . . 3-13
Headrest (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . 3-20 Securing a child restraint seat with “Tether Anchor”
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-46
Securing a child restraint with a lap/shoulder belt . . . . 3-47
Securing a child restraint with the LATCH anchors system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-45
Selecting a Child Restraint System (CRS) . . . . . . . . . . 3-40
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-84
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67\
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Side repeater lamp (LED type) bulb replacement . . . . 7-82
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50
Smart Cruise Control with Stop & Go System . . . . . . 5-69 Smart Cruise Control speed . . . . . . . . . . . . . . . . . . 5-70
Smart Cruise Control Vehiclet to Vehicle Distance . 5-76
To adjust the sensitivity of Smart Cruise Control system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
81
To convert to cruise control mode . . . . . . . . . . . . . . 5-82
Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-82
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-4 Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry system operations . . . . . . . . . . 4-7
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-9
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Mechanical key operations. . . . . . . . . . . . . . . . . . . . 4-11
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
S
