2019 KIA K900 Owners Manual

775
Maintenance
Battery box fuse panel
ORJ078029

Maintenance
76
7
Fuse NameFuse ratingCircuit Protected
START80A
Engine Room Junction Block
(a) NON ISG : FUSE-TCU2/ECU3/START1
(b) ISG : FUSE-TCU2/ECU3/START1/POWER OUT-
LET1/ACC/IG1
B+7100ARear fuse box panel
AMS10ABattery Sensor
Battery box fuse panel

777
Maintenance
LIGHT BULBS
Lamp (LED type) bulb replace-
ment
Only LED lamps are used in this
vehicle.
If the LED lamp does not operate,
have the vehicle checked by an
authorized K900 Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit.The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the license plate lamp (LED),
for it may damage related parts of
the vehicle.
net-work failure
The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or for light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized
K900 Kia dealer.
trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
K900 Kia dealer.
CAUTION -Headlamp
Lens
To prevent damage, do not clean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
78
7
✽ ✽
NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized K900
Kia dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized K900 Kia
dealer.
✽ ✽NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillight lenses
could appear foggy. This condition is
caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the
lamp bulb circuitry, we recommend
that you have the vehicle checked by
an authorized K900 Kia dealer.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized K900 Kia deal-
er. In many cases, it is difficult to
replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the
bulb. This is especially true if you
have to remove the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.

779
Maintenance
Light bulb position (Front)
(1) Headlamp (Low) (LED type)
(2,3) Headlamp (High/Low) (LED
type)
(4) Day time running lamp / Position lamp (LED type)
(5) Day time running lamp / Position lamp / Front turn signal lamp
(LED type)
(6) Side marker (LED type)
Light bulb position (Rear)
(1,2) Stop and tail lamp (LED type)
(3) Rear turn signal lamp (LED type)
(4) Side marker (LED type) (5) High mounted stop lamp (LED
type)
(6) License plate lamp (LED type)
(7) Back up lamp (LED type)
ORJ078030N
■ Head lamp
ORJ078031N
■Rear combination lamp
ORJ078032
■High mounted stop lamp
ORJ078033
■License plate lamp
ORJ078056L
■Rear fog lamp

Maintenance
80
7
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (LED type) bulb
replacement
If the Low/High beam lamp, day time
running lamp, position lamp, front turn
signal lamp and side marker
(1,2,3,4,5,6) do not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
The LED lamp cannot be replaced as
a single component because it is part
of an integrated unit. The LED lamp
has to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
Rear combination lamp (LED
type) bulb replacement
If the Low/High beam lamp, day time
running lamp, position lamp, front turn
signal lamp and side marker
(1,2,3,4,5,6) do not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
The LED lamp cannot be replaced as
a single component because it is part
of an integrated unit. The LED lamp
has to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it may
damage related parts of the vehicle.
ORJ078034
■ Side repeater lamp
ORJ078030N
■Head lamp
ORJ078031N
■Rear combination lamp

781
Maintenance

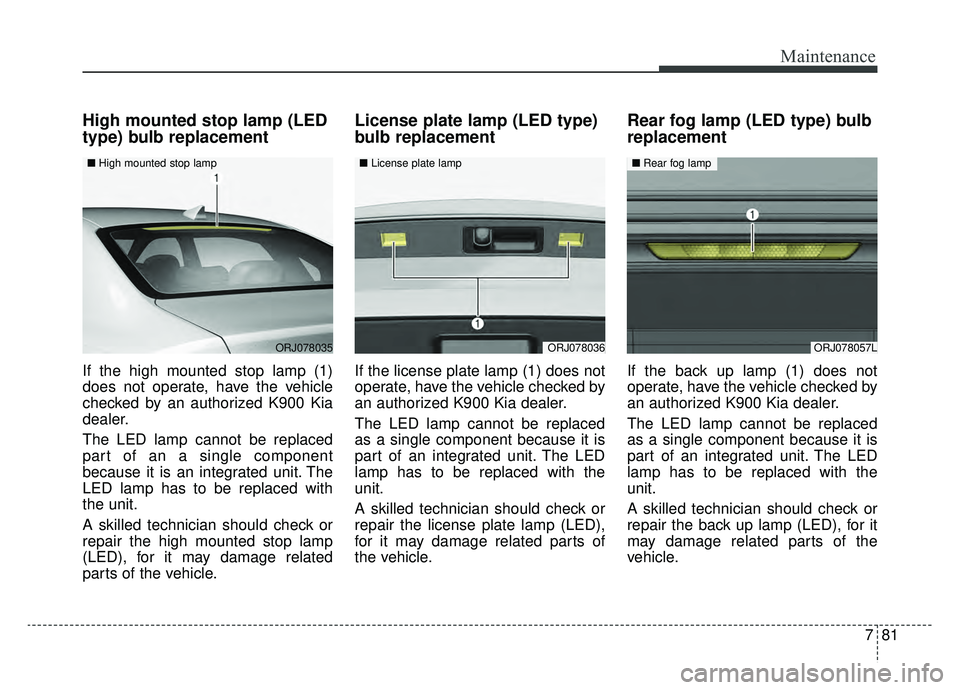

High mounted stop lamp (LED
type) bulb replacement
If the high mounted stop lamp (1)
does not operate, have the vehicle
checked by an authorized K900 Kia
dealer.
The LED lamp cannot be replaced
part of an a single component
because it is an integrated unit. The
LED lamp has to be replaced with
the unit.
A skilled technician should check or
repair the high mounted stop lamp
(LED), for it may damage related
parts of the vehicle.
License plate lamp (LED type)
bulb replacement
If the license plate lamp (1) does not
operate, have the vehicle checked by
an authorized K900 Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamp has to be replaced with the
unit.
A skilled technician should check or
repair the license plate lamp (LED),
for it may damage related parts of
the vehicle.
Rear fog lamp (LED type) bulb
replacement
If the back up lamp (1) does not
operate, have the vehicle checked by
an authorized K900 Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamp has to be replaced with the
unit.
A skilled technician should check or
repair the back up lamp (LED), for it
may damage related parts of the
vehicle.
ORJ078035
■High mounted stop lamp
ORJ078036
■License plate lamp
ORJ078057L
■Rear fog lamp

Maintenance
82
7
Side repeater lamp (LED type)
bulb replacement
If the side repeater lamp (1) does not
operate, have the vehicle checked by
an authorized K900 Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamp has to be replaced with the
unit.
A skilled technician should check or
repair the side repeater lamp (LED),
for it may damage related parts of
the vehicle.
Map lamp (LED type) bulb
replacement
If the map lamp (1) / mood lamp (2)
do not operate, have the vehicle
checked by an authorized K900 Kia
dealer.
The LED lamp cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamp has to be replaced with the
unit.
A skilled technician should check or
repair the map lamp and mood lamp
(LED), for it may damage related
parts of the vehicle.
Vanity mirror lamp (front)
(LED type) bulb replacement
If the vanity mirror lamp (1) does not
operate, have the vehicle checked by
an authorized K900 Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamp has to be replaced with the
unit.
A skilled technician should check or
repair the vanity mirror lamp (LED),
for it may damage related parts of
the vehicle.
ORJ078034
■ Side repeater lamp
ORJ078037ORJ078038
