2019 JEEP GRAND CHEROKEE LIMITED climate control

▫Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped ...........70
▫ Illuminated Vanity Mirrors ................70
 EXTERIOR LIGHTS .......................71
▫ Headlight Switch ........................71
▫ Multifunction Lever .....................72
▫ Daytime Running Lights — If Equipped .......72
▫ High/Low Beam Switch ..................73
▫ Automatic High Beam — If Equipped ........73
▫ Flash-To-Pass ..........................73
▫ Automatic Headlights — If Equipped .........74
▫ Parking Lights And Panel Lights ............74
▫ Headlights On Automatically With Wipers .....74
▫ Headlight Delay ........................74
▫ Lights-On Reminder .....................75
▫ Fog Lights — If Equipped .................75
▫ Turn Signals ...........................76 ▫
Lane Change Assist — If Equipped ..........76
▫ Battery Saver ..........................76
 INTERIOR LIGHTS .......................76
▫ Courtesy Lights ........................77
 WINDSHIELD WIPERS AND WASHERS ........79
▫ Windshield Wiper Operation ................80
▫ Rain Sensing Wipers — If Equipped ..........82
▫ Rear Window Wiper/Washer ...............84
 HEADLIGHT WASHERS — IF EQUIPPED ......85
 CLIMATE CONTROLS .....................85
▫ Automatic Climate Controls Overview ........86
▫ Climate Control Functions .................92
▫ Automatic Temperature Control (ATC) ........93
▫ Operating Tips .........................94
 WINDOWS .............................96
▫ Power Window Controls ..................96
▫ Auto-Down Feature .....................97
3
GETTING TO KNOW YOUR VEHICLE 15

WARNING!(Continued)
•Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the key fob to start the engine
conveniently from outside the vehicle while still
maintaining security. The system has a range of
328 ft (100 m). The Remote Starting System also activates the Climate
Control, vented seats (if equipped) in temperatures above
80° F (26.7° C), and the optional heated seats, and optional
heated steering wheel in temperatures below 40° F (4.4° C).
Refer to “Seats” in “Getting To Know Your Vehicle” for
further information.
NOTE:
•
The vehicle must be equipped with an automatic trans-
mission to be equipped with Remote Start.
• Obstructions between the vehicle and key fob may
reduce this range.

WARNING!(Continued)
•Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.

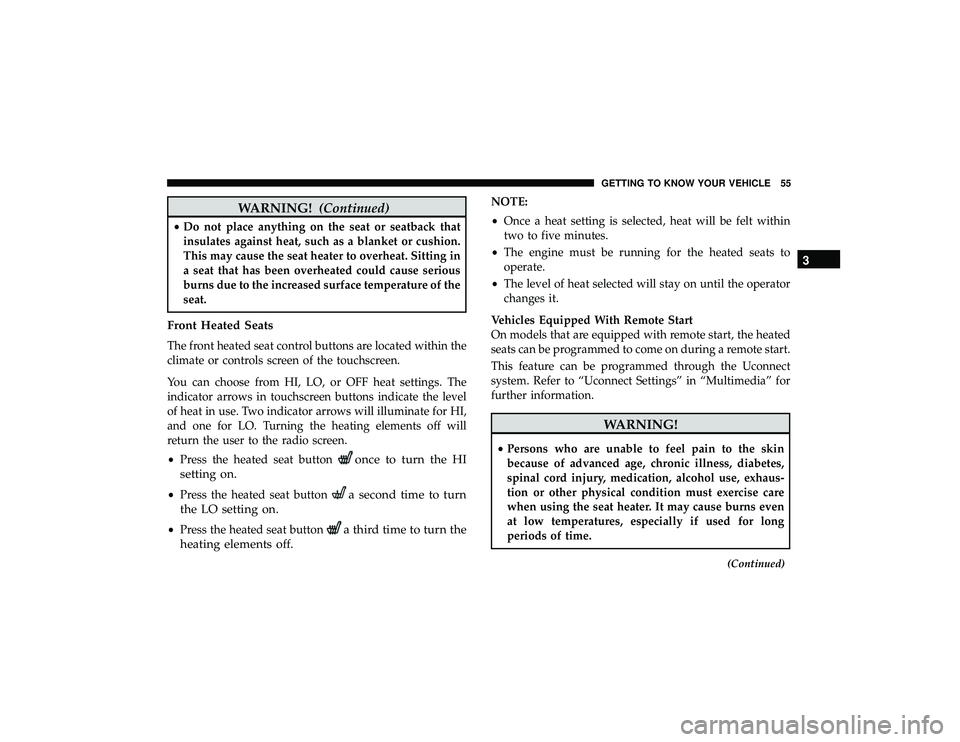

Front Heated Seats
The front heated seat control buttons are located within the
climate or controls screen of the touchscreen.
You can choose from HI, LO, or OFF heat settings. The
indicator arrows in touchscreen buttons indicate the level
of heat in use. Two indicator arrows will illuminate for HI,
and one for LO. Turning the heating elements off will
return the user to the radio screen.
• Press the heated seat button
once to turn the HI
setting on.
• Press the heated seat buttona second time to turn
the LO setting on.
• Press the heated seat buttona third time to turn the
heating elements off.
NOTE:
• Once a heat setting is selected, heat will be felt within
two to five minutes.
• The engine must be running for the heated seats to
operate.
• The level of heat selected will stay on until the operator
changes it.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
seats can be programmed to come on during a remote start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.

The heated steering wheel control button is located on the
center of the instrument panel below the touchscreen and
within the climate or controls screen of the touchscreen.
•Push the heated steering wheel button
once to turn
the heating element on.
• Push the heated steering wheel buttona second time
to turn the heating element off.
NOTE: The engine must be running for the heated steering
wheel to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
steering wheel can be programmed to come on during a
remote start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.

To reset the power folding mirrors: Fold and unfold them
by pushing the button (this may require multiple button
pushes). This resets them to their normal position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.
Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped
Tilt Side Mirrors In Reverse provides automatic outside
mirror positioning which will aid the driver ’s view of the
ground rearward of the front doors. Outside mirrors will
move slightly downward from the present position when
the vehicle is shifted into REVERSE. Outside mirrors will
then return to the original position when the vehicle is
shifted out of REVERSE position. Each stored memory seat
setting will have an associated Tilt Side Mirrors In Reverse
position. NOTE:
The Tilt Side Mirrors In Reverse feature is not
turned on when delivered from the factory. The Tilt Side
Mirrors In Reverse feature can be turned on and off using
the Uconnect System. Refer to “Uconnect Settings” in
“Multimedia” for further information.
Illuminated Vanity Mirrors
To access an illuminated vanity mirror, flip down one of the
visors.
Lift the cover to reveal the mirror. The light will turn on
automatically.

HEADLIGHT WASHERS — IF EQUIPPED
The multifunction lever operates the headlight washers
when the ignition switch is in the ON position and the
headlights are turned on. The multifunction lever is located
on the left side of the steering column.
To use the headlight washers, push the multifunction lever
inward (toward the steering column) and release it. The
headlight washers will spray a timed high-pressure spray
of washer fluid onto each headlight lens. In addition, the
windshield washers will spray the windshield and the
windshield wipers will cycle.
NOTE:After turning the ignition switch and headlights
ON, the headlight washers will operate on the first spray of
the windshield washer and then every eleventh spray after
that.
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen (if equipped) and on the instrument panel
below the radio.
3
GETTING TO KNOW YOUR VEHICLE 85

Automatic Climate Controls Overview

Uconnect 4C/4C NAV With 8.4–inch Display Automatic Climate Controls
3
GETTING TO KNOW YOUR VEHICLE 87
