3-121
Convenient features of your vehicle
3
Headlamp and Parking lamp
When the headlamp (lamp switch in
the headlamp or AUTO position) is on
and all doors (and tailgate) are locked
and closed, the parking lamp and
headlamp will come on for 15 seconds
if/or any of the below is performed.
• When the door unlock button ispressed on the remote key or
smart key.
At this time, if you press the door lock
or unlock button, the parking lamp and
headlamp will turn off immediately.
You can activate or deactivate the
Welcome Light from the User
Settings Mode on the LCD display.
For more details, refer to "LCD
Display" in this chapter.
Interior lamp
When the interior lamp switch is in
the DOOR position and all doors (and
tailgate) are closed and locked, the
room lamp will come on for 30 sec-
onds if any of the below is performed.
• When the door unlock button is pressed on the remote key or
smart key.
• When the button of the outside door handle is pressed.
At this time, if you press the door lock
or unlock button, the room lamp will
turn off immediately.
Interior lights
Do not use the interior lights for
extended periods when the engine
is turned off or the battery will dis-
charge.
Interior lamp AUTO cut
The interior lamps will automatically
go off approximately 20 minutes after
the engine is turned off and the
doors closed. If a door is opened, the
lamp will go off 40 minutes after the
engine is turned off. If the doors are
locked and the vehicle enters the
armed stage of the theft alarm sys-
tem, the lamps will go off five sec-
onds later.
NOTICE
Do not use the interior lights
when driving in the dark. The inte-
rior lights may obscure your view
and cause an accident.
WARNING
TLe UK 3b(110~).qxp 6/12/2018 2:35 PM Page 121

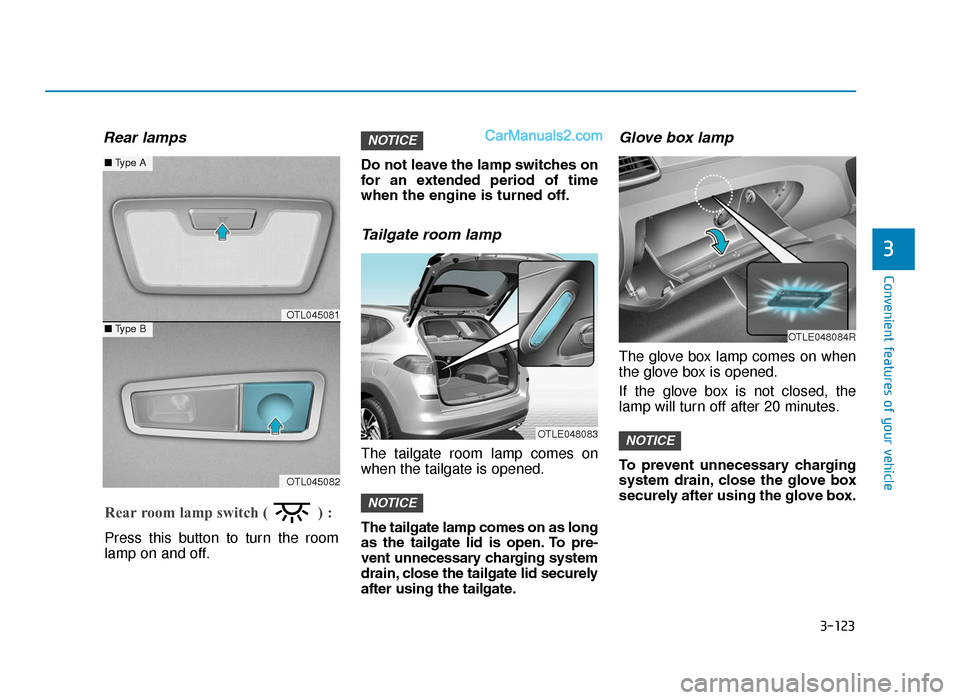

3-123
Convenient features of your vehicle
3
Rear lamps
Do not leave the lamp switches on
for an extended period of time
when the engine is turned off.
Tailgate room lamp
The tailgate room lamp comes on
when the tailgate is opened.
The tailgate lamp comes on as long
as the tailgate lid is open. To pre-
vent unnecessary charging system
drain, close the tailgate lid securely
after using the tailgate.
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
If the glove box is not closed, the
lamp will turn off after 20 minutes.
To prevent unnecessary charging
system drain, close the glove box
securely after using the glove box.
NOTICE
NOTICE
NOTICE
Rear room lamp switch ( ) :
Press this button to turn the room
lamp on and off.
OTL045081
OTL045082
■Type A
■Type B
OTLE048083
OTLE048084R
TLe UK 3b(110~).qxp 6/12/2018 2:36 PM Page 123

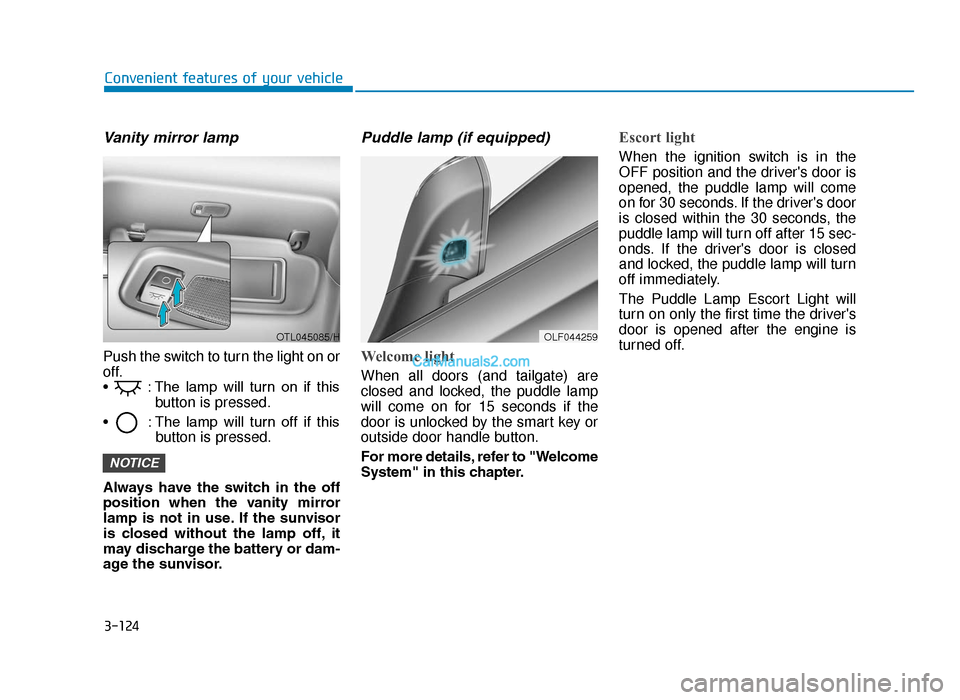

3-124
Convenient features of your vehicle
Vanity mirror lamp
Push the switch to turn the light on or
off.
• : The lamp will turn on if thisbutton is pressed.
• : The lamp will turn off if this button is pressed.
Always have the switch in the off
position when the vanity mirror
lamp is not in use. If the sunvisor
is closed without the lamp off, it
may discharge the battery or dam-
age the sunvisor.
Puddle lamp (if equipped)
Welcome light
When all doors (and tailgate) are
closed and locked, the puddle lamp
will come on for 15 seconds if the
door is unlocked by the smart key or
outside door handle button.
For more details, refer to "Welcome
System" in this chapter.
Escort light
When the ignition switch is in the
OFF position and the driver's door is
opened, the puddle lamp will come
on for 30 seconds. If the driver's door
is closed within the 30 seconds, the
puddle lamp will turn off after 15 sec-
onds. If the driver's door is closed
and locked, the puddle lamp will turn
off immediately.
The Puddle Lamp Escort Light will
turn on only the first time the driver's
door is opened after the engine is
turned off.
NOTICE
OTL045085/HOLF044259
TLe UK 3b(110~).qxp 6/12/2018 2:36 PM Page 124

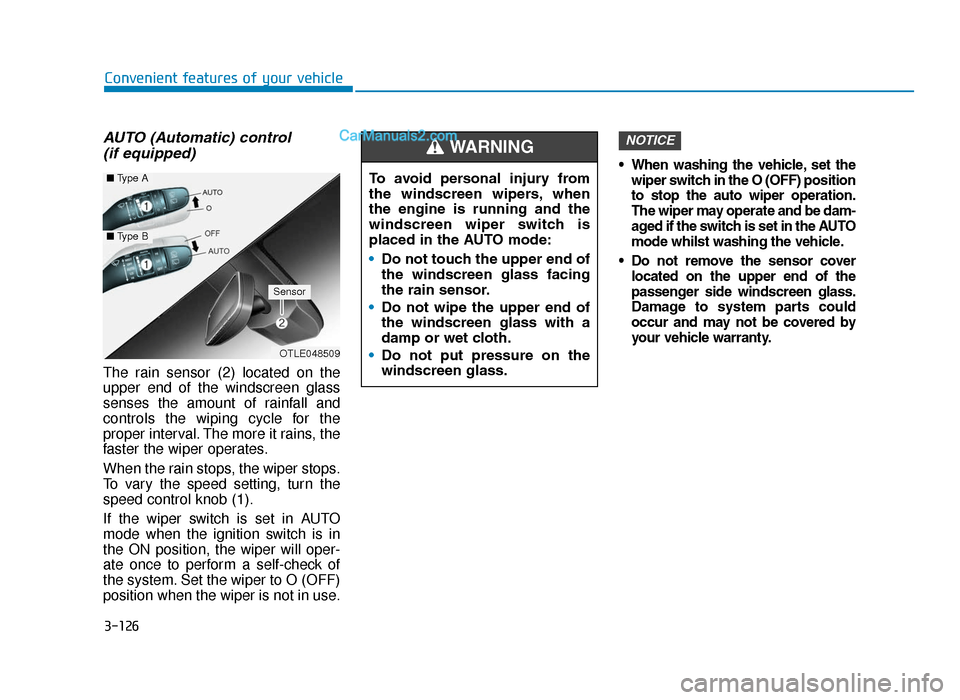

3-126
Convenient features of your vehicle
AUTO (Automatic) control (if equipped)
The rain sensor (2) located on the
upper end of the windscreen glass
senses the amount of rainfall and
controls the wiping cycle for the
proper interval. The more it rains, the
faster the wiper operates.
When the rain stops, the wiper stops.
To vary the speed setting, turn the
speed control knob (1).
If the wiper switch is set in AUTO
mode when the ignition switch is in
the ON position, the wiper will oper-
ate once to perform a self-check of
the system. Set the wiper to O (OFF)
position when the wiper is not in use.
• When washing the vehicle, set the
wiper switch in the O (OFF) position
to stop the auto wiper operation.
The wiper may operate and be dam-
aged if the switch is set in the AUTO
mode whilst washing the vehicle.
• Do not remove the sensor cover located on the upper end of the
passenger side windscreen glass.
Damage to system parts could
occur and may not be covered by
your vehicle warranty.
NOTICE
OTLE048509
Sensor
To avoid personal injury from
the windscreen wipers, when
the engine is running and the
windscreen wiper switch is
placed in the AUTO mode:
•Do not touch the upper end of
the windscreen glass facing
the rain sensor.
• Do not wipe the upper end of
the windscreen glass with a
damp or wet cloth.
• Do not put pressure on the
windscreen glass.
WARNING
■ Type A
■Type B
TLe UK 3b(110~).qxp 6/12/2018 2:36 PM Page 126

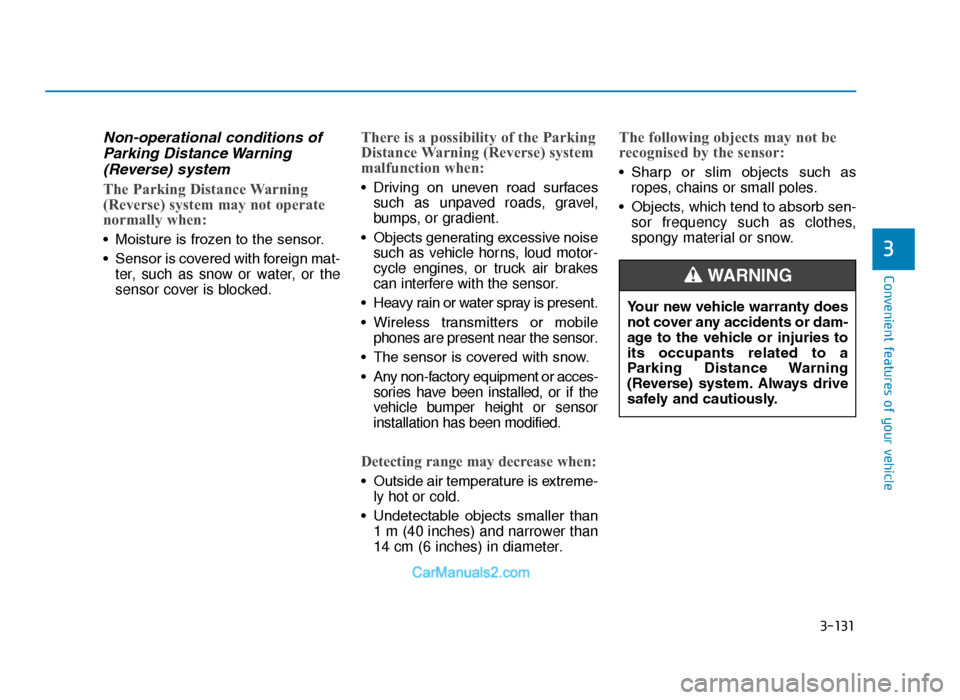

3-131
Convenient features of your vehicle
3
Non-operational conditions ofParking Distance Warning(Reverse) system
The Parking Distance Warning
(Reverse) system may not operate
normally when:
• Moisture is frozen to the sensor.
• Sensor is covered with foreign mat-
ter, such as snow or water, or the
sensor cover is blocked.
There is a possibility of the Parking
Distance Warning (Reverse) system
malfunction when:
• Driving on uneven road surfacessuch as unpaved roads, gravel,
bumps, or gradient.
• Objects generating excessive noise such as vehicle horns, loud motor-
cycle engines, or truck air brakes
can interfere with the sensor.
• Heavy rain or water spray is present.
• Wireless transmitters or mobile phones are present near the sensor.
• The sensor is covered with snow.
• Any non-factory equipment or acces- sories have been installed, or if the
vehicle bumper height or sensor
installation has been modified.
Detecting range may decrease when:
• Outside air temperature is extreme-ly hot or cold.
• Undetectable objects smaller than 1 m (40 inches) and narrower than
14 cm (6 inches) in diameter.
The following objects may not be
recognised by the sensor:
• Sharp or slim objects such asropes, chains or small poles.
• Objects, which tend to absorb sen- sor frequency such as clothes,
spongy material or snow.
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries to
its occupants related to a
Parking Distance Warning
(Reverse) system. Always drive
safely and cautiously.
WARNING
TLe UK 3b(110~).qxp 6/12/2018 2:37 PM Page 131

3-133
Convenient features of your vehicle
3
The Parking Distance Warning
(Reverse/Forward) system assists
the driver during movement of the
vehicle by chiming if any object is
sensed within the distance of 100 cm
(39 inches) in front and 120 cm (47
inches) behind the vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.Operation of the ParkingDistance Warning(Reverse/Forward) systemOperating condition
• This system will activate when the
Parking Distance Warning (Reverse/
Forward) system button is pressed
with the engine r unning.
• The Parking Distance Warning (Reverse/Forward) system button
turns on automatically and activates
the Parking Distance Warning
(Reverse/Forward) system when
you move the shift lever to the R
(Reverse) position. However, if vehi-
cle speed exceeds 6 mph (10
km/h), the system will not warn you
even though objects are detected,
and if vehicle speed exceeds 12
mph (20 km/h), the system will turn
off automatically. To turn on the sys-
tem, press the Parking Distance
Warning (Reverse/Forward) system
button.
• When more than two objects are sensed at the same time, the clos-
est one will be recognised first.
•
ALWAYS look around your vehi-
cle to make sure there are no
objects or obstacles before
moving the vehicle in any direc-
tion to prevent a collision.
• Always pay close attention
when the vehicle is driven close
to objects, particularly pedestri-
ans, and especially children.
• Be aware that some objects
may not be visible on the
screen or be detected by the
sensors, due to the objects
distance, size or material, all of
which can limit the effective-
ness of the sensor.
WARNINGOTL045271R
OTLE045049R
■ Type A
■Type B
TLe UK 3b(110~).qxp 6/12/2018 2:37 PM Page 133

3-134
Convenient features of your vehicle
Non-operational conditions ofParking Distance Warning(Reverse/Forward) system
Parking Distance Warning
(Reverse/Forward) system may not
operate normally when:
• Moisture is frozen to the sensor.
• Sensor is covered with foreign mat-
ter, such as snow or water, or the
sensor cover is blocked.
There is a possibility of Parking
Distance Warning (Reverse/Forward)
system malfunction when:
• Driving on uneven road surfacessuch as unpaved roads, gravel,
bumps, or gradient.
• Objects generating excessive noise such as vehicle horns, loud motor-
cycle engines, or truck air brakes
can interfere with the sensor.
• Heavy rain or water spray is present.
• Wireless transmitters or mobile phones are present near the sensor.
• The sensor is covered with snow.
• Any non-factory equipment or accessories have been installed, or
if the vehicle bumper height or sen-
sor installation has been modified.
• The indicator may differ from the illustration depending on objects or
sensors status. If the indicator blinks, we recommend that the system
be checked by a HYUNDAI authorised repairer.
• If the audible warning does not sound or if the buzzer sounds inter- mittently when shifting into R (Reverse) position, this may indicate a
malfunction with the Parking Distance Warning (Reverse/Forward)
system. If this occurs, we recommend that you have your vehicle
checked by a HYUNDAI authorised repairer as soon as possible.
NOTICE
Distance
from object Warning indicator
Warning soundWhen driving forwardWhen driving rearward
61 ~ 100(24 ~39)Front-Buzzer beeps intermittently
61 ~ 120(24 ~47)Rear-Buzzer beeps intermittently
31 ~ 60
(12 ~24)FrontBuzzer beeps frequently
Rear-Buzzer beeps frequently
30
(12)FrontBuzzer sounds continuously
Rear-Buzzer sounds continuously
Types of warning sound and indicatorcm (in)
TLe UK 3b(110~).qxp 6/12/2018 2:37 PM Page 134

3-136
Convenient features of your vehicle
Rear View Monitor
(if equipped)
The Rear View Monitor will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.
This is a supplemental system that
shows behind the vehicle through
the mirror or A/V display whilst back-
ing-up.■
Type A
The rear view monitor can be turned
off by pressing the ON/OFF button
when the rear view monitor is activat-
ed. Press the ON/OFF button once
more to turn on the rear view monitor
when the engine is running and the
shift lever is in R (Reverse).
Do not spray the camera or its sur-
rounding area directly with a high
pressure washer. Shock applied
from high pressure water may
cause the device to not operate
normally.
NOTICE
The rear camera display is not a
safety device. It only serves to
assist the driver in identifying
objects directly behind the mid-
dle of the vehicle. The camera
does NOT cover the complete
area behind the vehicle.
WARNING
OTLE048052
OTLE045505R
OTLE045053R
■ Type A
■Type B
TLe UK 3b(110~).qxp 6/12/2018 2:37 PM Page 136
