Maintenance
CLIMATE CONTROL AIR FILTER
Filter inspection
If the vehicle is operated in the
severely air-polluted cities or on dusty
rough roads for a long period, it
should be inspected more frequently
and replaced earlier. When you, the
owner, replace the climate control air
filter, replace it performing the follow-
ing procedure, and be careful to
avoid damaging other components.
Replace the filter according to the
Maintenance Schedule.

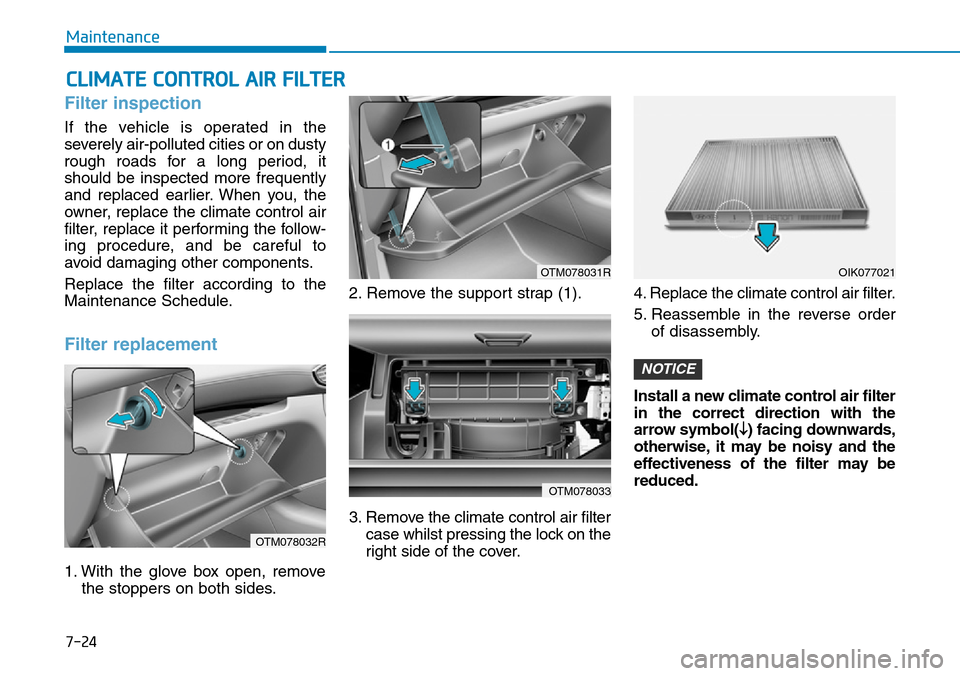

Filter replacement
1. With the glove box open, remove
the stoppers on both sides.2. Remove the support strap (1).
3. Remove the climate control air filter
case whilst pressing the lock on the
right side of the cover.4. Replace the climate control air filter.
5. Reassemble in the reverse order
of disassembly.
Install a new climate control air filter
in the correct direction with the
arrow symbol(
↓) facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.
NOTICE
OTM078032R
OTM078031R
OTM078033
OIK077021

7-26
Maintenance

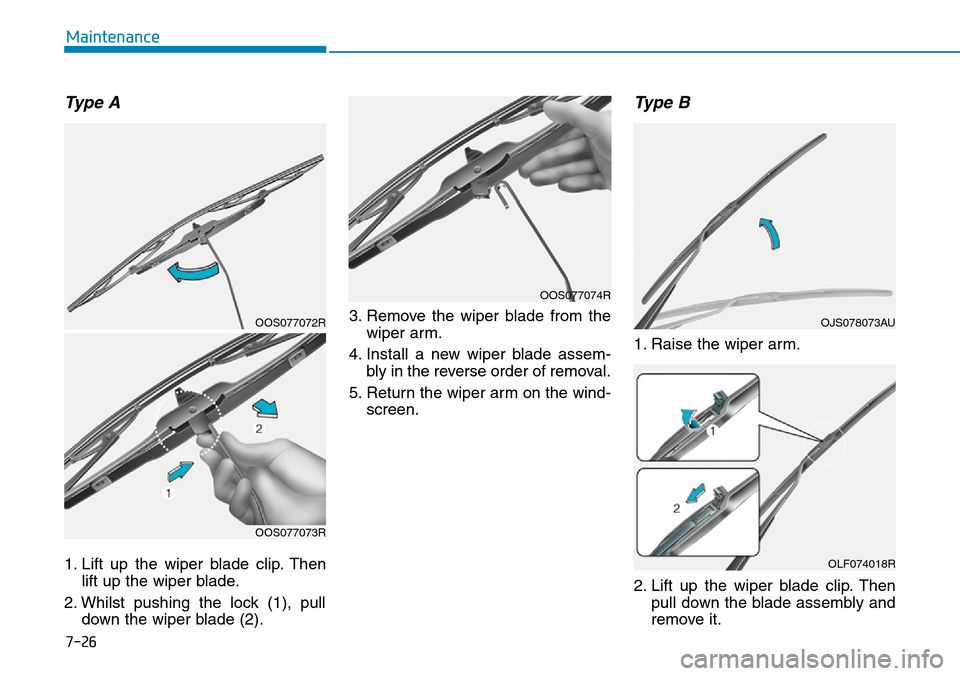

Type A
1. Lift up the wiper blade clip. Then
lift up the wiper blade.
2. Whilst pushing the lock (1), pull
down the wiper blade (2).3. Remove the wiper blade from the
wiper arm.
4. Install a new wiper blade assem-
bly in the reverse order of removal.
5. Return the wiper arm on the wind-
screen.
Type B
1. Raise the wiper arm.
2. Lift up the wiper blade clip. Then
pull down the blade assembly and
remove it.
OOS077072R
OOS077073R
OOS077074R
OJS078073AU
OLF074018R

7-31
7
Maintenance
By jump starting
After a jump start from a good bat-
tery, drive the vehicle for 20-30 min-
utes before it is shutoff. The vehicle
may not restart if you shut it off
before the battery had a chance to
adequately recharge. See “Jump
Starting” in chapter 6 for more infor-
mation on jump starting procedures.
Information
An inappropriately disposed
of battery can be harmful to
the environment and human
health.
Dispose of the battery according to
your local law(s) or regulations.
Reset items
The following items may need to be
reset after the battery has been dis-
charged or the battery has been dis-
connected.
• Auto up/down window
• Sunroof
• Trip computer
• Climate control system
• Driver position memory system
• Clock
• Audio system
i
AGM battery (if equipped)
•Absorbent Glass Matt (AGM)
batteries are maintenance-
free and we recommend that
the AGM battery be serviced
by a HYUNDAI authorised
repairer. For charging your
AGM battery, use only fully
automatic battery chargers
that are specially developed
for AGM batteries.
•When replacing the AGM bat-
tery, we recommend that you
use parts for replacement
from a HYUNDAI authorised
repairer.
•Do not open or remove the
cap on top of the battery. This
may cause leaks of internal
electrolyte that could result in
severe injury.
CAUTION

7-32
Maintenance

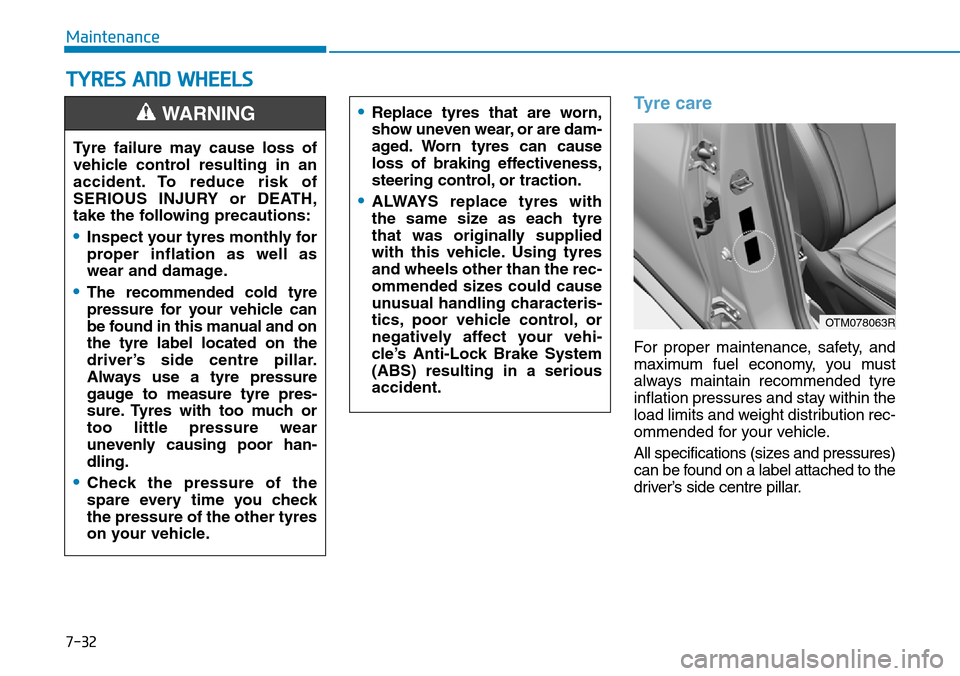

TYRES AND WHEELS
Tyre care
For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended tyre
inflation pressures and stay within the
load limits and weight distribution rec-
ommended for your vehicle.
All specifications (sizes and pressures)
can be found on a label attached to the
driver’s side centre pillar. Tyre failure may cause loss of
vehicle control resulting in an
accident. To reduce risk of
SERIOUS INJURY or DEATH,
take the following precautions:
•Inspect your tyres monthly for
proper inflation as well as
wear and damage.
•The recommended cold tyre
pressure for your vehicle can
be found in this manual and on
the tyre label located on the
driver’s side centre pillar.
Always use a tyre pressure
gauge to measure tyre pres-
sure. Tyres with too much or
too little pressure wear
unevenly causing poor han-
dling.
•Check the pressure of the
spare every time you check
the pressure of the other tyres
on your vehicle.
WARNING •Replace tyres that are worn,
show uneven wear, or are dam-
aged. Worn tyres can cause
loss of braking effectiveness,
steering control, or traction.
•ALWAYS replace tyres with
the same size as each tyre
that was originally supplied
with this vehicle. Using tyres
and wheels other than the rec-
ommended sizes could cause
unusual handling characteris-
tics, poor vehicle control, or
negatively affect your vehi-
cle’s Anti-Lock Brake System
(ABS) resulting in a serious
accident.
OTM078063R

7-36
Maintenance

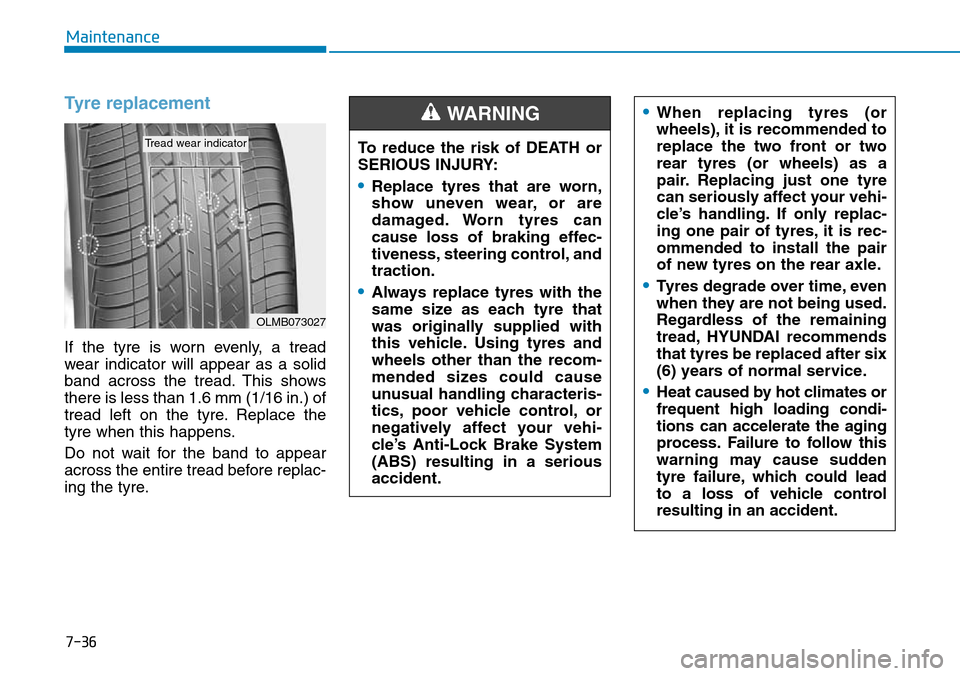

Tyre replacement
If the tyre is worn evenly, a tread
wear indicator will appear as a solid
band across the tread. This shows
there is less than 1.6 mm (1/16 in.) of
tread left on the tyre. Replace the
tyre when this happens.
Do not wait for the band to appear
across the entire tread before replac-
ing the tyre.
OLMB073027
Tread wear indicatorTo reduce the risk of DEATH or
SERIOUS INJURY:
•Replace tyres that are worn,
show uneven wear, or are
damaged. Worn tyres can
cause loss of braking effec-
tiveness, steering control, and
traction.
•Always replace tyres with the
same size as each tyre that
was originally supplied with
this vehicle. Using tyres and
wheels other than the recom-
mended sizes could cause
unusual handling characteris-
tics, poor vehicle control, or
negatively affect your vehi-
cle’s Anti-Lock Brake System
(ABS) resulting in a serious
accident.
WARNING •When replacing tyres (or
wheels), it is recommended to
replace the two front or two
rear tyres (or wheels) as a
pair. Replacing just one tyre
can seriously affect your vehi-
cle’s handling. If only replac-
ing one pair of tyres, it is rec-
ommended to install the pair
of new tyres on the rear axle.
•Tyres degrade over time, even
when they are not being used.
Regardless of the remaining
tread, HYUNDAI recommends
that tyres be replaced after six
(6) years of normal service.
•Heat caused by hot climates or
frequent high loading condi-
tions can accelerate the aging
process. Failure to follow this
warning may cause sudden
tyre failure, which could lead
to a loss of vehicle control
resulting in an accident.

7-48
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
ISGISG15ALow DC-DC Converter (AMP), Instrument Cluster, A/V & Navigation Head Unit,
Head Up Display, A/C Control Module
RR S/HEATER
LHRR LH25ARear Seat Heater LH
CLUSTERCLUSTER7.5AInstrument Cluster, Head Up Display
MDPS110AMDPS Unit
A/CONA/C7.5AE/R Junction Block (RLY. 4), SUB Junction Block (RLY. 1,2,3)
CHILD LOCK15AICM Relay Box (Child Lock/Unlock Relay)
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, Tail Gate Relay, Dead Lock Relay
REAR A/CONREAR A/C10ARear A/C Control Module, Rear Blower Motor, A/C Control Module
SUNROOF 1120APanorama Sunroof
P/WDW LHLH25ADriver/Passenger Safety Power Window Module, Passenger Power Window Switch,
Rear Safety Power Window LH, Rear Power Window Switch LH

7-51
7
Maintenance
Engine compartment fuse panel
TypeFuse NameSymbolFuse RatingCircuit Protected
MULTI
FUSE (10P)
MDPSC/R
1C : 80A
R : 100AMDPS Unit
C/FAN 1180A[D4HA/D4HB/G4KJ] Cooling Fan Controller
EPB60AESP Control Module
B+4450AICU Junction Block (Fuse - F16/F17/F27/F36/F46)
B+3350AICU Junction Block (Fuse - F29/F39/F48/F49)
B+2250AICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15)
RR HTD40ARLY. 1 (Rear HTD Relay)
ABS 1140AABS Control Module, ESP Control Module, Multipurpose Check Connector
BLOWER40ARLY. 4 (Blower Relay)
ABS 2240AABS Control Module, ESP Control Module

7-52
Maintenance
Engine compartment fuse panel
TypeFuse NameSymbolFuse RatingCircuit Protected
MULTI
FUSE (5P)
GLOW80A[D4HA/D4HB] Glow Relay Unit
PTC
HEATER 1PTC
HEATER150ASUB Junction Block (RLY. 1)
PTC
HEATER 2PTC
HEATER250ASUB Junction Block (RLY. 2)
PTC
HEATER 3PTC
HEATER350ASUB Junction Block (RLY. 3)
FUEL
FILLTER30ASUB Junction Block (RLY. 4)
FUSE
B+1150AICU Junction Block
(IPS 1/IPS 2/IPS 3/IPS 4/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch Relay)
B+5550AICU Junction Block (Fuse - F4/F14/F23/F24/F33/F34/F44)
INVERTER30AAC Inverter Unit
POWER
TAIL GATE30APower Tail Gate Module
TRAILER 3330ATrailer Lamp
IG2IG240ARLY. 2 (Start Relay), ICU Junction Block (Fuse - F15/F25/F32/F35/F42/F45)
