Maintenance
Fuse NameSymbolFuse RatingCircuit Protected
SENSOR 6S615A[D4HA/D4HB] Glow Relay Unit
ABS 3310AMultipurpose Check Connector, ABS Control Module, ESP Control Module
SENSOR 7S710ASmart Cruise Control Radar
SENSOR 5S510A
[D4HA/D4HB] Oil Sensor Assembly, Front/Rear NOX Sensor, E/R Junction Block (RLY.5)
[G4KJ] Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Variable Intake Solenoid Valve,
E/R Junction Block (RLY.5)
[G4KE] Oil Control Valve #1/#2 (Intake/Exhaust), Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, E/R Junction Block (RLY.5)
[G6DC] Oil Control Valve #3/#4 (Exhaust), E/R Junction Block (RLY.5)
IGNITION
COILIGN
COIL20A
[D4HA/D4HB] Fuel Pressure Regulating Valve
[G4KJ] Ignition Coil #1/#2/#3/#4
[G4KE] Ignition Coil #1/#2/#3/#4, Condecser
[G6DC] Ignition Coil #1/#2/#3/#4/#5/#6, Condecser #1/#2
SENSOR 3S320A[D4HA/D4HB] Rail Pressure Regulating Valve
[G6DC] PCM
SENSOR 4S415A
[D4HA/D4HB] Electronic VGR Actuator, Lambda Sensor #1/#2, PM (Particulate Matter) Sensor,
Cooling Fan Controller
[G4KJ] Cooling Fan Controller
[G4KE] PCM
[G6DC] Not Used
Engine compartment fuse panel (PCB block)

7-56
Maintenance

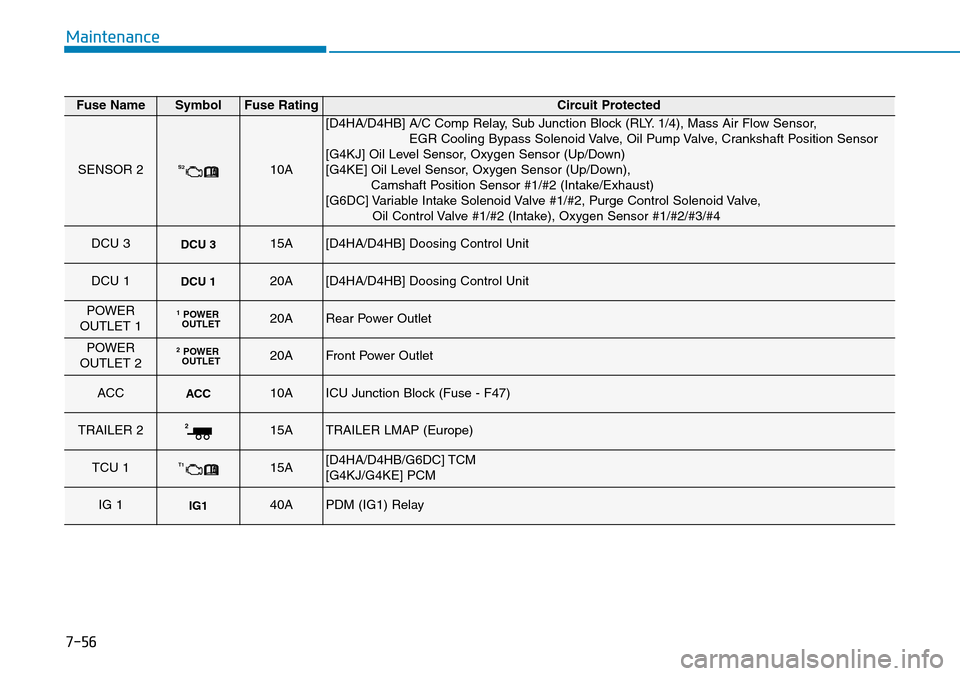

Fuse NameSymbolFuse RatingCircuit Protected
SENSOR 2S210A
[D4HA/D4HB] A/C Comp Relay, Sub Junction Block (RLY. 1/4), Mass Air Flow Sensor,
EGR Cooling Bypass Solenoid Valve, Oil Pump Valve, Crankshaft Position Sensor
[G4KJ] Oil Level Sensor, Oxygen Sensor (Up/Down)
[G4KE] Oil Level Sensor, Oxygen Sensor (Up/Down),
Camshaft Position Sensor #1/#2 (Intake/Exhaust)
[G6DC] Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve,
Oil Control Valve #1/#2 (Intake), Oxygen Sensor #1/#2/#3/#4
DCU 3DCU 315A[D4HA/D4HB] Doosing Control Unit
DCU 1DCU 120A[D4HA/D4HB] Doosing Control Unit
POWER
OUTLET 11POWER
OUTLET20ARear Power Outlet
POWER
OUTLET 22POWER
OUTLET20AFront Power Outlet
ACCACC10AICU Junction Block (Fuse - F47)
TRAILER 2215ATRAILER LMAP (Europe)
TCU 1T115A[D4HA/D4HB/G6DC] TCM
[G4KJ/G4KE] PCM
IG 1IG140APDM (IG1) Relay

7-59
7
Maintenance
LIGHT BULBS
Consult a HYUNDAI authorised
repairer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electrical
wiring system.
Information
After heavy driving rain or washing,
headlamp and tail lamp lenses could
appear frosty. This condition is caused
by the temperature difference between
the lamp inside and outside. This is
similar to the condensation on your
windows inside your vehicle when
raining and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, we rec-
ommend that the system be checked
by a HYUNDAI authorised repairer.
Information
The headlamp aiming should be adjust-
ed after an accident or after the head-
lamp assembly is reinstalled at a
HYUNDAI authorised repairer.
Information - Traffic Change
The low beam light distribution is
asymmetric. If you go abroad to a coun-
try with opposite traffic direction, this
asymmetric part will dazzle oncoming
car driver. To prevent dazzle, ECE reg-
ulation demand several technical solu-
tions (ex. automatic change system,
adhesive sheet, down aiming). These
headlamps are designed not to dazzle
opposite drivers. So, you need not
change your headlamps in a country
with opposite traffic direction.i
i
i
NOTICE
Prior to working on a light, firmly
apply the parking brake, ensure
that the ignition switch is in the
LOCK/OFF position and turn off
the lights to avoid sudden move-
ment of the vehicle and burning
your fingers or receiving an elec-
tric shock.
WARNING

7-61
7
Maintenance
7-61
Maintenance
• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only
when installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.

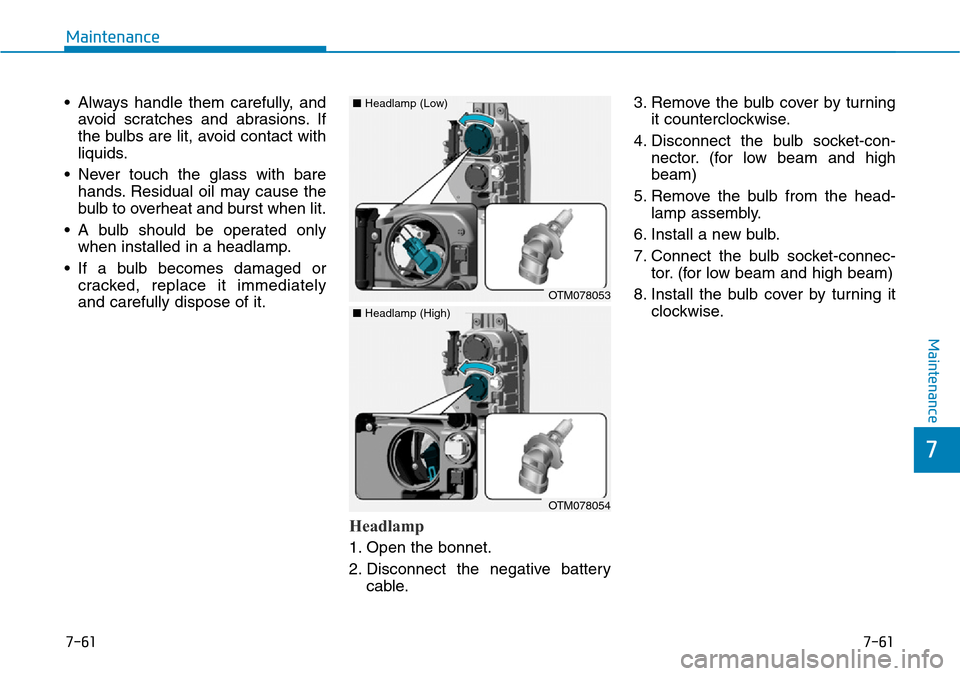

Headlamp
1. Open the bonnet.
2. Disconnect the negative battery
cable.3. Remove the bulb cover by turning
it counterclockwise.
4. Disconnect the bulb socket-con-
nector. (for low beam and high
beam)
5. Remove the bulb from the head-
lamp assembly.
6. Install a new bulb.
7. Connect the bulb socket-connec-
tor. (for low beam and high beam)
8. Install the bulb cover by turning it
clockwise.
OTM078053
■Headlamp (Low)
OTM078054
■Headlamp (High)

7-62
Maintenance
7-62
Turn signal lamp
1. Engage the parking brake and dis-
connect the negative battery
cable.
2. Remove wheel guard clips (wheel
guard : 4 pieces, under the front
bumper : 3 pieces).3. Push the wheel guard aside and
remove the bulb socket-connector
by turning it counterclockwise.
4. Remove the bulb from the turn sig-
nal lamp assembly.
5. Install a new bulb.
6. Connect the bulb socket-connec-
tor.
7. Install the wheel guard in the
reverse order.
Daytime running light/position lamp
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by a HYUNDAI autho-
rised repairer.
Type B
(1) Daytime running light
(2) Daytime running light/
Position lamp
(3) Support Headlamp (High/Low)
(4) Headlamp (High/Low)
(5) Turn signal lamp
(6) Front fog lamp (if equipped)
OTM078088L
OTM078059
OTM078055

7-64
Maintenance
4. Remove the bulb-socket from the
housing by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots of the
housing.
5. Install a new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing
and turn the socket clockwise.
Headlamp and front fog lamp
aiming
Headlamp aiming
1. Inflate the tyres to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2. The vehicle should be placed on a
flat floor.
3. Draw vertical lines (Vertical lines
passing through respective head
lamp centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the
screen.4. With the headlamp and battery in
normal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right,
turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,
turn the driver clockwise or coun-
terclockwise.
■Halogen type■LED type
OTM078065L/OTM078066L

7-65
7
Maintenance

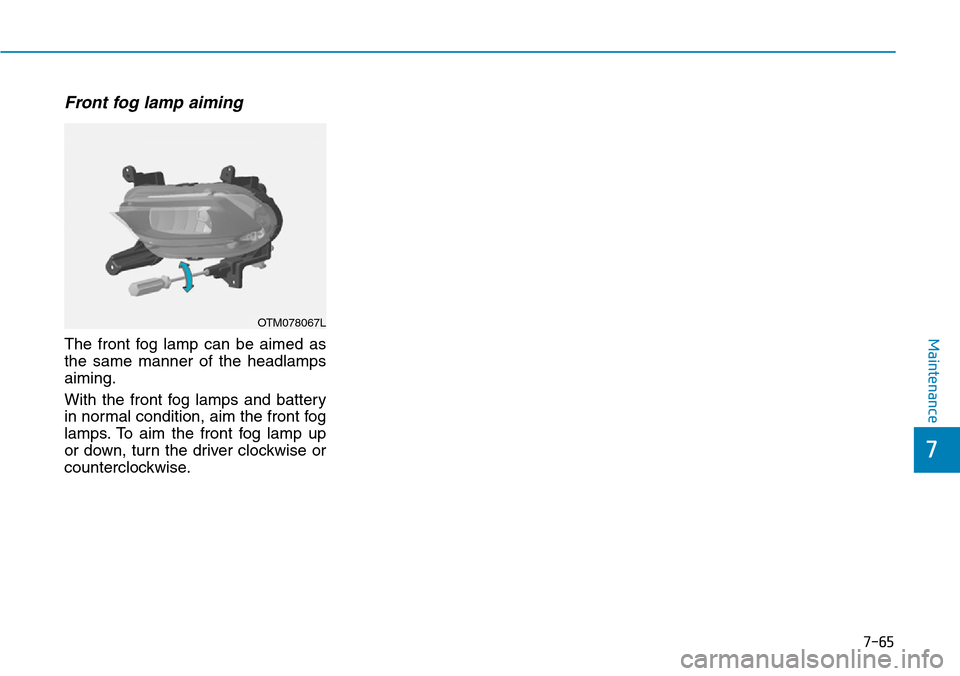

Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the headlamps
aiming.
With the front fog lamps and battery
in normal condition, aim the front fog
lamps. To aim the front fog lamp up
or down, turn the driver clockwise or
counterclockwise.
OTM078067L

7-70
Maintenance
Stop/Tail lamp (Type A)
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the lamp assembly retaining
screws with a cross-tip screwdriver.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
8. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
9. Reinstall the lamp assembly to the
body of the vehicle.
Tail lamp (Type A)
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a
flat-blade screwdriver.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
OTM078008OTM078052OTM078009
