Page 37 of 599
H37
Check Hybrid system.Turn off engine
This message is displayed when
there is a problem with the hybrid
system. The " " indicator will blink
and a warning chime will sound until
the problem is solved.
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
Check Hybrid system.Do not start engine
This message is displayed when the
hybrid battery power (SOC) level is
low. A warning chime will sound until
the problem is solved.
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
Stop vehicle and check powersupply
This message is displayed when a
failure occurs in the power supply
system.
In this case, park the vehicle in a
safe location and we recommend
that you tow your vehicle to the near-
est HYUNDAI authorised repairer
and have the vehicle inspected.
OLFH044228LOLFH044240LOLFH044230L
Page 39 of 599
H39
Stop vehicle and check brakes
This message is displayed when a
failure occurs in the brake system.
In this case, park the vehicle in a
safe location and we recommend
that you tow your vehicle to the near-
est HYUNDAI authorised repairer
and have the vehicle inspected.
Check brakes
This message is displayed when the
brake performance is low or the
regenerative brake does not work
properly due to a failure in the brake
system.
In this case, it may take longer for the
brake pedal to operate and the brak-
ing distance may become longer.
Check Virtual Engine SoundSystem
This message is displayed when
there is a problem with the Virtual
Engine Sound System (VESS).
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
OLFH044234LOLFH044250L
OLFH044543L
Page 69 of 599
1-3
Your vehicle at a glance
E
EX
X T
TE
ER
R I
IO
O R
R
O
O V
VE
ER
R V
V I
IE
E W
W
(
( I
II
I)
)
-
-
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E
1
1. Antenna ................................................4-2
2. Doors ..................................................3-12
3. Fuel filler door.....................................3-38
4. Parking distance warning
(Reverse/Forward) system/ ..............3-124
Parking distance warning (Reverse)
system ..............................................3-122
5. Rear combination lamp ......................7-62
6. High mounted stop lamp ....................7-67
7. Rear view monitor ............................3-121
8. Tailgate ...............................................3-37
9. Towing hook .......................................6-44
OAE016002
■ Rear view
The actual shape may differ from the illustration.
Page 74 of 599
1-8
Your vehicle at a glance
E
EX
X T
TE
ER
R I
IO
O R
R
O
O V
VE
ER
R V
V I
IE
E W
W
(
( I
II
I)
)
-
-
P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E

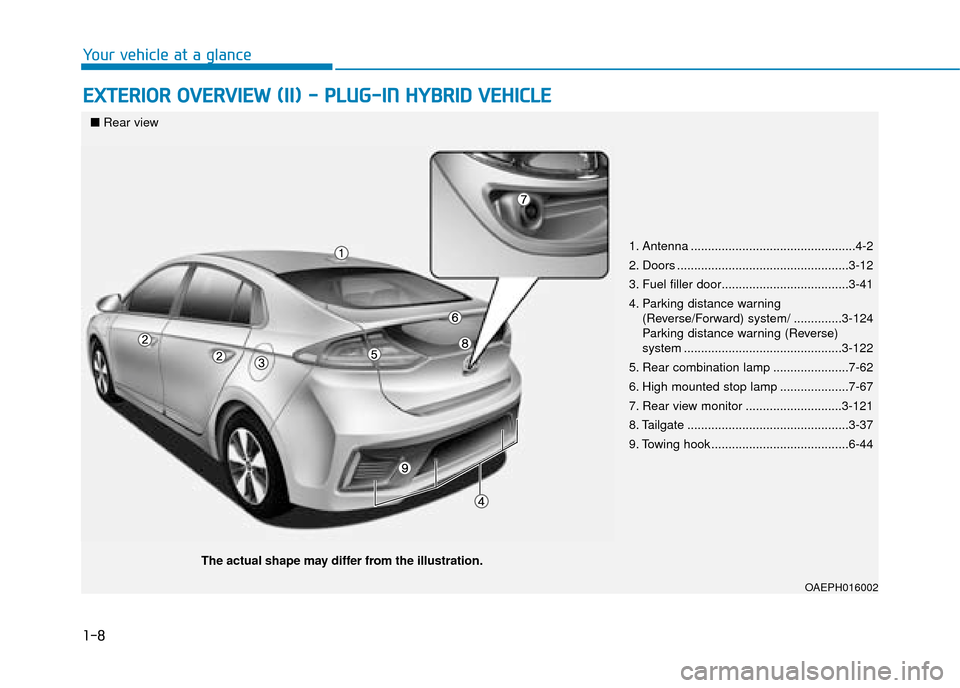

1. Antenna ................................................4-2
2. Doors ..................................................3-12
3. Fuel filler door.....................................3-41
4. Parking distance warning
(Reverse/Forward) system/ ..............3-124
Parking distance warning (Reverse)
system ..............................................3-122
5. Rear combination lamp ......................7-62
6. High mounted stop lamp ....................7-67
7. Rear view monitor ............................3-121
8. Tailgate ...............................................3-37
9. Towing hook ........................................6-44
OAEPH016002
■ Rear view
The actual shape may differ from the illustration.
Page 90 of 599
2-13
Safety system of your vehicle
2

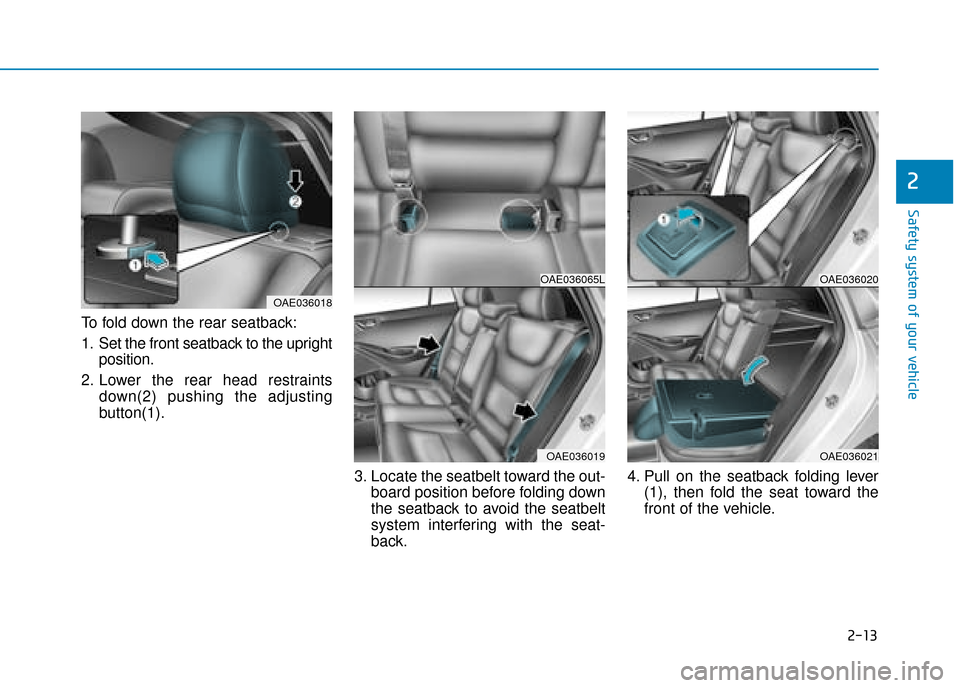

To fold down the rear seatback:
1. Set the front seatback to the uprightposition.
2. Lower the rear head restraints down(2) pushing the adjusting
button(1).
3. Locate the seatbelt toward the out-board position before folding down
the seatback to avoid the seatbelt
system interfering with the seat-
back. 4. Pull on the seatback folding lever
(1), then fold the seat toward the
front of the vehicle.
OAE036018
OAE036065L
OAE036019
OAE036020
OAE036021
Page 94 of 599
2-17
Safety system of your vehicle
2
Forward and rearward adjustment
(if equipped)
The head restraint may be adjusted
forward to 3 different positions by
pulling the head restraint forward to
the desired detent. To adjust the
head restraint to it’s furthest rear-
wards position, pull it fully forward to
the farthest position and release it.If you recline the seatback towards
the front with the head restraint
and seat cushion raised, the head
restraint may come in contact with
the sunvisor or other parts of the
vehicle.
Removal/Reinstall
To remove the head restraint:
1. Recline the seatback (2) with using
the seatback angle lever or switch
(1).
2. Raise the head restraint as far as it can go.
NOTICE
OAE036012R
OAE036011R
■Type A
■Type BOLF034015OAE036009
Page 139 of 599

2-62
Safety system of your vehicle
Why didn’t my air bag go off in
a collision?
There are certain types of accidents
in which the air bag would not be
expected to provide additional protec-
tion. These include rear impacts, sec-
ond or third collisions in multiple
impact accidents, as well as low
speed impacts. Damage to the vehicle
indicates a collision energy absorp-
tion, and is not an indicator of whether
or not an air bag should have inflated.
Air bag collision sensors
To reduce the risk of an air bag
deploying unexpectedly and
causing serious injury or death:
Do not hit or allow any objects to
impact the locations where air
bags or sensors are installed.
Do not perform maintenance
on or around the air bag sen-
sors. If the location or angle of
the sensors is altered, the air
bags may deploy when they
should not or may not deploy
when they should.
Do not install bumper guards or replace the bumper with a
non-genuine part. This may
adversely affect the collision
and air bag deployment per-
formance.
(Continued)
WARNING
(Continued)
Place the ignition switch to
the LOCK/OFF or ACC posi-
tion, when the vehicle is being
towed to prevent inadvertent
air bag deployment.
We recommend that all air bag
repairs are conducted by a
HYUNDAI authorised repairer.
Page 155 of 599

3-9
Convenient features of your vehicle
Start-up
You can start the engine without
inserting the key.For detailed infor-
mation refer to the Engine
Start/Stop button in chapter 5.
To prevent damaging the smart
key:
Keep the smart key away from water or any liquid and fire. If the
inside of the smart key gets
damp (due to drinks or moisture),
or is heated, internal circuit may
malfunction and may void the
vehicle warranty.
Avoid dropping or throwing the smart key.
Protect the smart key from extreme temperatures.
Always have the smart key with
you when leaving the vehicle. If
the smart key is left near the vehi-
cle, the vehicle battery may be dis-
charged.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
Press and hold the release button (1)
and remove the mechanical key (2).
Insert the mechanical key into the
key hole on the door.
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
Loss of a smart key
A maximum of two smart keys can
be registered to a single vehicle. If
you happen to lose your smart key, it
is recommended that you should
immediately take the vehicle and
remaining key to your HYUNDAI
authorised repairer or tow the vehi-
cle, if necessary.
NOTICE
NOTICE3
OAE046034L
