3-60
Convenient features of your vehicle

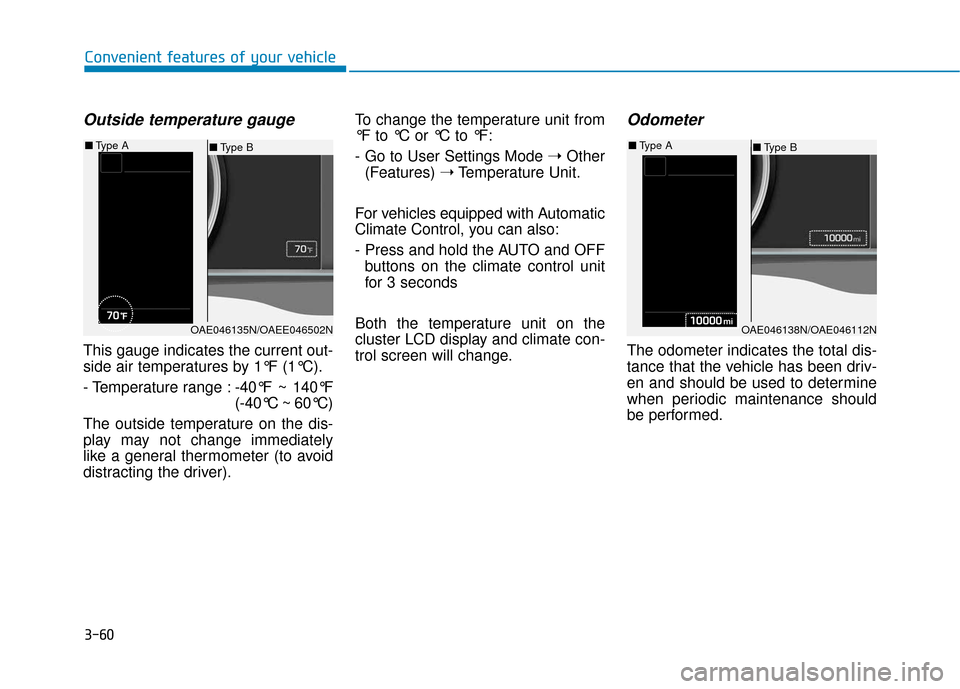

Outside temperature gauge
This gauge indicates the current out-
side air temperatures by 1°F (1°C).
- Temperature range :-40°F ~ 140°F
(-40°C ~ 60°C)
The outside temperature on the dis-
play may not change immediately
like a general thermometer (to avoid
distracting the driver). To change the temperature unit from
°F to °C or °C to °F:
- Go to User Settings Mode
➝Other
(Features) ➝Temperature Unit.
For vehicles equipped with Automatic
Climate Control, you can also:
- Press and hold the AUTO and OFF buttons on the climate control unit
for 3 seconds
Both the temperature unit on the
cluster LCD display and climate con-
trol screen will change.
Odometer
The odometer indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
OAE046135N/OAEE046502N
■ Type B
■
Type A
OAE046138N/OAE046112N
■Type B
■
Type A

3-65
Convenient features of your vehicle

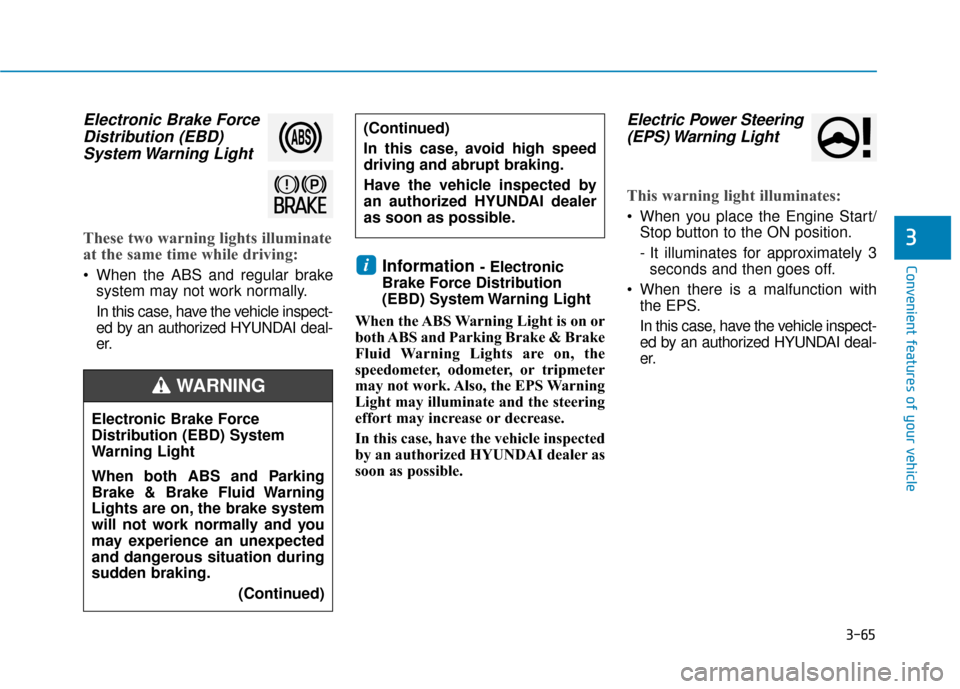

Electronic Brake ForceDistribution (EBD)System Warning Light
These two warning lights illuminate
at the same time while driving:
When the ABS and regular brake
system may not work normally.
In this case, have the vehicle inspect-
ed by an authorized HYUNDAI deal-
er.Information - Electronic
Brake Force Distribution
(EBD) System Warning Light
When the ABS Warning Light is on or
both ABS and Parking Brake & Brake
Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the EPS Warning
Light may illuminate and the steering
effort may increase or decrease.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Electric Power Steering (EPS) Warning Light
This warning light illuminates:
When you place the Engine Start/
Stop button to the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the EPS.
In this case, have the vehicle inspect-
ed by an authorized HYUNDAI deal-
er.
i
3
Electronic Brake Force
Distribution (EBD) System
Warning Light
When both ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking.
(Continued)
WARNING
(Continued)
In this case, avoid high speed
driving and abrupt braking.
Have the vehicle inspected by
an authorized HYUNDAI dealer
as soon as possible.

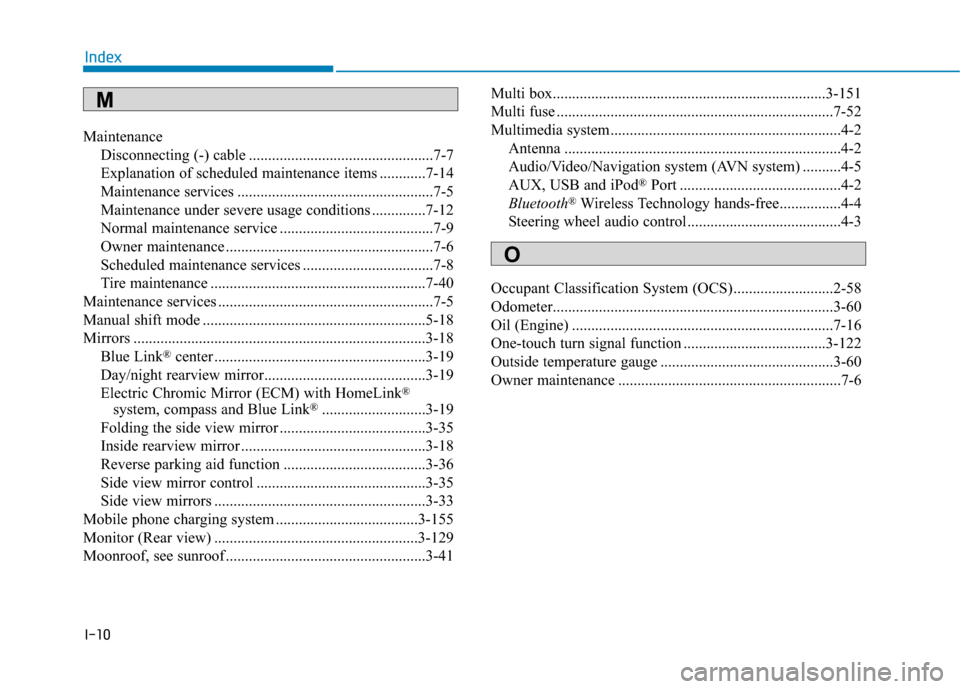

I-10
MaintenanceDisconnecting (-) cable ................................................7-7
Explanation of scheduled maintenance items ............7-14
Maintenance services ...................................................7-5
Maintenance under severe usage conditions ..............7-12
Normal maintenance service ........................................7-9
Owner maintenance ......................................................7-6
Scheduled maintenance services ..................................7-8
Tire maintenance ........................................................7-40
Maintenance services ........................................................7-5
Manual shift mode ..........................................................5-18
Mirrors ........................................................................\
....3-18 Blue Link
®center .......................................................3-19
Day/night rearview mirror..........................................3-19
Electric Chromic Mirror (ECM) with HomeLink
®
system, compass and Blue Link®...........................3-19
Folding the side view mirror ......................................3-35
Inside rearview mirror ................................................3-18
Reverse parking aid function .....................................3-36
Side view mirror control ............................................3-35
Side view mirrors .......................................................3-33
Mobile phone charging system .....................................3-155
Monitor (Rear view) .....................................................3-129
Moonroof, see sunroof ....................................................3-41 Multi box.......................................................................3\
-151
Multi fuse ........................................................................\
7-52
Multimedia system............................................................4-2
Antenna ........................................................................\
4-2
Audio/Video/Navigation system (AVN system) ..........4-5
AUX, USB and iPod
®Port ..........................................4-2
Bluetooth®Wireless Technology hands-free................4-4
Steering wheel audio control........................................4-3
Occupant Classification System (OCS)..........................2-58
Odometer........................................................................\
.3-60
Oil (Engine) ....................................................................7-16\
One-touch turn signal function .....................................3-122
Outside temperature gauge .............................................3-60
Owner maintenance ..........................................................7-6
Index
O
M
