2019 HONDA RIDGELINE Owner's Manual (in English)

607Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

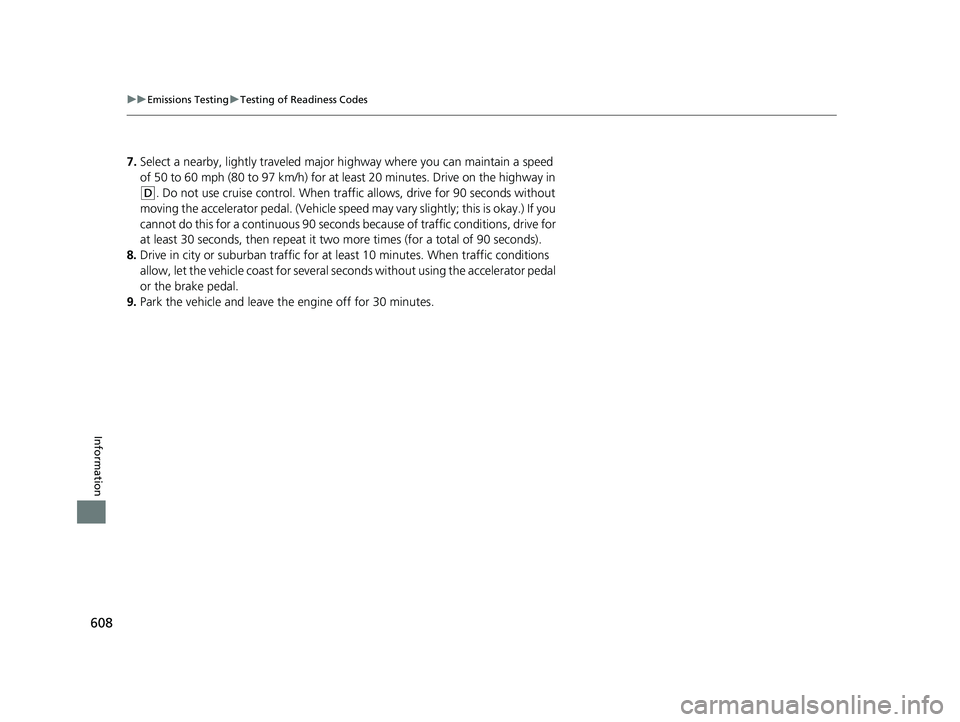

608
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

609Continued
Information

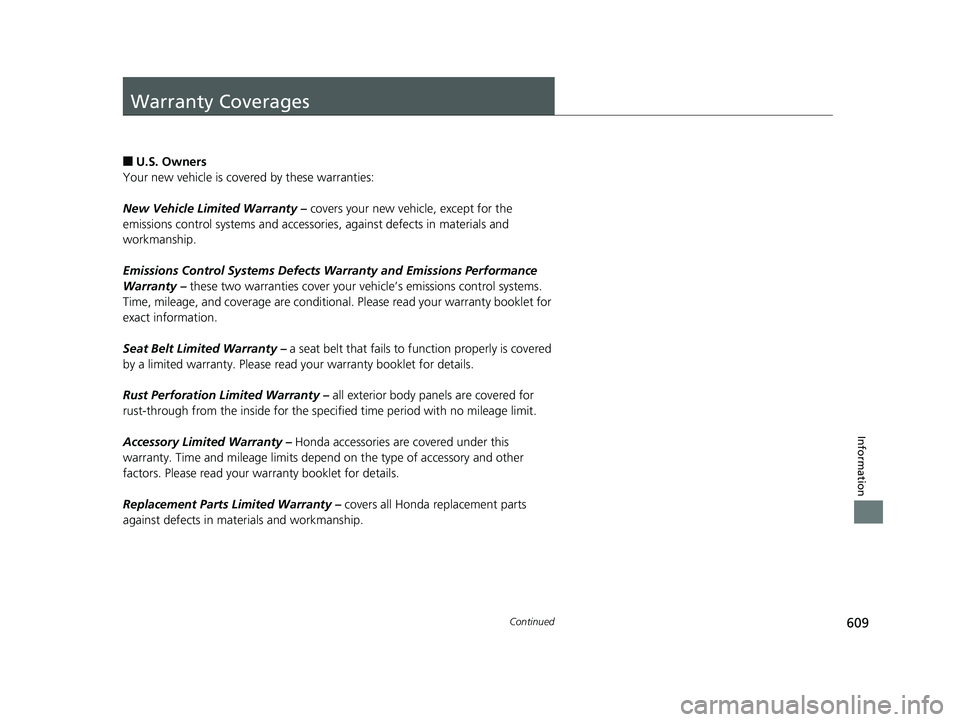

Warranty Coverages
■U.S. Owners
Your new vehicle is cove red by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside fo r the specified time period with no mileage limit.
Accessory Limite d Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.

610
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]

611
Information

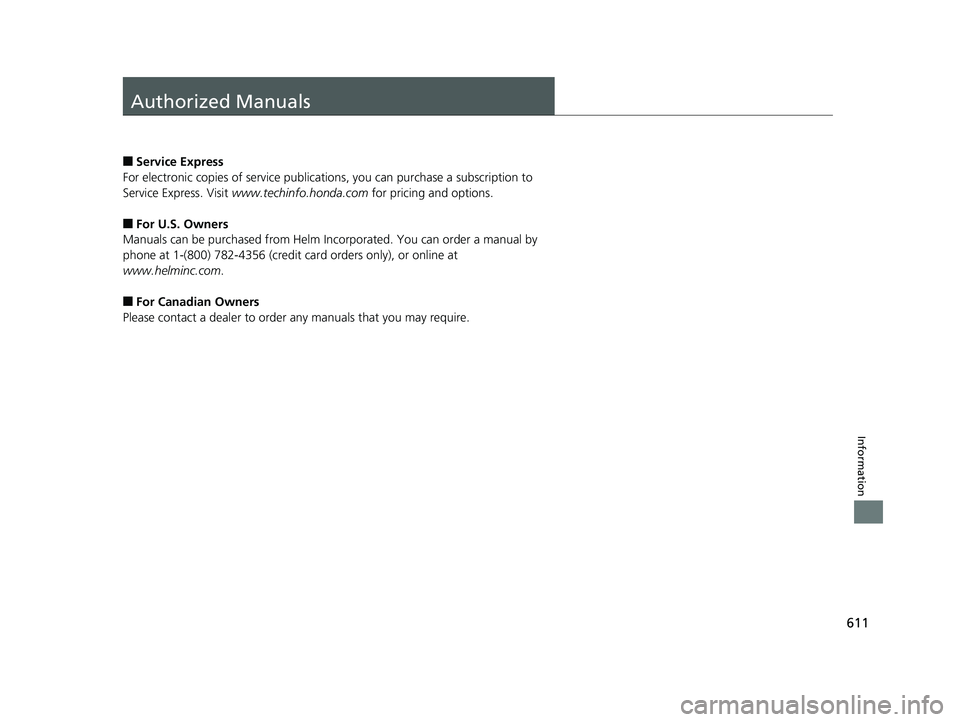

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1-(800) 782-4356 (credit card orders only), or online at
www.helminc.com .
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.

612
Information

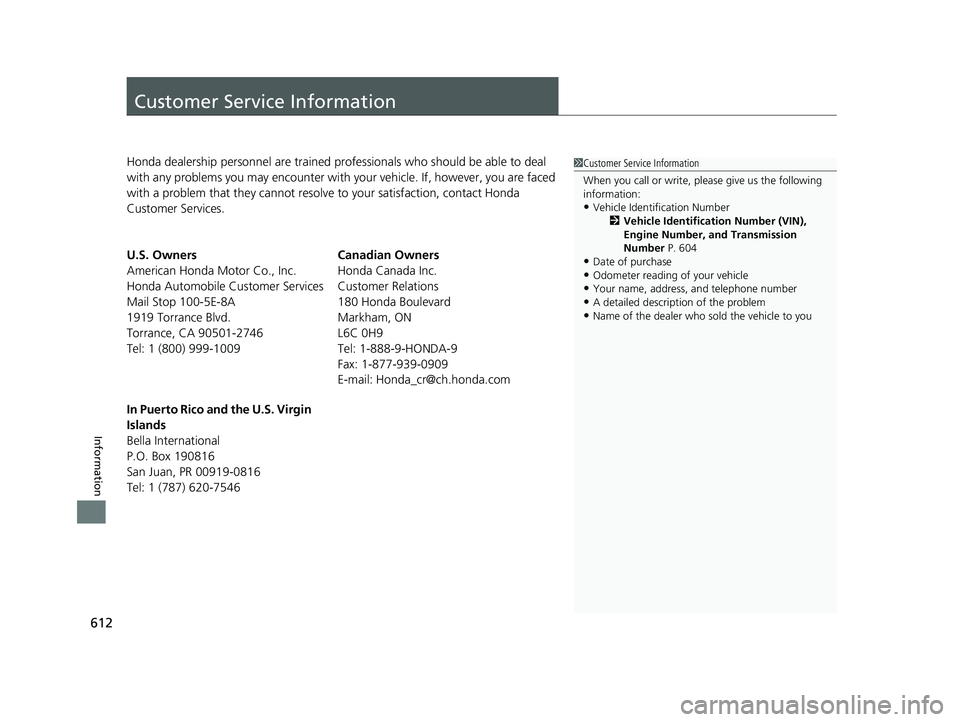

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 604
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you

Index
613
Index
Index
A
ABS (Anti-lock Brake System).................. 492
AC Power Outlet ...................................... 184
Accessories and Modifications ................ 565
Accessory Power Sockets ......................... 177
Adaptive Cruise Control (ACC) ................ 457
Indicator ................................................... 85
Additives
Coolant .................................................. 535
Engine Oil ............................................... 530
Washer ................................................... 538
Adjusting Armrest .................................................. 170
Front Seats.............................................. 163
Head Restraints ............................... 168, 169
Mirrors.................................................... 161
Rear Seats ............................................... 166
Steering Wheel ....................................... 160
Temperature ........................................... 106
Agile Handling Assist ............................... 480
Air Conditioning System (Climate Control System) ....................... 188
Changing the Mode................................ 189
Defrosting the Windshield and Windows .............................................. 189
Dust and Pollen Filter .............................. 558
Recirculation/Fresh Air Mode................... 189
Sensor .................................................... 194
Synchronized Mode ................................ 191
Using Automatic Climate Control............ 188 Air Conditioning System
(Heating and Cooling System) ............... 195
Cooling ................................................... 197
Defrosting the Windshield and Windows ............................................... 198
Heating ................................................... 196
Air Pressure ....................................... 548, 603
Airbags ........................................................ 42
Advanced Airbags ..................................... 48
After a Collision ......................................... 46
Airbag Care ............................................... 54
Front Airbags (SRS) .................................... 45
Indicator .............................................. 52, 77
Passenger Airbag Off Indicator .................. 53
Sensors ...................................................... 42
Side Airbags .............................................. 49
Side Curtain Airbags .................................. 51
All-wheel drive (AWD) Indicator ............... 83
AM/FM Radio .................................... 214, 250
Android Auto ............................................ 290
Anti-lock Brake System (ABS) .................. 492
Indicator .................................................... 77
Apple CarPlay ........................................... 287
Armrest ..................................................... 170
Audio Remote Controls ............................ 205
Audio System ............................................ 200
Adjusting the Sound ........................ 212, 243
Audio/Information Screen ................ 208, 226
Auxiliary Input Jack .................................. 203
Changing the Home Screen Icon Layout ................................................... 230 Closing Apps ........................................... 240
Display Setup .................................. 213, 244
Error Messages ........................................ 295
General Information ................................ 299
Home Screen........................................... 233
Limitations for Manual Operation ............ 245
MP3/WMA/AAC ...................... 219, 262, 274
Playing a CD............................................ 262
Reactivating ............................................ 204
Recommended CDs ................................. 300
Remote Controls ..................................... 205
Security Code .......................................... 204
Selecting an Audio Source ....................... 245
Status Area ............................................. 239
Theft Protection ...................................... 204
USB Flash Drives ...................................... 302
USB Port.................................................. 201
Wallpaper Setup.............................. 210, 231
Audio/Information Screen ............... 208, 226
Authorized Manuals ................................ 611
Auto Door Locking/Unlocking ................. 124
Customize ............................................... 341
Auto High-Beam ....................................... 151
Auto high-beam Indicator ......................... 81
Automatic Intermittent Wipers ............... 155
Automatic Lighting .................................. 147

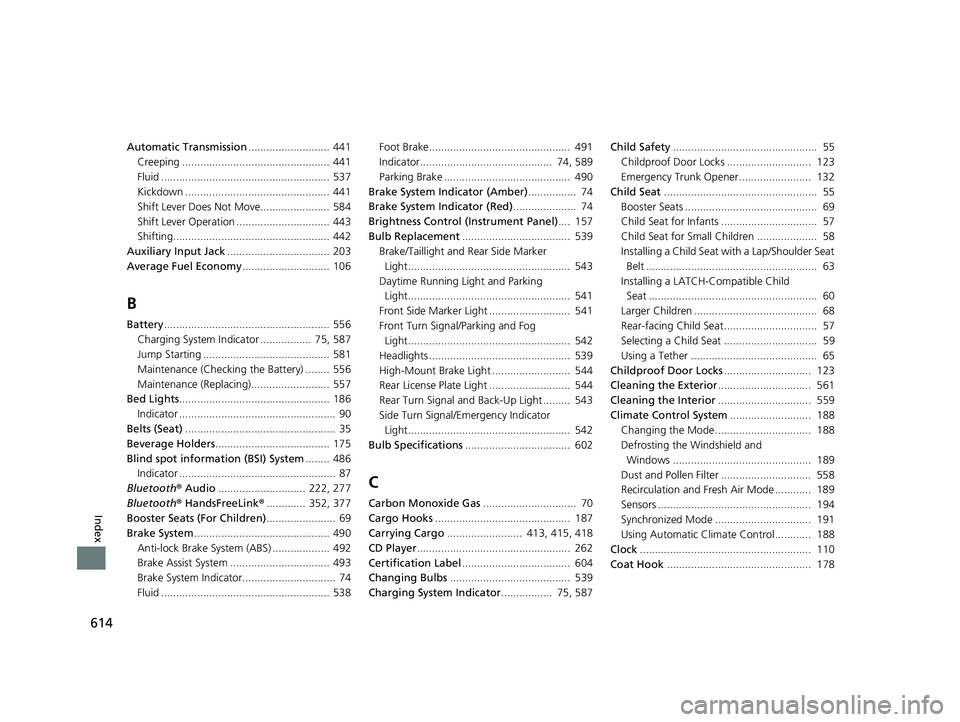

614
Index
Automatic Transmission........................... 441
Creeping ................................................. 441
Fluid ........................................................ 537
Kickdown ................................................ 441
Shift Lever Does Not Move....................... 584
Shift Lever Operation ............................... 443
Shifting.................................................... 442
Auxiliary Input Jack .................................. 203
Average Fuel Economy ............................. 106
B
Battery....................................................... 556
Charging System Indicator ................. 75, 587
Jump Starting .......................................... 581
Maintenance (Checking the Battery) ........ 556
Maintenance (Replacing).......................... 557
Bed Lights .................................................. 186
Indicator .................................................... 90
Belts (Seat) .................................................. 35
Beverage Holders ...................................... 175
Blind spot information (BSI) System ........ 486
Indicator .................................................... 87
Bluetooth ® Audio ............................. 222, 277
Bluetooth ® HandsFreeLink ®............. 352, 377
Booster Seats (For Children) ....................... 69
Brake System ............................................. 490
Anti-lock Brake System (ABS) ................... 492
Brake Assist System ................................. 493
Brake System Indicator............................... 74
Fluid ........................................................ 538 Foot Brake............................................... 491
Indicator............................................ 74, 589
Parking Brake .......................................... 490
Brake System Indicator (Amber) ................ 74
Brake System Indicator (Red) ..................... 74
Brightness Control (Instrument Panel).... 157
Bulb Replacement .................................... 539
Brake/Taillight and Rear Side Marker
Light...................................................... 543
Daytime Running Light and Parking
Light...................................................... 541
Front Side Marker Light ........................... 541
Front Turn Signal/Parking and Fog Light...................................................... 542
Headlights ............................................... 539
High-Mount Brake Light .......................... 544
Rear License Plate Light ........................... 544
Rear Turn Signal and Back-Up Light ......... 543
Side Turn Signal/Emergency Indicator Light...................................................... 542
Bulb Specifications ................................... 602
C
Carbon Monoxide Gas ............................... 70
Cargo Hooks ............................................. 187
Carrying Cargo ......................... 413, 415, 418
CD Player ................................................... 262
Certification Label .................................... 604
Changing Bulbs ........................................ 539
Charging System Indicator ................. 75, 587Child Safety
................................................ 55
Childproof Door Locks ............................ 123
Emergency Trunk Opener........................ 132
Child Seat ................................................... 55
Booster Seats ............................................ 69
Child Seat for Infants ................................ 57
Child Seat for Small Children .................... 58
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 63
Installing a LATCH-Compatible Child Seat ........................................................ 60
Larger Children ......................................... 68
Rear-facing Child Seat............................... 57
Selecting a Child Seat ............................... 59
Using a Tether .......................................... 65
Childproof Door Locks ............................. 123
Cleaning the Exterior ............................... 561
Cleaning the Interior ............................... 559
Climate Control System ........................... 188
Changing the Mode................................ 188
Defrosting the Windshield and Windows .............................................. 189
Dust and Pollen Filter .............................. 558
Recirculation and Fresh Air Mode ............ 189
Sensors ................................................... 194
Synchronized Mode ................................ 191
Using Automatic Climate Control............ 188
Clock ......................................................... 110
Coat Hook ................................................ 178
