2019 HONDA PASSPORT Owner's Manual (in English)

647Continued
Information

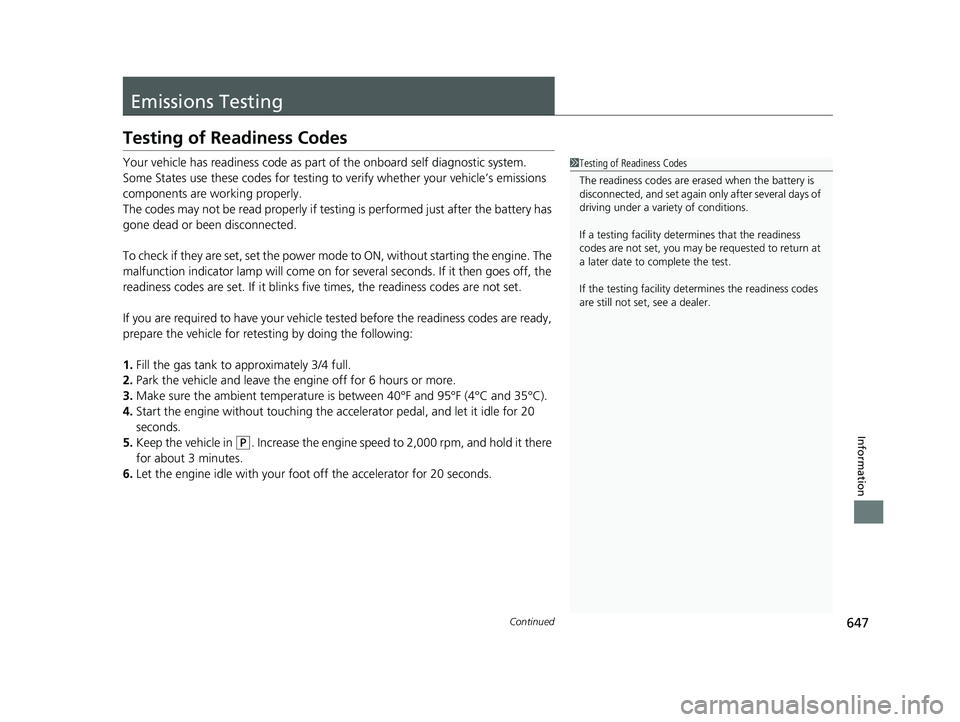

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 PASSPORT-31TGS6020.book 647 ページ ２０２０年２月２０日　木曜日　午後３時２９分

648
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 PASSPORT-31TGS6020.book 648 ページ ２０２０年２月２０日　木曜日　午後３時２９分

649Continued
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
19 PASSPORT-31TGS6020.book 649 ページ ２０２０年２月２０日　木曜日　午後３時２９分

650
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came wi th your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
19 PASSPORT-31TGS6020.book 650 ページ ２０２０年２月２０日　木曜日　午後３時２９分

651
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
19 PASSPORT-31TGS6020.book 651 ページ ２０２０年２月２０日　木曜日　午後３時２９分

652
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 644
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
19 PASSPORT-31TGS6020.book 652 ページ ２０２０年２月２０日　木曜日　午後３時２９分

Index
653
Index
Index
A
AAC........................................... 245, 300, 303
ABS (Anti-lock Brake System) .................. 537
AC Power Outlet ...................................... 206
Accessories and Modifications ................ 607
Accessory Power Sockets ......................... 205
Adaptive Cruise Control (ACC) ................ 505
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 88
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 88
Additives Coolant .................................................. 575
Engine Oil ............................................... 570
Washer ................................................... 578
Additives, Engine Oil ............................... 570
Adjusting
Armrest .................................................. 197
Front Seats.............................................. 188
Head Restraints ............................... 194, 195
Mirrors.................................................... 186
Rear Seats ............................................... 192
Steering Wheel ....................................... 185
Agile Handling Assist ............................... 479
Air Conditioning System
(Climate Control System) ....................... 217
Changing the Mode................................ 217
Defrosting the Windshield and
Windows .............................................. 218
Dust and Pollen Filter .............................. 601
Recirculation/Fresh Air Mode................... 218 Sensor ..................................................... 223
Synchronization Mode ............................. 220
Using Automatic Climate Control ............ 217
Air Pressure ....................................... 589, 643
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 55, 80
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 45
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
All-wheel drive (AWD) Indicator ............... 85
AM/FM Radio .................................... 240, 283
Android Auto ............................................ 323
Anti-lock Brake System (ABS) .................. 537
Indicator .................................................... 79
Apple CarPlay ........................................... 320
Armrest ..................................................... 197
Audio Remote Controls ............................ 230
Audio System ............................ 226, 233, 251
Adjusting the Sound ........................ 238, 277
AM/FM Radio .................................. 240, 283
Android Auto .......................................... 323
Apple CarPlay .......................................... 320
Audio/Information Screen ................ 234, 252
Auxiliary Input Jack .................................. 228
Changing the Screen Brightness .............. 278 Display Setup .................................. 239, 278
Error Messages ........................................ 327
File Manager ........................................... 271
General Information ................................ 330
HD Subchannel ....................................... 286
Home Screen........................................... 257
HondaLink
®........................................... 312
How to Delete a File ................................ 274
How to Transfer a File ............................. 271
How to Update Wirelessly ....................... 265
How to Update with a USB Device........... 269
iPod ................................................ 242, 297
Limitations for Manual Operation ............ 279
MP3/WMA/AAC ...................... 245, 300, 303
My Honda Music ..................................... 303
Playing AM/FM Radio .............................. 283
Playing Bluetooth ® Audio ................ 248, 307
Playing SiriusXM ® Radio .......................... 287
Playing Social Playlist ............................... 310
Reactivating ............................................ 229
Remote Controls ..................................... 230
Security Code .......................................... 229
Selecting an Audio Source ....................... 279
Siri Eyes Free ........................................... 319
Status Area ............................................. 262
System Updates....................................... 265
Theft Protection ...................................... 229
Updating Apps ........................................ 263
USB Flash Drives

...................... 245, 300, 331
USB Port.................................................. 227
Wallpaper Setup.............................. 236, 255
19 PASSPORT-31TGS6020.book 653 ページ ２０２０年２月２０日　木曜日　午後３時２９分

654
Index
Wi-Fi Connection ..................................... 317
Audio/Information Screen ................ 234, 252
Authorized Manuals ................................. 651
Auto Door Locking/Unlocking ................. 147
Customize ....................................... 125, 373
Auto High-Beam ....................................... 174
Indicator .................................................... 80
Auto Idle Stop ........................................... 468
OFF Button .............................................. 469
Auto Idle Stop Indicator (Amber) .............. 85
Auto Idle Stop Indicator (Green) ............... 85
Automatic Intermittent Wipers ............... 178
Automatic Lighting .................................. 170
Automatic Transmission ........................... 459
Creeping ................................................. 459
Fluid ........................................................ 577
Kickdown ................................................ 459
Operating the Shift Button....................... 462
Shifting.................................................... 460
Auxiliary Input Jack .................................. 228
Average Fuel Economy ............................. 110
B
Back-Up Light............................................ 583
Battery ....................................................... 597
Charging System Indicator ................. 77, 627
Jump Starting .......................................... 622
Maintenance (Checking the Battery) ........ 597
Belts (Seat) .................................................. 37
Beverage Holders ...................................... 203 Blind Spot Information System
................ 480
Bluetooth® Audio............................. 248, 307
Bluetooth® HandsFreeLink ®........... 381, 406
Booster Seats (For Children) ...................... 72
Brake System ............................................ 535
Anti-lock Brake System (ABS)................... 537
Brake Assist System ................................. 538
Fluid ........................................................ 578
Foot Brake............................................... 536
Indicator............................................ 76, 629
Parking Brake .......................................... 535
Brake System (Red) Indicator.................................................. 629
Brightness Control (Instrument Panel) .... 182
Bulb Replacement .................................... 579
Back-Up Lights ........................................ 583
Brake lights ............................................. 582
Daytime Running Lights........................... 580
Fog Lights ............................................... 581
Front Side Marker Lights.......................... 580
Front Turn Signal Lights ........................... 581
Headlights ............................................... 579
High-Mount Brake Light .......................... 583
Parking Lights.......................................... 580
Rear License Plate Lights .......................... 583
Rear Side Marker Lights ........................... 582
Rear Turn Signal Lights ............................ 582
Side Turn Signal/Emergency Indicator
Lights .................................................... 582
Taillights.................................................. 582
Bulb Specifications ................................... 642
C
Car Wash Mode........................................ 464
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 435, 437
Certification Label ................................... 644
Changing Bulbs ........................................ 579
Charging System Indicator ................ 77, 627
Child Safety ................................................ 58
Childproof Door Locks ............................ 146
Child Seat ................................................... 58
Booster Seats ............................................ 72
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 66
Larger Children ......................................... 71
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 604
Cleaning the Interior ............................... 602
Climate Control System ........................... 217
Changing the Mode................................ 217
Defrosting the Windshield and Windows .............................................. 218
Dust and Pollen Filter .............................. 601
Recirculation and Fresh Air Mode ............ 218
Sensors ................................................... 223
Synchronization Mode ............................ 220
Using Automatic Climate Control............ 217
Clock ......................................................... 130
19 PASSPORT-31TGS6020.book 654 ページ ２０２０年２月２０日　木曜日　午後３時２９分
