2019 HONDA HR-V check engine light

Contents
Child Safety P. 64Exhaust Gas Hazard P. 77Safety Labels P. 78
Opening and Closing the Tailgate P. 154 Security System P. 157
Opening and Closing the Moonroof* P. 162
Adjusting the Mirrors P. 185 Adjusting the Seats P. 187
Heating and Cooling System
* P. 209 Climate Control System* P. 213
Audio Error Messages P. 319General Information on the Audio System P. 325
Off-Highway Driving Guidelines P. 424 When Driving P. 426 Honda Sensing®* P. 454
Multi-View Rear Camera P. 505 Refueling P. 507 Fuel Economy and CO
2 Emissions P. 509
Maintenance Under the Hood P. 523 Replacing Light Bulbs P. 535
Checking and Maintaining Tires P. 549 Battery P. 560 Remote Transmitter Care P. 562
Cleaning P. 565 Accessories and Modifications P. 570
Engine Does Not Start P. 585 Jump Starting P. 588 Shift Lever Does Not Move P. 590
Emergency Towing P. 603 When You Cannot Open the Tailgate P. 604
Devices that Emit Radio Waves P. 611 Reporting Safety Defects P. 612
Authorized Manuals P. 617 Customer Service Information P. 618
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 79
ControlsP. 131
FeaturesP. 223
DrivingP. 417
MaintenanceP. 511
Handling the UnexpectedP. 573
InformationP. 607
IndexP. 620
19 HR-V HDMC HDMG-31T7A6300.book 3 ページ ２０１８年６月１日　金曜日　午後１時１４分

27
Quick Reference Guide
Maintenance (P511)
Under the Hood (P523)
● Check engine oil, engine coolant, and window washer fluid.
Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P535)
● Inspect all lights regularly.
Wiper Blades (P545)
● Replace blades if they leave streaks
across the windshield.
Tires (P549)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 27 ページ ２０１８年６月１日　金曜日　午後１時１４分

91
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Smart Entry
System
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on as soon as a problem is
detected in the smart entry system
or push button starting system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
System
Message
Indicator
*
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on along with a beep when
a problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink if you press the hazard
warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 537, 540, 541
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 91 ページ ２０１８年６月１日　金曜日　午後１時１４分

92
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
●If you remove the key from the ignition
switch*, or set the power mode* to
VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
Immobilizer
System
Indicator
●Comes on briefly when you turn
the ignition switch to ON
(w*1,
then goes off.
●Comes on if the immobilizer
system cannot recognize the key
information.
●Blinks -
You cannot start the engine. Turn the
ignition switch to LOCK
(0, pull the key
out, and then insert the key and turn it to
ON
(w again.
You cannot start the engine. Set the
power mode to VEHICLE OFF (LOCK),
then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
Models without smart entry system
Models with smart entry system
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 92 ページ ２０１８年６月１日　金曜日　午後１時１４分

111
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button P. 440
●Appears when approaching a intersection during
route guidance.2Refer to the Navigation System Manual
●Appears when set the power mode to ON while
driving.
2Emergency Engine Stop P. 587
•Appears if there is a pr oblem with the automatic
lighting control system.• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
Models with navigation system
Models with LED headlights
19 HR-V HDMC HDMG-31T7A6300.book 111 ページ ２０１８年６月１日　金曜日　午後１時１４分

418
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, and check for damage and excessive wear.
2 Checking and Maintaining Tires P. 549
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
19 HR-V HDMC HDMG-31T7A6300.book 418 ページ ２０１８年６月１日　金曜日　午後１時１４分

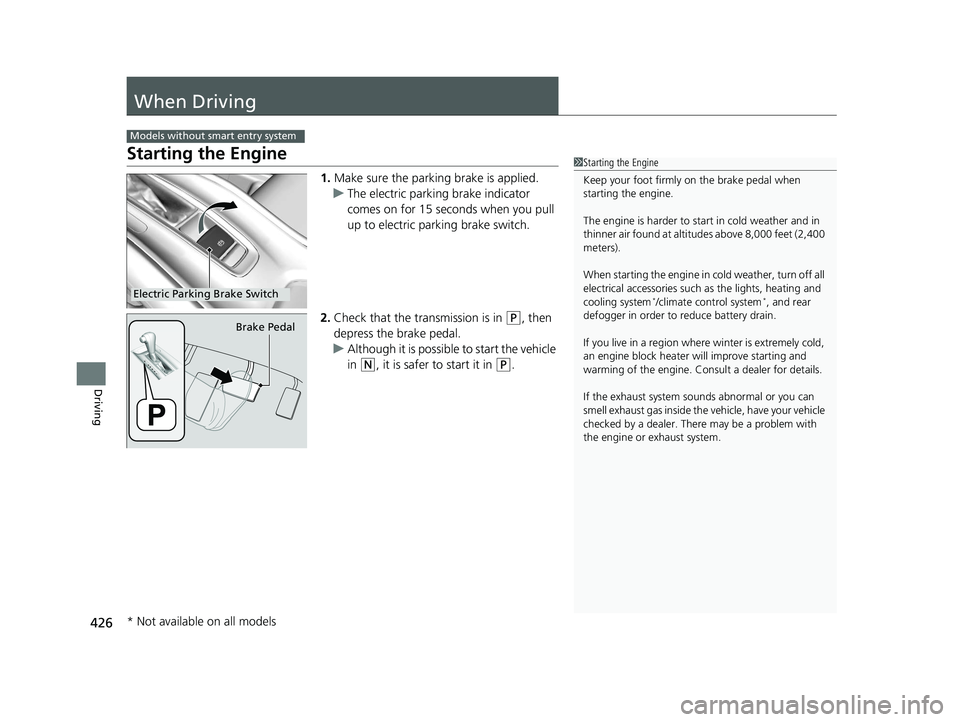

426
Driving
When Driving
Starting the Engine
1.Make sure the parking brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up to electric parking brake switch.
2. Check that the tr ansmission is in
(P, then
depress the brake pedal.
u Although it is possibl e to start the vehicle
in
(N, it is safer to start it in (P.
Models without smart entry system
1 Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, heating and
cooling system
*/climate control system*, and rear
defogger in order to reduce battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.Electric Parking Brake Switch
Brake Pedal
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 426 ページ ２０１８年６月１日　金曜日　午後１時１４分

429
uuWhen Driving uStarting the Engine
Continued
Driving
Starting the Engine
1. Make sure the parkin g brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up to electric parking brake switch.
2. Check that the transmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
Models with smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
The immobilizer system pr otects your vehicle from
theft.If an improperly c oded device is used, the
engine’s fuel system is disabled.
2 Immobilizer System P. 157
Electric Parking Brake Switch
Brake Pedal
19 HR-V HDMC HDMG-31T7A6300.book 429 ページ ２０１８年６月１日　金曜日　午後１時１４分
