2019 HONDA CIVIC COUPE sensor

179
uuAdjusting the Mirrors uInterior Rearview Mirror
Controls
When you are driving after dark, the
automatic dimming rear view mirror reduces
the glare from headligh ts behind you. Press
the auto button to turn this function on and
off. When activated, th e auto indicator comes
on.
Sensor
Auto Button
Models with HomeLink Buttons
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 179 ページ ２０１８年９月４日　火 曜日　午後１時３８分

188

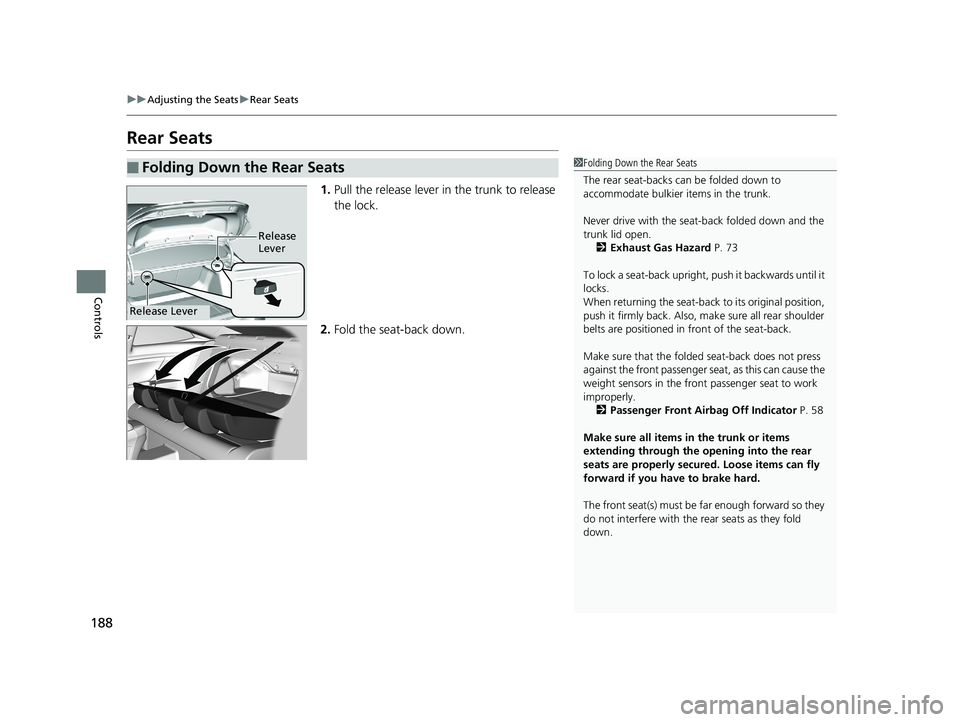

uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open. 2 Exhaust Gas Hazard P. 73
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Front Airbag Off Indicator P. 58
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release
Lever
Release Lever
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 188 ページ ２０１８年９月４日　火 曜日　午後１時３８分

209
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 209 ページ ２０１８年９月４日　火 曜日　午後１時３８分

425
Driving
This chapter discusses driving and refueling.
Before Driving................................... 426
Towing a Trailer ................................ 431
When Driving Starting the Engine .................. 432, 435
Precautions While Driving................. 440
Continuously Variable Transmission*... 441
Shifting ............................ 442, 444, 448
SPORT Mode*.................................. 451
ECON Mode*................................... 452
Adaptive Damper System*............... 453
Cruise Control*................................ 454
Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System .............. 457
Agile Handling Assist ....................... 459
Limited Slip Differential (LSD)*.......... 460Tire Pressure Monitoring System (TPMS) ...... 461Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 464
LaneWatch
TM*.................................. 466
Honda Sensing ®*.............................. 468
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 471
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
*....................... 481
Adaptive Cruise Control (ACC)*....... 497
Lane Keeping Assist System (LKAS) .. 512
Road Departure Mitigation (RDM) System.... 520
Front Sensor Camera ....................... 524
Radar Sensor ................................... 526
Braking Brake System ................................... 527
Anti-lock Brake System (ABS) ........... 533
Brake Assist System ......................... 534
Parking Your Vehicle ........................ 535
Multi-View Rear Camera .................. 537
Refueling ........................................... 539
Fuel Economy and CO
2 Emissions .... 542
Turbo Engine Vehicle*...................... 543
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 425 ページ ２０１８年９月４日　火 曜日　午後１時３８分

428
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 42
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 76
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 428 ページ ２０１８年９月４日　火 曜日　午後１時３８分

468
Driving
Honda Sensing®*
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located in the lower bumper and a front
sensor camera mounted to th e interior side of the windshield, behind the rearview
mirror.
Honda Sensing® has following functions.
■The functions which do not require switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 471
• Road Departure Mitigation (RDM) System 2 P. 520
■The functions wh ich require switch operations to activate
• Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)* 2 P. 481
• Adaptive Cruise Control (ACC)* 2 P. 497
• Lane Keeping Assist System (LKAS) 2 P. 512
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 468 ページ ２０１８年９月４日　火 曜日　午後１時３８分

471
uuHonda Sensing ®*uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It does not prevent collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
When the CMBS
TM activates, the engine may stop
automatically.
Start the engine by normal operation if the engine
stops. 2 Starting the Engine P. 432, 435
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 476
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 524
For directions on the prop er handling of the radar
sensor, refer to the following page.
2 Radar Sensor P. 526
Manual transmission models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 471 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuHonda Sensing ®*uCollision Mitigation Braking SystemTM (CMBSTM)
472
Driving
■How the system works1How the system works
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
The radar sensor is in
the lower bumper.
The camera is located
behind the rearview
mirror.
The system starts monitoring th e roadway ahead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and the system determines
there is a chance of a collision with:
- Vehicles detected in front of you that ar e stationary, oncoming, or traveling in your
same direction.
- A pedestrian who is detected in front of you.
●Your vehicle speed is above 62 mph (100 km/h), and the system determines there
is a chance of a collision with a vehicle detected in front of you traveling in your
same direction.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 472 ページ ２０１８年９月４日　火 曜日　午後１時３８分
