2019 HONDA ACCORD HYBRID sensor

569uu Honda Sensing ® u Front Sensor Camera
Driving
1 Front Sensor Camera
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
• Use the climate control system to cool down the
interior and, if necessary, also use de froster mode
with the airflow directed towards the camera.
• Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
• Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.

570 uu Honda Sensing ® u Radar Sensor
Driving Radar Sensor The radar sensor is at the lower part of the
front bumper.
• Do not change the position of the radar
sensor or any of the surrounding parts.
• Do not apply paint, stickers, or attach non-
genuine accessories to the front part of the
radar sensor or the surrounding area. Be
particularly careful that any custom license
plate frame or other accessory does not
block any part of the radar beam path (see
adjacent illustration). 1 Radar Sensor
Avoid strong impacts to the radar sensor cover.
For the CMBS TM
to work properly:
• Always keep the radar sensor cover clean.
• Never use chemical solvents or polishing powder
for cleaning the sensor cove r. Clean it with water
or a mild detergent.
• Do not put a sticker on th e radar sensor cover or
replace the radar sensor cover.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the syst em by using the safety
support switch and take y our vehicle to a dealer.
2 CMBS TM
On and Off P. 513
If the vehicle is involved in any of the following
situations, the radar sensor may not work properly.
Have your vehicle checked by a dealer:
• Your vehicle is involved in a frontal collision.
• Your vehicle drives th rough deep water or is
submerged in deep water.
• Your vehicle strongly strikes a bump, curb, chock,
or embankment that coul d jar the radar sensor.Radar
Sensor
The radar sensor is
at the lower part of
the front bumper.
Do not apply paint, stickers, or
attach accessories to the front
part of the radar sensor or the
surrounding area.

585uu Parking Your Vehicle u Parking Sensor System *
Continued
Driving
Parking Sensor System *The corner and center sensors monitor ob stacles around your vehicle, and the
beeper, driver information interface and a udio/information screen let you know the
approximate distance between your vehicle and the obstacle.
■ The sensor location and range 1 Parking Sensor System *
Even when the system is on, always confirm if there is
no obstacle near your ve hicle before parking.
The system may not work properly when:
• The sensors are covered with snow, ice, mud or
dirt.
• The vehicle is on uneven su rface, such as grass,
bumps, or a hill.
• The vehicle has been out in hot or cold weather.
• The system is affected by devices that emit
ultrasonic waves.
• Driving in bad weather.
The system may not sense:
• Thin or low objects.
• Sonic-absorptive materials, such as snow, cotton,
or sponge.
• Objects directly under the bumper.
Do not put any accessories on or around the sensors.Within about 24 in (60 cm) or lessFront Corner Sensors
Rear Corner Sensors
Within about 43 in (110 cm) or less Rear Center Sensors
* Not available on all models

uu Parking Your Vehicle u Parking Sensor System *
586
Driving ■ Parking sensor system on and off
With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicato r in the button comes
on when the system is on.
The front corner, rear corner and rear center
sensors start to detect an obstacle when the
transmission is in ( R
, and the vehicle speed is
less than 5 mph (8 km/h).
The front corner sensors start to detect an
obstacle when the transmission is in any
position other than ( P
, and the vehicle speed
is less than 5 mph (8 km/h). 1 Parking Sensor System *
When you set the power mode to ON, the system will
be in the previously selected condition.
* Not available on all models

Continued
587uu Parking Your Vehicle u Parking Sensor System *
Driving
■ Screen Operation
You can switch between split view off and
split view on by touching the split screen tab. 1 Screen Operation
The split screen tab disappears, and the split view
returns to the last camera view mode under the
following conditions:
• If the parking sensor system is turned off.
• If there is a malfunction in the system.
Split Screen
TabSplit View Off
Split View On

588 uu Parking Your Vehicle u Parking Sensor System *

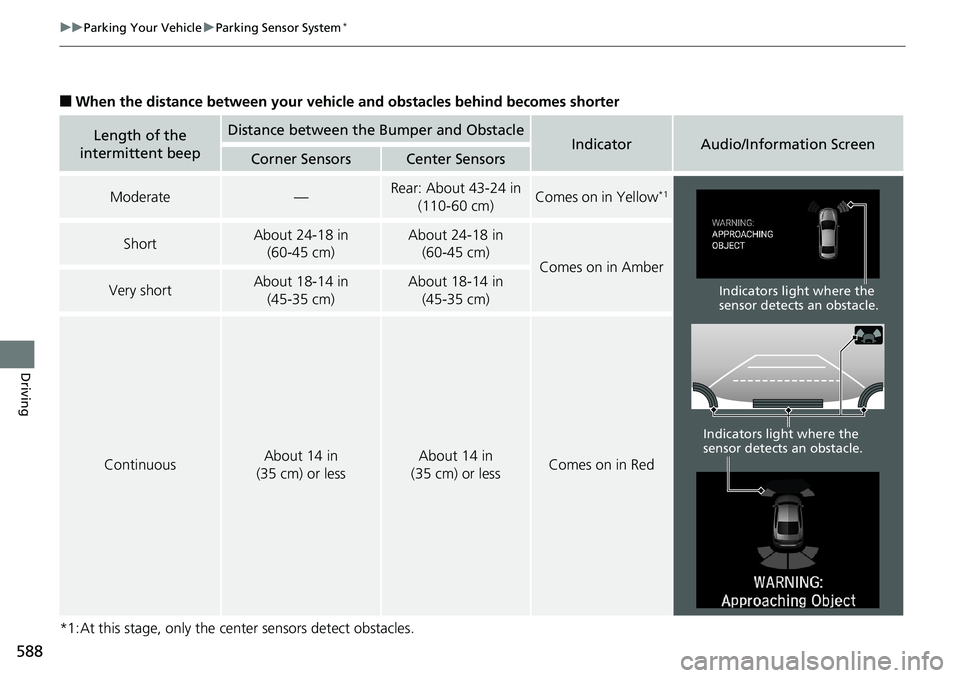

Driving ■ When the distance between your vehicle and obstacles behind becomes shorter
*1:At this stage, only the center sensors detect obstacles. Length of the
intermittent beep Distance between the Bumper and Obstacle
Indicator Audio/Information Screen
Corner Sensors Center Sensors
Moderate — Rear: About 43-24 in
(110-60 cm) Comes on in Yellow *1
Short About 24-18 in
(60-45 cm) About 24-18 in
(60-45 cm)
Comes on in Amber
Very short About 18-14 in
(45-35 cm) About 18-14 in
(45-35 cm)
Continuous About 14 in
(35 cm) or less About 14 in
(35 cm) or less Comes on in Red Indicators light where the
sensor detects an obstacle.
Indicators light where the
sensor detects an obstacle.

589uu Parking Your Vehicle u Parking Sensor System *
Driving
1. Make sure that the parking sensor system is not activated. Set the power mode to
VEHICLE OFF.
2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for ten seconds. Release the button when the indicator
in the button blinks.
u The beeper sounds once.
4. Press the button again. The indi cator in the button goes off.
u The beeper sounds twice. The rear sensors are now turned off.
To turn the rear sensors on again, follo w the above procedure. The beeper sounds
three times when the rear sensors come back on.■ Turning off All Rear Sensors 1 Turning off All Rear Sensors
When you put the transmission into ( R
, the indicator
in the parking sensor system button blinks as a
reminder that the rear sens ors have been turned off.

590 uu Parking Your Vehicle u Cross Traffic Monitor *
Driving Cross Traffic Monitor *Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space. 1 Cross Traffic Monitor *
The parking sensor system’s alerting buzze r overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.3
CAUTION Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing. Models with parking sensor system
* Not available on all models
