2019 FIAT FIORINO display

WARNING
38)During regeneration, the fan could be operated.
39)The driving speed must always be suitable for traffic and weather conditions and the driver must always comply with the Highway Code.
The engine may be stopped if the DPF light is on; however, repeated interruption of the regeneration process may result in premature
deterioration of the engine oil. For this reason, always wait until the warning light switches off before stopping the engine as described above.
It is not advisable to complete DPF regeneration with the vehicle stationary.
WARNING
10)If, when the ignition key is turned to MAR, thewarning light does not switch on, switches on constantly or flashes when driving (on
certain versions together with the message on the display), contact a Fiat Dealership as soon as possible. The operation of thewarning
light may be checked by the traffic police using specific devices. Comply with the laws and regulations of the country where you are driving.
11)The presence of water in the fuel supply circuit may cause severe damage to the injection system and irregular engine operation. If the
warning light comes on (on some versions along with a message on the display), contact a Fiat Dealership as soon as possible to have
the system bled. If the above indication occurs immediately after refuelling, water may have entered the tank: turn the engine off immediately
and contact a Fiat Dealership.
65

Green warning lights
What it means What to do
greenSIDE LIGHTS - FOLLOW ME HOME
Side lights
The warning light switches on when the side lights are
activated.
Follow Me Home
The warning light will turn on when this device is active
(see the “Follow me home device” paragraph in the
“Know your vehicle” section). The display shows the
dedicated message.
greenLEFT-HAND DIRECTION INDICATOR (blinking)
The warning light switches on when the direction
indicator control stalk is moved downwards or,
together with the right direction indicator, when the
hazard warning light button is pressed.
greenRIGHT-HAND DIRECTION INDICATOR (blinking)
The warning light switches on when the direction
indicator control stalk is moved upwards or, together
with the left direction indicator, when the hazard
warning light button is pressed.
greenFOG LIGHTS
The warning light comes on when the front fog lights
are turned on.
66
KNOWING THE INSTRUMENT PANEL

What it means What to do
greenCRUISE CONTROL
The warning light turns on together with the message
on the display when turning the knurled ring of the
Cruise Control to ON.
Blue warning lights
What it means What to do
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main beam
headlights are turned on.
67

MESSAGES ON THE DISPLAY
What it means What to do
GEAR SHIFT INDICATION
(for versions/markets, where provided)
On vehicles with a manual transmission, the gear shift
indicator suggests gear changes to the driver (SHIFT
UP or SHIFT DOWN) via a special display on the
instrument panel. This suggestion to change gear is
designed to improve consumption and ensure the best
driving style.
NOTE The indication in the instrument panel remains
on until the driver shifts gear or the driving conditions
go back to a situation where gearshifting is not
required to improve consumption.
START&STOP SYSTEM ACTIVATION
The symbol lights up on the display when the engine is
stopped automatically (for versions/markets, where
provided).
68
KNOWING THE INSTRUMENT PANEL

What it means What to do
LOW DIESEL EMISSIONS ADDITIVE (UREA) LEVEL
WARNING
When low UREA level is detected, a text message will
appear on the instrument panel display, together with
the symbol
to indicate that UREA must be topped
up.
The symbol
stays on until the tank is topped up with
at least 5 litres of UREA.
If you do not top up, a specific message will appear on
the instrument panel display whenever a certain
threshold is reached until it will no longer be possible
to start the engine.
A message appears continuously on the display when
the residual range is approximately 200 km
accompanied by an auditory indication.
When the residual range is 0 km, a specific message
will appear on the display (for versions/markets, where
provided). It will no longer be possible to restart the
engine after it has been stopped.
It will be possible to restart the engine after pouring at
least 5 litres of UREA in the tank.
40)
Top up the UREA tank as soon as possible with at
least 5 litres of UREA. If topping up is done with
remaining range of UREA in the tank equal to zero, you
may need to wait 2 minutes before starting the vehicle.
CNG SYSTEM FAILURE
All Methane fuel levels disappear on the display and
the symbol appears with a dedicated message.In this case, contact the Fiat Service Network as soon
as possible.
FIAT CODE SYSTEM FAILURE
The symbol switches on or blinks to indicate a failure
or fault of the Fiat CODE system.Contact a Fiat Dealership as soon as possible.
69

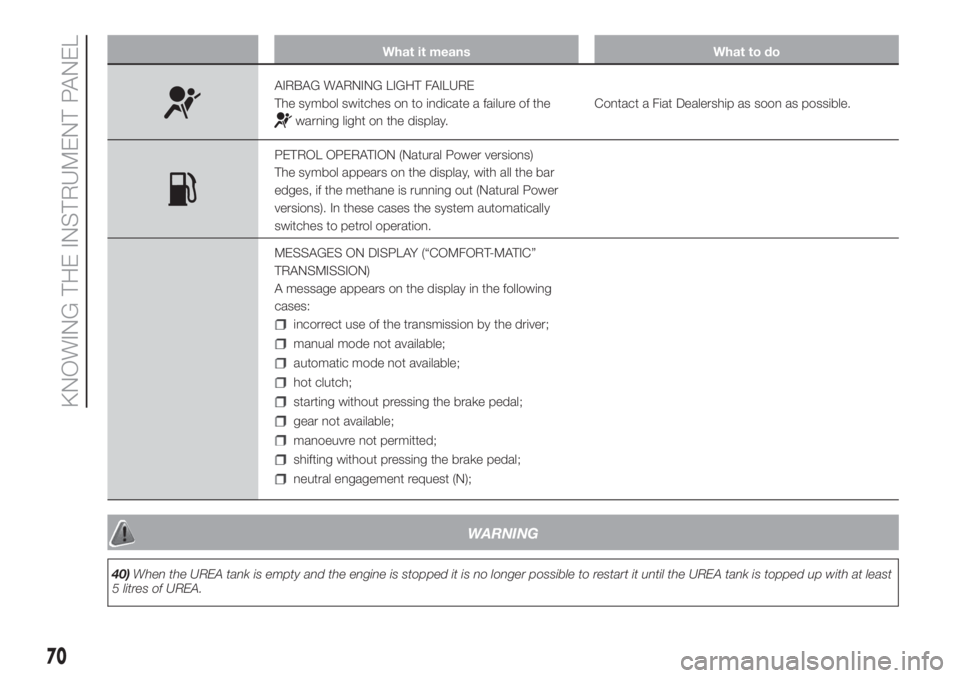

What it means What to do
AIRBAG WARNING LIGHT FAILURE
The symbol switches on to indicate a failure of the
warning light on the display.Contact a Fiat Dealership as soon as possible.
PETROL OPERATION (Natural Power versions)
The symbol appears on the display, with all the bar
edges, if the methane is running out (Natural Power
versions). In these cases the system automatically
switches to petrol operation.
MESSAGES ON DISPLAY (“COMFORT-MATIC”
TRANSMISSION)
A message appears on the display in the following
cases:
incorrect use of the transmission by the driver;
manual mode not available;
automatic mode not available;
hot clutch;
starting without pressing the brake pedal;
gear not available;
manoeuvre not permitted;
shifting without pressing the brake pedal;
neutral engagement request (N);
WARNING
40)When the UREA tank is empty and the engine is stopped it is no longer possible to restart it until the UREA tank is topped up with at least
5 litres of UREA.
70
KNOWING THE INSTRUMENT PANEL

ABS SYSTEM
This is an integral part of the braking
system, which prevents one or more
wheels from locking and slipping
regardless of the road surface
conditions and braking intensity,
ensuring control of the vehicle even
during emergency braking.
The Electronic Braking Force
Distribution (EBD) system completes
the system allowing the brake force to
be distributed between the front and
rear wheels.
IMPORTANT To obtain the maximum
efficiency of the braking system, a
bedding-in period of about 500 km is
needed: during this period it is better to
avoid sharp, repeated and prolonged
braking.
SYSTEM INTERVENTION
The driver can feel that the ABS has
come into action because the brake
pedal pulsates slightly and the system
gets noisier: it means that the vehicle
speed should be altered to suit the type
of road surface.MECHANICAL BRAKE
ASSIST
(for versions/markets, where provided)
This system (which cannot be
deactivated) recognises emergency
braking conditions according to the
speed of operation of the brake pedal
and provides an additional hydraulic
braking pressure to support that
provided by the driver. This allows
faster and more powerful operation of
the braking system.
IMPORTANT When the Mechanical
Brake Assist intervenes, noises may be
heard from the system. This is normal.
In any case, while braking keep the
brake pedal firmly depressed.
41) 42) 43)
FAULT WARNINGS
ABS failure
This is indicated by turning on the
warning light on the instrument
panel together with a message on the
display on some versions (see the
“Warning lights and messages”
paragraph in the “Knowing the
instrument panel” chapter).In this case, the braking system will still
be effective, although without the
extra capacity offered by the ABS. Drive
carefully to the nearest Fiat Dealership
to have the system checked.
EBD failure
This is indicated by turning on the
andwarning light on the
instrument panel together with
a message on the display on some
versions (see the “Warning lights and
messages” paragraph in the “Knowing
the instrument panel” chapter).
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply. Drive
carefully to the nearest Fiat Dealership
to have the system checked.
44)
WARNING
41)When the ABS cuts in and you feel the
brake pedal pulsating, do not remove
your foot, but keep the pedal pushed
down; in doing so you, will stop in the
shortest distance possible under the road
conditions at the time.
42)If the ABS system intervenes, this
indicates that the traction of the tyres on
the road is nearing its limit. You must slow
down to a speed compatible with the
available traction.
72
SAFETY

43)The ABS gets the most from the
available grip, but it cannot improve it; you
should therefore take every care when
driving on slippery surfaces and not take
unnecessary risks.
44)If only the
instrument panel
warning light comes on (with a message in
the multifunction display on some
versions), stop the vehicle immediately and
contact the nearest Fiat Dealership. Any
loss of fluid will affect the brake system
functionality, both conventional and
ant-lock wheels.
ESC (Electronic
Stability Control)
SYSTEM
(for versions/markets, where provided)
This is an electronic system that
controls vehicle stability in the event of
tyre grip loss, helping to maintain
directional control. The system
is capable of recognising potentially
dangerous situations in terms of vehicle
stability and intervenes automatically
on the brakes in a differentiated manner
for the four wheels in order to provide
a stabilizing torque.
The ESC system switches on
automatically when the engine is
started and cannot be switched off.
The ESC system also includes the
following systems:
Hill Holder
ASR
MSR
HBA
SYSTEM INTERVENTION
This is signalled by the flashing of the
warning light in the instrument panel,
to inform the driver that the vehicle is
in critical stability and grip conditions.Switching the system on
The ESC system is automatically
activated when the vehicle is started
and cannot be deactivated.
Fault warnings
In the event of a failure, the ESC will be
automatically switched off and the
warning light
will come on constantly
in the instrument panel along with a
message in the multifunction display
(for versions/markets where provided)
(see “Warning lights and messages”
section in the "Knowing the instrument
panel" chapter). Contact a Fiat
Dealership as soon as possible.
45) 46) 47)
HILL HOLDER SYSTEM
(for versions/markets, where provided)
It is an integral part of the ESC system
and facilitates starting on an incline.
It is automatically activated in the
following conditions:
uphill: vehicle stationary on a road
with a gradient higher than 5%, engine
running, brake pedal pressed and
gearbox in neutral or gear other than
reverse;
downhill: vehicle stationary on a road
with a gradient higher than 5%, engine
running, brake pedal pressed and
reverse gear engaged.
73
