2019 FIAT 500E seat adjustment

▫Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped ............................44
 DOORS ...............................45
▫ Manual Lock ...........................45
▫ Power Door Locks ......................46
 SEATS ................................47
▫ Manual Adjustment Front Seats ..............47
▫ Heated Seats — If Equipped ...............50
▫ Manual Folding Rear Seat ..................51
 HEAD RESTRAINTS ......................52
▫ Reactive Head Restraints — Front Seats ........52
▫ Rear Head Restraints .....................54
 STEERING WHEEL .......................55
▫ Tilt Steering Column — If Equipped ..........55
 MIRRORS ..............................56
▫ Inside Day/Night Mirror ..................56
▫ Automatic Dimming Mirror — If Equipped .....56▫
Power Mirrors .........................57
▫ Folding Mirrors .........................57
▫ Spotter Mirror — If Equipped ...............58
▫ Heated Mirrors — If Equipped .............58
 EXTERIOR LIGHTS .......................58
▫ Multifunction Lever ......................58
▫ Headlights ............................58
▫ Daytime Running Lights ..................59
▫ High Beams ...........................59
▫ Flash-To-Pass ..........................59
▫ Parking Lights .........................59
▫ Follow Me Home/Headlight Delay ...........60
▫ Fog Lights — If Equipped .................60
▫ Turn Signals ...........................60
▫ Lane Change Assist ......................61
 INTERIOR LIGHTS .......................61
▫ Interior Light Timing (Center Position) ........62
14 GETTING TO KNOW YOUR VEHICLE

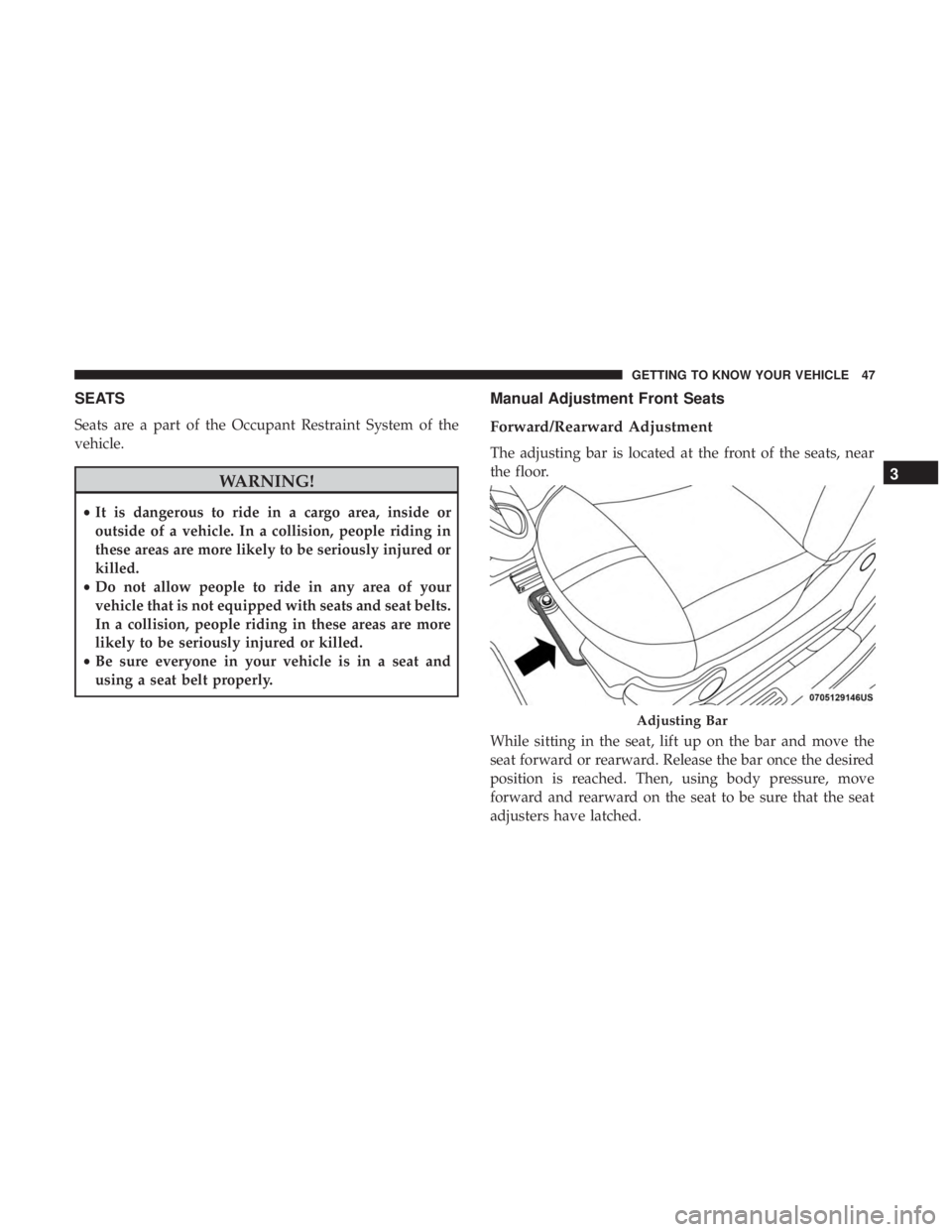

SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
In a collision, people riding in these areas are more
likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment Front Seats
Forward/Rearward Adjustment
The adjusting bar is located at the front of the seats, near
the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the desired
position is reached. Then, using body pressure, move
forward and rearward on the seat to be sure that the seat
adjusters have latched.
Adjusting Bar
3
GETTING TO KNOW YOUR VEHICLE 47

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•
Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury or
death could result from a poorly adjusted seat belt.

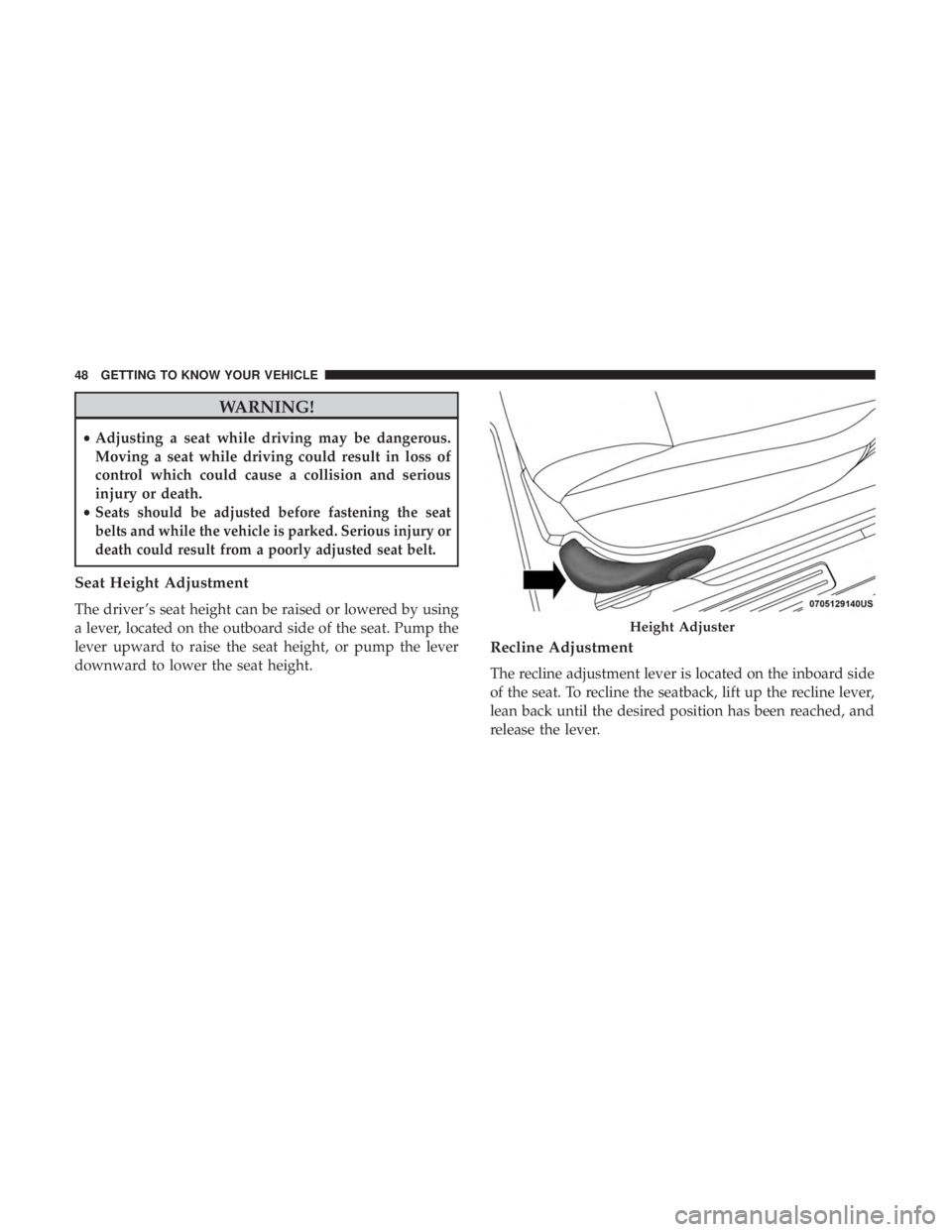

Seat Height Adjustment
The driver ’s seat height can be raised or lowered by using
a lever, located on the outboard side of the seat. Pump the
lever upward to raise the seat height, or pump the lever
downward to lower the seat height.
Recline Adjustment
The recline adjustment lever is located on the inboard side
of the seat. To recline the seatback, lift up the recline lever,
lean back until the desired position has been reached, and
release the lever.
Height Adjuster
48 GETTING TO KNOW YOUR VEHICLE

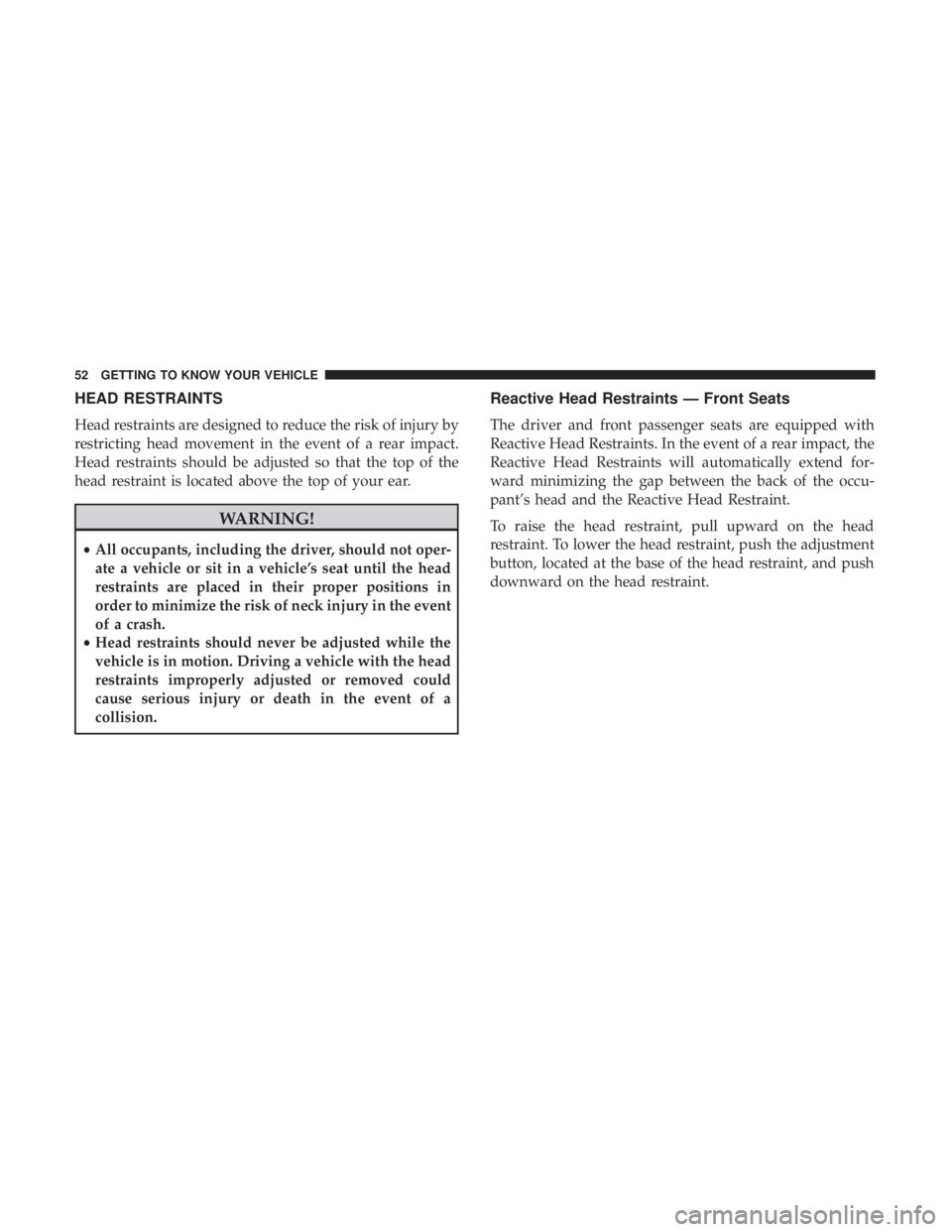

HEAD RESTRAINTS
Head restraints are designed to reduce the risk of injury by
restricting head movement in the event of a rear impact.
Head restraints should be adjusted so that the top of the
head restraint is located above the top of your ear.
WARNING!
•All occupants, including the driver, should not oper-
ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in
order to minimize the risk of neck injury in the event
of a crash.
• Head restraints should never be adjusted while the
vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.
Reactive Head Restraints — Front Seats
The driver and front passenger seats are equipped with
Reactive Head Restraints. In the event of a rear impact, the
Reactive Head Restraints will automatically extend for-
ward minimizing the gap between the back of the occu-
pant’s head and the Reactive Head Restraint.
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward on the head restraint.
52 GETTING TO KNOW YOUR VEHICLE

The Reactive Head Restraints will automatically return to
their normal position following a rear impact. If the
Reactive Head Restraints do not return to their normal
position, see an authorized dealer immediately.
NOTE:The head restraints should only be removed by
qualified technicians, for service purposes only. If either of
the head restraints require removal, see an authorized
dealer.
WARNING!
• A loose head restraint thrown forward in a collision
or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.
• ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.
• Do not place items over the top of the Reactive Head
Restraint, such as coats, seat covers or portable DVD
players. These items may interfere with the opera-
tion of the Reactive Head Restraint in the event of a
collision and could result in serious injury or death.
Head Restraint
1 — Release Button
2 — Adjustment Button
3
GETTING TO KNOW YOUR VEHICLE 53

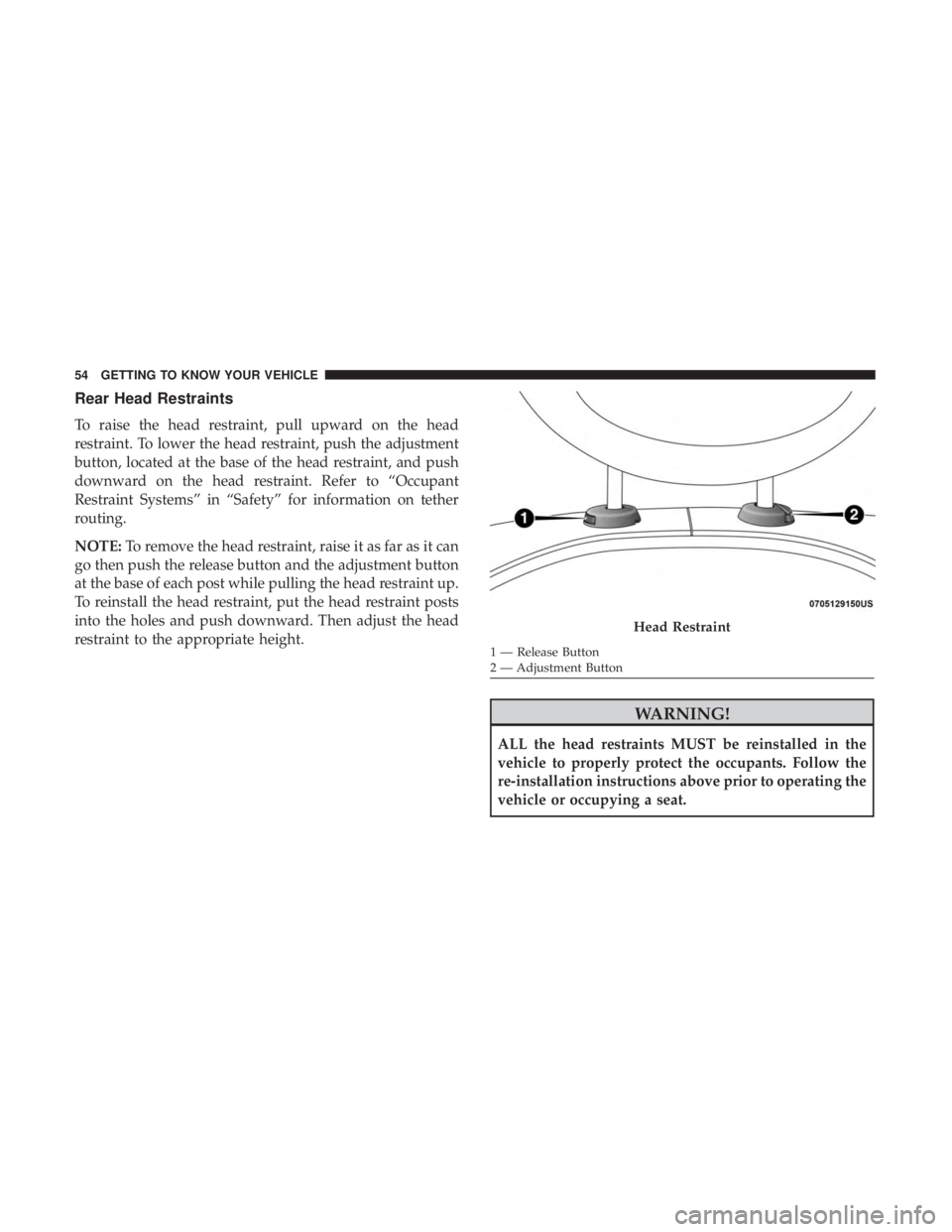

Rear Head Restraints
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward on the head restraint. Refer to “Occupant
Restraint Systems” in “Safety” for information on tether
routing.
NOTE:To remove the head restraint, raise it as far as it can
go then push the release button and the adjustment button
at the base of each post while pulling the head restraint up.
To reinstall the head restraint, put the head restraint posts
into the holes and push downward. Then adjust the head
restraint to the appropriate height.
WARNING!
ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating the
vehicle or occupying a seat.
Head Restraint
1 — Release Button
2 — Adjustment Button
54 GETTING TO KNOW YOUR VEHICLE

Schedule, Maintenance.......................211
Seat Belt Reminder ..........................94
Seat Belts .............................114,152
Child Restraints ........................ .135
Energy Management Feature ................120
Extender ...............................119
Front Seat .......................114,115,117
Inspection ............................. .152
Lap/Shoulder Belt Operation ................117
Lap/Shoulder Belts .......................115
Lap/Shoulder Belt Untwisting ...............119
Operating Instructions .....................117
Pregnant Women ........................ .120
Pretensioners .......................... .120
Rear Seat ..............................115
Reminder ..............................114
Seat Belt Extender ........................119
Seat Belt Pretensioner .....................120
Untwisting Procedure .....................119
Seat Belts Maintenance ...................... .251
Seats ....................................47
Adjustment .............................47
Heated .................................50
Rear Folding .............................47
Tilting .................................47 Security Alarm
.............................42
Selection Of Coolant (Antifreeze) ...............257
Sentry Key Key Programming .........................42
Sentry Key (Immobilizer) ......................41
Service Assistance ......................... .282
Service Contract .......................... .284
Service Manuals .......................... .286
Settings Personal .............................. .261
Shoulder Belts .............................115
Side View Mirror Adjustment ...................56
Signals, Turn ..................... .58, 60, 99, 154
Snow Chains (Tire Chains) ....................245
Snow Tires .............................. .241
Spare Tires ........................ .241, 242, 243
Speed Control Cancel ............................... .168
Resume .............................. .168
Speed

Control (Cruise Control) .................165
Starting ................................ .157
Button .................................39
Steering Power ............................... .164
Tilt Column .............................55
294 INDEX
