2019 FIAT 124 SPIDER Owner handbook (in English)

WARNING LIGHTS ON INSTRUMENT PANEL
Red warning lights
Warning light What it means What to do
PARKING BRAKE WARNING - WARNING
LIGHT INSPECTION / LOW BRAKE FLUID
LEVEL WARNING
Parking brake warning / Warning light
inspection
The light illuminates when the parking brake is
applied with the ignition switched to START or
ON. It turns off when the parking brake is fully
released.
Low brake fluid level warning
If the brake warning light remains illuminated
even though the parking brake is released, the
brake fluid may be low or there could be a
problem with the brake system.
IMPORTANT Do not drive with the brake
system warning light illuminated. Contact a
Fiat Dealership to have the brakes inspected
as soon as possible. Driving with the brake
system warning light illuminated is dangerous.
It indicates that your brakes may not work at
all or that they could completely fail at any
time. If this light remains illuminated, after
checking that the parking brake is fully
released, have the brakes inspected
immediately.
IMPORTANT In addition, the effectiveness of
the braking may diminish so you may need to
depress the brake pedal more strongly than
normal to stop the vehicle.Stop the vehicle in a safe place immediately
and contact a Fiat Dealership.
55

Warning light What it means What to do
EBD (Electronic Brake-force Distribution)
SYSTEM WARNING
If the EBD (Electronic Brake-force Distribution)
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake system
warning light and the ABS warning light
simultaneously. The problem is likely to be the
electronic brake force distribution system.Stop the vehicle in a safe place immediately
and contact a Fiat Dealership.
IMPORTANT Do not drive with both the ABS
warning light and brake warning light
illuminated. Contact a Fiat Dealership to have
the brakes inspected as soon as possible.
Driving when the brake system warning light
and ABS warning light are illuminated
simultaneously is dangerous. When both lights
are illuminated, the rear wheels could lock
more quickly in an emergency stop than under
normal circumstances.
CHARGING SYSTEM WARNING LIGHT
If the warning light illuminates while driving, it
indicates a malfunction of the alternator or of
the charging system. Drive to the side of the
road and park off the right-of-way.Stop the vehicle in a safe place immediately
and contact a Fiat Dealership.
IMPORTANT Do not continue driving when the
charging system warning light is illuminated
because the engine could stop unexpectedly.
ENGINE OIL WARNING LIGHT
This warning light indicates low engine oil
pressure.
IMPORTANT Do not run the engine if the oil
pressure is low. Otherwise, it could result in
extensive engine damage.
IMPORTANT Do not run the engine if the oil
level is low. Otherwise, it could result in
extensive engine damage.
If the light remains illuminated even though the
oil level is normal or after adding oil, stop the
engine immediately and contact a Fiat
Dealership.If the light illuminates or the warning indication
is displayed while driving:
drive to the side of the road and park off
the right-of-way on level ground;
turn off the engine and wait 5 minutes for
the oil to drain back into the sump;
inspect the engine oil level. If it's low, add
the appropriate amount of engine oil while
being careful not to overfill;
start the engine and check the warning
light.
DOOR-AJAR WARNING LIGHT
The light turns on if any door is not closed
securely.Close the door securely.
56
KNOWING THE INSTRUMENT PANEL

Warning light What it means What to do
ACTIVE BONNET (Where provided)
The light turns on when the ignition is
switched on for an operation check, and turns
off a few seconds later.
A problem in the system may be indicated
under the following conditions:
the light does not turn on when the ignition
is switched ON;
remains turned on/flashing;
63)
Contact a Fiat Dealership.
HIGH ENGINE COOLANT TEMPERATURE
WARNING LIGHT
The light flashes when the engine coolant
temperature is extremely high, and illuminates
when the engine coolant temperature
increases further.
Handling procedure
Illuminated light: this indicates the
possibility of overheating. Park the vehicle in
a safe place immediately and stop the
engine. Refer to “Overheating” paragraph in
“In an mergency” chapter.
IMPORTANT Do not drive the vehicle with the
high engine coolant temperature warning light
illuminated. Otherwise, it could result in
damage to the engine.Stop the vehicle in a safe place immediately
and contact a Fiat Dealership.
57
67)

Warning light What it means What to do
AIR BAG / SEAT BELT PRETENSIONER
SYSTEM WARNING
A system malfunction is indicated if the
warning light constantly flashes, constantly
illuminates or does not illuminate at all when
the ignition is switched ON.
62)
Contact a Fiat Dealership as soon as possible.
The system may not operate in an accident.
58
KNOWING THE INSTRUMENT PANEL
66)

Warning light What it means What to do
KEY WARNING LIGHT (illuminate)
If any malfunction occurs in the keyless entry
system, it illuminates continuously.
IMPORTANT If the key warning indicator light
illuminates or the push button start indicator
light (amber) flashes, the engine may not start.If the engine cannot be started, try starting it
using the emergency operation for starting the
engine, and contact a Fiat Dealership as soon
as possible.
Refer to “Emergency operation for starting
operation” in “Starting the engine” paragraph.
KEY WARNING LIGHT (flashing)
Advanced key malfunction
Take the appropriate action and verify that
the warning light turns off.
The advanced key battery is dead:
replace the key battery.
The advanced key is not within the
operation range/is placed in areas inside
the cabin where it is difficult for the key
to be detected
: bring the advanced key into
the operation range.
A key from another manufacturer
similar to the advanced key is in the
operation range
: take the key from another
manufacturer similar to the advanced key out
of the operation range.
Without the ignition switched off, the
advanced key is taken out of the cabin,
and then all the doors are closed
: bring
the advanced key back into the cabin.
VEHICLE SECURITY ALARM SYSTEM (where
provided)
The warning light switches on to report a
failure of the vehicle security alarm system.Contact a Fiat Dealership as soon as possible.
59

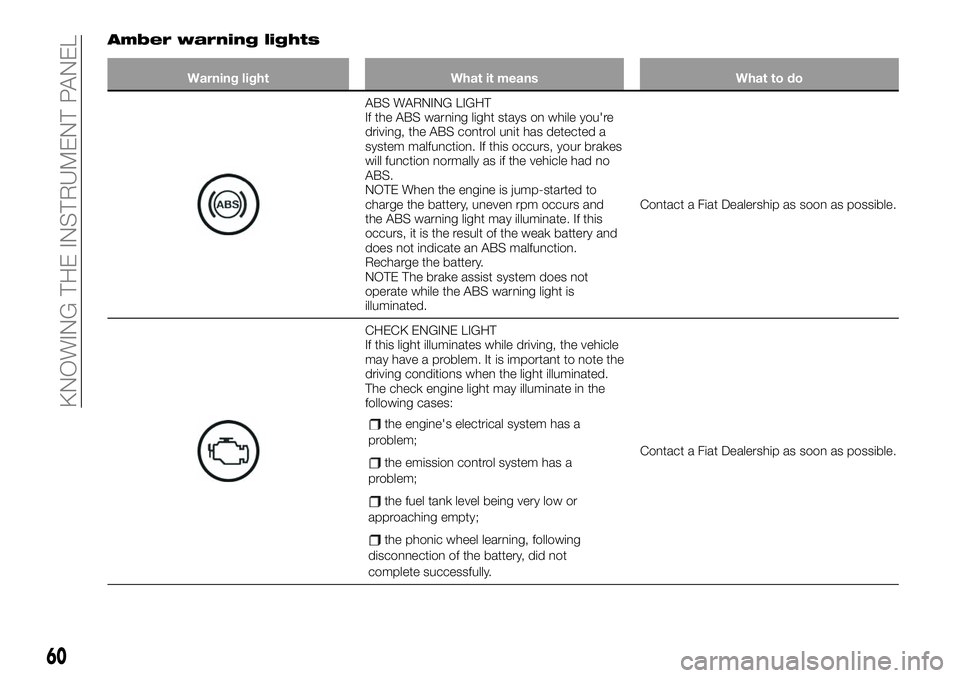

Amber warning lights
Warning light What it means What to do
ABS WARNING LIGHT
If the ABS warning light stays on while you're
driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes
will function normally as if the vehicle had no
ABS.
NOTE When the engine is jump-started to
charge the battery, uneven rpm occurs and
the ABS warning light may illuminate. If this
occurs, it is the result of the weak battery and
does not indicate an ABS malfunction.
Recharge the battery.
NOTE The brake assist system does not
operate while the ABS warning light is
illuminated.Contact a Fiat Dealership as soon as possible.
CHECK ENGINE LIGHT
If this light illuminates while driving, the vehicle
may have a problem. It is important to note the
driving conditions when the light illuminated.
The check engine light may illuminate in the
following cases:
the engine's electrical system has a
problem;
the emission control system has a
problem;
the fuel tank level being very low or
approaching empty;
the phonic wheel learning, following
disconnection of the battery, did not
complete successfully.
Contact a Fiat Dealership as soon as possible.
60
KNOWING THE INSTRUMENT PANEL

Warning light What it means What to do
TIRE PRESSURE MONITORING SYSTEM
WARNING LIGHT (where provided)
If the tire pressure monitoring system has a
malfunction, the tire pressure warning light
flashes for about 1 minute when the ignition is
switched ON and then continues illuminating.
When the warning light illuminates, and the
warning beep sound is heard (about
3 seconds), tire pressure is too low in one or
more tires. Inspect the tires and adjust to the
specified inflation pressure. Perform tire
pressure adjustment when the tires are cold.
Tire pressure will vary according to the tire
temperature, therefore let the vehicle stand for
1 hour or only drive it 1.6 km or less before
adjusting the tire pressures. When pressure is
adjusted on hot tires to the cold inflation
pressure, the warning light/beep may turn on
after the tires cool and pressure drops below
specification. Also, an illuminated TPMS
warning light, resulting from the tire air
pressure dropping due to cold ambient
temperature will remain illuminated even if the
ambient temperature rises. In this case, it will
also be necessary to adjust the tire air
pressures. If the TPMS warning light
illuminates due to a drop in tire air pressure,
make sure to check and adjust the tire airpressures.
Tires lose air naturally over time and the TPMS
cannot tell if the tires are getting too soft over
time or you have a flat. However, when you
find one low tire in a set of four-that is an
indication of trouble; you should have
someone drive the vehicle slowly forward so
you can inspect any low tire for cuts and any
metal objects sticking through tread or
sidewall. Put a few drops of water in the valve
stem to see if it bubbles indicating a bad valve.
Leaks need to be addressed by more than
simply refilling the trouble tire as leaks are
dangerous: take it to a Fiat Dealership which
has all the equipment to fix tires, TPMS
systems and order the best replacement tire
Have your vehicle checked by a Fiat
Dealership as soon as possible.
61for your vehicle.
64)
65)

Warning light What it means What to do
POWER STEERING MALFUNCTION
INDICATOR LIGHT
The light illuminates if the electric power
steering has a malfunction. If the light
illuminates, stop the vehicle in a safe place
and do not operate the steering wheel. There
is no problem if the light turns off after a while.
NOTE If the indicator light illuminates, the
power steering will not operate normally. If this
happens, the steering wheel can still be
operated, however, the operation may feel
heavy compared to normal, or the steering
wheel could vibrate when turning.
NOTE Repeatedly jerking the steering wheel
left and right while the vehicle is stopped or
moving extremely slowly will cause the power
steering system to go into protective mode
which will make the steering feel heavy, but
this does not indicate a problem. If this occurs,
park the vehicle safely and wait several
minutes for the system to return to normal.Contact a Fiat Dealership if the light illuminates
continuously.
AUTOMATIC TRANSMISSION WARNING
LIGHT (where provided)
The light illuminates when the transmission
has a problem.
IMPORTANT If the automatic transmission
warning light illuminates, the transmission has
an electrical problem. Continuing to drive your
vehicle in this condition could cause damage
to your transmission.Contact a Fiat Dealership as soon as possible.
62
KNOWING THE INSTRUMENT PANEL
