2019 CHRYSLER 300 fog light bulb

Fog Lights — If Equipped
The front fog light switch is built into the headlight switch.To activate the front fog lights, turn on the parking
lights or the low beam headlights and push the
headlight switch. To turn off the front fog lights, either
push the headlight switch a second time or turn off the
headlight switch. NOTE:
The fog lights will operate with the low beam
headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster display flash to show
proper operation of the front and rear turn signal lights.
NOTE:
• If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
• A “Turn Signal On” message will appear in the instru-
ment cluster display and a continuous chime will sound
if the vehicle is driven more than 1 mile (1.6 km) with
either turn signal on.
Lane Change Assist — If Equipped
Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn off.
Fog Light Switch
70 GETTING TO KNOW YOUR VEHICLE

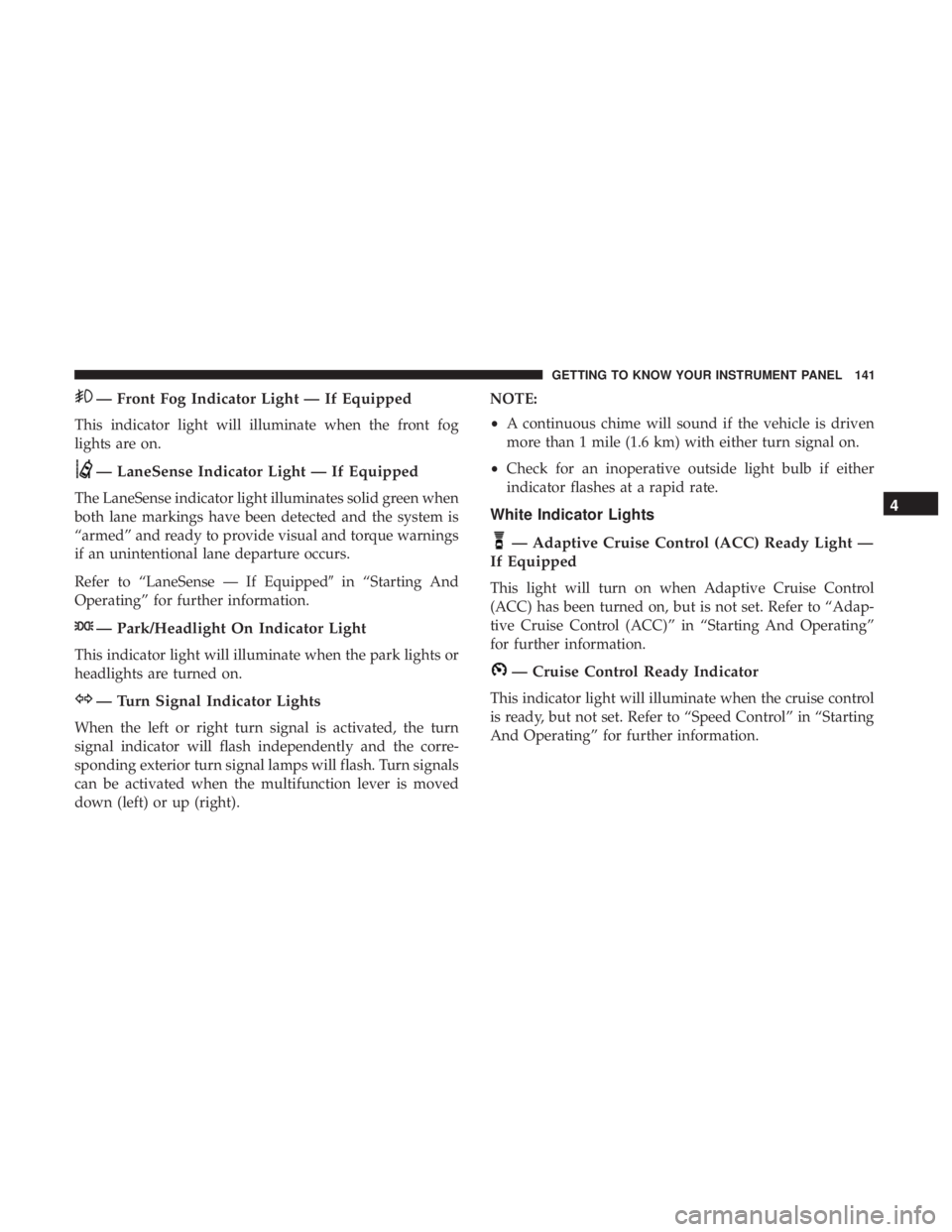

— Front Fog Indicator Light — If Equipped
This indicator light will illuminate when the front fog
lights are on.
— LaneSense Indicator Light — If Equipped
The LaneSense indicator light illuminates solid green when
both lane markings have been detected and the system is
“armed” and ready to provide visual and torque warnings
if an unintentional lane departure occurs.
Refer to “LaneSense — If Equippedin “Starting And
Operating” for further information.
— Park/Headlight On Indicator Light
This indicator light will illuminate when the park lights or
headlights are turned on.
— Turn Signal Indicator Lights
When the left or right turn signal is activated, the turn
signal indicator will flash independently and the corre-
sponding exterior turn signal lamps will flash. Turn signals
can be activated when the multifunction lever is moved
down (left) or up (right). NOTE:
•
A continuous chime will sound if the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on.
• Check for an inoperative outside light bulb if either
indicator flashes at a rapid rate.
White Indicator Lights
— Adaptive Cruise Control (ACC) Ready Light —
If Equipped
This light will turn on when Adaptive Cruise Control
(ACC) has been turned on, but is not set. Refer to “Adap-
tive Cruise Control (ACC)” in “Starting And Operating”
for further information.
— Cruise Control Ready Indicator
This indicator light will illuminate when the cruise control
is ready, but not set. Refer to “Speed Control” in “Starting
And Operating” for further information.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 141

Interior Bulbs
Bulb Number
Rear Courtesy/Reading Lamps W5W
Rear Compartment (Trunk) Lamp 562
Overhead Console Reading Lamps 578
Visor Vanity Lamps A6220
Glove Compartment Lamp – If Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Optional Door Map Pocket/Cupholder LED (Serviced At Authorized Dealer)
For lighted switches, see your authorized dealer for replacement instructions.
Exterior Bulbs
Bulb Number
Low Beam/High Beam (Bi-Halogen Headlamp) 9005HL+
Low Beam/High Beam (Bi-Xenon Headlamp) D3S (Serviced At Authorized Dealer)
Front Turn Signal Lamp PSY24WSV
Front Park Lamp LED (Serviced At Authorized Dealer)
Daytime Running Lamp LED (Serviced At Authorized Dealer)
Front Fog Lamp – If Equipped LED (Serviced At Authorized Dealer)
306 IN CASE OF EMERGENCY

Unlatch The Trunk........................22
Key Fob Battery Service (Remote Keyless Entry) .....23
Key Fob Programming (Remote Keyless Entry) ......26
Key-In Reminder ............................29
Keyless Enter-N-Go ..................... .39, 221
Enter The Trunk ..........................22
Passive Entry ............................39
Passive Entry Programming ..................39
Keys ....................................19
Replacement ......................... .26, 34
Lane Change And Turn Signals .................70
Lane Change Assist ..........................70
LaneSense ............................... .275
Lap/Shoulder Belts ........................ .175
Latches ................................. .215
Hood ..................................94
Lead Free Gasoline ........................ .407
Leaks, Fluid ............................. .215
Life Of Tires ............................. .387
Light Bulbs .......................... .215, 305
Lights .................................. .215
AirBag .........................131, 184, 213
Automatic Headlights ......................68
Brake Assist Warning ..................... .152Brake Warning
...................... .131, 405
Bulb Replacement ....................... .305
Cruise ............................ .140, 141
Daytime Running .........................67
Dimmer Switch, Headlight ................66, 67
Electronic Stability Program(ESP) Indicator ......134
Exterior ............................ .66, 215
Fog ...................................70
Hazard Warning Flasher ...................300
Headlights ....................... .66, 69, 307
Headlights On With Wipers ..................68
Headlight Switch .........................66
High Beam ..............................67
High Beam/Low Beam Select .................67
Instrument Cluster ........................66
Intensity Control ..........................73
Interior ................................71
License ............................... .310
Lights

On Reminder .......................69
Malfunction Indicator (Check Engine) ..........135
Map ..................................72
Park .............................. .68, 141
Passing ................................68
Reading ................................72
Seat Belt Reminder ...................... .134
12
INDEX 479
