2019 CHRYSLER 300 engine coolant

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).
Engine Oil We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as Mopar, Pennzoil, and Shell Helix Ultra.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use a Mopar Engine Oil Filter.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection – 3.6L Engine 87 Octane, 0-15% Ethanol.
Fuel Selection – 3.6L Flex Fuel (E-85) Engine 87 Octane, Up to 85% Ethanol.
Fuel Selection – 5.7L Engine 89 Octane Recommended – 87 Octane Acceptable, 0-15%
Ethanol.
9
TECHNICAL SPECIFICATIONS 415

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
(Continued)
CAUTION! (Continued)
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.
• Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
416 TECHNICAL SPECIFICATIONS

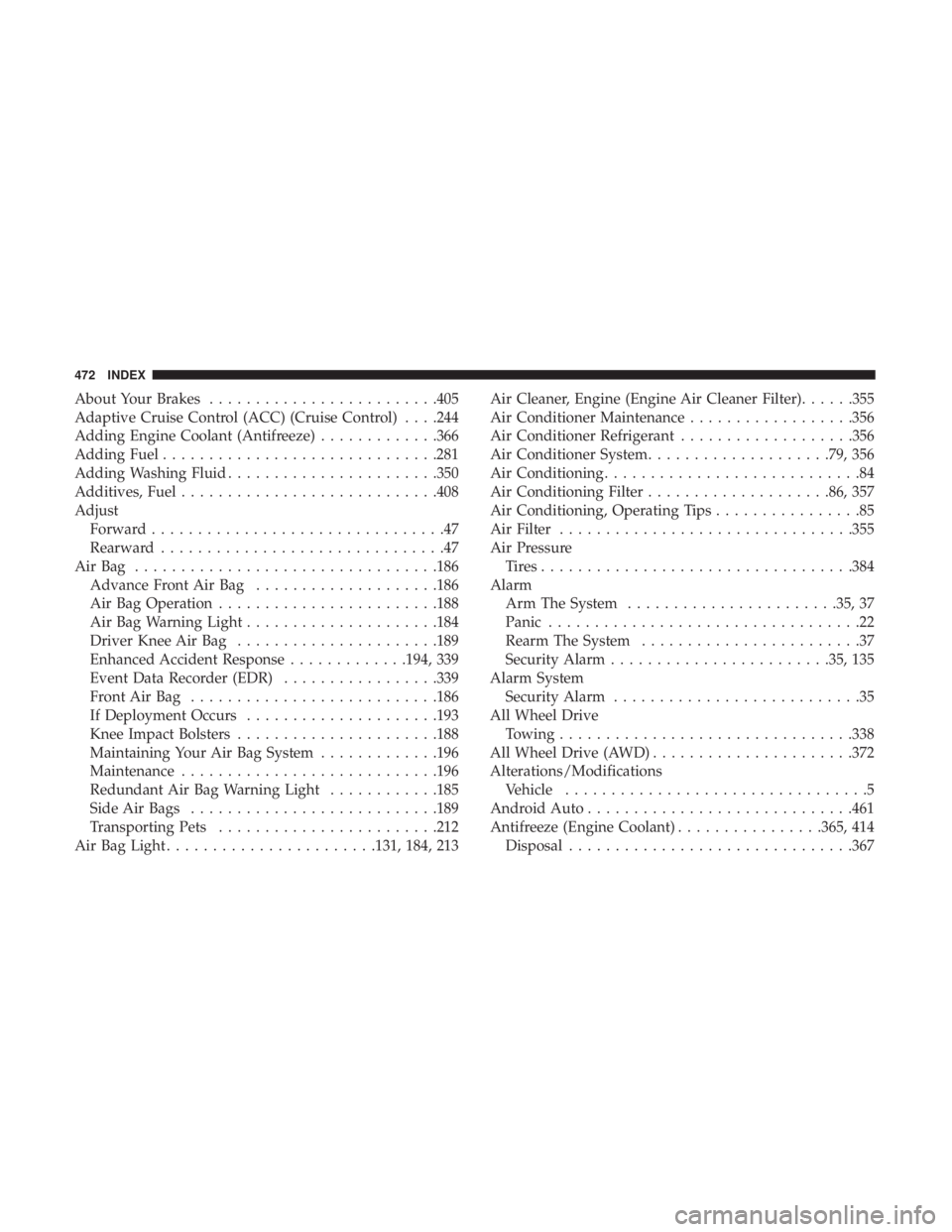

About Your Brakes........................ .405
Adaptive Cruise Control (ACC) (Cruise Control) . . . .244
Adding Engine Coolant (Antifreeze) .............366
Adding Fuel ............................. .281
Adding Washing Fluid ...................... .350
Additives, Fuel ........................... .408
Adjust Forward ................................47
Rearward ...............................47
AirBag ................................ .186
Advance Front Air Bag ....................186
Air Bag Operation ....................... .188
Air Bag Warning Light .....................184
Driver Knee Air Bag ..................... .189
Enhanced Accident Response .............194, 339
Event Data Recorder (EDR) .................339
FrontAirBag .......................... .186
If Deployment Occurs .....................193
Knee Impact Bolsters ..................... .188
Maintaining Your Air Bag System .............196
Maintenance ........................... .196
Redundant Air Bag Warning Light ............185
Side Air Bags .......................... .189
Transporting Pets ....................... .212
Air Bag Light ...................... .131, 184, 213Air Cleaner, Engine (Engine Air Cleaner Filter)
......355
Air Conditioner Maintenance ..................356
Air Conditioner Refrigerant ...................356
Air Conditioner System ....................79, 356
Air Conditioning ............................84
Air Conditioning Filter ....................86, 357
Air Conditioning, Operating Tips ................85
Air Filter ............................... .355
Air Pressure Tires................................. .384
Alarm Arm The System ...................... .35, 37
Panic ..................................22
Rearm The System ........................37
Security Alarm....................... .35,
135
Alarm System Security Alarm ...........................35
All Wheel Drive Towing ............................... .338
All Wheel Drive (AWD) ..................... .372
Alterations/Modifications Vehicle .................................5
Android Auto ............................ .461
Antifreeze (Engine Coolant) ................365, 414
Disposal .............................. .367
472 INDEX

Brightness, Interior Lights.....................73
Bulb Replacement ......................... .305
Bulbs, Light .......................... .215, 305
Camera, Rear ............................ .279
Capacities, Fluid .......................... .414
Caps, Filler Oil (Engine) ........................ .348, 354
Radiator (Coolant Pressure) .................367
Carbon Monoxide Warning ................212, 411
Cargo Vehicle Loading ......................... .285
Cargo Area Cover ...........................97
Cargo Compartment .........................97
Car Washes .............................. .398
Cellular Phone ........................... .448
Certification Label ......................... .285
Chains, Tire ............................. .394
Changing A Flat Tire ....................... .373
Charging Wireless ...............................116
Chart, Tire Sizing .......................... .375
Check Engine Light (Malfunction Indicator Light). . . .143
Checking Your Vehicle For Safety ...............212
Checks, Safety ............................ .212Child Restraint
........................... .197
Child Restraints Booster Seats ........................... .200
Child Seat Installation .....................208
How To Stow An unused ALR Seat Belt ........206
Infant And Child Restraints .................199
Lower Anchors And Tethers For Children .......202
Older Children And Child Restraints ...........199
Seating Positions ........................ .201
Child Safety Locks ..........................43
Clean Air Gasoline ........................ .408
Cleaning Wheels ............................... .393
Climate Control ......................... .78, 79
Automatic ..............................79
Coin Holder ............................. .107
Cold

Weather Operation ..................... .224
Compact Spare Tire ........................ .391
Console Floor ................................ .107
Contract, Service .......................... .468
Cooling Pressure Cap (Radiator Cap) ............367
Cooling System ........................... .364
Adding Coolant (Antifreeze) .................366
Coolant Level ....................... .365, 368
474 INDEX

Cooling Capacity........................ .414
Disposal Of Used Coolant ..................367
Drain, Flush, And Refill ....................365
Inspection ............................. .368
Points To Remember ..................... .368
Pressure Cap ........................... .367
Radiator Cap .......................... .367
Selection Of Coolant (Antifreeze) .......365, 414, 415
Corrosion Protection ....................... .398
Cruise Control (Speed Control) ..............241, 244
Cruise Light .......................... .140, 141
Cupholders .............................. .109
Customer Assistance ....................... .466
Cybersecurity ............................ .422
Daytime Running Lights ......................67
Dealer Service ............................ .352
Deck Lid Power Release ...........................95
Defroster, Windshield ....................... .213
Delay (Intermittent) Wipers ....................76
Diagnostic System, Onboard ...................142
Dimmer Switch Headlight ...............................67 Dipsticks
Oil (Engine) ........................... .350
Disabled Vehicle Towing .....................336
Disposal Antifreeze (Engine Coolant) .................367
Do Not Disturb ........................... .460
Door Ajar ............................... .133
Door Ajar Light ........................... .133
Door Locks Automatic ..............................43
Child-Protection Door Lock — Rear Doors .......43
Doors ....................................37
Drag And Drop Menu ...................... .421
Driver ’s Seat Back Tilt ........................44
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .297
E-85 Fuel ................................411
Electric Brake Control System ..................147
Anti-Lock

Brake System ....................146
Electronic Roll Mitigation ...............148, 155
Electric Remote Mirrors .......................62
Electronic Power Distribution Center (Fuses) .......312
Electronic Speed Control (Cruise Control) .........24112
INDEX 475

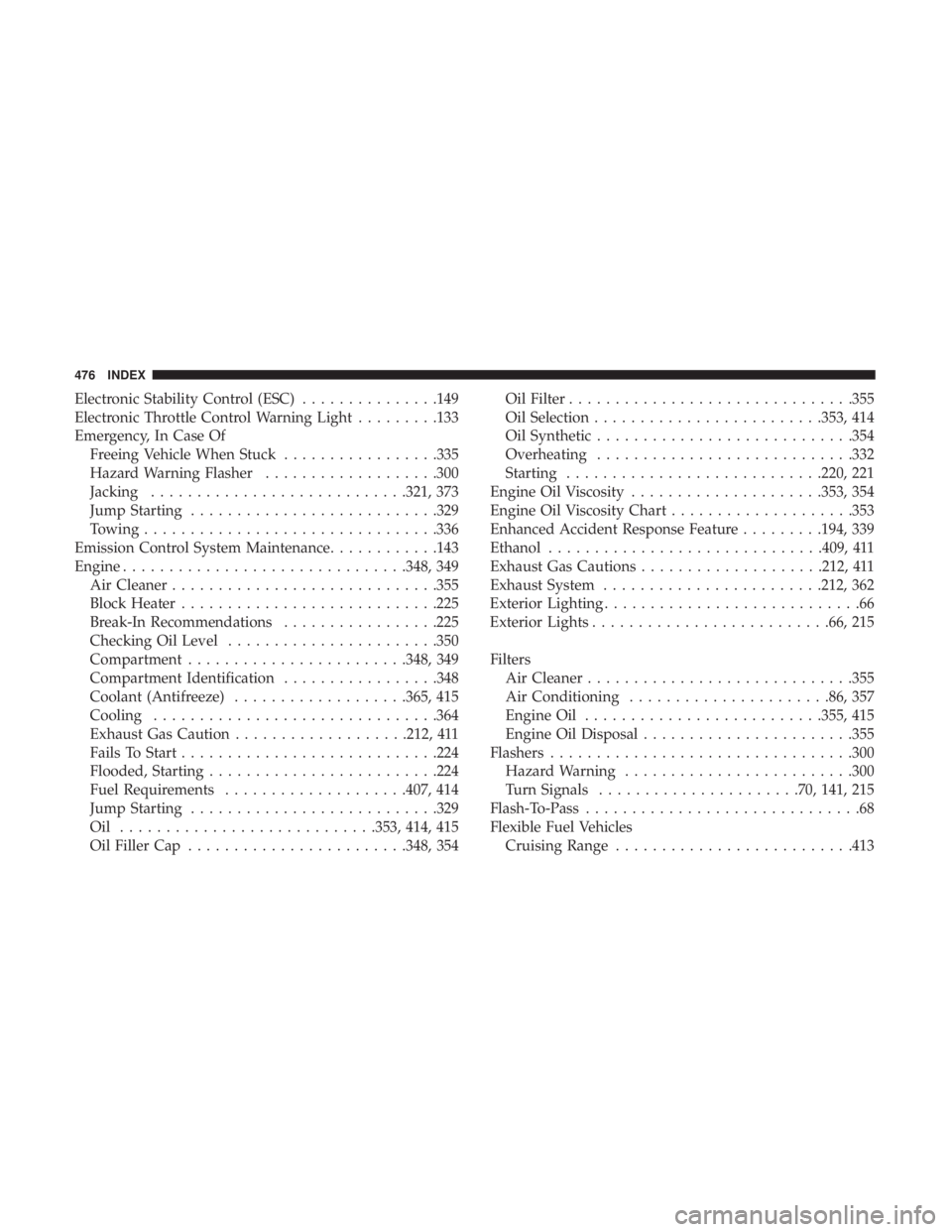

Electronic Stability Control (ESC)...............149
Electronic Throttle Control Warning Light .........133
Emergency, In Case Of Freeing Vehicle When Stuck .................335
Hazard Warning Flasher ...................300
Jacking ........................... .321, 373
Jump Starting .......................... .329
Towing ............................... .336
Emission Control System Maintenance ............143
Engine .............................. .348, 349
Air Cleaner ............................ .355
Block Heater ........................... .225
Break-In Recommendations .................225
Checking Oil Level ...................... .350
Compartment ....................... .348, 349
Compartment Identification .................348
Coolant (Antifreeze) ...................365, 415
Cooling .............................. .364
Exhaust Gas Caution ...................212, 411
Fails To Start ........................... .224
Flooded, Starting ........................ .224
Fuel Requirements ....................407, 414
Jump Starting .......................... .329
Oil ........................... .353, 414, 415
Oil Filler Cap ....................... .348, 354Oil Filter
.............................. .355
Oil Selection ........................ .353, 414
Oil Synthetic ........................... .354
Overheating ........................... .332
Starting ........................... .220, 221
Engine Oil Viscosity .....................353, 354
Engine Oil Viscosity Chart ....................353
Enhanced Accident Response Feature .........194, 339
Ethanol ............................. .409, 411
Exhaust Gas Cautions ................... .212, 411
Exhaust

System ....................... .212, 362
Exterior Lighting ............................66
Exterior Lights ......................... .66, 215
Filters Air Cleaner ............................ .355
Air Conditioning ..................... .86, 357
Engine Oil ......................... .355, 415
Engine Oil Disposal ...................... .355
Flashers ................................ .300
Hazard Warning ........................ .300
Turn Signals ..................... .70, 141, 215
Flash-To-Pass ..............................68
Flexible Fuel Vehicles Cruising Range ......................... .413
476 INDEX
