CAUTION!
If a transmission fluid leak occurs, visit an authorized
dealer immediately. Severe transmission damage may
occur. An authorized dealer has the proper tools to
adjust the fluid level accurately.
Fluid And Filter Changes
Under normal operating conditions, the fluid installed at
the factory will provide satisfactory lubrication for the life
of the vehicle.
Routine fluid and filter changes are not required. However,
change the fluid and filter if the fluid becomes contami-
nated (with water, etc.), or if the transmission is disas-
sembled for any reason.
All Wheel Drive (AWD) — If Equipped
The all wheel drive system consists of a transfer case and
front differential. The exterior surface of these components
should be inspected for evidence of fluid leaks. Confirmed
leaks should be repaired as soon as possible.The transfer case fluid fill/inspection plug is located in the
middle of the rear housing. To inspect the transfer case
fluid level, remove the fill/inspection plug. The fluid level
should be even with the bottom of the hole. Use this plug
to add fluid as required.
The front differential fill plug is located on the outer cover
near the halfshaft attachment. To inspect the differential
fluid level, remove the fill plug. The fluid level should be
even with or slightly below the bottom of the hole.
Fluid Changes
Refer to “Scheduled Servicing” in “Servicing And Mainte-
nance” for the proper maintenance intervals.
Rear Axle
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons the
exterior surfaces of the axle assembly should be inspected.
If gear oil leakage is suspected inspect the fluid level. Refer
to “Fluids And Lubricants” in “Technical Specifications”
for further information.
372 SERVICING AND MAINTENANCE

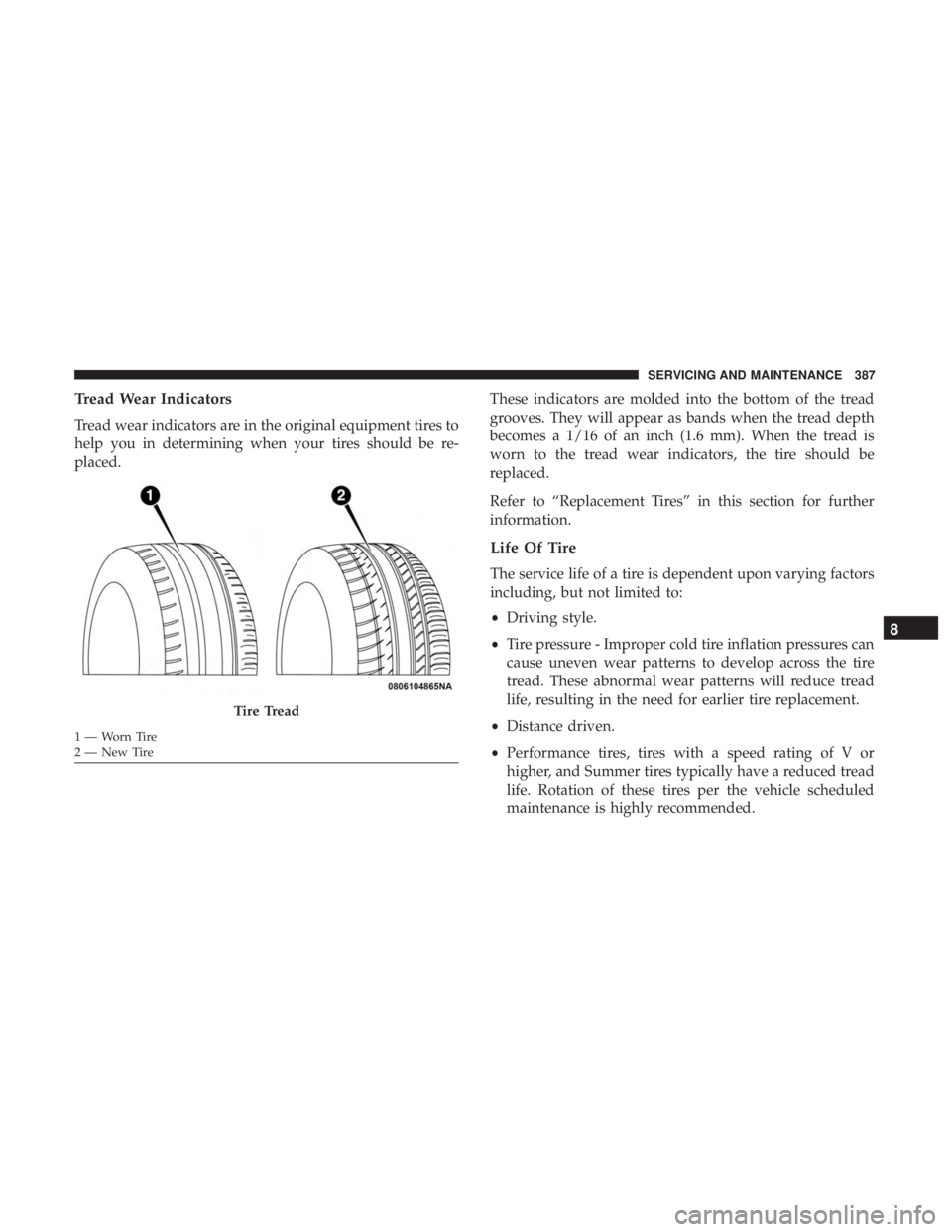

Tread Wear Indicators
Tread wear indicators are in the original equipment tires to
help you in determining when your tires should be re-
placed.These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes a 1/16 of an inch (1.6 mm). When the tread is
worn to the tread wear indicators, the tire should be
replaced.
Refer to “Replacement Tires” in this section for further
information.
Life Of Tire
The service life of a tire is dependent upon varying factors
including, but not limited to:
•
Driving style.
• Tire pressure - Improper cold tire inflation pressures can
cause uneven wear patterns to develop across the tire
tread. These abnormal wear patterns will reduce tread
life, resulting in the need for earlier tire replacement.
• Distance driven.
• Performance tires, tires with a speed rating of V or
higher, and Summer tires typically have a reduced tread
life. Rotation of these tires per the vehicle scheduled
maintenance is highly recommended.
Tire Tread
1—WornTire
2—NewTire
8
SERVICING AND MAINTENANCE 387

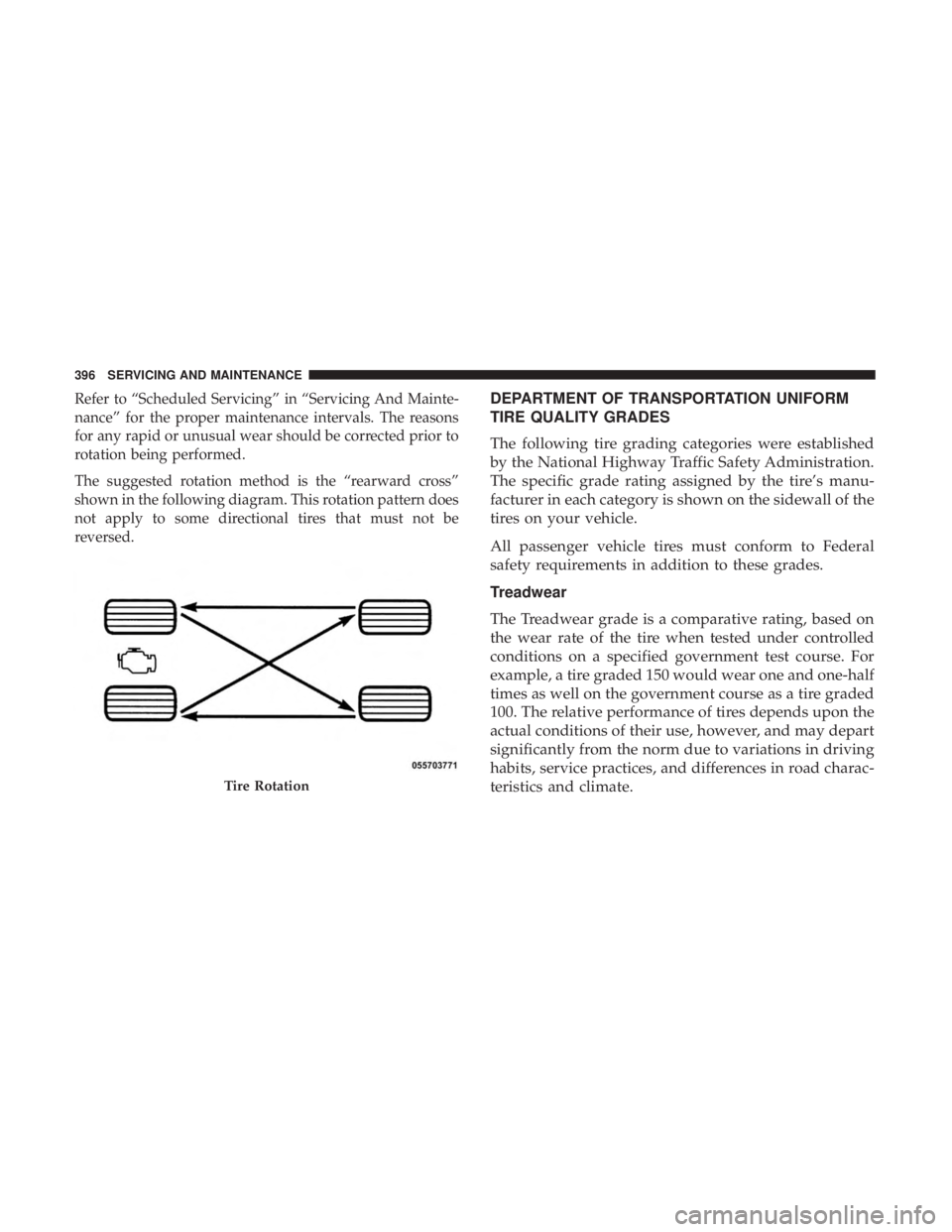

Refer to “Scheduled Servicing” in “Servicing And Mainte-
nance” for the proper maintenance intervals. The reasons
for any rapid or unusual wear should be corrected prior to
rotation being performed.
The suggested rotation method is the “rearward cross”
shown in the following diagram. This rotation pattern does
not apply to some directional tires that must not be
reversed.DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established
by the National Highway Traffic Safety Administration.
The specific grade rating assigned by the tire’s manu-
facturer in each category is shown on the sidewall of the
tires on your vehicle.
All passenger vehicle tires must conform to Federal
safety requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Tire Rotation
396 SERVICING AND MAINTENANCE

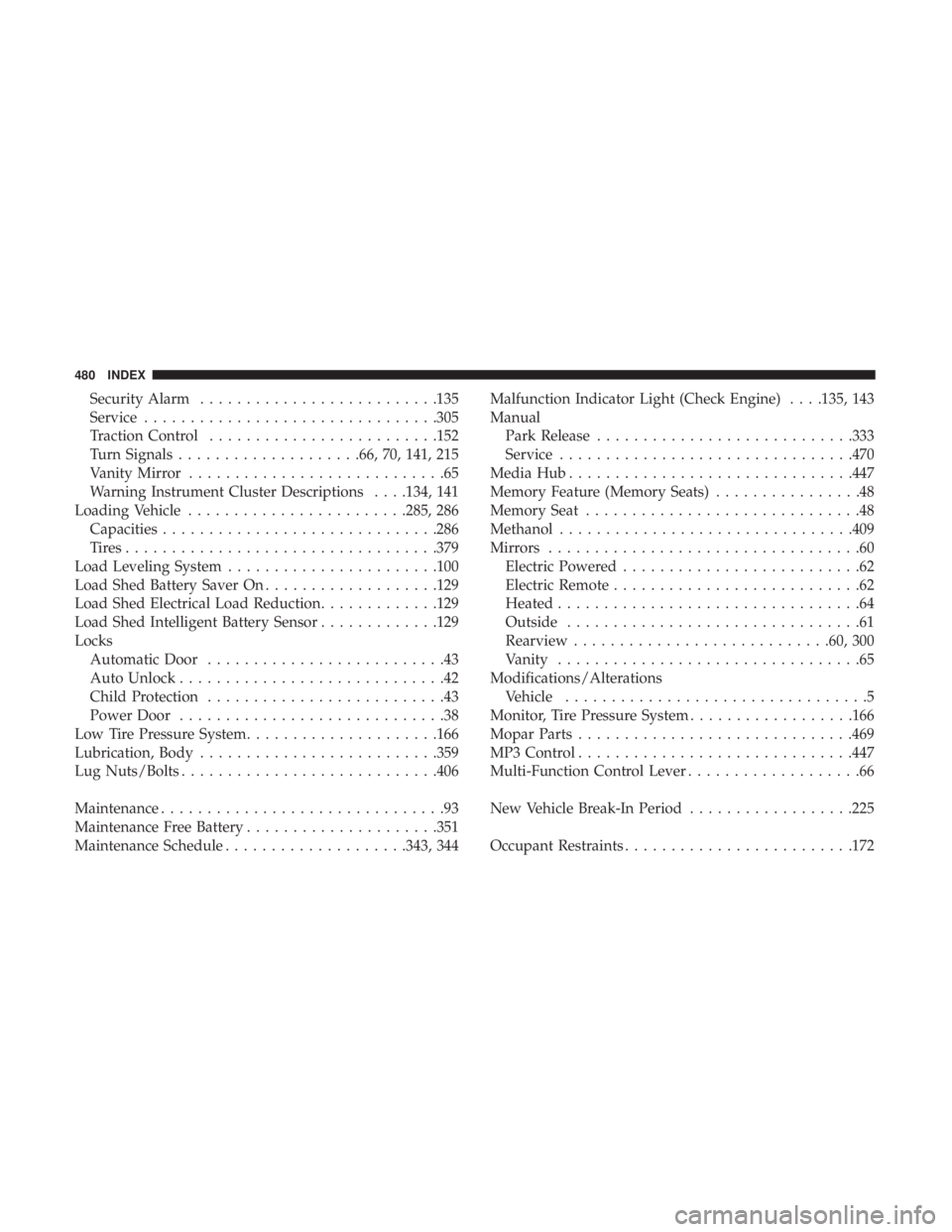

Security Alarm......................... .135
Service ............................... .305
Traction Control ........................ .152
Turn Signals ....................66, 70, 141, 215
Vanity Mirror ............................65
Warning Instrument Cluster Descriptions . . . .134, 141
Loading Vehicle ....................... .285, 286
Capacities ............................. .286
Tires................................. .379
Load Leveling System ...................... .100
Load Shed Battery Saver On ...................129
Load Shed Electrical Load Reduction .............129
Load Shed Intelligent Battery Sensor .............129
Locks Automatic Door ..........................43
Auto Unlock .............................42
Child Protection ..........................43
Power Door .............................38
Low Tire Pressure System .....................166
Lubrication, Body ......................... .359
Lug Nuts/Bolts ........................... .406
Maintenance ...............................93
Maintenance Free Battery .....................351
Maintenance Schedule ....................343, 344 Malfunction Indicator Light (Check Engine) . . . .135, 143
Manual
Park Release ........................... .333
Service ............................... .470
Media Hub .............................. .447
Memory Feature (Memory Seats) ................48
Memory Seat ..............................48
Methanol ............................... .409
Mirrors ..................................60
Electric Powered ..........................62
Electric Remote ...........................62
Heated .................................64
Outside ................................61
Rearview ........................... .60, 300
Vanity .................................65
Modifications/Alterations Vehicle .................................5
Monitor, Tire Pressure System ..................166
Mopar

Parts ............................. .469
MP3 Control ............................. .447
Multi-Function Control Lever ...................66
New Vehicle Break-In Period ..................225
Occupant Restraints ........................ .172
480 INDEX

Safety Checks Inside Vehicle...................213
Safety Checks Outside Vehicle .................215
Safety Defects, Reporting .....................469
Safety, Exhaust Gas ........................ .212
Safety Information, Tire ..................... .373
Safety Tips .............................. .212
Schedule, Maintenance ...................343, 344
Seat Belt Reminder ........................ .134
Seat Belts ............................ .174, 213
Adjustable Shoulder Belt ...................179
Adjustable Upper Shoulder Anchorage .........179
Adjustable Upper Shoulder Belt Anchorage ......179
Automatic Locking Retractor (ALR) ...........182
Child Restraints ........................ .197
Energy Management Feature ................181
Extender .............................. .180
Front Seat ...................... .174, 175, 177
Inspection ............................. .213
Lap/Shoulder Belt Operation ................177
Lap/Shoulder Belts ...................... .175
Lap/Shoulder Belt Untwisting ...............179
Operating Instructions .....................177
Pregnant Women ........................ .181
Pretensioners .......................... .181
Rear Seat ............................. .175Reminder
............................. .174
Seat Belt Extender ....................... .180
Seat Belt Pretensioner .....................181
Untwisting Procedure .....................179
Seat Belts Maintenance ...................... .400
Seats .............................. .44, 47, 52
Adjustment .......................... .44, 47
Easy Entry ..............................51
Head Restraints ....................... .55, 56
Heated .................................
52
Height Adjustment ........................46
Power .................................46
Rear Folding ......................... .44, 45
Seatback Release ..........................45
Tilting .............................. .44, 46
Vented .................................54
Ventilated ...............................54
Security Alarm ......................... .35, 135
Arm The System ..........................35
Selection Of Coolant (Antifreeze) ...............415
Sentry Key Key Programming .........................34
Sentry Key (Immobilizer) ......................33
Sentry Key Replacement ....................26, 34
Service Assistance ......................... .466
12
INDEX 483
