Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
324 Vehicle Care
All-Terrain Tires . . . . . . . . . . . . . . . 372
Tire Sidewall Labeling . . . . . . . . 372
Tire Designations . . . . . . . . . . . . . 374
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 376
Tire Pressure . . . . . . . . . . . . . . . . . 378
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 380
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 380
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 381
Tire Inspection . . . . . . . . . . . . . . . . 385
Tire Rotation . . . . . . . . . . . . . . . . . 386
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 388
Buying New Tires . . . . . . . . . . . . . 389
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 390
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 391
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 392
Wheel Replacement . . . . . . . . . . 393
Tire Chains . . . . . . . . . . . . . . . . . . . 394
If a Tire Goes Flat . . . . . . . . . . . . 394
Tire Changing . . . . . . . . . . . . . . . . 396
Full-Size Spare Tire . . . . . . . . . . 407Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 408
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 412
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 412
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 418
Interior Care . . . . . . . . . . . . . . . . . . 423
Floor Mats . . . . . . . . . . . . . . . . . . . . 426
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
386 Vehicle Care
Tire Rotation
Tires should be rotated every
12 000 km (7,500 mi). See
Maintenance Schedule0430.
Tires are rotated to achieve a
uniform wear for all tires. The
first rotation is the most
important.
Anytime unusual wear is
noticed, rotate the tires as soon
as possible, check for proper tire
inflation pressure, and check for
damaged tires or wheels. If the
unusual wear continues after the
rotation, check the wheel
alignment.
See When It Is Time for New
Tires 0388 andWheel
Replacement 0393.
Use this rotation pattern when
rotating the tires if the vehicle
has single rear wheels.
Dual Tire Rotation
When the vehicle is new,
or whenever a wheel, wheel
bolt, or wheel nut is replaced or
serviced, check the wheel nut
torque after 160, 1 600, and
10 000 km (100, 1,000, and
6,000 mi) of driving. For proper
torque and wheel nut tightening
information, see “Removing the
Flat Tire and Installing the Spare
Tire” under Tire Changing 0396 and
“Wheel Nut Torque” under
Capacities and Specifications
0 446.
The outer tire on a dual wheel
setup generally wears faster
than the inner tire. Tires last
longer and wear more evenly if
they are rotated.
See Tire Inspection 0385 and
Tire Rotation 0386. Also see
Maintenance Schedule 0430.
{Warning
If the vehicle is operated with a
tire that is underinflated, the tire
can overheat. An overheated tire
can lose air suddenly or catch
fire. You or others could be
injured. Properly inflate all tires,
including the spare.
See Tire Pressure 0378, for
information on proper tire
inflation.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18

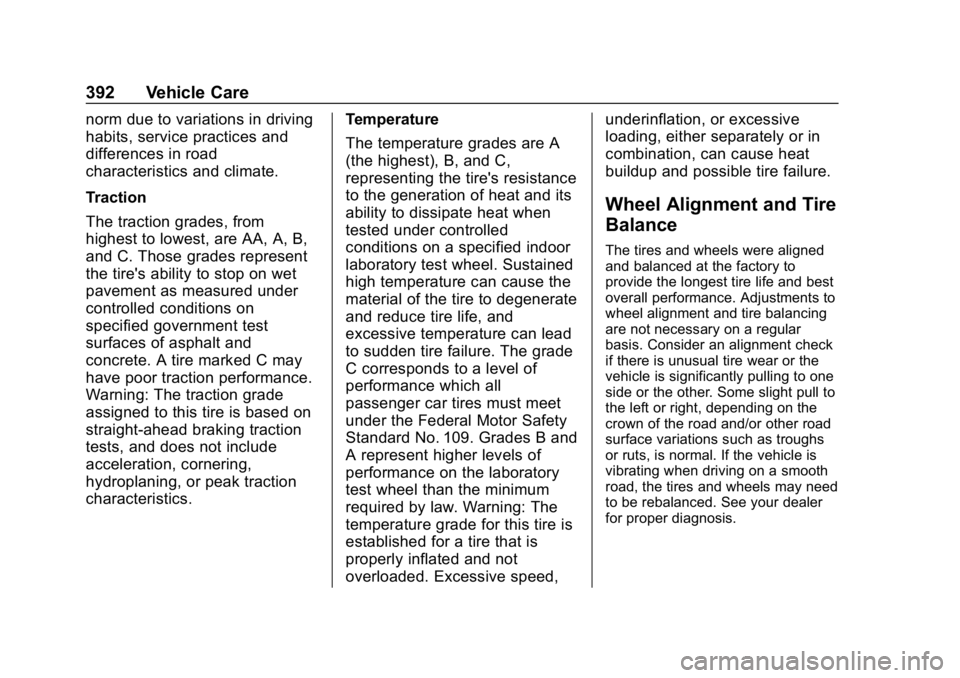

392 Vehicle Care
norm due to variations in driving
habits, service practices and
differences in road
characteristics and climate.
Traction
The traction grades, from
highest to lowest, are AA, A, B,
and C. Those grades represent
the tire's ability to stop on wet
pavement as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning, or peak traction
characteristics.Temperature
The temperature grades are A
(the highest), B, and C,
representing the tire's resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained
high temperature can cause the
material of the tire to degenerate
and reduce tire life, and
excessive temperature can lead
to sudden tire failure. The grade
C corresponds to a level of
performance which all
passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and
A represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law. Warning: The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
438 Service and Maintenance
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires. Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see
Interior Care 0423 and
Exterior Care 0418.
Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
. Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear.
. Your dealer has the required
equipment to ensure proper
wheel alignment.
Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
. Signs of damage include
scratches, cracks, and chips.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
Index 485
Software Updates . . . . . . . . . . . . . . 184
Special Application Services . . . . 436
Specifications andCapacities . . . . . . . . . . . . . . . . . . . . . 446
Speedometer . . . . . . . . . . . . . . . . . . . 139
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 151
Start Assist, Hill . . . . . . . . . . . . . . . . . 272
Start Vehicle, Remote . . . . . . . . . . . 38
Starter Switch Check . . . . . . . . . . . 354
Starting the Engine . . . . . . . . . . . . . 249
Steering . . . . . . . . . . . . . . . . . . . . . . . . 228 Fluid, Power . . . . . . . . . . . . . . . . . . 345
Heated Wheel . . . . . . . . . . . . . . . . 128
Wheel Adjustment . . . . . . . . . . . . 127
Wheel Controls . . . . . . . . . . . . . . . 127
Steps Power Assist . . . . . . . . . . . . . . . . . . . 42
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . 359
Storage Areas
Center Console . . . . . . . . . . . . . . . 123
Floor Console . . . . . . . . . . . . . . . . 124
Glove Box . . . . . . . . . . . . . . . . . . . . 122
Instrument Panel . . . . . . . . . . . . . 122
Sunglasses . . . . . . . . . . . . . . . . . . . 123
Storage Compartments . . . . . . . . . 122 Struts
Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 237
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 53
Sunglass Storage . . . . . . . . . . . . . . . 123
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Switches Airbag On-Off . . . . . . . . . . . . . . . . . . . 82
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision
Alert (FCA) . . . . . . . . . . . . . . . . . . 282
Infotainment . . . . . . . . . . . . . 181, 462
Noise Control . . . . . . . . . . . . . . . . . 352
Systems Driver Assistance . . . . . . . . . . . . . 279
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 139
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Taillamps . . . . . . . . . . . . . . . . . . . . . . . 359
Bulb Replacement . . . . . . . . . . . . 359
Text Telephone (TTY) Users . . . . 452
Theft-Deterrent Systems . . . . . . . . . 45 Immobilizer . . . . . . . . . . . . . . . . . . . . . 44
Throttle, Adjustable . . . . . . . . . . . . . 246
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
All-Season . . . . . . . . . . . . . . . . . . . . 370
All-Terrain . . . . . . . . . . . . . . . . . . . . 372
Buying New Tires . . . . . . . . . . . . . 389
Chains . . . . . . . . . . . . . . . . . . . . . . . . 394
Changing . . . . . . . . . . . . . . . . . . . . . 396
Designations . . . . . . . . . . . . . . . . . 374
Different Size . . . . . . . . . . . . . . . . . 390
Full-Size Spare . . . . . . . . . . . . . . . 407
If a Tire Goes Flat . . . . . . . . . . . . 394
Inspection . . . . . . . . . . . . . . . . . . . . 385
Low Profile . . . . . . . . . . . . . . . . . . . 371
Pressure . . . . . . . . . . . . . . . . . 378, 380
Pressure Light . . . . . . . . . . . . . . . . 152
Pressure Monitor Operation . . 381
Pressure Monitor System . . . . . 380
Rotation . . . . . . . . . . . . . . . . . . . . . . 386
Sidewall Labeling . . . . . . . . . . . . . 372
Terminology and Definitions . . 376
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 391
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 392
Wheel Replacement . . . . . . . . . . 393
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 388
Winter . . . . . . . . . . . . . . . . . . . . . . . . 371
Top Tier Fuel . . . . . . . . . . . . . . . . . . . 289

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
486 Index
Tow/Haul Mode . . . . . . . . . . . . . . . . . 261
Tow/Haul Mode Light . . . . . . . . . . . 150
TowingDriving Characteristics . . . . . . . . 294
Equipment . . . . . . . . . . . . . . . . . . . . 306
General Information . . . . . . . . . . 294
Recreational Vehicle . . . . . . . . . . 412
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 298
Trailer Sway Control (TSC) . . . 315
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 412
Traction
Control System(TCS)/StabiliTrak Light . . . . . . 152
Off Light . . . . . . . . . . . . . . . . . . . . . . 151
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 273
Trademarks and License Agreements . . . . . . . . . . . . . . . . . . . 210
Trailer Sway Control (TSC) . . . . . . . . . . 315
Tow Mirrors . . . . . . . . . . . . . . . . . . . . . 46
Towing . . . . . . . . . . . . . . . . . . . . . . . . 298
Transfer Case . . . . . . . . . . . . . . . . . . 262
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 256
Fluid, Automatic . . . . . . . . . 335, 337
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 455 Trip Odometer . . . . . . . . . . . . . . . . . . 139
Truck-Camper Loading
Information . . . . . . . . . . . . . . . . . . . . 244
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 175
Turn Signal Bulb Replacement . . . . . . . . . . . . 359
U
Uniform Tire Quality Grading . . . 391
Universal Remote System . . . . . . 167Operation . . . . . . . . . . . . . . . . . . . . . 170
Programming . . . . . . . . . . . . . . . . . 167
Updates Software . . . . . . . . . . . . . . . . . . . . . . 184
USB Port . . . . . . . . . . . . . . . . . . . . . . . 190
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 43
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 227
Identification Number (VIN) . . . 445
Load Limits . . . . . . . . . . . . . . . . . . . 238
Messages . . . . . . . . . . . . . . . . . . . . 159
Personalization . . . . . . . . . . . . . . . 160
Remote Start . . . . . . . . . . . . . . . . . . . 38
Security . . . . . . . . . . . . . . . . . . . . . . . . 43 Vehicle (cont'd)
Speed Messages . . . . . . . . . . . . . 159
Towing . . . . . . . . . . . . . . . . . . . . . . . . 412
Vehicle Ahead Indicator . . . . . . . . 151
Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . . . 378
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 461
Ventilation, Air . . . . . . . . . . . . . . . . . . 223
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Voice Recognition . . . . . . . . . . . . . . 197
Voltmeter Gauge . . . . . . . . . . . . . . . 142
W
Warning
Brake System Light . . . . . . . . . . . 148
Caution and Danger . . . . . . . . . . . . . 3
Lane Departure (LDW) . . . . . . . 286
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . . . 135
Warnings Hazard Flashers . . . . . . . . . . . . . . 175
Washer Fluid . . . . . . . . . . . . . . . . . . . 346
Wheels Alignment and Tire Balance . . 392
Different Size . . . . . . . . . . . . . . . . . 390
Replacement . . . . . . . . . . . . . . . . . 393
