2019 CHEVROLET MALIBU Owner's Manual

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18
Service and Maintenance 337
.
Trained dealer technicians can
inspect the windshield and
recommend proper replacement
if needed.
Wiper Blades
Wiper blades need to be cleaned
and kept in good condition to
provide a clear view.
.
Signs of wear include streaking,
skipping across the windshield,
and worn or split rubber.
.
Trained dealer technicians can
check the wiper blades and
replace them when needed.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18
338 Service and Maintenance

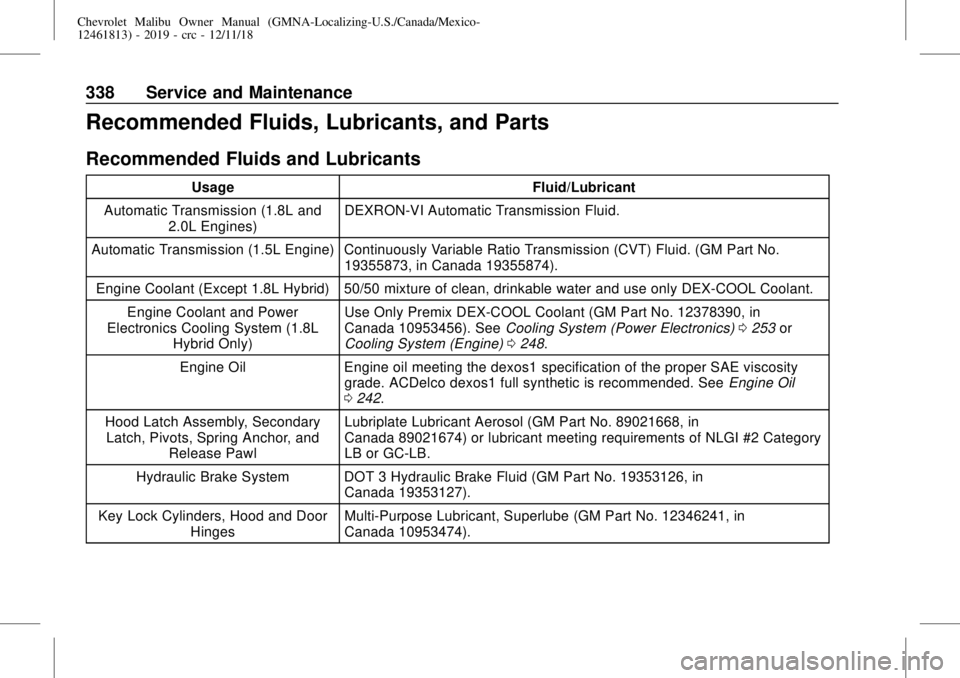

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Usage Fluid/Lubricant
Automatic Transmission (1.8L and
2.0L Engines)DEXRON-VI Automatic Transmission Fluid.
Automatic Transmission (1.5L Engine) Continuously Variable Ratio Transmission (CVT) Fluid. (GM Part No.
19355873, in Canada 19355874).
Engine Coolant (Except 1.8L Hybrid) 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
Engine Coolant and Power
Electronics Cooling System (1.8L
Hybrid Only)Use Only Premix DEX-COOL Coolant (GM Part No. 12378390, in
Canada 10953456). SeeCooling System (Power Electronics)0253or
Cooling System (Engine)0248.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity
grade. ACDelco dexos1 full synthetic is recommended. SeeEngine Oil
0242.
Hood Latch Assembly, Secondary
Latch, Pivots, Spring Anchor, and
Release PawlLubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2 Category
LB or GC-LB.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in
Canada 19353127).
Key Lock Cylinders, Hood and Door
HingesMulti-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18
Service and Maintenance 339
Usage Fluid/Lubricant
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
equivalent.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection
requirements.
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
1.5L L4 Engine 23430312 A3208C
1.8L L4 Engine 23430312 A3208C
2.0L L4 Engine 23430313 A3210C
Engine Oil Filter
1.5L L4 Engine 12640445 PF64
1.8L L4 Engine 55594652 PF101G
2.0L L4 Engine 12640445 PF64
Passenger Compartment Air Filter 13508023 CF185

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18
340 Service and Maintenance
Part GM Part Number ACDelco Part Number
Spark Plugs
1.5L L4 Engine 12686362 41-157
1.8L L4 Engine 55486272 41-152
2.0L L4 Engine 12647827 41-125
Wiper Blades
Driver Side–650 mm (25.6 in) 23353586—
Passenger Side–450 mm (17.7 in) 23353587—

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18
Service and Maintenance 341

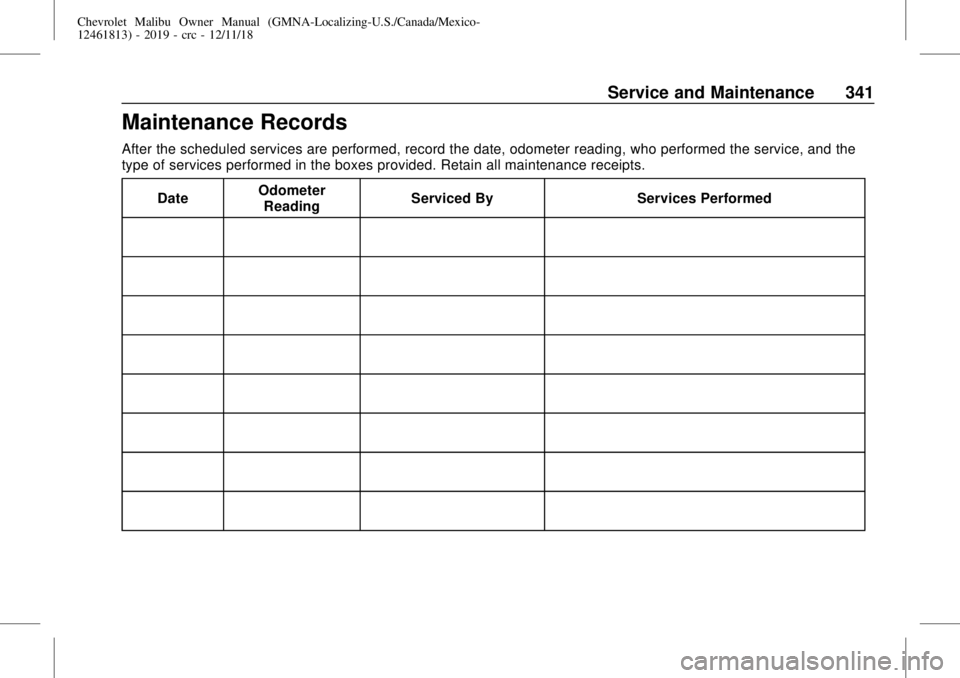

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
DateOdometer
ReadingServiced By Services Performed

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18
342 Technical Data
Technical Data
Vehicle Identification
Vehicle Identification
Number (VIN) . . . . . . . . . . . . . . . 342
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . . 342
Vehicle Data
Capacities and
Specifications . . . . . . . . . . . . . . . 343
Engine Drive Belt Routing . . . . 345
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacementparts. See“Engine Specifications”
underCapacities and Specifications
0343for the vehicle's engine code.
Service Parts
Identification Label
There may be a label on the inside
of the trunk that contains the
following information:
.
Vehicle Identification
Number (VIN)
.
Model designation
.
Paint information
.
Production options and special
equipment
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18

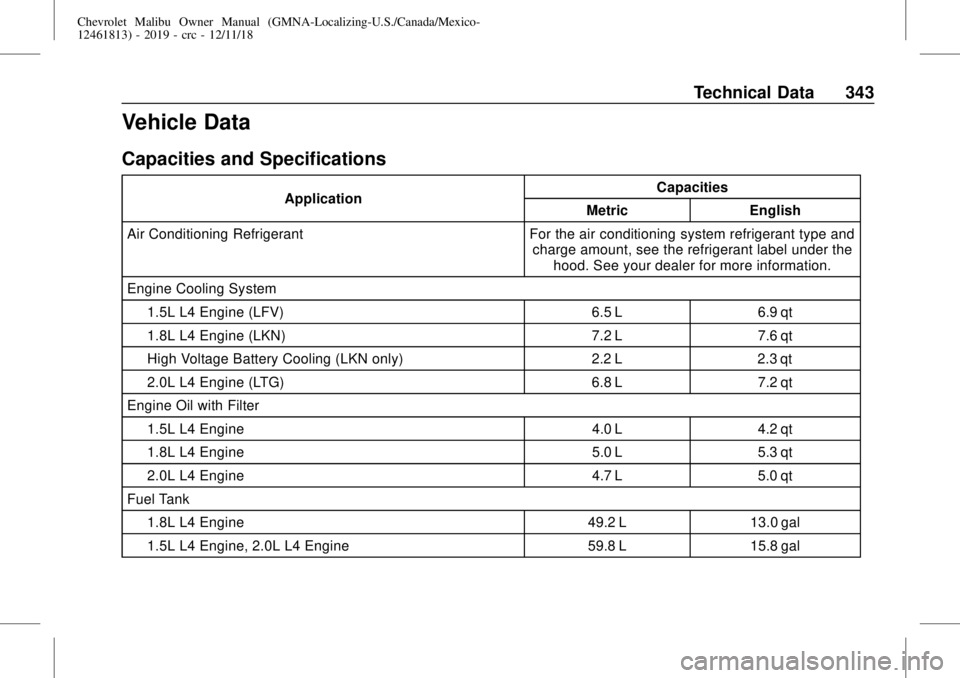

Technical Data 343
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and
charge amount, see the refrigerant label under the
hood. See your dealer for more information.
Engine Cooling System
1.5L L4 Engine (LFV) 6.5 L 6.9 qt
1.8L L4 Engine (LKN) 7.2 L 7.6 qt
High Voltage Battery Cooling (LKN only) 2.2 L 2.3 qt
2.0L L4 Engine (LTG) 6.8 L 7.2 qt
Engine Oil with Filter
1.5L L4 Engine 4.0 L 4.2 qt
1.8L L4 Engine 5.0 L 5.3 qt
2.0L L4 Engine 4.7 L 5.0 qt
Fuel Tank
1.8L L4 Engine 49.2 L 13.0 gal
1.5L L4 Engine, 2.0L L4 Engine 59.8 L 15.8 gal

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461813) - 2019 - crc - 12/11/18

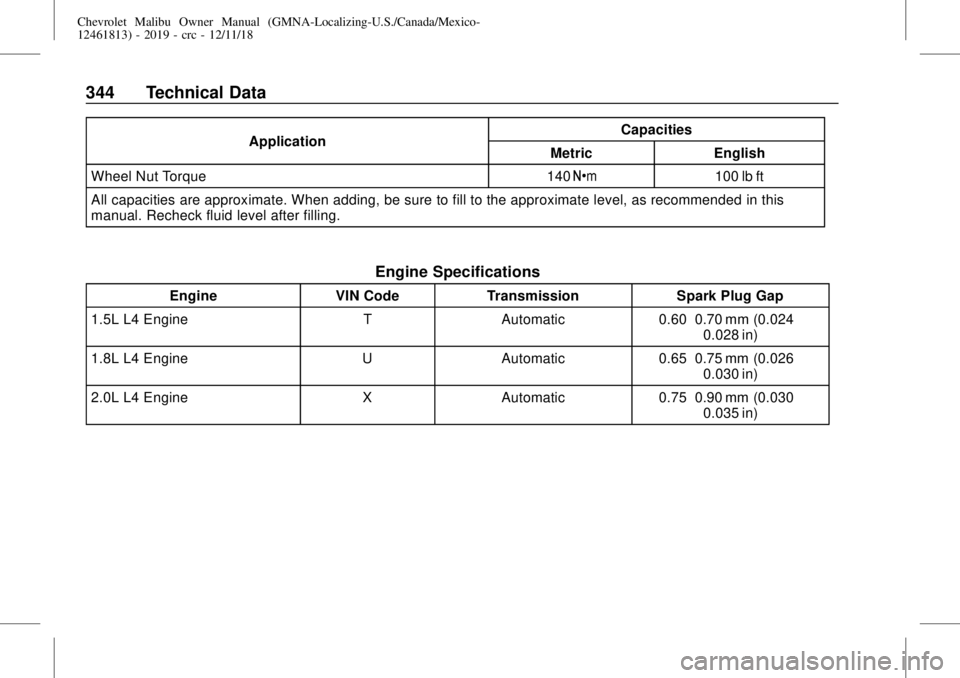

344 Technical Data
ApplicationCapacities
Metric English
Wheel Nut Torque 140Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN Code Transmission Spark Plug Gap
1.5L L4 Engine T Automatic 0.60–0.70 mm (0.024–
0.028 in)
1.8L L4 Engine U Automatic 0.65–0.75 mm (0.026–
0.030 in)
2.0L L4 Engine X Automatic 0.75–0.90 mm (0.030–
0.035 in)
