Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
Seats and Restraints . . . . . . . . . . . . 3
Instruments and Controls . . . . . . . . 4
Infotainment System . . . . . . . . . . . . . 8
Driving and Operating . . . . . . . . . . 14
Vehicle Care . . . . . . . . . . . . . . . . . . . . 31
Service and Maintenance . . . . . . . 45
Technical Data . . . . . . . . . . . . . . . . . 47
Index . . . . . . . . . . . . . . . . . . . . . 51

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
2 Introduction
Introduction
The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, CHEVROLET,
the CHEVROLET Emblem,
CAMARO, and the CAMARO
Emblem are trademarks and/or
service marks of General Motors
LLC, its subsidiaries, affiliates,
or licensors.
For vehicles first sold in Canada,
substitute the name“General
Motors of Canada Company” for
Chevrolet Motor Division wherever it
appears in this manual. This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country
specifications, features/applications
that may not be available in your
region, or changes subsequent to
the printing of this owner
’s manual.
Refer to the purchase
documentation relating to your
specific vehicle to confirm the
features.
Keep this manual in the vehicle for
quick reference.
Canadian Vehicle Owners
A French language manual can be
obtained from your dealer, at
www.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante: Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Using this Supplement
This supplement contains
information specific to the unique
components of the vehicle. It does
not explain everything you need to
know about the vehicle. Read this
supplement along with the owner
’s
manual to learn about the vehicle's
features and controls.
Index
A good place to look for what you
need is the Index in the back of this
supplement. It is an alphabetical list
of what is in the supplement, and
the page number where you will
find it.
Litho in U.S.A.
Part No. 84075508 B Second Printing©2018 General Motors LLC. All Rights Reserved.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
Seats and Restraints 3
Seats and
Restraints
Seat Belts
Lap-Shoulder Belt . . . . . . . . . . . . . . . 3
Seat Belts
Lap-Shoulder Belt
On coupe models, the driver seat
belt has an Automatic Locking
Retractor (ALR). This feature is
useful in performance driving
scenarios where the driver wants to
be held in the seat more tightly to
take advantage of the aggressive
bolstering of the seat.
To use:1. Move the seat 8–10 cm (3–4 in) rearward from the
normal driving position. 2. Pull the driver shoulder belt out
as far as it will go, until it stops,
to set the lock. While holding
the shoulder belt in this
position, buckle the belt.
When you release the shoulder
belt, the retractor will make a
ratchet sound when it retracts.
When the retractor lock is set,
the belt can be tightened but
not pulled out of the retractor.
3. Adjust the belt close to your body, and then move the seat
forward 8–10 cm (3–4 in) to the
desired driving position. This
will hold the belt to your body
even tighter. The belt fit should
be tight, but not uncomfortable.
To unlatch the belt, press the button
on the buckle. The belt should
return to its stowed position.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
4 Instruments and Controls
Instruments and
Controls
Warning Lights, Gauges, and
Indicators
Instrument Cluster . . . . . . . . . . . . . . 5
Boost Gauge . . . . . . . . . . . . . . . . . . . . 6

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
Instruments and Controls 5
Warning Lights, Gauges, and Indicators

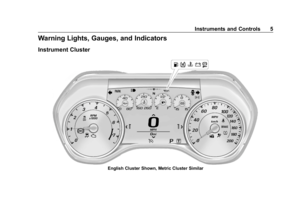

Instrument Cluster
English Cluster Shown, Metric Cluster Similar

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
6 Instruments and Controls
Cluster Menu
There is an interactive display area
in the center of the instrument
cluster.
Use the right steering wheel control
to open and scroll through the
different items and displays.
Press
oto access the cluster
applications. Use
worxto scroll
through the list of applications.
Press SEL to select the application
from the list. Performance
Press SEL to enter the Performance
menu. Use
worxto scroll
through the available items.
Tire Temperature : Displays tire
temperature status. Unknown may
display if information is unavailable.
Tire temperature states:
. Cold —Drive with caution as tire
performance may be degraded.
. Cool —Drive with caution as tire
performance may be degraded.
. Normal —Tires are at normal
driving temperature.
. Warm —Tires are ready for
aggressive driving.
. Overheated —Tire temperature
may be higher than optimal.
eLSD and Wheel Slip : The upper
eLSD display indicates the eLSD
clutch locking percentage. The
lower Wheel Slip display indicates
the rear tire slip compared to the
speed of the front tires. See
Limited-Slip Differential 027
and Track Events and Competitive
Driving 014.
Boost Gauge
Metric

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-12461812) - 2019 - crc - 11/7/18
Instruments and Controls 7
English
This gauge indicates vacuum during
light to moderate throttle and boost
under heavier throttle.
It displays the air pressure level in
the intake manifold before it enters
the engine's combustion chamber. The gauge is automatically centered
at zero every time the engine is
started. Actual vacuum or boost is
displayed from this zero point.
Changes in ambient pressure, such
as driving in mountains and
changing weather, will slightly
change the zero reading.
