2019 CADILLAC ESCALADE ESV Convenience & Personalization Guide

17
POWER LIFTGATE
POWER ASSIST STEPS♦
OPEN/CLOSE
THE POWER LIFTGATE
Press the Power
Liftgate button on the
Remote Keyless Entry
(RKE) transmitter twice.
Press the Power Liftgate
knob on the overhead
console.
Press the touchpad (A)
on the liftgate handle to
open the liftgate.
Press the button (B) next
to the liftgate latch to close the liftgate.
PROGRAMMING THE LIFTGATE HEIGHT
1. Turn the Power Liftgate knob to the 3/4 mode position.
2. Open the liftgate.
3. Adjust the liftgate manually to the
desired height.
4. To save the setting, press and hold the
button next to the liftgate latch (B)
for 3 seconds. The turn signals flash and a
beep sounds when the setting is saved.
HANDS-FREE OPERATION
To open or close the liftgate hands-free, kick your foot straight
in and out under the center of the rear bumper, or above the
vehicle logo projected on the ground
♦. Do not swing your foot
side-to-side.
The RKE transmitter must be within 3 feet of the liftgate.
See Keys, Doors and Windows in your Owner's Manual.
The power assist steps lower automatically when a door is opened
and retract after the doors are closed.
To deploy the steps for cleaning and car washes, with the

ignition on and the vehicle in Park or with the vehicle running
and in Neutral, select the

Run Board screen button on the
infotainment screen and then select the Extended option.
To disable or enable the steps, with the ignition on and the

vehicle in Park or Neutral, select the
Run Board screen

button and then select On or Off.
See Keys, Doors and Windows in your Owner's Manual.
SUNROOF ♦
OPEN/CLOSE
THE SUNROOF
Press the rear of the
SLIDE TILT Sunroof Tilt
switch to vent the
sunroof.
Fully press the rear of
the
SLIDE TILT Sunroof Slide
switch to express-open
the sunroof.
Fully press the front of
either SLIDE TILT
Sunroof
switch to express-close
the sunroof.
See Keys, Doors and Windows in your Owner's Manual.
A
B
♦
Optional equipment

SET MEMORY POSITIONS
With the vehicle in Park and the

ignition On or in Accessory mode:
1. Adjust the power driver’s seat,
power adjustable pedals, power
outside mirrors, and power tilt/
telescopic steering column to the
desired positions.
2. Press and release the SET button.
A beep will sound. Immediately
press and hold
button 1 until two
beeps sound.
3. Repeat the steps using button 2 for a second driver.
To store driver
\b11#2A"(312 *#.#"*1,"12##0',%!-*3+,

positions for more clearance when exiting the vehicle, repeat steps
1 and 2 using the
EXIT button.
RECALL POSITIONS
Press and hold button 1 or 2 or the EXIT button until the
seat, pedals, mirrors and steering column reach the set position.
The memory/exit positions can be programmed to be recalled
automatically when the ignition is turned On/Off (for exit recall,
the driver
\b1"--0+312 #-.#,#"K.
To set the Auto Memory Recall or Easy Exit Options, go to
Settings > Vehicle > Comfort and Convenience > Auto Memory
Recall or Easy Exit Options.
See Seats and Restraints in your Owner's Manual.
18
POWER FRONT SEATS
SEAT ADJUSTMENTS
A. Seat Cushion Adjustment
Move the front horizontal

control to move the seat for -
ward or rearward, or to tilt,
raise or lower the seat.
B. Seatback Adjustment
Move the vertical control to
recline or raise the seatback.
C. Lumbar Adjustment
Move the rear control fore/aft to increase/decrease lumbar

support or up/down to raise/lower the lumbar location.
ADDITIONAL SEAT ADJUSTMENTS (PLATINUM MODEL)
D. Feature Select Control
Press and release the control
to display the seat adjustment
features on the infotainment
screen. Press and hold to scroll
through the adjustments.
E. 4-Way Control Pad
Use the 4-way control pad to
make adjustments up, down,
forward, or rearward to the
selected feature.
F. Massage On/Off
With the ignition on, press to recall the last massage type and
intensity.
A
F D
C B
E

2. Press the Seat Release button (A) on the panel behind the
rear doors or the x2 button (B) in the rear cargo area to fold
the seat forward. Press either button again to tumble the seat
forward.
UNFOLDING 2ND-ROW SEATS
1. Pull down the seat until it latches to the floor.
2. Lift up the seatback until it locks in place.
POWER FOLDING/UNFOLDING 3RD-ROW SEATS
1. With the vehicle in
Park, lower the head
restraint, unbuckle the
seat belt, and make
sure nothing is on
the seat.
2. Press and hold the
bottom of the
Seat
Release button (C) in
the rear cargo area to
fold the seat flat.
3. Press and hold the top
of the
button to raise the seatback.
See Seats and Restraints in your Owner's Manual.
19

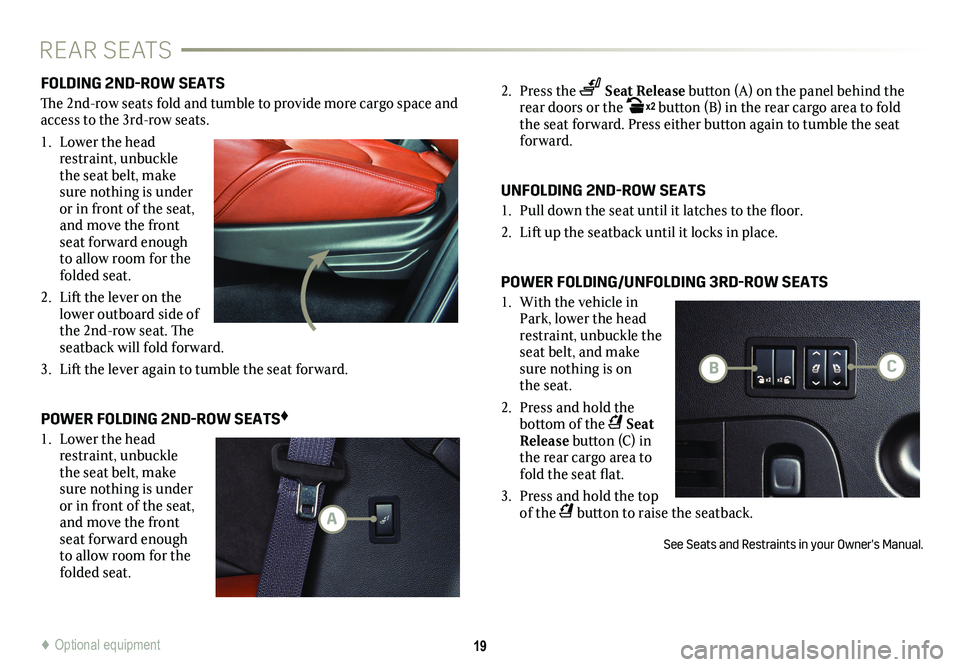

REAR SEATS
FOLDING 2ND-ROW SEATS
The 2nd-row seats fold and tumble to provide more cargo space and
access to the 3rd-row seats.
1. Lower the head
restraint, unbuckle
the seat belt, make
sure nothing is under
or in front of the seat,
and move the front
seat forward enough
to allow room for the
folded seat.
2. Lift the lever on the
lower outboard side of
the 2nd-row seat. The
seatback will fold
forward.
3. Lift the lever again to tumble the seat forward.
POWER FOLDING 2ND-ROW SEATS♦
1. Lower the head
restraint, unbuckle
the seat belt, make
sure nothing is under
or in front of the seat,
and move the front
seat forward enough
to allow room for the
folded seat.
A
B C
♦
Optional equipment

!84161719=A!
Certain restrictions, precautions and safety procedures apply to your vehicle. Please
read your Owner’s Manual for complete instructions. All information contained in this
guide is based on the latest information available at the time of printing and is subject
to change without notice. Copyright 2018 by General Motors. All rights reserved.
We recommend always using ACDelco or genuine GM service parts.
OWNER PRIVILEGES™
myCADILLAC AND ESCALADE OWNER GUIDE APPS
The myCadillac app connects owners with a compatible
mobile device to a variety of vehicle information and
services, such as a searchable Owner's Manual, OnStar
Vehicle \b'%,-12'!',$-0+2'-,A-"1'"#11'12,!#
and more. The app also enables you to send remote com -
mands, manage your Wi-Fi hotspot and data, and send
destinations to the navigation system (vehicles must be
properly equipped).
The Escalade Owner Guide app covers the operation of many of the
features on your Escalade, such as setting driver preferences, using
the infotainment system and understanding how various safety
systems work. It also provides access to many online resources and
Cadillac’s comprehensive owner benefits.
Visit my.cadillac.com/learn for more information. Download the
mobile apps from your compatible mobile device’s app store.
CADILLAC ONLINE OWNER CENTER
Create an account at my.cadillac.com for access to an online
Owner’s Manual, helpful how-to videos, your service history and
warranty status, OnStar reports (active OnStar account required),
and more.
ROADSIDE ASSISTANCE 1-800-224-1400
TTY Users: 1-888-889-2438
Roadside Assistance provides every Cadillac owner with the

advantage of contacting a Cadillac advisor and, when appropriate, a
Cadillac-trained dealer technician who can provide on-site services,
including towing service, battery jump-starting, lock-out service,
fuel delivery and flat tire assistance. Services are provided for up to
6 years/70,000 miles, whichever occurs first.
Roadside Assistance and OnStar
®: If you have a current OnStar
service plan, press the OnStar button and the vehicle will send your
current GPS location to an OnStar Advisor who will speak to you,
assess your problem, contact Roadside Assistance and relay your
exact location so you will get the help you need.
To learn more about OnStar services, press the blue OnStar
button,
call 1-888-466-7827, visit onstar.com or refer to your Owner’s
Manual.
CUSTOMER ASSISTANCE 1-800-458-8006
Cadillac Customer Assistance is available anytime to answer

questions or provide additional information.
