2019 BMW 4 SERIES COUPE Owners Manual

Engine
compartmentVehicle
features
andoptions
This chapter describes all standard, country-spejcific and optional features offered with the series.
It also describes features that are not necessarily available in your vehicle, e. g., due to the selectedoptions or country versions. This also applies to
safety-related functions and systems. When usj
ing these functions and systems, the applicable laws and regulations must be observed.

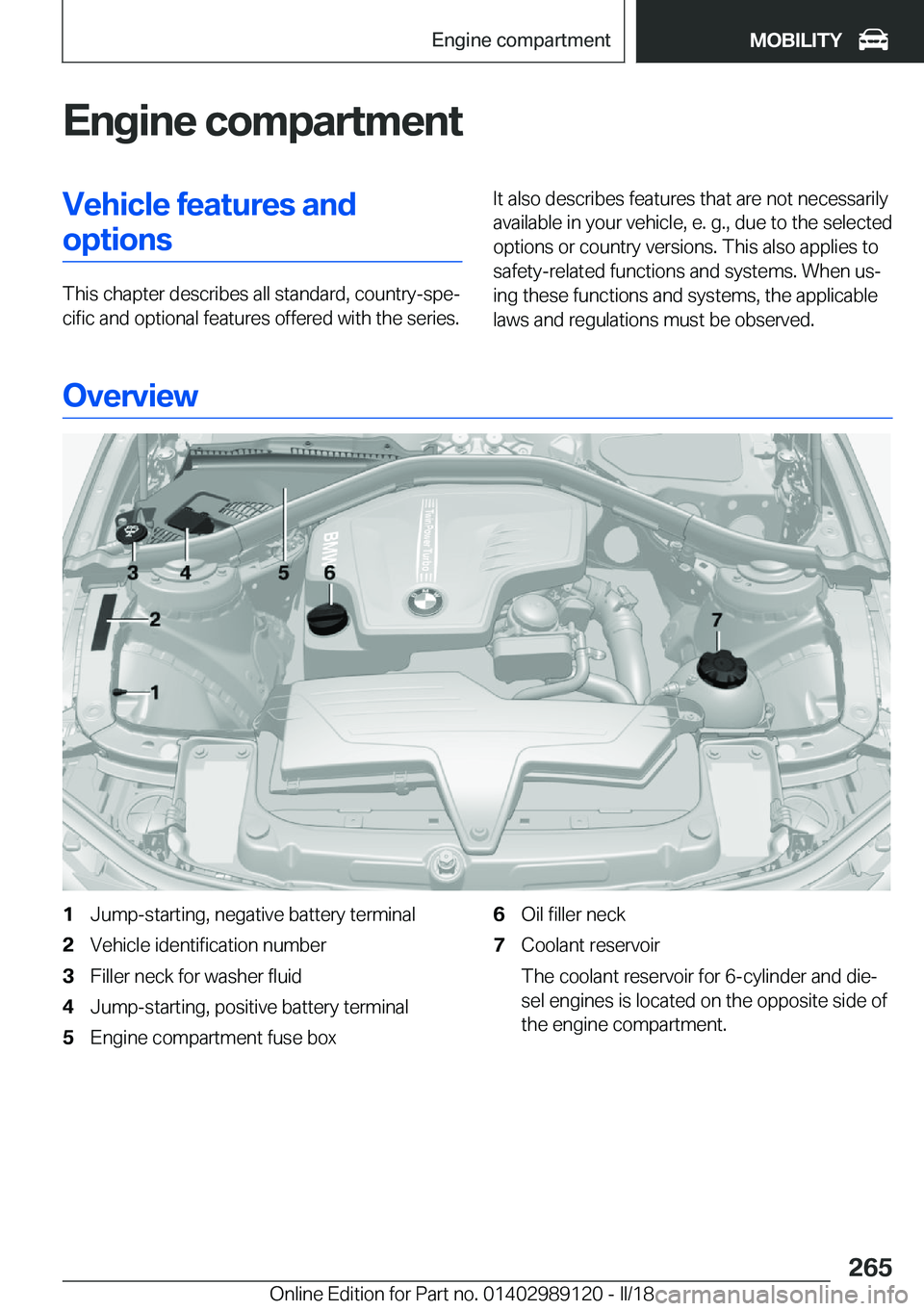

Overview
1Jump-starting, negative battery terminal2Vehicle identification number3Filler neck for washer fluid4Jump-starting, positive battery terminal5Engine compartment fuse box6Oil filler neck7Coolant reservoir
The coolant reservoir for 6-cylinder and diej sel engines is located on the opposite side of the engine compartment.Seite 265Engine
compartmentMOBILITY265
Online Edition for Part no. 01402989120 - II/18

Hood
Safety
information
WARNING
Improperly executed work in the engine comj partment can damage vehicle components and impair vehicle functions. There is a risk of perj
sonal and property damage. The manufacturer of your vehicle recommends that, in the effortto avoid such risks, work in the engine comj
partment be performed by a dealerss service
center or another qualified service center or rej
pair shop.
WARNING
The engine compartment accommodates movj
ing components. Certain components in the engine compartment can also move with the
vehicle switched off, for instance the radiator
fan. There is a risk of injury. Do not reach into the area of moving parts. Keep articles of clothj
ing and hair away from moving parts.
WARNING
There are protruding parts, for instance locking
hook, on the inside of the hood. There is a risk
of injury. If the hood is open, pay attention to protruding parts and keep clear of these areas.
WARNING
An incorrectly locked hood can open while drivj
ing and restrict visibility. There is a risk of an acj cident. Stop immediately and correctly close
the hood.
WARNING
Body parts can be jammed when opening and closing the hood. There is a risk of injury. Make
sure that the area of movement of the hood is
clear during opening and closing.
NOTE
Folded-away wipers can be jammed when the hood is opened. There is a risk of damage to
property. Make sure that the wipers with the
wiper blades mounted are folded down onto
the windshield before opening the hood.
Opening
the
hood
1.Pull lever, arrow 1.
Hood is unlocked.2.After the lever is released, pull the lever again, arrow 2.
Hood can be opened.
Indicator/warning
lights When the hood is unlocked, a Check Controlmessage is displayed.
Seite 266MOBILITYEngine
compartment266
Online Edition for Part no. 01402989120 - II/18

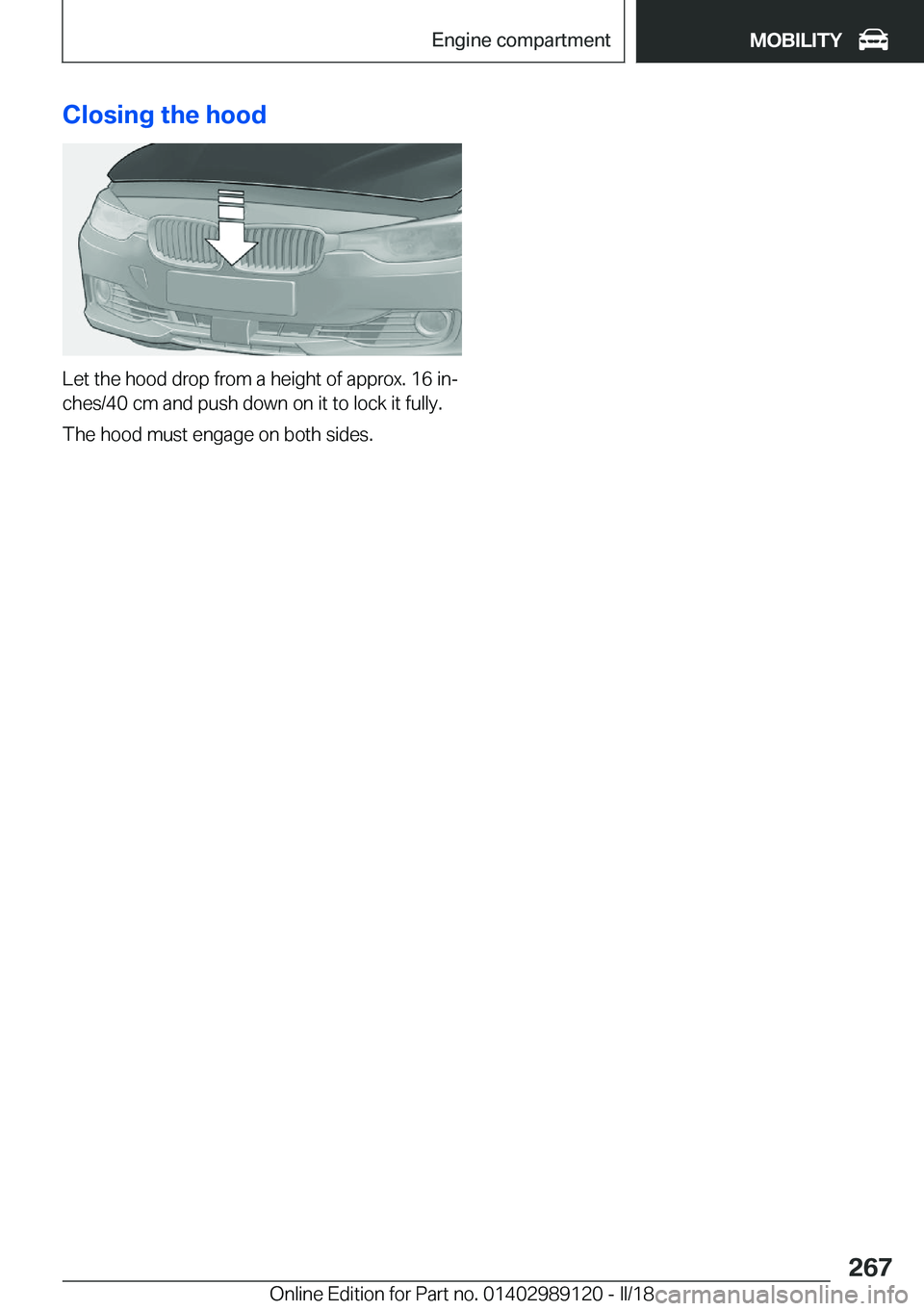

Closing
the
hood
Let the hood drop from a height of approx. 16 inj
ches/40 cm and push down on it to lock it fully.
The hood must engage on both sides.
Seite 267Engine
compartmentMOBILITY267
Online Edition for Part no. 01402989120 - II/18

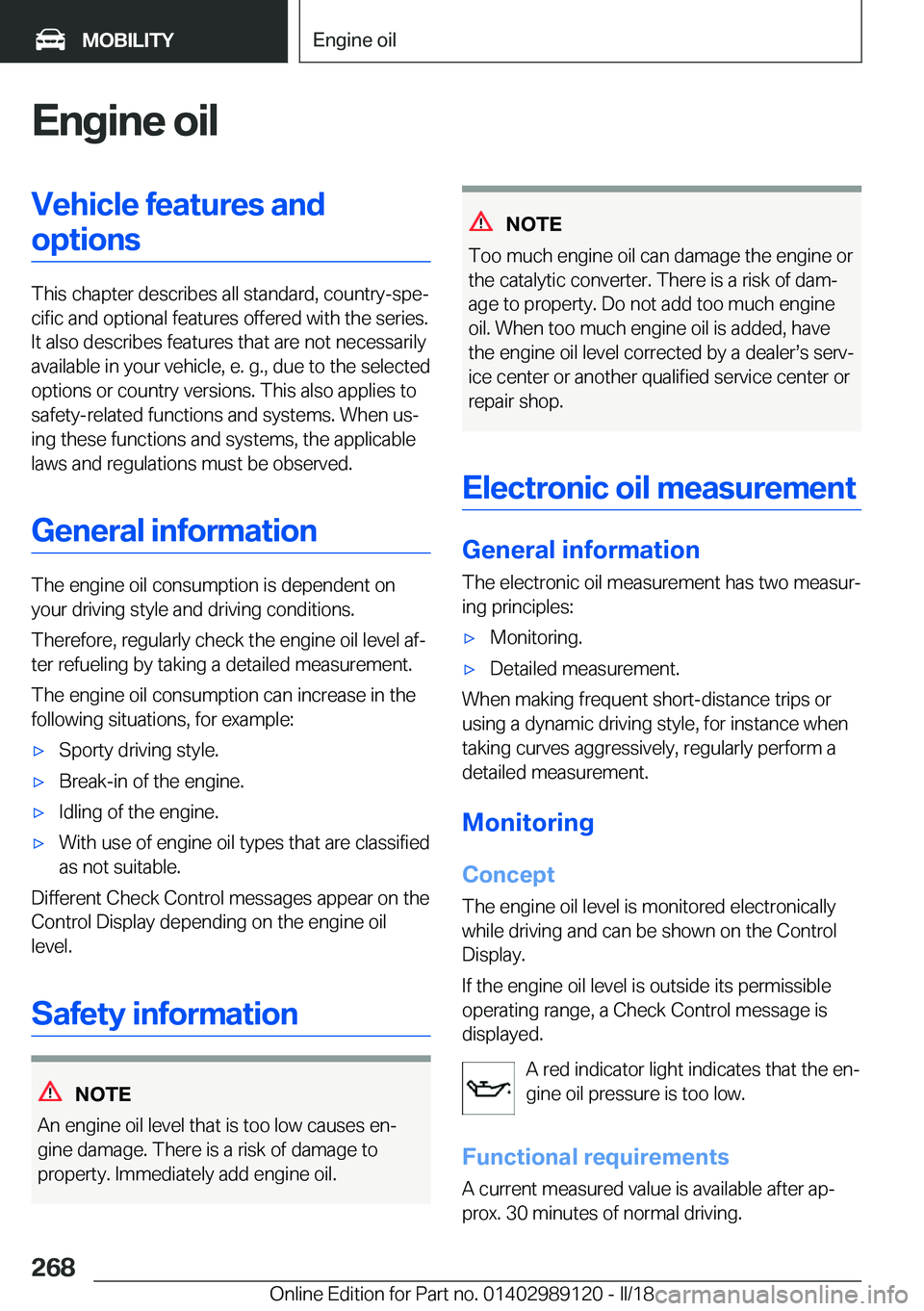

Engine
oilVehicle
features
andoptions
This chapter describes all standard, country-spejcific and optional features offered with the series. It also describes features that are not necessarilyavailable in your vehicle, e. g., due to the selectedoptions or country versions. This also applies to
safety-related functions and systems. When usj
ing these functions and systems, the applicable laws and regulations must be observed.
General
information
The engine oil consumption is dependent on
your driving style and driving conditions.
Therefore, regularly check the engine oil level afj ter refueling by taking a detailed measurement.
The engine oil consumption can increase in the following situations, for example:
'xSporty driving style.'xBreak-in of the engine.'xIdling of the engine.'xWith use of engine oil types that are classified
as not suitable.
Different Check Control messages appear on the Control Display depending on the engine oil
level.
Safety
information
NOTE
An engine oil level that is too low causes enj gine damage. There is a risk of damage to property. Immediately add engine oil.
NOTE
Too much engine oil can damage the engine or
the catalytic converter. There is a risk of damj
age to property. Do not add too much engine oil. When too much engine oil is added, havethe engine oil level corrected by a dealerss servjice center or another qualified service center or
repair shop.
Electronic
oil
measurement
General
information
The electronic oil measurement has two measurj
ing principles:
'xMonitoring.'xDetailed measurement.
When making frequent short-distance trips or
using a dynamic driving style, for instance when
taking curves aggressively, regularly perform a
detailed measurement.
Monitoring
Concept
The engine oil level is monitored electronically
while driving and can be shown on the Control Display.
If the engine oil level is outside its permissible operating range, a Check Control message is
displayed.
A red indicator light indicates that the enj
gine oil pressure is too low.
Functional
requirements A current measured value is available after apj
prox. 30 minutes of normal driving.
Seite 268MOBILITYEngine
oil268
Online Edition for Part no. 01402989120 - II/18

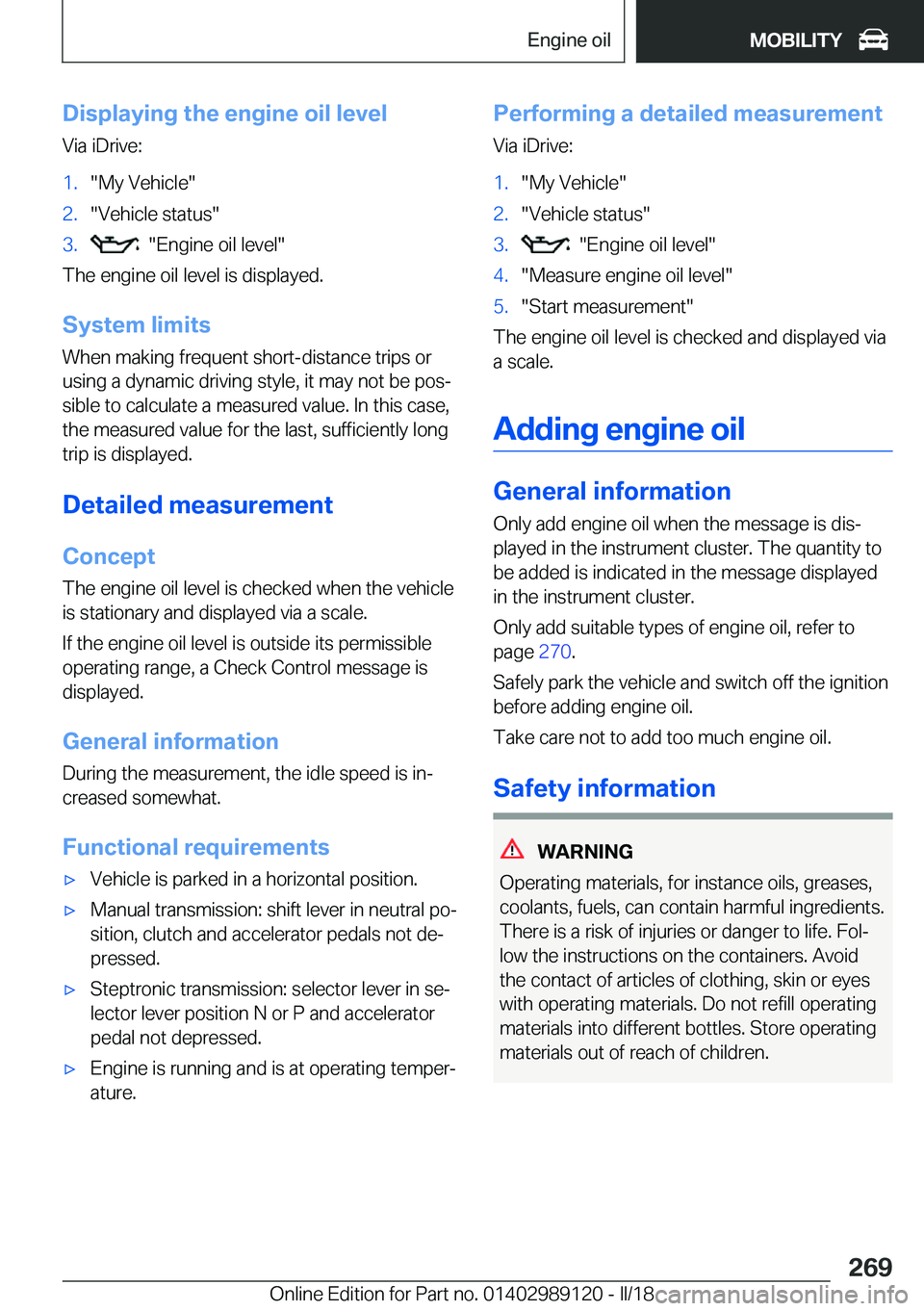

Displaying
the
engine
oil
levelVia iDrive:1."My Vehicle"2."Vehicle status"3. "Engine oil level"
The engine oil level is displayed.
System
limits When making frequent short-distance trips orusing a dynamic driving style, it may not be posjsible to calculate a measured value. In this case,
the measured value for the last, sufficiently long trip is displayed.
Detailed
measurement
Concept The engine oil level is checked when the vehicleis stationary and displayed via a scale.
If the engine oil level is outside its permissible
operating range, a Check Control message is
displayed.
General
information
During the measurement, the idle speed is inj creased somewhat.
Functional
requirements
'xVehicle is parked in a horizontal position.'xManual transmission: shift lever in neutral poj
sition, clutch and accelerator pedals not dej pressed.'xSteptronic transmission: selector lever in sej
lector lever position N or P and accelerator pedal not depressed.'xEngine is running and is at operating temperjature.Performing
a
detailed
measurement
Via iDrive:1."My Vehicle"2."Vehicle status"3. "Engine oil level"4."Measure engine oil level"5."Start measurement"
The engine oil level is checked and displayed via
a scale.
Adding
engine
oil
General
informationOnly add engine oil when the message is disj
played in the instrument cluster. The quantity to be added is indicated in the message displayed
in the instrument cluster.
Only add suitable types of engine oil, refer to page 270.
Safely park the vehicle and switch off the ignition before adding engine oil.
Take care not to add too much engine oil.
Safety
information
WARNING
Operating materials, for instance oils, greases,
coolants, fuels, can contain harmful ingredients. There is a risk of injuries or danger to life. Folj
low the instructions on the containers. Avoid
the contact of articles of clothing, skin or eyes
with operating materials. Do not refill operating
materials into different bottles. Store operating
materials out of reach of children.
Seite 269Engine
oilMOBILITY269
Online Edition for Part no. 01402989120 - II/18

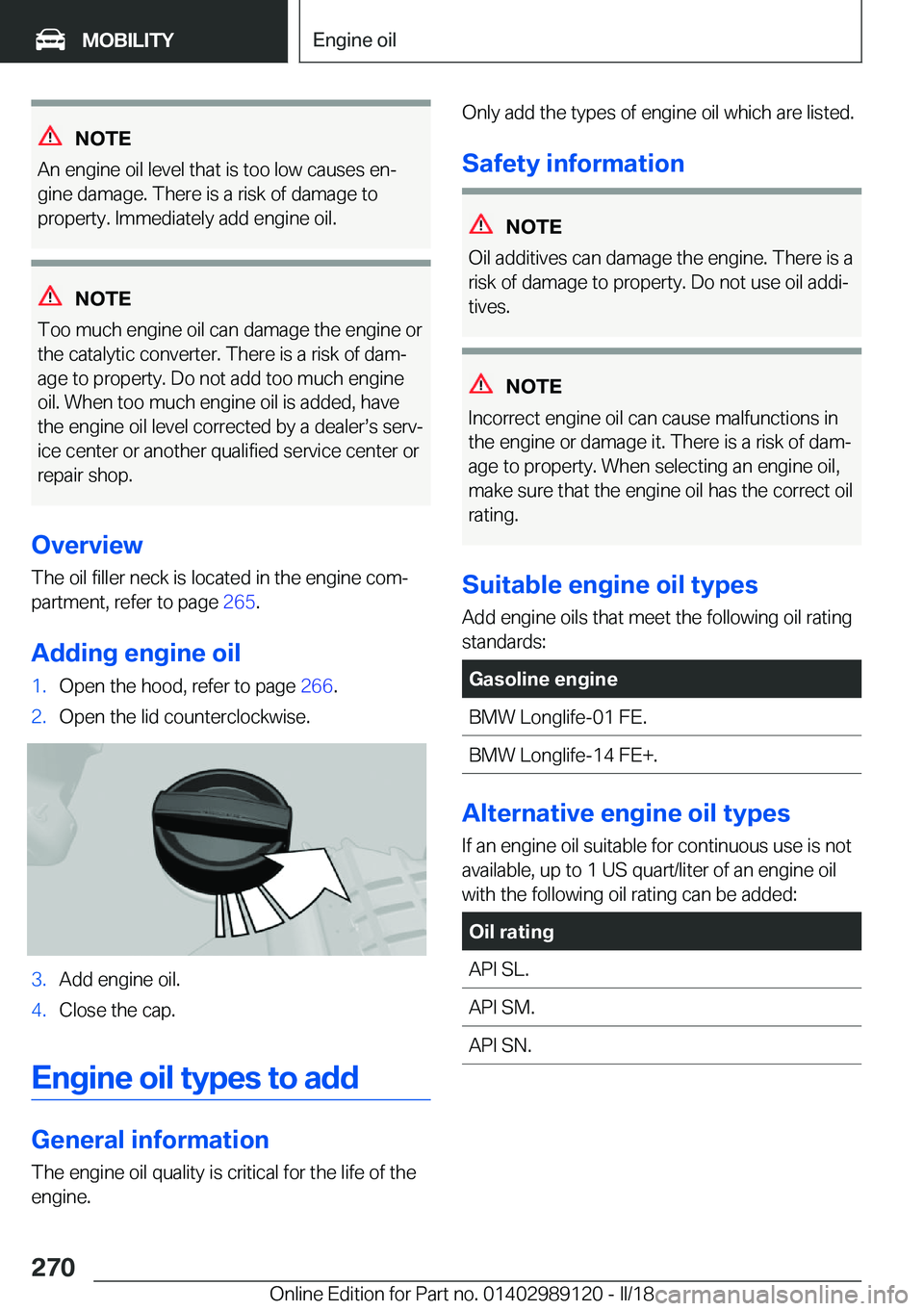

NOTE
An engine oil level that is too low causes enj gine damage. There is a risk of damage to
property. Immediately add engine oil.
NOTE
Too much engine oil can damage the engine or
the catalytic converter. There is a risk of damj
age to property. Do not add too much engine
oil. When too much engine oil is added, have the engine oil level corrected by a dealerss servjice center or another qualified service center or
repair shop.
Overview
The oil filler neck is located in the engine comj
partment, refer to page 265.
Adding
engine
oil
1.Open the hood, refer to page 266.2.Open the lid counterclockwise.3.Add engine oil.4.Close the cap.
Engine
oil
types
to
add
General
information
The engine oil quality is critical for the life of the
engine.
Only add the types of engine oil which are listed.
Safety
information
NOTE
Oil additives can damage the engine. There is a risk of damage to property. Do not use oil addijtives.
NOTE
Incorrect engine oil can cause malfunctions in the engine or damage it. There is a risk of damj
age to property. When selecting an engine oil,
make sure that the engine oil has the correct oil
rating.
Suitable
engine
oil
types
Add engine oils that meet the following oil rating
standards:
Gasoline
engineBMW Longlife-01 FE.BMW Longlife-14 FE+.
Alternative
engine
oil
types
If an engine oil suitable for continuous use is not
available, up to 1 US quart/liter of an engine oil
with the following oil rating can be added:
Oil
ratingAPI SL.API SM.API SN.Seite 270MOBILITYEngine
oil270
Online Edition for Part no. 01402989120 - II/18

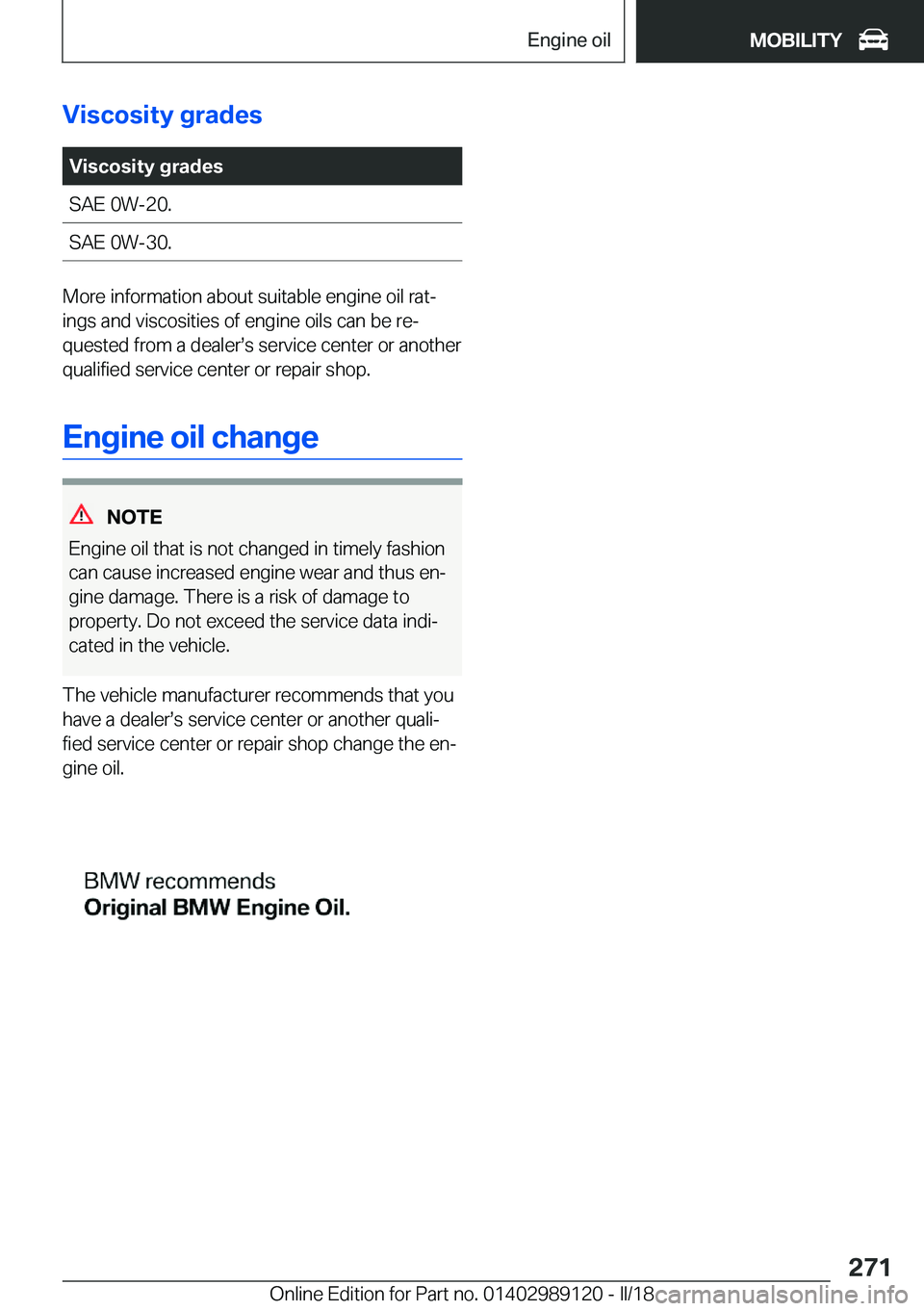

Viscosity
gradesViscosity
gradesSAE 0W-20.SAE 0W-30.
More information about suitable engine oil ratj
ings and viscosities of engine oils can be rej quested from a dealerss service center or another
qualified service center or repair shop.
Engine
oil
change
NOTE
Engine oil that is not changed in timely fashion
can cause increased engine wear and thus enj gine damage. There is a risk of damage to
property. Do not exceed the service data indij
cated in the vehicle.
The vehicle manufacturer recommends that you have a dealerss service center or another qualij
fied service center or repair shop change the enj
gine oil.
Seite 271Engine
oilMOBILITY271
Online Edition for Part no. 01402989120 - II/18

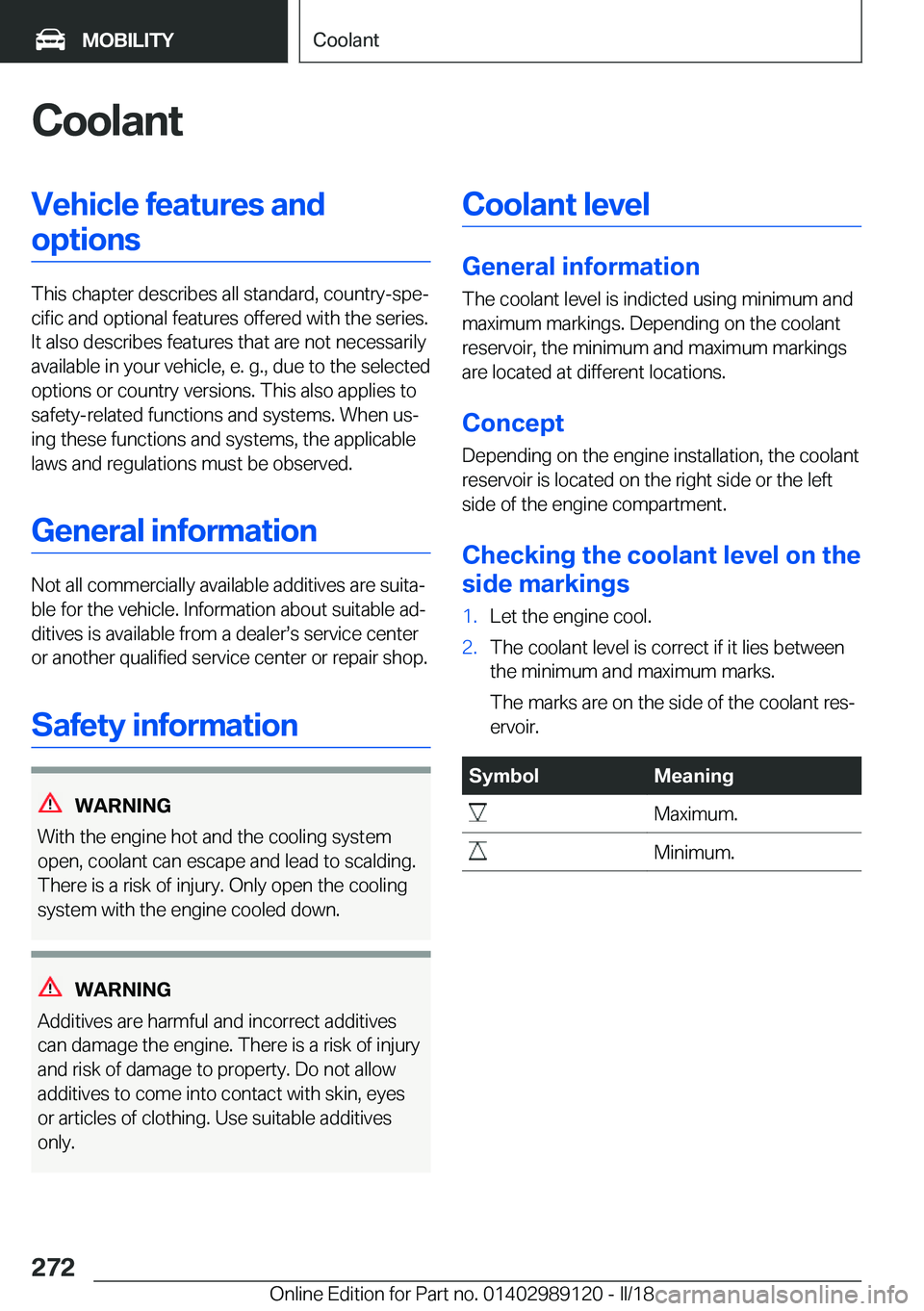

CoolantVehicle
features
andoptions
This chapter describes all standard, country-spejcific and optional features offered with the series. It also describes features that are not necessarilyavailable in your vehicle, e. g., due to the selectedoptions or country versions. This also applies to
safety-related functions and systems. When usj
ing these functions and systems, the applicable laws and regulations must be observed.
General
information
Not all commercially available additives are suitaj
ble for the vehicle. Information about suitable adj ditives is available from a dealerss service centeror another qualified service center or repair shop.
Safety
information
WARNING
With the engine hot and the cooling system
open, coolant can escape and lead to scalding.
There is a risk of injury. Only open the cooling
system with the engine cooled down.
WARNING
Additives are harmful and incorrect additives can damage the engine. There is a risk of injury
and risk of damage to property. Do not allow
additives to come into contact with skin, eyes
or articles of clothing. Use suitable additives
only.
Coolant
level
General
information
The coolant level is indicted using minimum andmaximum markings. Depending on the coolant
reservoir, the minimum and maximum markings
are located at different locations.
Concept
Depending on the engine installation, the coolant
reservoir is located on the right side or the left
side of the engine compartment.
Checking
the
coolant
level
on
the
side
markings
1.Let the engine cool.2.The coolant level is correct if it lies between the minimum and maximum marks.
The marks are on the side of the coolant resj
ervoir.SymbolMeaningMaximum.Minimum.Seite 272MOBILITYCoolant272
Online Edition for Part no. 01402989120 - II/18
