2019 BMW 4 SERIES COUPE Owners Manual

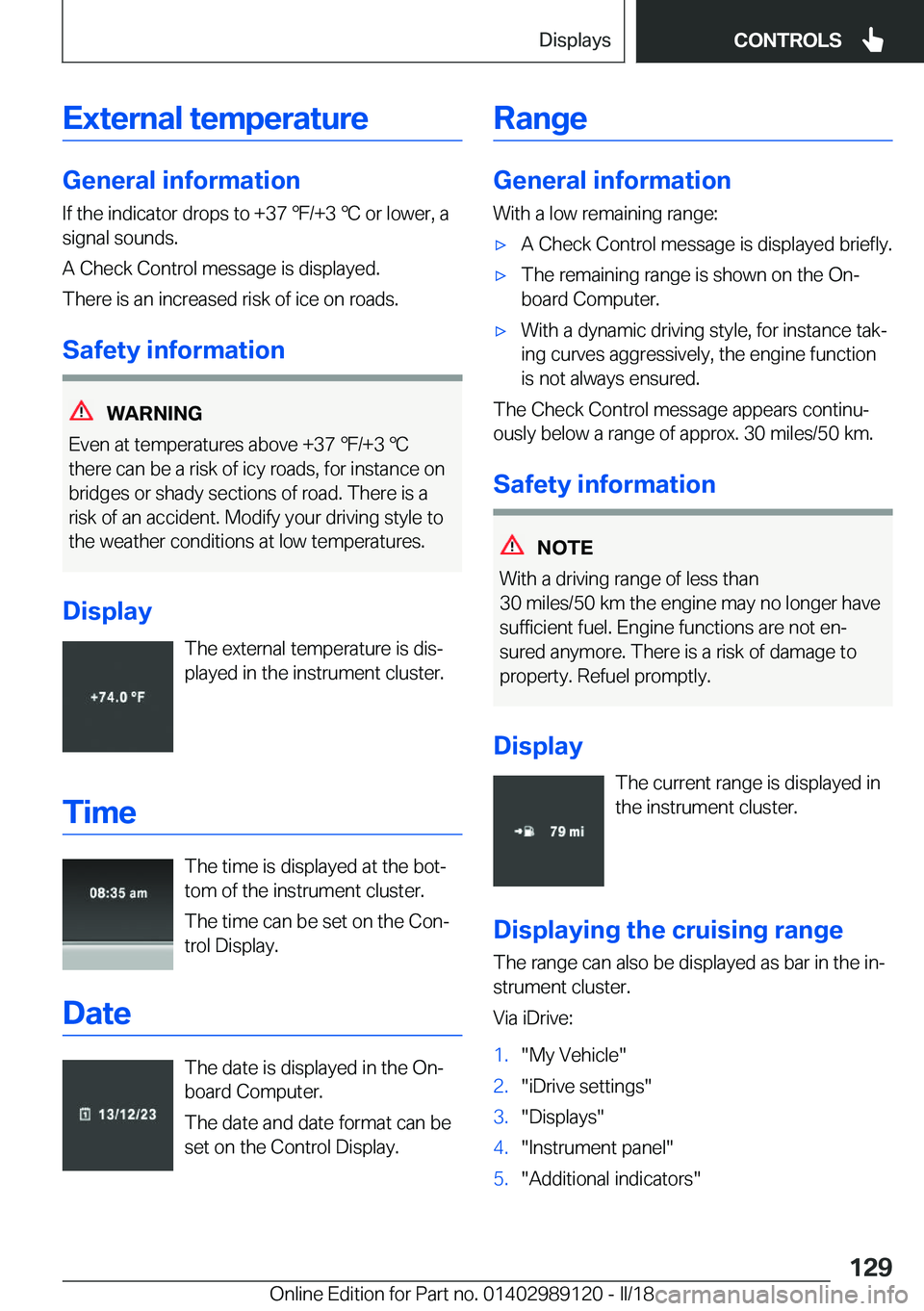

External
temperature
General
informationIf the indicator drops to +37

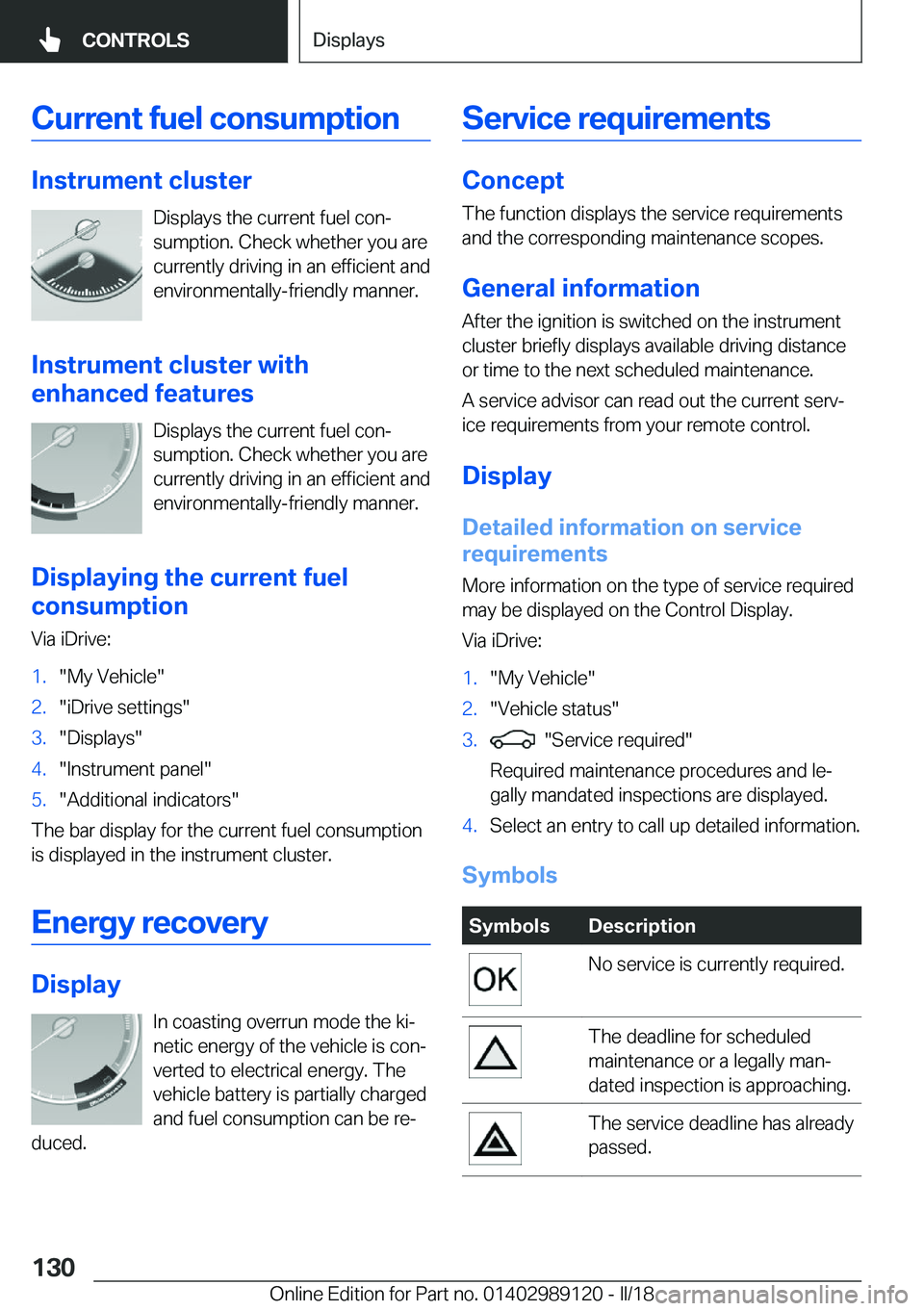

Current
fuel
consumption
Instrument
clusterDisplays the current fuel conjsumption. Check whether you are
currently driving in an efficient and
environmentally-friendly manner.
Instrument
cluster
with
enhanced
features
Displays the current fuel conjsumption. Check whether you are
currently driving in an efficient and
environmentally-friendly manner.
Displaying
the
current
fuel
consumption
Via iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Instrument panel"5."Additional indicators"
The bar display for the current fuel consumptionis displayed in the instrument cluster.
Energy
recovery
Display In coasting overrun mode the kijnetic energy of the vehicle is conj
verted to electrical energy. The
vehicle battery is partially charged
and fuel consumption can be rej
duced.
Service
requirements
Concept
The function displays the service requirements and the corresponding maintenance scopes.
General
information After the ignition is switched on the instrumentcluster briefly displays available driving distanceor time to the next scheduled maintenance.
A service advisor can read out the current servj
ice requirements from your remote control.
Display Detailed
information
on
service
requirements
More information on the type of service required
may be displayed on the Control Display.
Via iDrive:
1."My Vehicle"2."Vehicle status"3. "Service required"
Required maintenance procedures and lej gally mandated inspections are displayed.4.Select an entry to call up detailed information.
Symbols
SymbolsDescriptionNo service is currently required.The deadline for scheduled
maintenance or a legally manj
dated inspection is approaching.The service deadline has already
passed.Seite 130CONTROLSDisplays130
Online Edition for Part no. 01402989120 - II/18

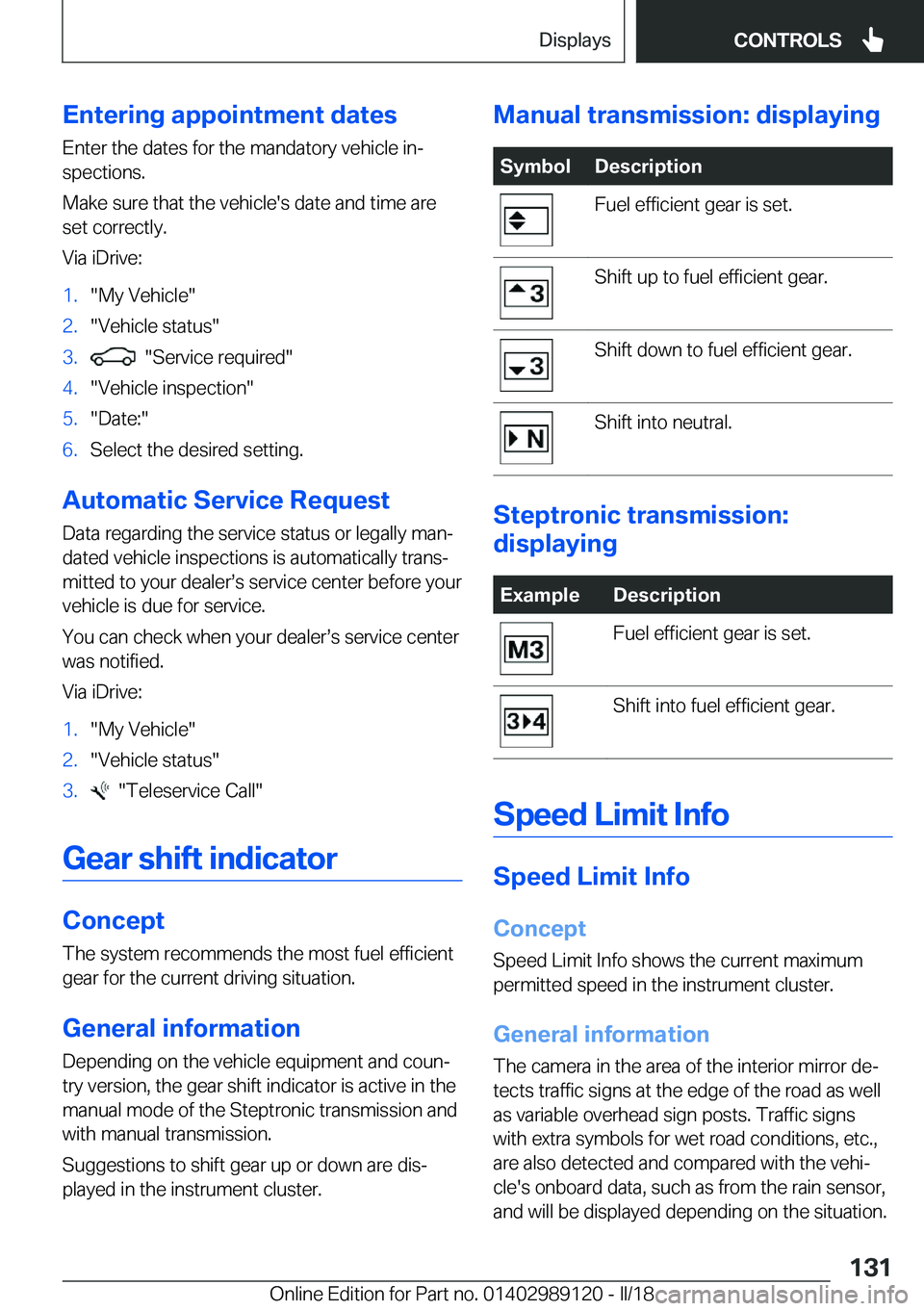

Entering
appointment
datesEnter the dates for the mandatory vehicle injspections.
Make sure that the vehicle's date and time are set correctly.
Via iDrive:1."My Vehicle"2."Vehicle status"3. "Service required"4."Vehicle inspection"5."Date:"6.Select the desired setting.
Automatic
Service
Request
Data regarding the service status or legally manj dated vehicle inspections is automatically transj
mitted to your dealerss service center before your
vehicle is due for service.
You can check when your dealerss service center was notified.
Via iDrive:
1."My Vehicle"2."Vehicle status"3. "Teleservice Call"
Gear
shift
indicator
Concept
The system recommends the most fuel efficient gear for the current driving situation.
General
information
Depending on the vehicle equipment and counj
try version, the gear shift indicator is active in the
manual mode of the Steptronic transmission and with manual transmission.
Suggestions to shift gear up or down are disj
played in the instrument cluster.
Manual
transmission:
displayingSymbolDescriptionFuel efficient gear is set.Shift up to fuel efficient gear.Shift down to fuel efficient gear.Shift into neutral.
Steptronic
transmission:
displaying
ExampleDescriptionFuel efficient gear is set.Shift into fuel efficient gear.
Speed
Limit
Info
Speed
Limit
Info
Concept
Speed Limit Info shows the current maximum permitted speed in the instrument cluster.
General
information The camera in the area of the interior mirror dej
tects traffic signs at the edge of the road as well
as variable overhead sign posts. Traffic signs
with extra symbols for wet road conditions, etc., are also detected and compared with the vehij
cle's onboard data, such as from the rain sensor,
and will be displayed depending on the situation.
Seite 131DisplaysCONTROLS131
Online Edition for Part no. 01402989120 - II/18

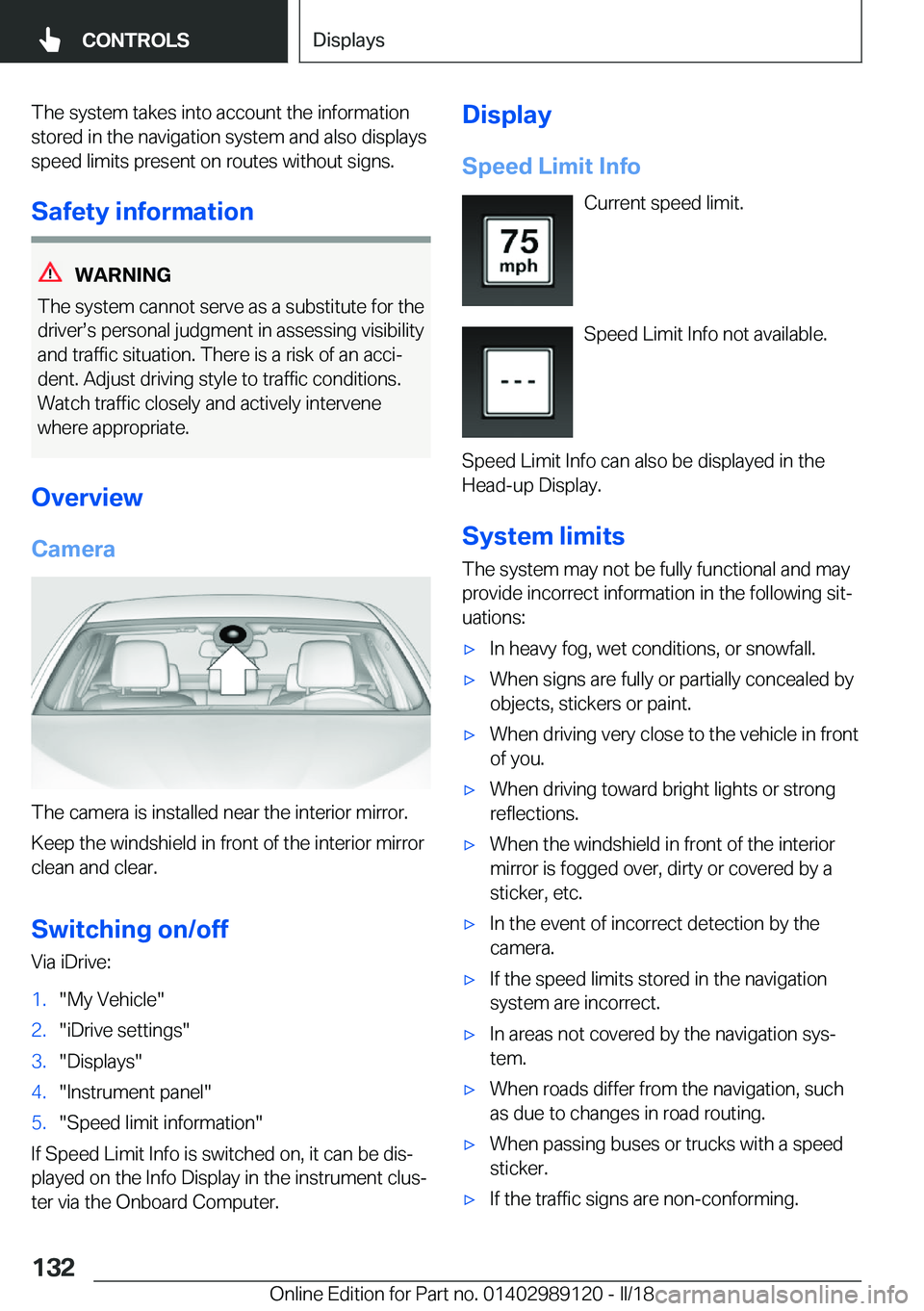

The system takes into account the informationstored in the navigation system and also displays
speed limits present on routes without signs.
Safety
information
WARNING
The system cannot serve as a substitute for the
driverss personal judgment in assessing visibility and traffic situation. There is a risk of an accij
dent. Adjust driving style to traffic conditions. Watch traffic closely and actively intervene
where appropriate.
Overview
Camera
The camera is installed near the interior mirror.
Keep the windshield in front of the interior mirror clean and clear.
Switching
on/off
Via iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Instrument panel"5."Speed limit information"
If Speed Limit Info is switched on, it can be disj
played on the Info Display in the instrument clusj ter via the Onboard Computer.
Display
Speed
Limit
Info Current speed limit.
Speed Limit Info not available.
Speed Limit Info can also be displayed in the
Head-up Display.
System
limits The system may not be fully functional and may
provide incorrect information in the following sitj uations:'xIn heavy fog, wet conditions, or snowfall.'xWhen signs are fully or partially concealed by
objects, stickers or paint.'xWhen driving very close to the vehicle in front
of you.'xWhen driving toward bright lights or strong
reflections.'xWhen the windshield in front of the interior
mirror is fogged over, dirty or covered by a
sticker, etc.'xIn the event of incorrect detection by the camera.'xIf the speed limits stored in the navigationsystem are incorrect.'xIn areas not covered by the navigation sysjtem.'xWhen roads differ from the navigation, suchas due to changes in road routing.'xWhen passing buses or trucks with a speedsticker.'xIf the traffic signs are non-conforming.Seite 132CONTROLSDisplays132
Online Edition for Part no. 01402989120 - II/18

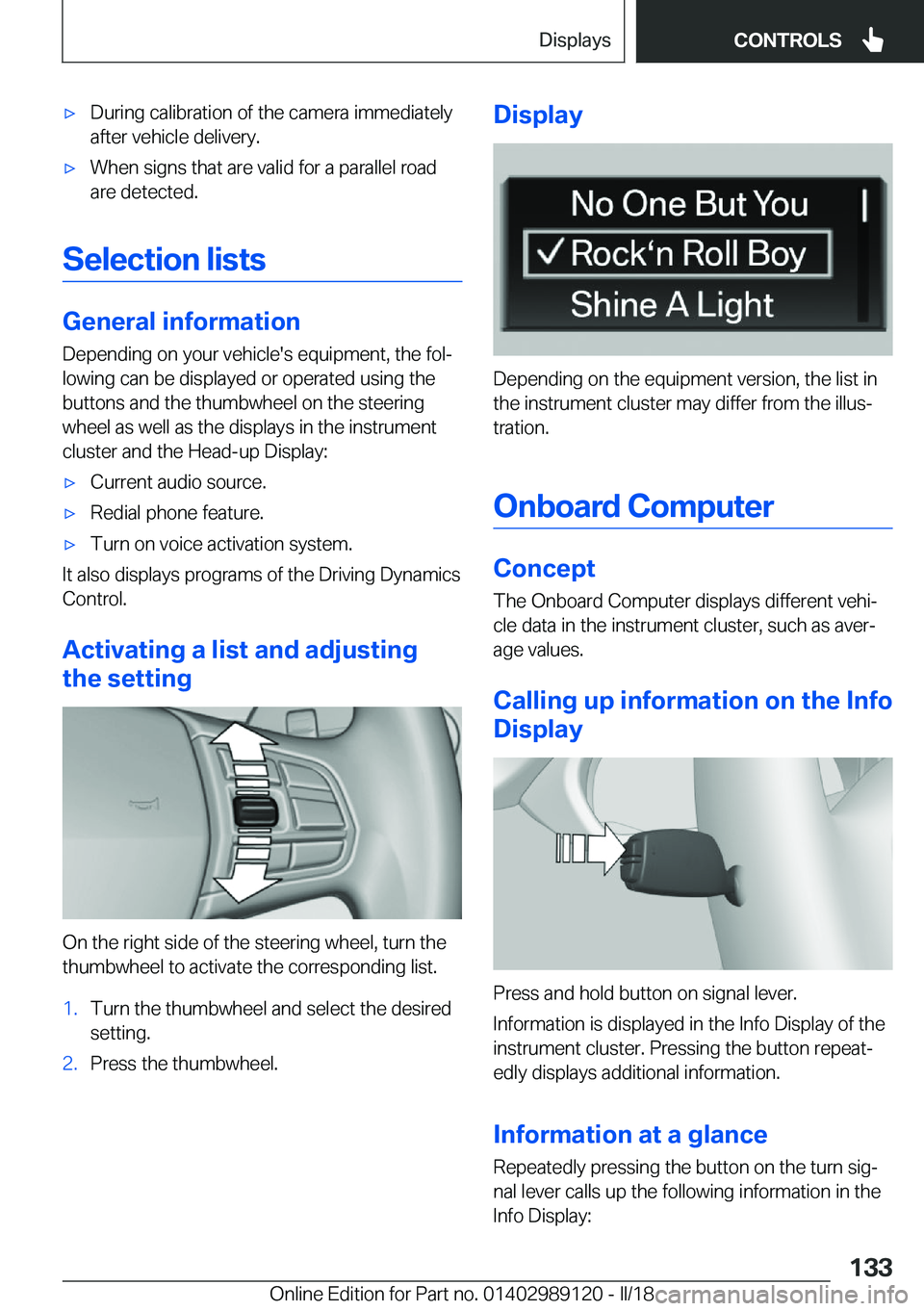

'xDuring calibration of the camera immediately
after vehicle delivery.'xWhen signs that are valid for a parallel road
are detected.
Selection
lists
General
information
Depending on your vehicle's equipment, the folj
lowing can be displayed or operated using the
buttons and the thumbwheel on the steering wheel as well as the displays in the instrumentcluster and the Head-up Display:
'xCurrent audio source.'xRedial phone feature.'xTurn on voice activation system.
It also displays programs of the Driving Dynamics
Control.
Activating
a
list
and
adjusting
the
setting
On the right side of the steering wheel, turn the thumbwheel to activate the corresponding list.
1.Turn the thumbwheel and select the desiredsetting.2.Press the thumbwheel.Display
Depending on the equipment version, the list inthe instrument cluster may differ from the illusj
tration.
Onboard
Computer
Concept
The Onboard Computer displays different vehij cle data in the instrument cluster, such as averj
age values.
Calling
up
information
on
the
Info
Display
Press and hold button on signal lever.
Information is displayed in the Info Display of the instrument cluster. Pressing the button repeatjedly displays additional information.
Information
at
a
glance Repeatedly pressing the button on the turn sigj
nal lever calls up the following information in the Info Display:
Seite 133DisplaysCONTROLS133
Online Edition for Part no. 01402989120 - II/18

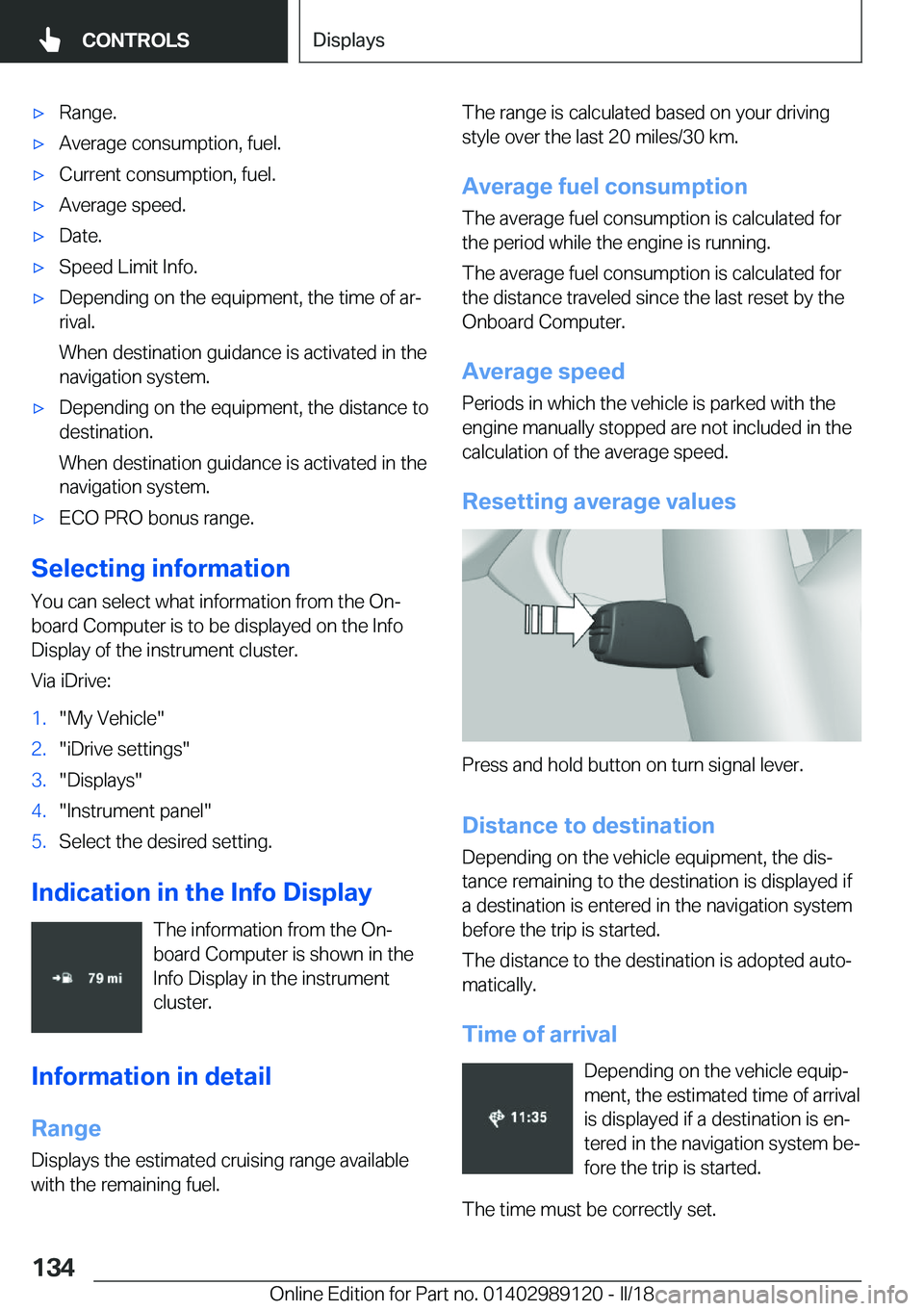

'xRange.'xAverage consumption, fuel.'xCurrent consumption, fuel.'xAverage speed.'xDate.'xSpeed Limit Info.'xDepending on the equipment, the time of arjrival.
When destination guidance is activated in the navigation system.'xDepending on the equipment, the distance to
destination.
When destination guidance is activated in the navigation system.'xECO PRO bonus range.
Selecting
information
You can select what information from the Onj
board Computer is to be displayed on the Info
Display of the instrument cluster.
Via iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Instrument panel"5.Select the desired setting.
Indication
in
the
Info
Display
The information from the Onjboard Computer is shown in the
Info Display in the instrument
cluster.
Information
in
detail
Range Displays the estimated cruising range availablewith the remaining fuel.
The range is calculated based on your drivingstyle over the last 20 miles/30 km.
Average
fuel
consumption
The average fuel consumption is calculated for
the period while the engine is running.
The average fuel consumption is calculated for the distance traveled since the last reset by theOnboard Computer.
Average
speed Periods in which the vehicle is parked with theengine manually stopped are not included in thecalculation of the average speed.
Resetting
average
values
Press and hold button on turn signal lever.
Distance
to
destination Depending on the vehicle equipment, the disj
tance remaining to the destination is displayed if
a destination is entered in the navigation system
before the trip is started.
The distance to the destination is adopted autoj
matically.
Time
of
arrival Depending on the vehicle equipj
ment, the estimated time of arrival
is displayed if a destination is enj tered in the navigation system bej fore the trip is started.
The time must be correctly set.
Seite 134CONTROLSDisplays134
Online Edition for Part no. 01402989120 - II/18

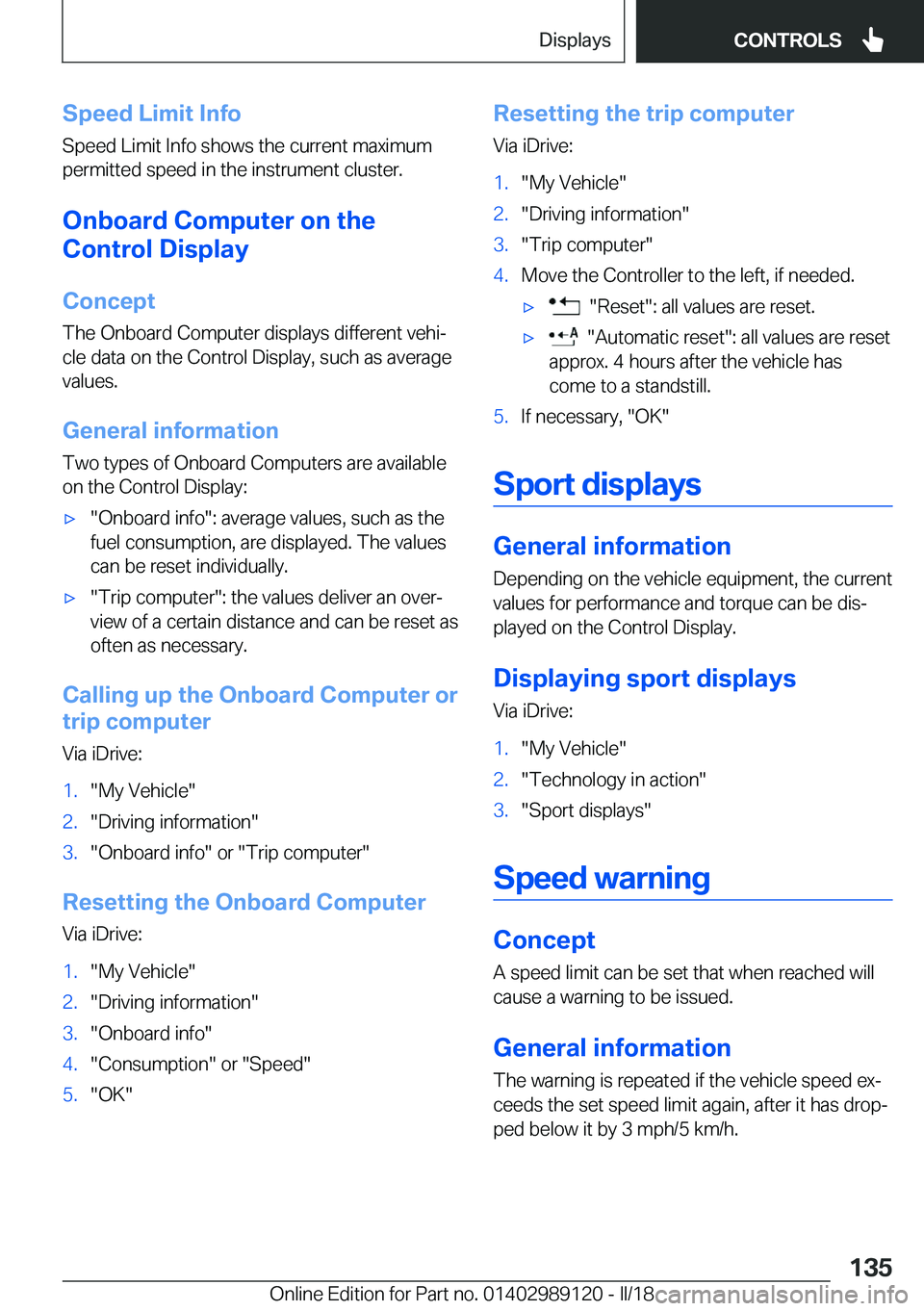

Speed
Limit
Info
Speed Limit Info shows the current maximum
permitted speed in the instrument cluster.
Onboard
Computer
on
the
Control
Display
Concept The Onboard Computer displays different vehijcle data on the Control Display, such as averagevalues.
General
information
Two types of Onboard Computers are available on the Control Display:'x"Onboard info": average values, such as the
fuel consumption, are displayed. The values can be reset individually.'x"Trip computer": the values deliver an overjview of a certain distance and can be reset as
often as necessary.
Calling
up
the
Onboard
Computer
or
trip
computer
Via iDrive:
1."My Vehicle"2."Driving information"3."Onboard info" or "Trip computer"
Resetting
the
Onboard
Computer
Via iDrive:
1."My Vehicle"2."Driving information"3."Onboard info"4."Consumption" or "Speed"5."OK"Resetting
the
trip
computer Via iDrive:1."My Vehicle"2."Driving information"3."Trip computer"4.Move the Controller to the left, if needed.'x "Reset": all values are reset.'x "Automatic reset": all values are reset
approx. 4 hours after the vehicle has
come to a standstill.5.If necessary, "OK"
Sport
displays
General
information
Depending on the vehicle equipment, the current values for performance and torque can be disj
played on the Control Display.
Displaying
sport
displays
Via iDrive:
1."My Vehicle"2."Technology in action"3."Sport displays"
Speed
warning
Concept
A speed limit can be set that when reached will
cause a warning to be issued.
General
informationThe warning is repeated if the vehicle speed exj
ceeds the set speed limit again, after it has dropj
ped below it by 3 mph/5 km/h.
Seite 135DisplaysCONTROLS135
Online Edition for Part no. 01402989120 - II/18

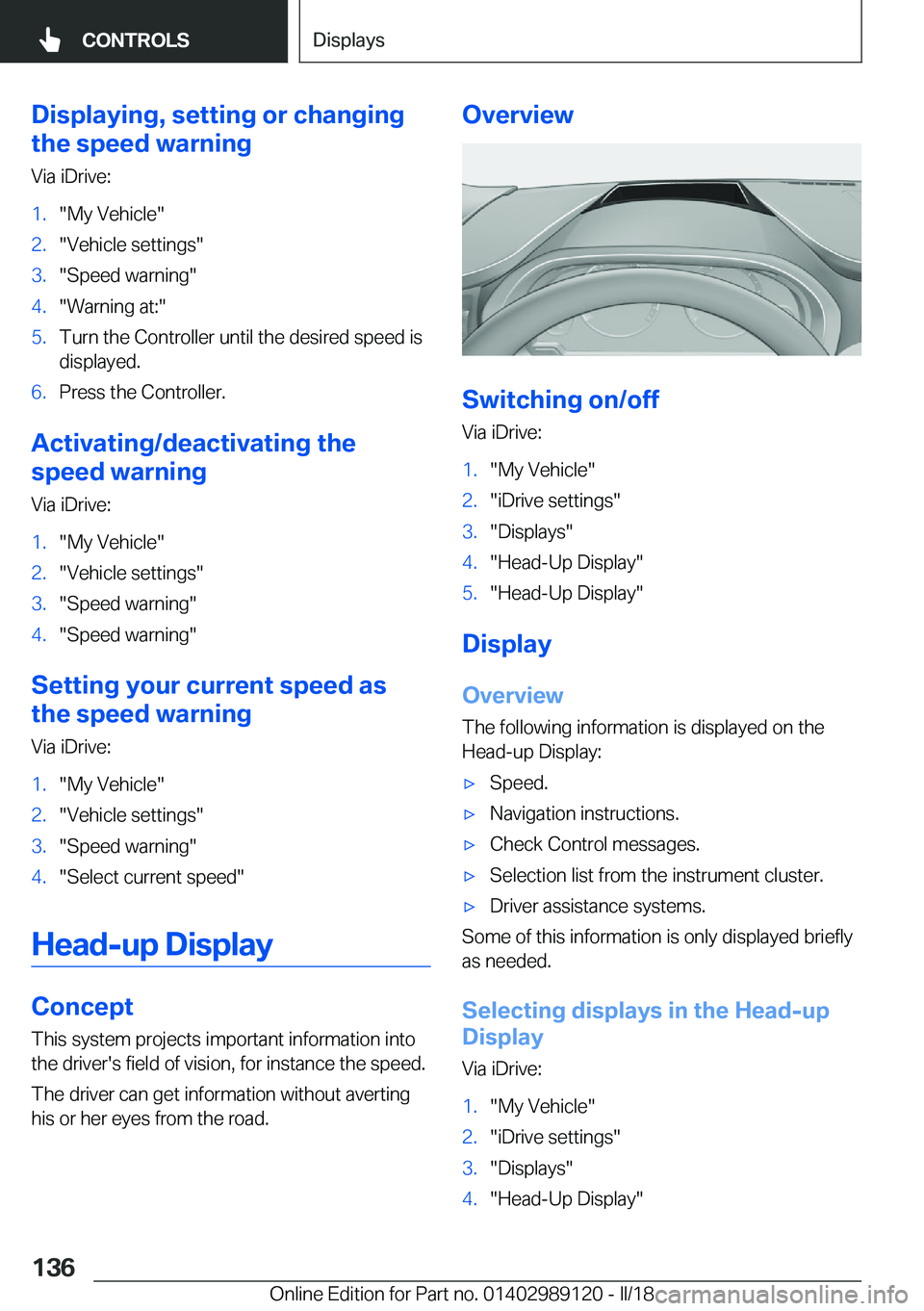

Displaying,
setting
or
changing
the
speed
warning
Via iDrive:1."My Vehicle"2."Vehicle settings"3."Speed warning"4."Warning at:"5.Turn the Controller until the desired speed is displayed.6.Press the Controller.
Activating/deactivating
the
speed
warning
Via iDrive:
1."My Vehicle"2."Vehicle settings"3."Speed warning"4."Speed warning"
Setting
your
current
speed
as
the
speed
warning
Via iDrive:
1."My Vehicle"2."Vehicle settings"3."Speed warning"4."Select current speed"
Head-up
Display
Concept
This system projects important information into the driver's field of vision, for instance the speed.
The driver can get information without averting
his or her eyes from the road.
Overview
Switching
on/off
Via iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"5."Head-Up Display"
Display
Overview
The following information is displayed on the
Head-up Display:
'xSpeed.'xNavigation instructions.'xCheck Control messages.'xSelection list from the instrument cluster.'xDriver assistance systems.
Some of this information is only displayed briefly
as needed.
Selecting
displays
in
the
Head-up
Display
Via iDrive:
1."My Vehicle"2."iDrive settings"3."Displays"4."Head-Up Display"Seite 136CONTROLSDisplays136
Online Edition for Part no. 01402989120 - II/18
